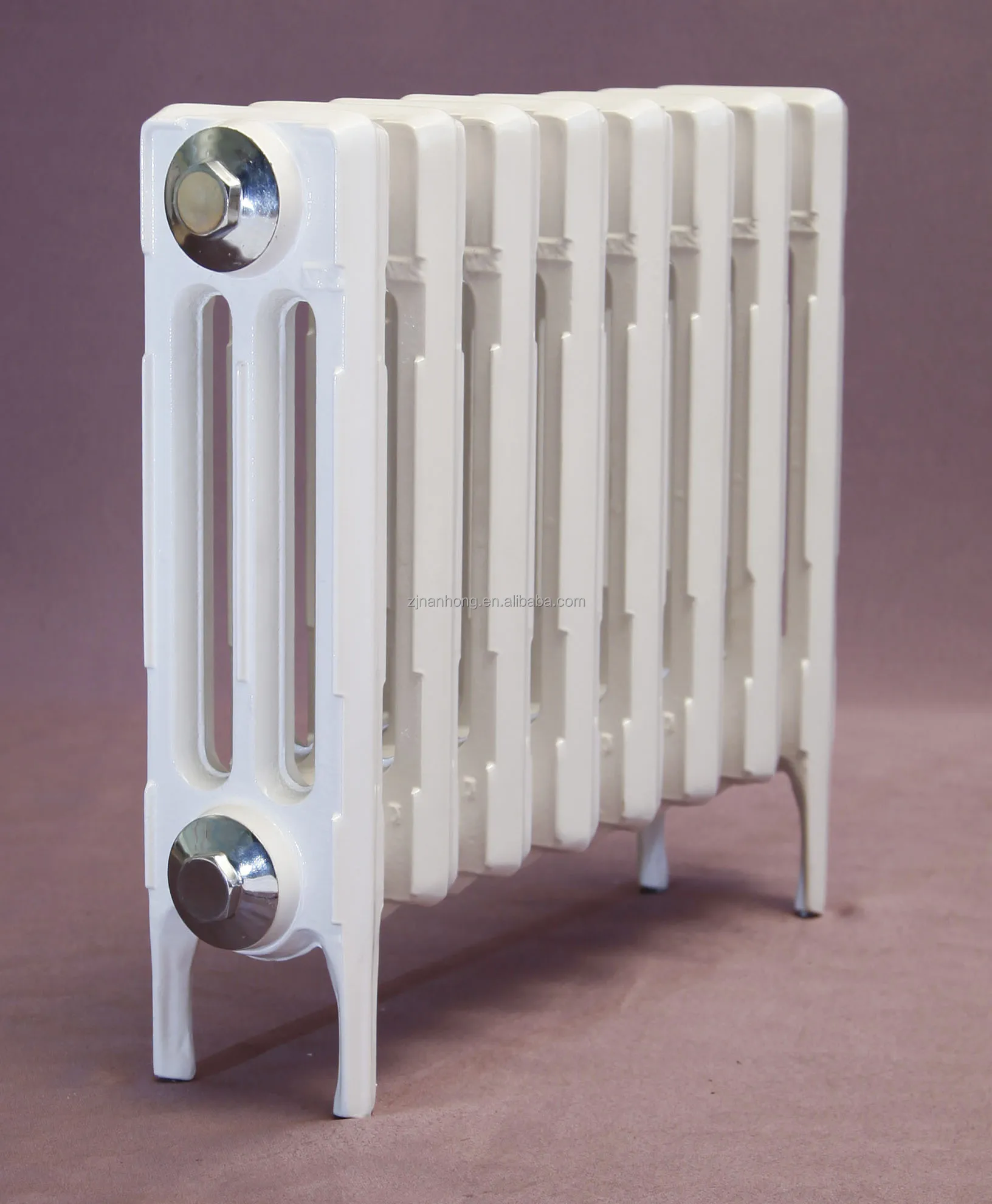

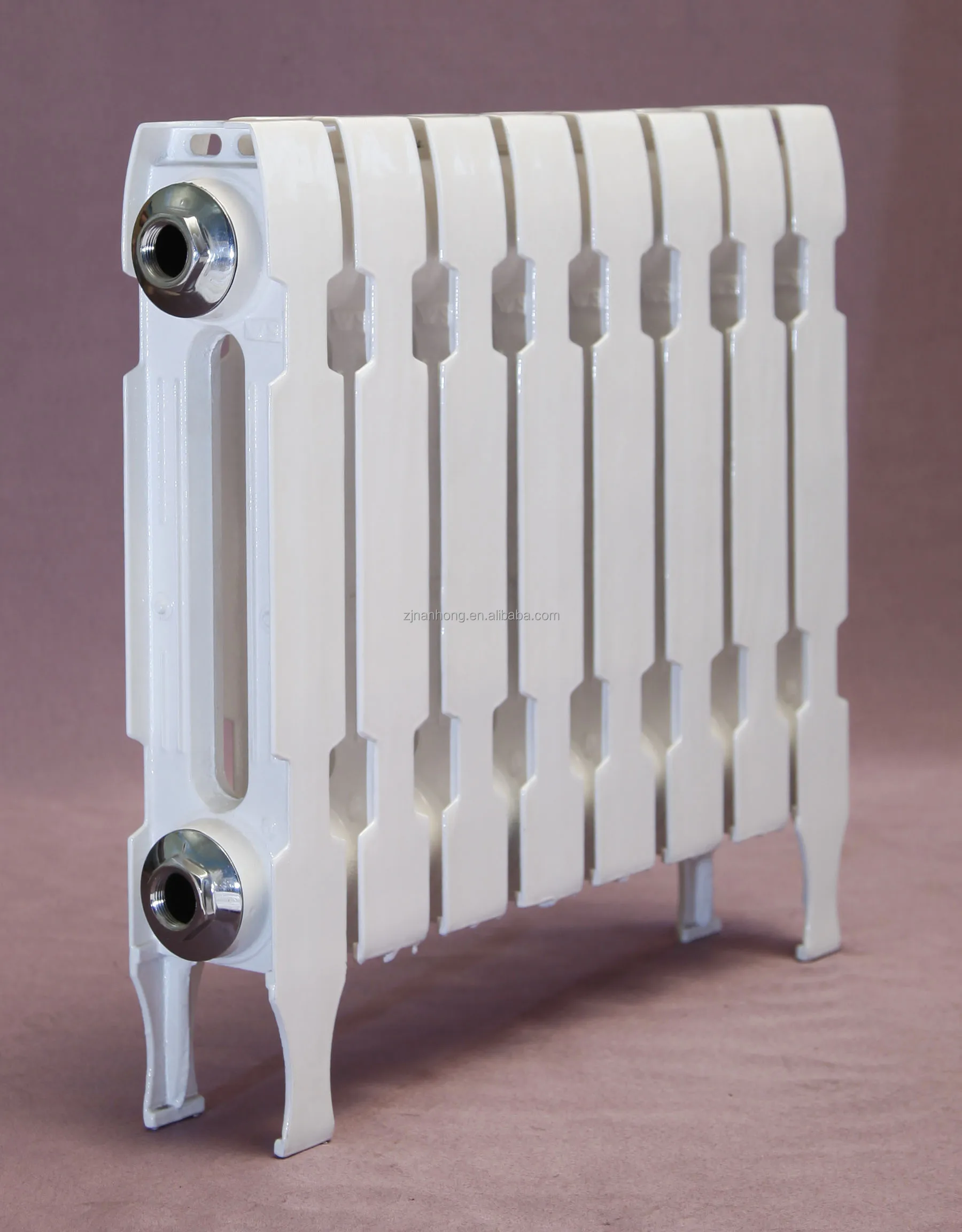

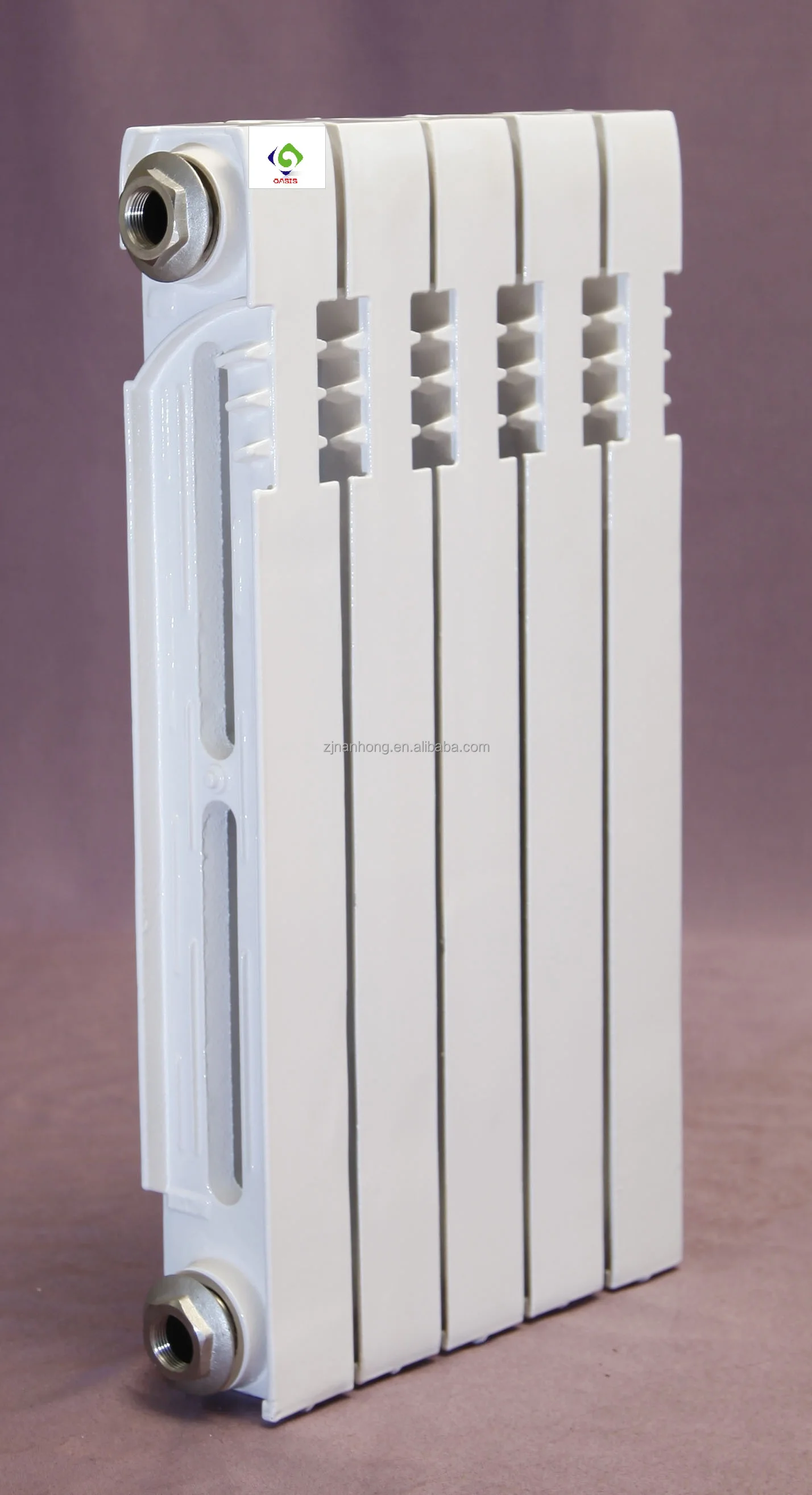

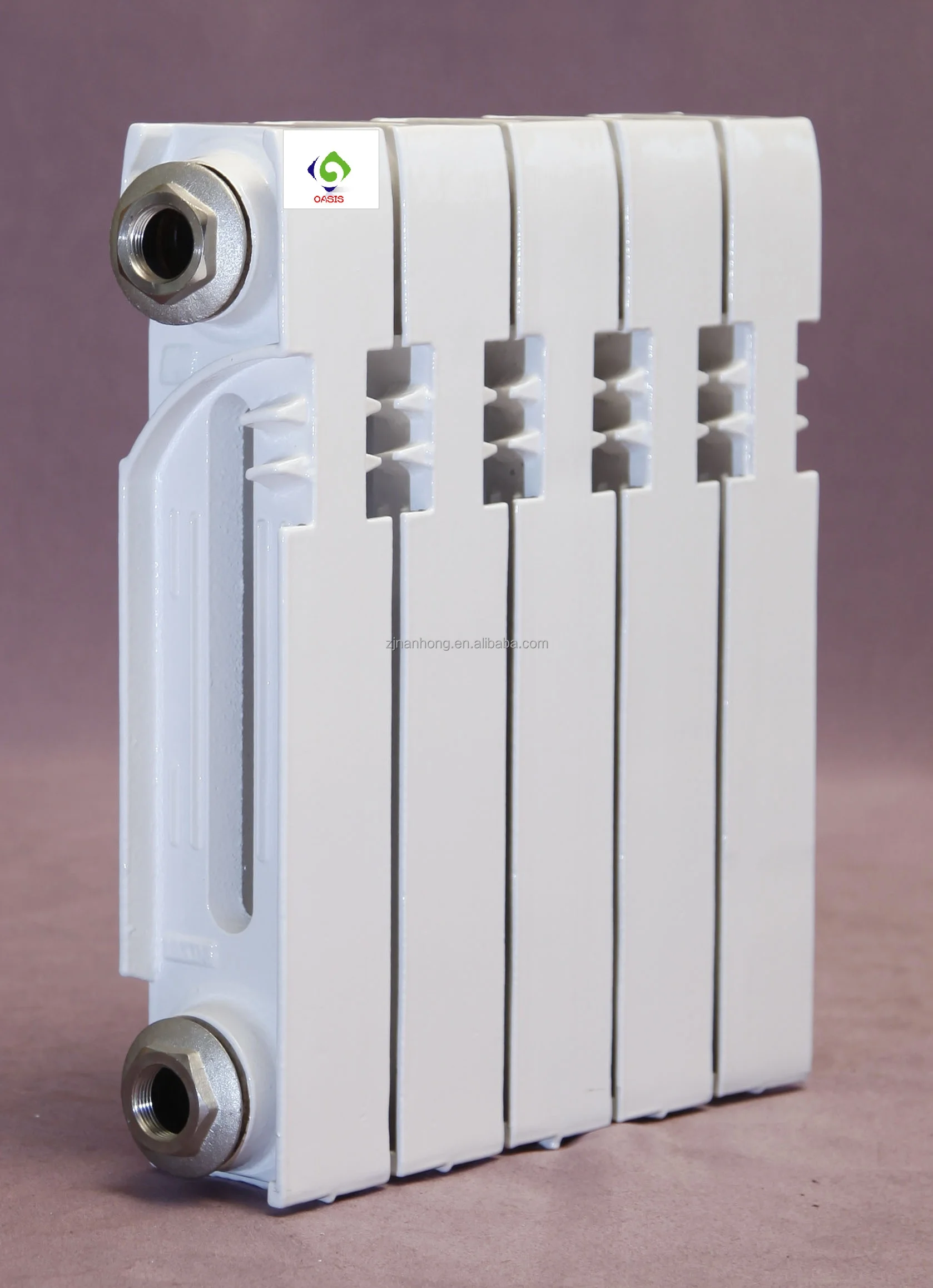

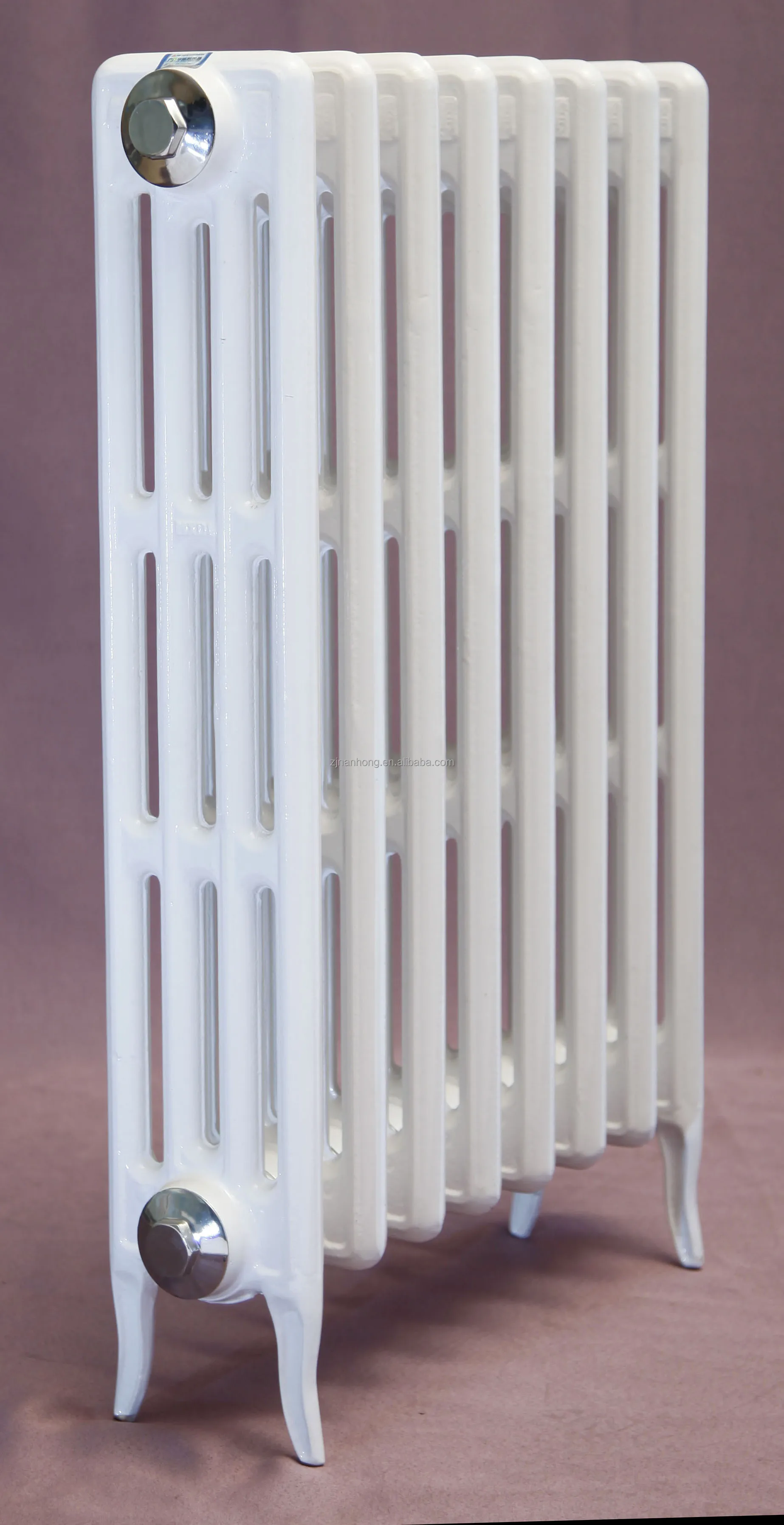

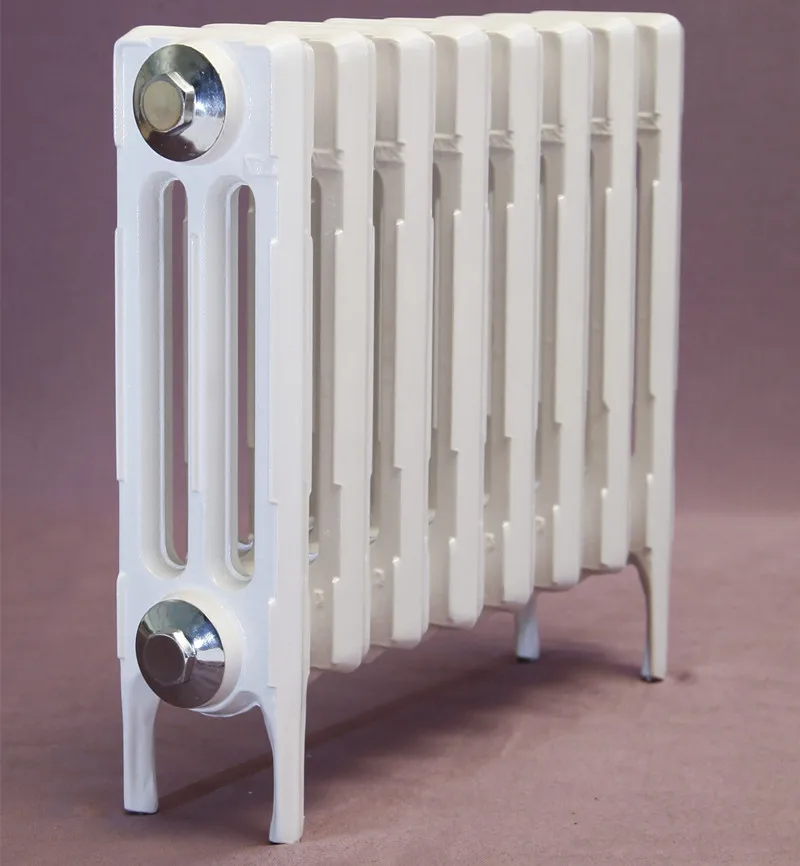

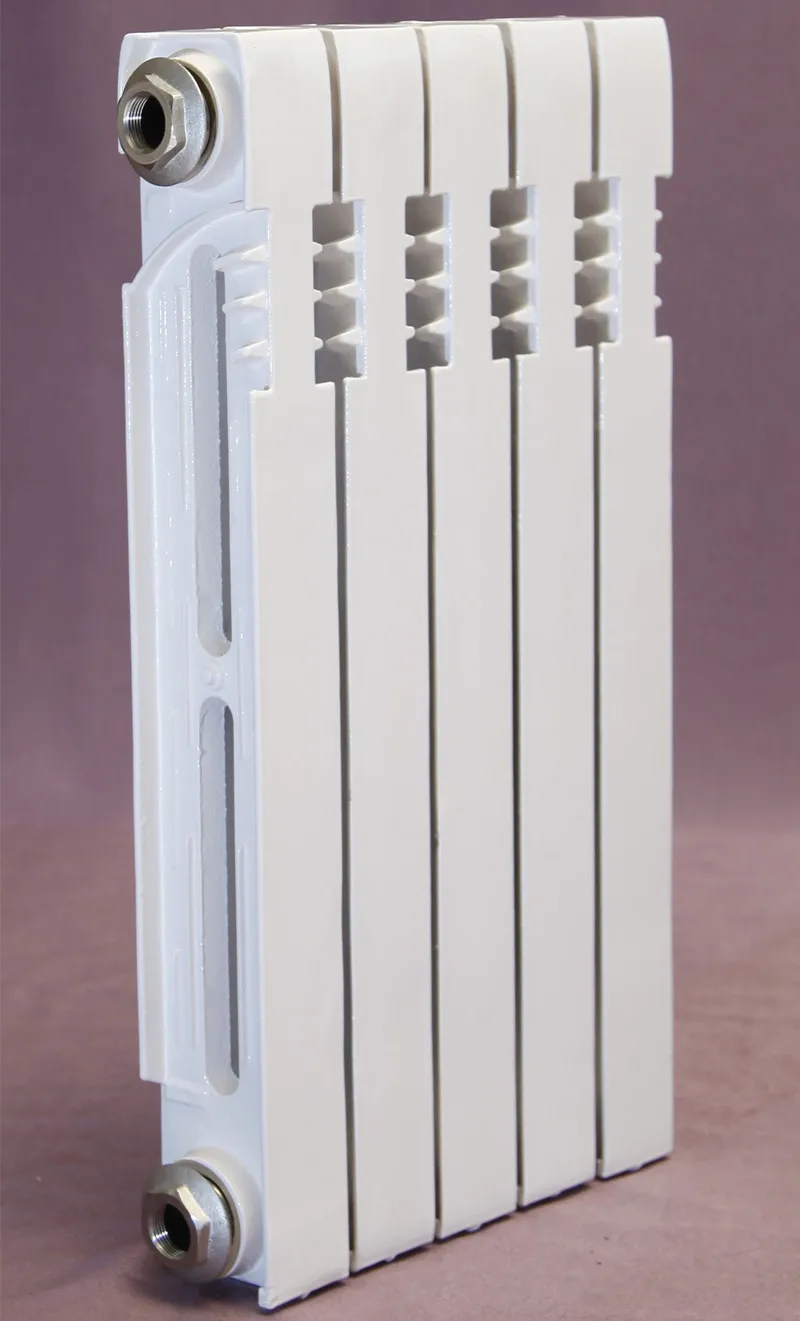

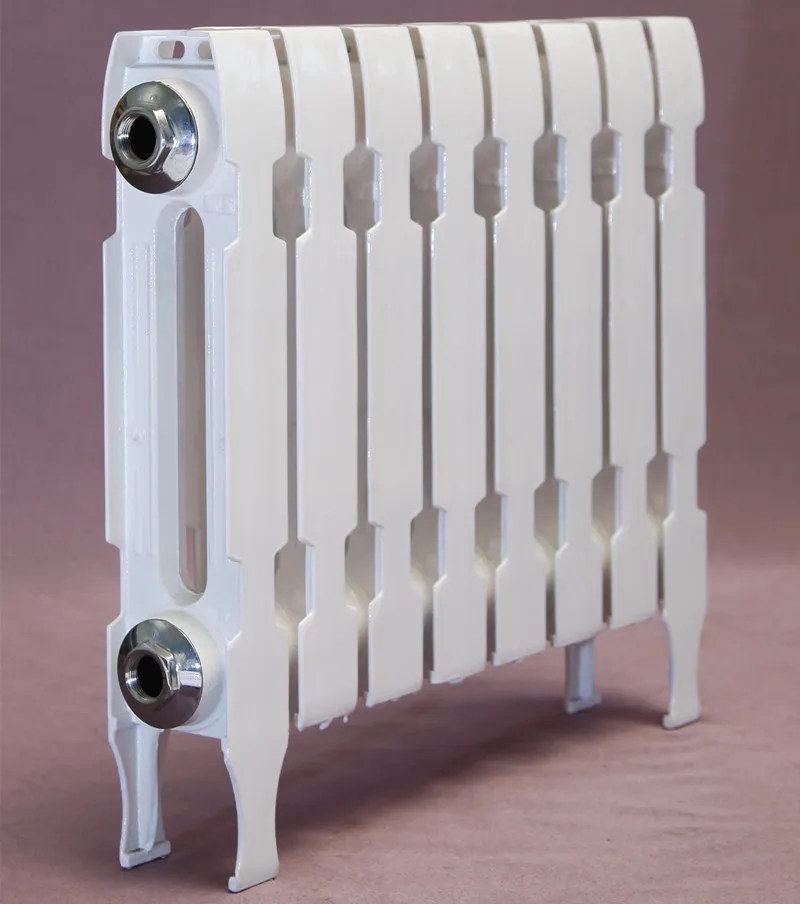

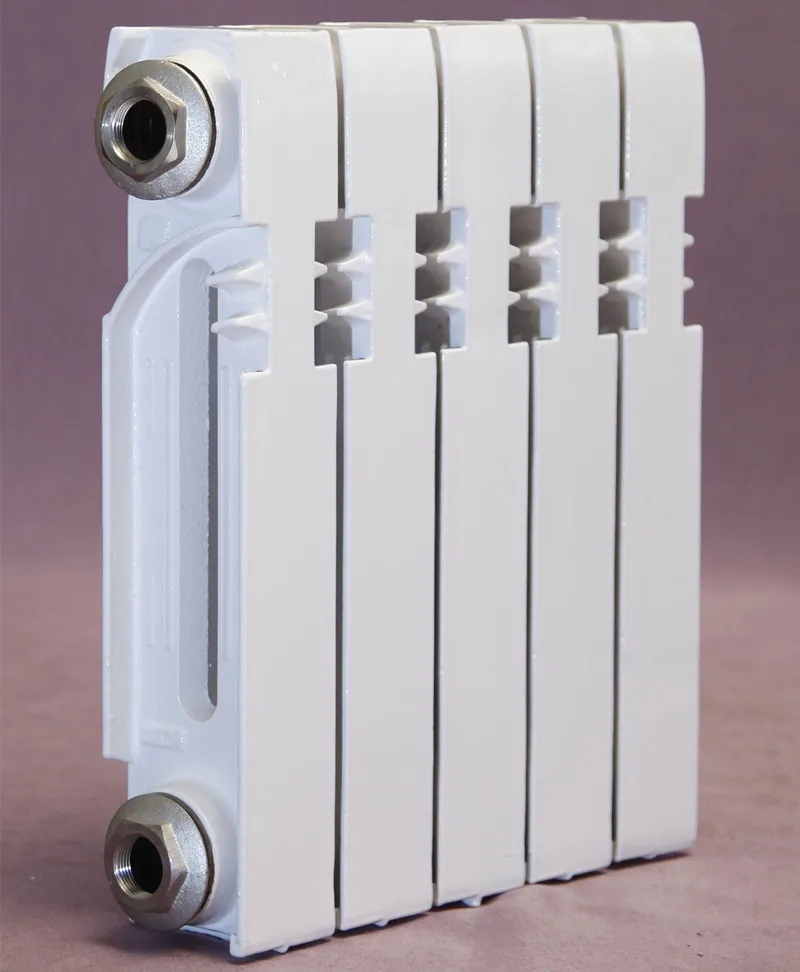

Cast Iron radiator for home water heating

Product Overview

Description

Cast Iron radiator for home water heating



Model No.	Height H(mm)	Width B(mm)	Length L(mm)	Central Distance mm	Weight ≤Kg	Water capacity L	Heat Power   W	Working Pressure                                                                                  ≤MPa                     Hot Water Steam	Connector Size
TZY2-6-8	700/780	100	64	600	5.5	1.05	145	1.8	G11/2
TZY2-5-8	600/680	100	64	500	4.7	0.95	120	1.8	G11/2
TZY2-3-8	400/480	90	64	300	3.1	0.66	90	1.8	G11/2
TBD2-6-8	665	80	60	600	5	1.07	130	1,8	G11/4
TBD2-5-8	565	80	60	500	4.3	0.89	107	1,8	G11/4
TBD2-3-8	365	80	60	300	3	0.5	79	1.8	G11/4
