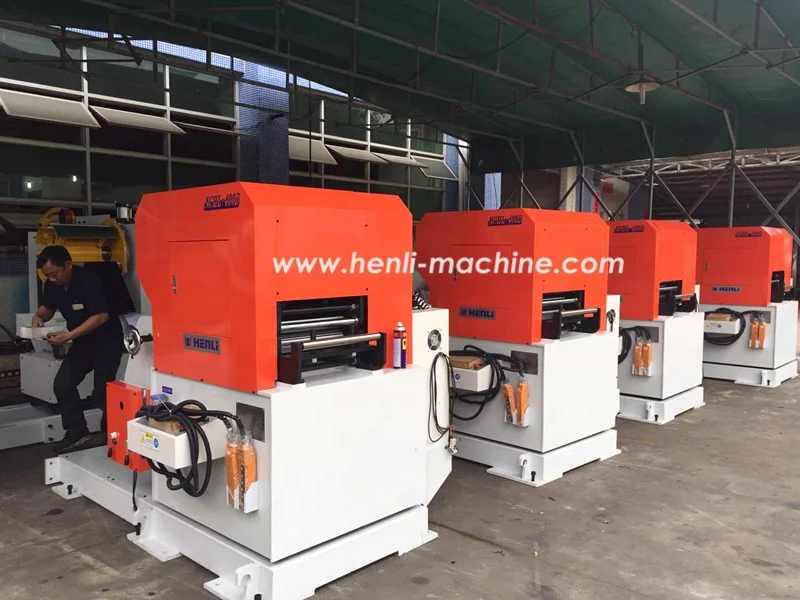

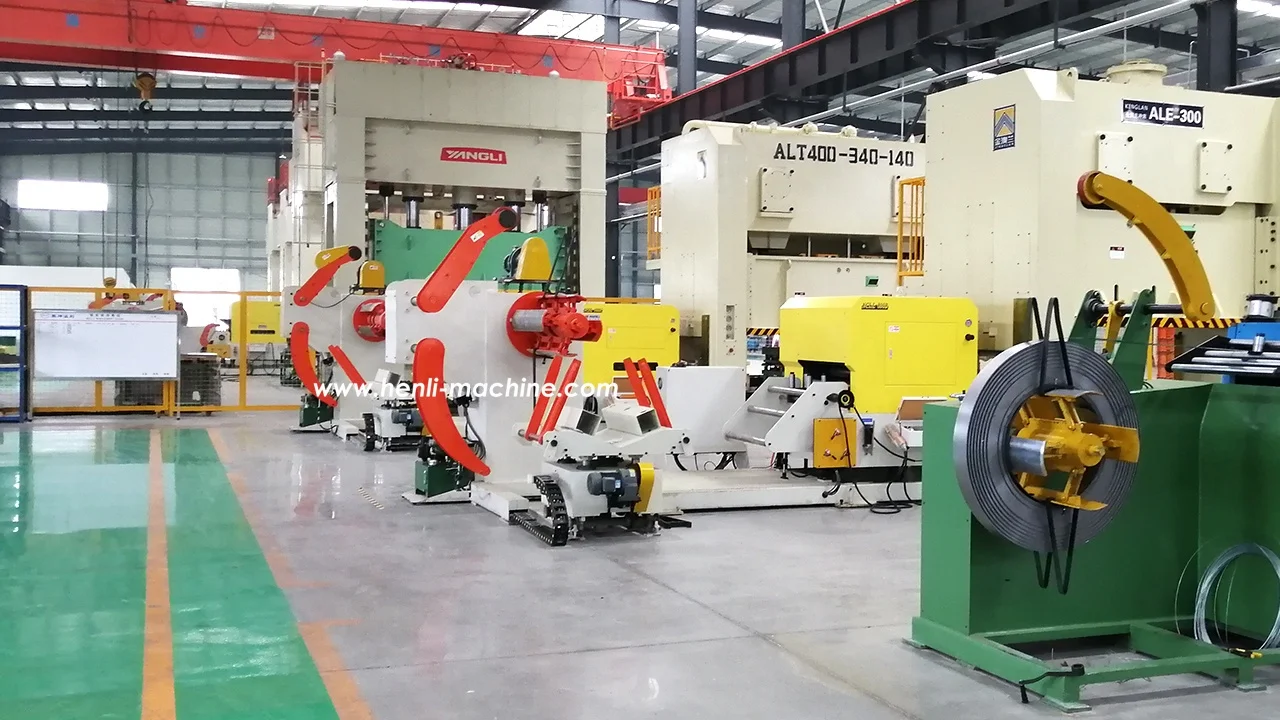

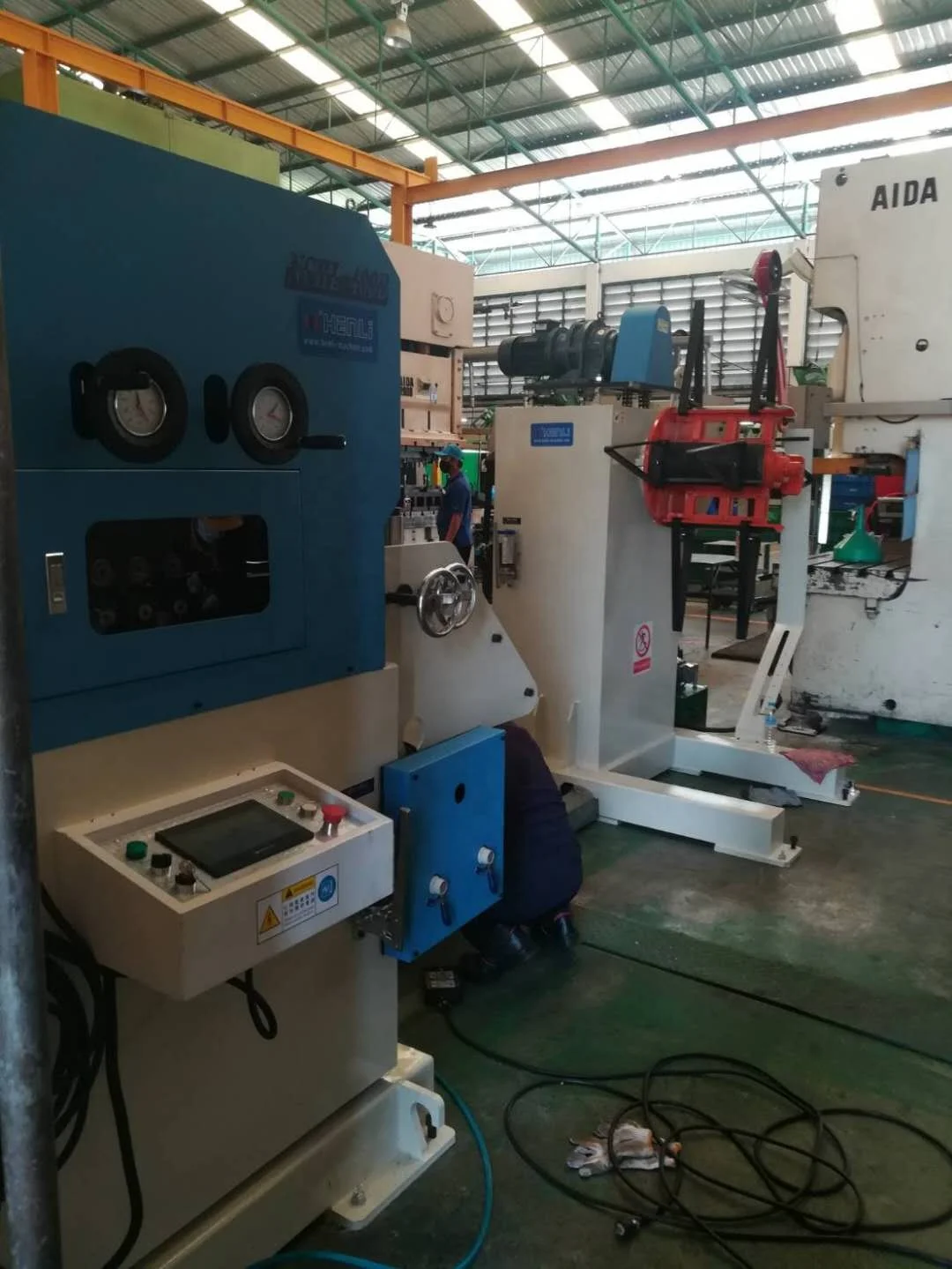

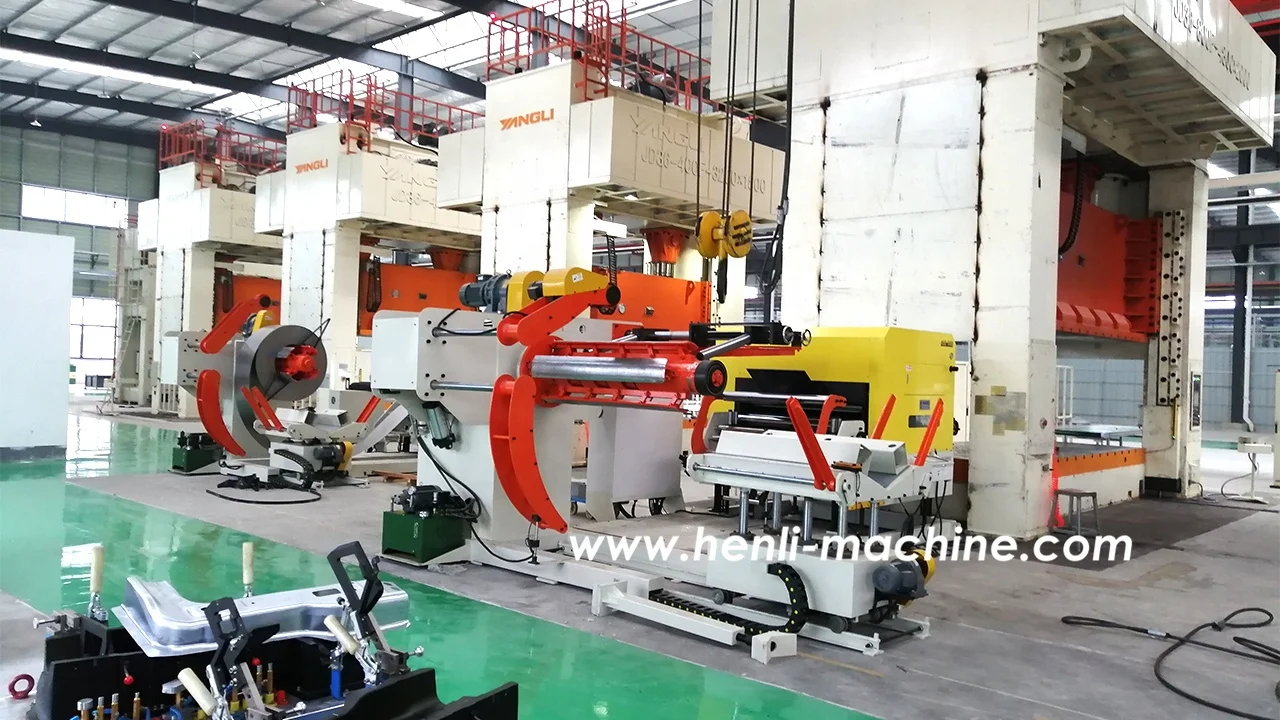

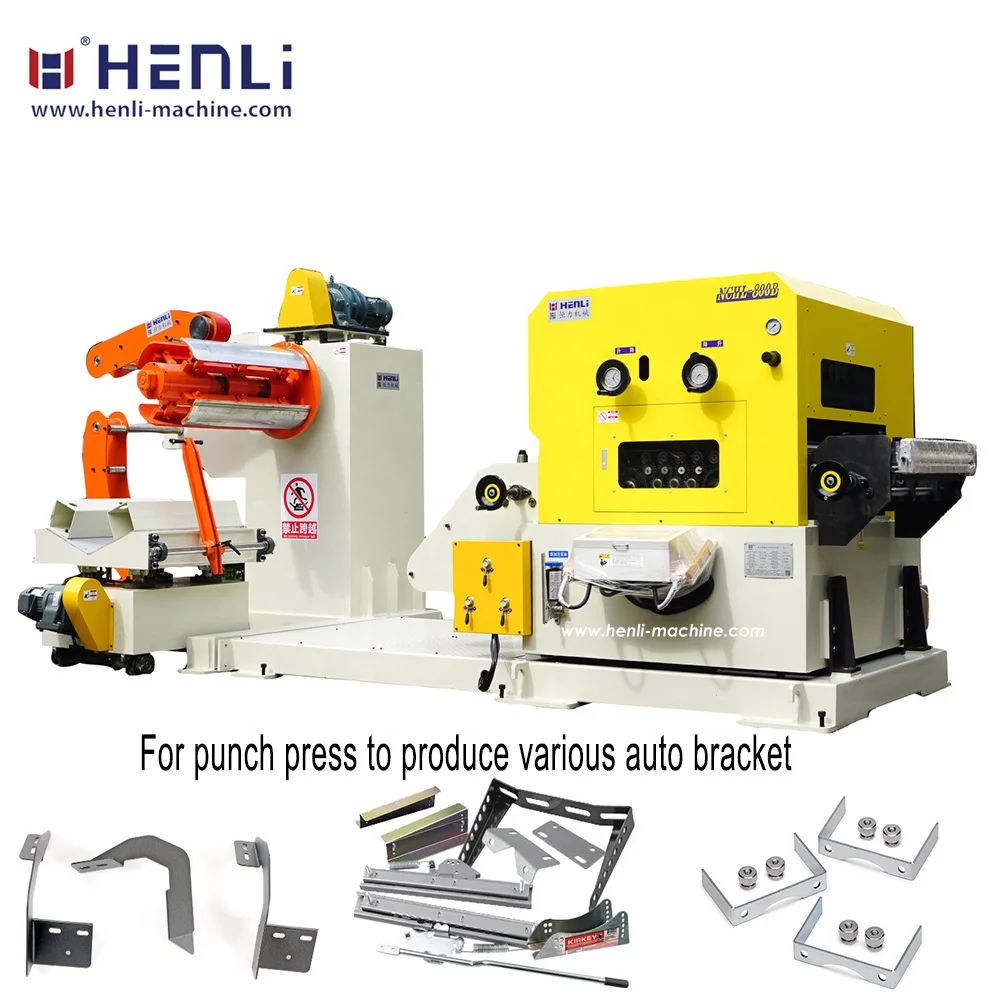

decoiler straightener feeder 3 in 1 Metal Straightener NC Feeder Machine
- Category: >>>
- Supplier: Dongguan Henli Machinery Equipment Co. Ltd.
Share on (1600497453023):
Product Overview
Description
Standard accessory:
1.Electric eye loop control system
2.Outgoing catenary to assist and support the material
3.Hold down arms device
4.Feeding line easily adjusts by advance worm gear screw jacks device
5.Leveling setting wheel with meter panel
6.The uncoiler contain the butterfly brakes air compressor
7.Uncoiler-inverter device
8.Feed and staightener rolls with a hard chrome finished
| Model | NCHL-300B | NCHL-400B | NCHL-500B | NCHL-600B | NCHL-700B | NCHL-800B | NCHL-1000B | NCHL-1300B | NCHL-1600B |
| Width of Material (mm) | 50-300 | 50-400 | 50-500 | 50-600 | 80-700 | 80-800 | 80-1000 | 100-1300 | 100-1600 |
| Thickness of Material (mm) | 0.3-3.2 | ||||||||
| Max.Coil Weight (kg) | 3000 | 5000 | 6000/8000 | 8000/10000 | |||||
| Coil I.D. (mm) | 450-530 | 480-530 | |||||||
| Max.Coil O.D. (mm) | 1500 | ||||||||
| Max.Speed (m/min) | 16 | ||||||||
| Feeding Accuracy (mm) | ±0.1/100mm | ||||||||
| Work Rollers | 3 Up / Down 4 | ||||||||
| Feeding Level (mm) | According to Customer''s Requirements | ||||||||
| Power Supper (V) | 380V 3-Phrase 380V | ||||||||
| Air Supply (kg/cm2) | 5kg/cm2 | ||||||||
| Uncoil Expansion | Hydraulic Expansion | ||||||||
| Servo Motor (kw) | 1.8 | 2.9 | 4.4 | 5.5 | 7.5 | ||||
| Decoiling Motor (kw) | 2.2 | 4 | |||||||
| Machine Size (m) | 3.88×1.52 | 3.88×1.62 | 3.88×1.72 | 3.88×1.82 | 3.88×1.92 | 3.88×2.02 | 3.88×2.22 | 3.88×2.52 | 3.88×2.82 |
| ×2.2 | ×2.2 | ×2.2 | ×2.2 | ×2.2 | ×2.2 | ×2.2 | ×2.2 | ×2.2 | |
| Machine Weight (kg) | 2870 | 3440 | 4130 | 4550 | 5000 | 5500 | 6000 | 7300 | 8600 |
