blowing machine high pressure inverter screw two stage air compressor
- Category: >>>
- Supplier: Chengdu Shidashi Mechanical Equipment Co. Ltd.
Share on (1600497465809):
Product Overview
Description
Products Description

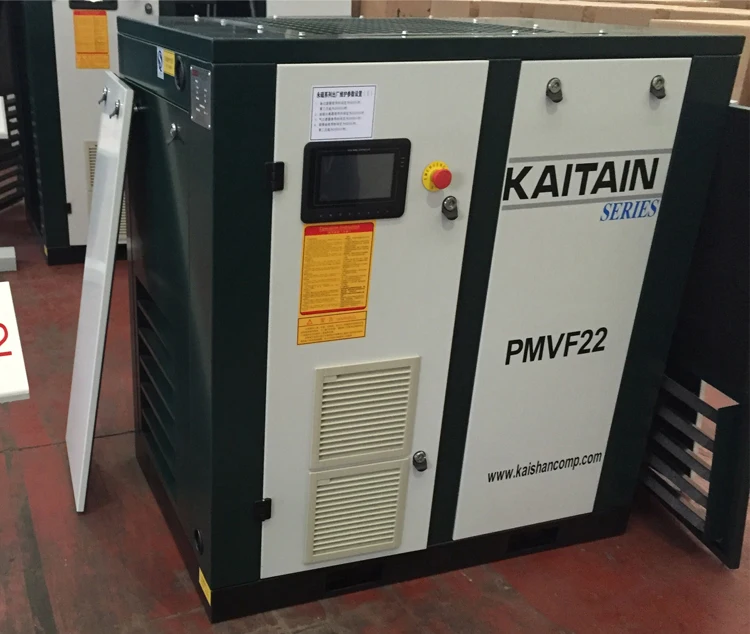

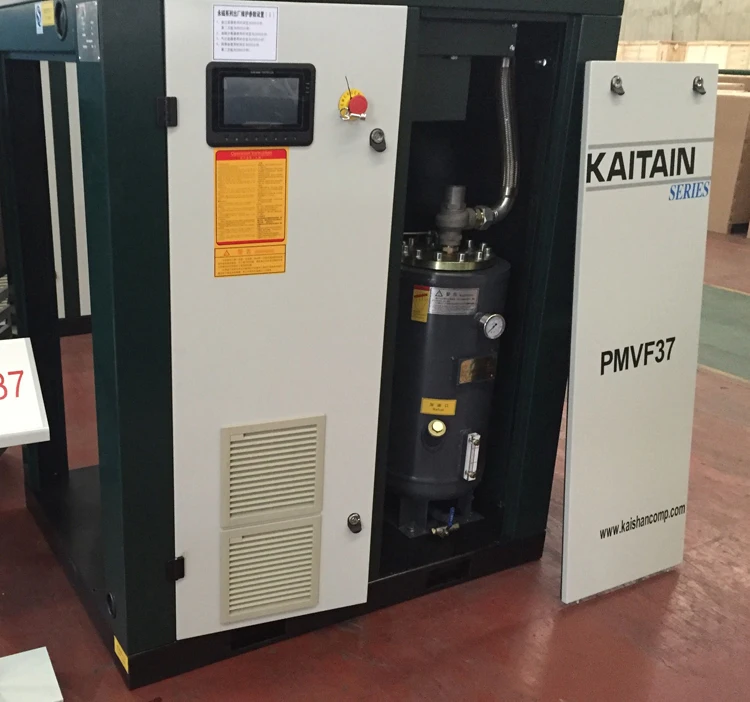

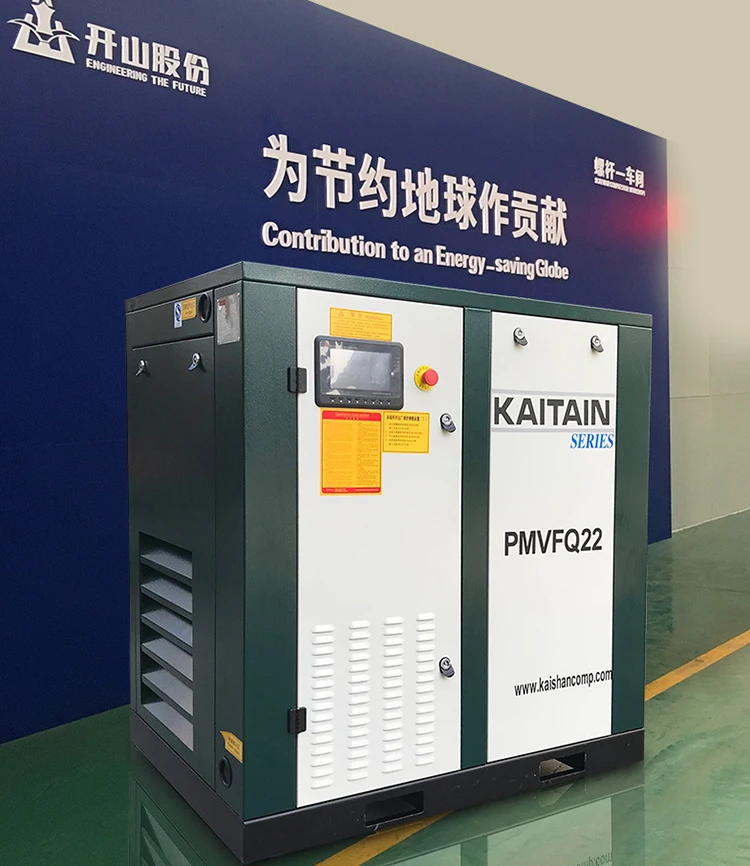

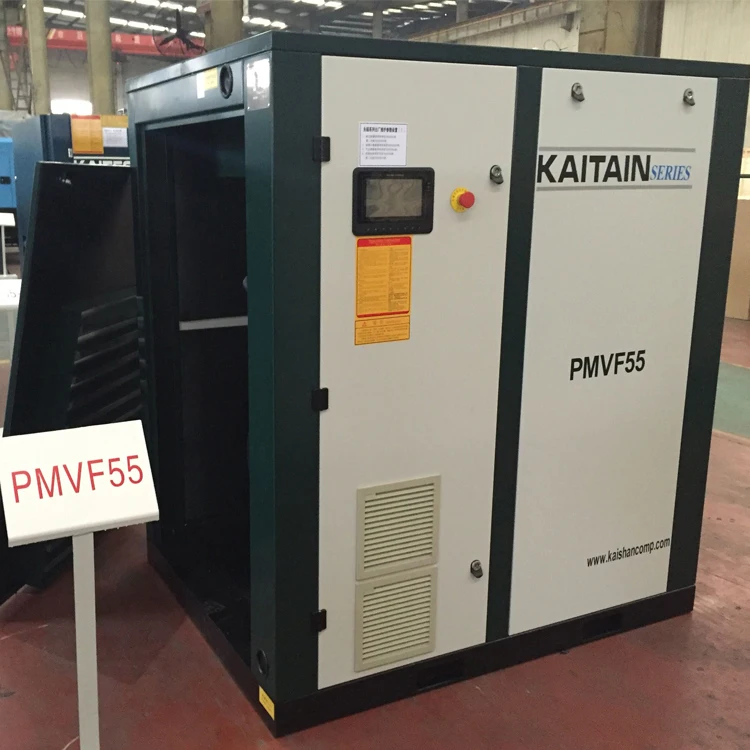

China Kaishan 0.65-0.9MPA 15kw 22kw 55KW PMVF series VSD permanent magnet frequency air compressor
A high-efficiency PM variable screw air compressor has advantages in the following three areas:
1> Interior Permanent Magnet Motor
Oil-cooled motor, IP65 protection rating
Motor heat resistant temperature up to 180 ° C
Optimal cooling for all speeds and ambient conditions
Oil-lubricated motor bearing: no (re)grease(ing), increased
uptime

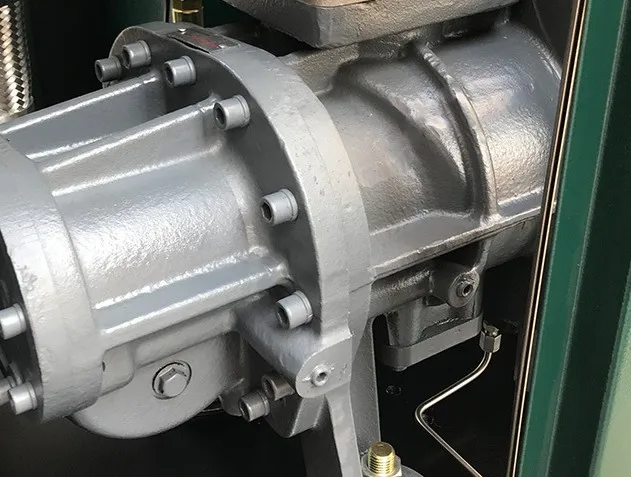

2> Direct drive
• Oil-cooled, pressure-tight.
• No gears or belts, no shaft seal.
3> Cooling fan
• Optimized, application-specific design
results in low noise and high efficiency.
A high-efficiency PM variable screw air compressor has advantages in the following three areas:
1> Interior Permanent Magnet Motor
Oil-cooled motor, IP65 protection rating
Motor heat resistant temperature up to 180 ° C
Optimal cooling for all speeds and ambient conditions
Oil-lubricated motor bearing: no (re)grease(ing), increased
uptime
2> Direct drive
• Oil-cooled, pressure-tight.
• No gears or belts, no shaft seal.
3> Cooling fan
• Optimized, application-specific design
results in low noise and high efficiency.
PMVFQ55 Technical Parameters | ||
Screw set | 5:6 toothed rotor | |
Compression method | Continuous/single stage | |
Exhaust interface | P2=0.6-1.0MPa | |
Cooling method | Air cooled | |
Output temperature | 10℃~15℃higher than ambient temperature | |
Amount of lubricant | About 35L | |
Motor speed | N=2703-3412r/min | |
Rated power | 55kW(IP65) | |
Exhaust volume | V=9.99-11.95m3/min | |
Working weight | 990kg | |
Air temperature upper limit | 45℃ | |
Air temperature lower limit | 0℃ | |
Fuel consumption | <2PPM | |
Noises | 70dB(A) | |
Dimensions | 1500×1160×1700mm | |
More Model
Model | Working Pressure(Mpa) | Capacity (m3/min) | Power(KW) | Exhaust joint | Noise dB(A) | Weight(KG) | Dimensions(MM) |
PMVFQ15 | 0.6-1.0 | 2.37-2.88 | 15 | G1 | 68 | 380 | 1200x830x1240 |
PMVFQ22 | 0.6-1.0 | 3.61-4.22 | 22 | G1 | 68 | 480 | 1200x830x1290 |
PMVFQ37 | 0.6-1.0 | 6.28-7.42 | 37 | G1 1/2 | 69 | 710 | 1400x1000x1540 |
PMVFQ45 | 0.6-1.0 | 7.73-9.27 | 45 | G1 1/2 | 70 | 990 | 1500x1160x1700 |
PMVFQ55 | 0.6-1.0 | 9.99-11.95 | 55 |

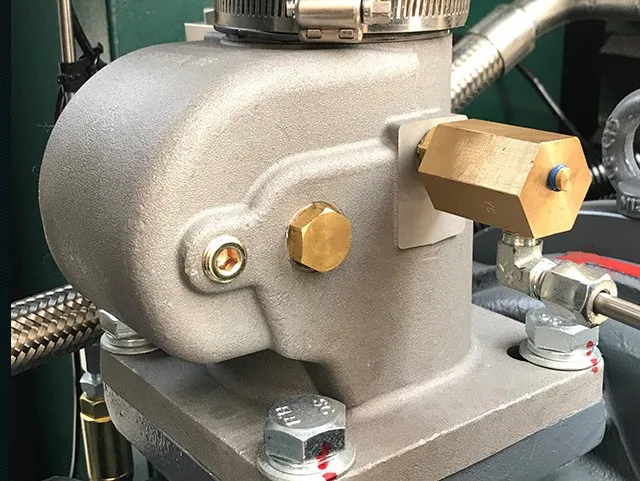

Details Images

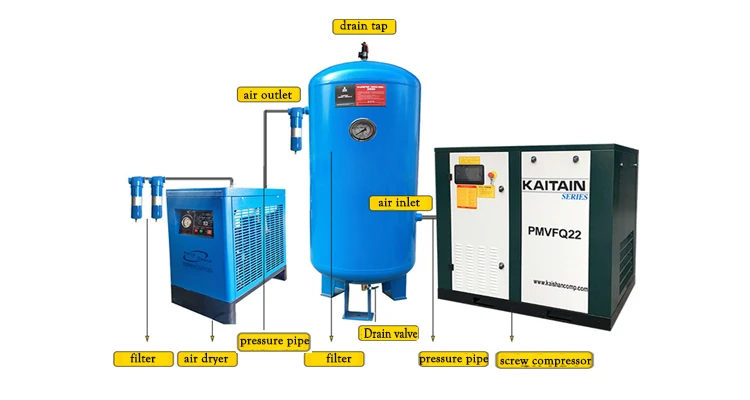

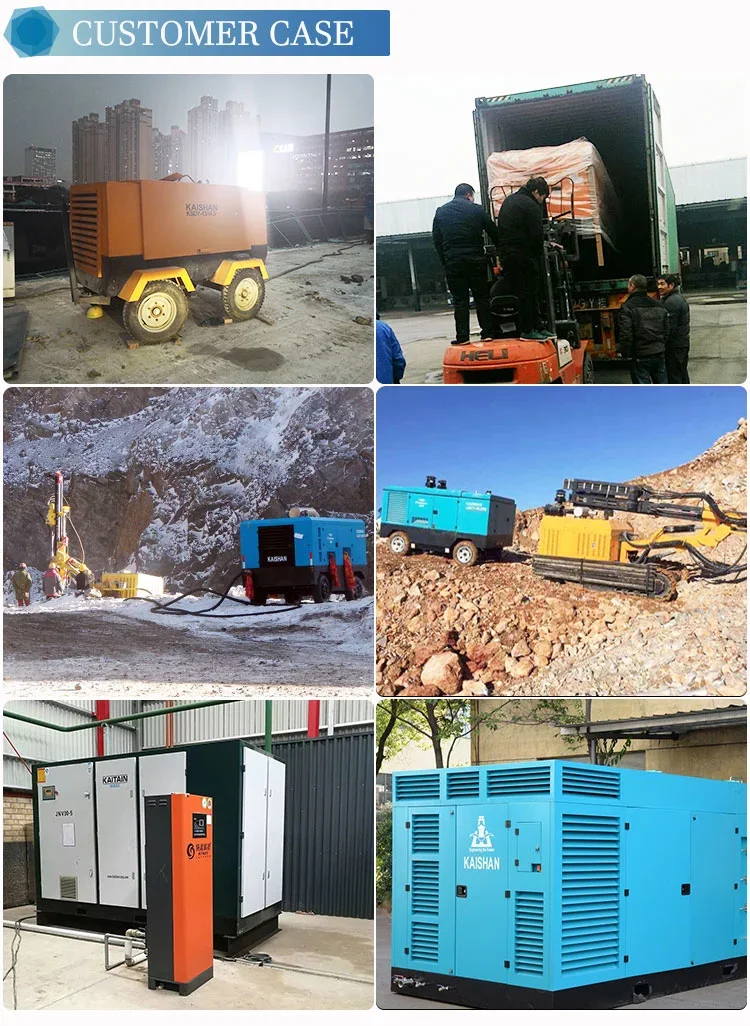

Application
