M2501A Mainstream ETCO2 Sensor With ETCO2 Airway Adapter

Product Overview

Description

M2501A Mainstream ETCO2 Sensor With ETCO2 Airway Adapter



























• Medke P/N: VB0084


•


  Mainstream Capnography EtCO2 Sensor Module Compatible HP M2501A 8 Pins











The ETCO2 is a highly integrated mainstream CO,Sensor which developed by WLD medical, whohad tens of years IR measurement

instrument development experience. It's the one step capnographysolution for patient monitoring system. Within a very compact size,

it provides measurement of End-TidalCarbon Dioxide(ETCO,), respiration rate, capnogram, which can cover most of requirement from

thepatient monitoring system. With a very simple RS232 interface and industry compatible protocol, it'sfairly easy to connect BA210 to

any patient monitoring system and other medical treatment systemwhere CO, sensor is needed.

With the stability, flexibility and easy to use as the built in essence, BA210 is your ideal option for your capnography subsystem.

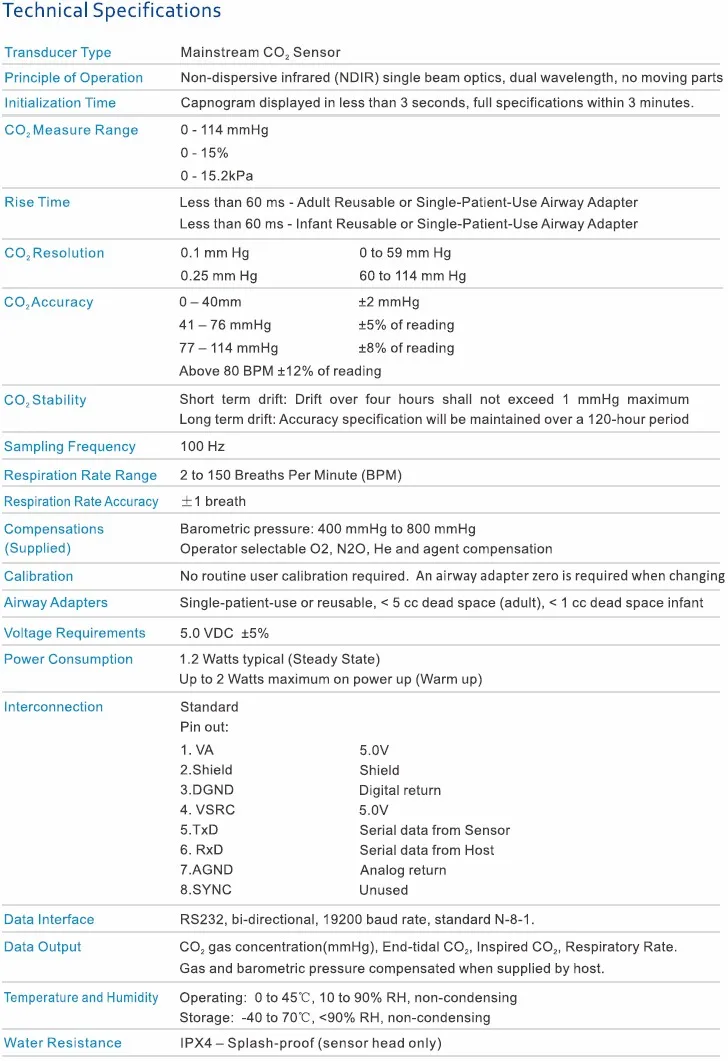

Technical Specification

• Safety: IEC 60601-1:1990 approved, conformity with MDD 93/42/EEG and ANSI/AAMI EC53:1998


• Ambient temperature: 0 to 40C(32 to 104F)


• Relative humidity: 15% to 95%


• Materials: Quality TPU jacket cable; Medical PVC strain relief; Gold plated pins and Nylon plug


• Packages: non-sterilization, individual package with instruction











Medke Tech, is a leading MANUFACTURER, specializes in the manufacturing Medical Monitors Accessories such as SpO2 sensors and cables, ECG/EKG cables, NIBP cuff and hoses, IBP adapter cables, Temperature probes in compliance with ISO13485 quality management system.
