Новый и бывший в употреблении Hanwha Sumsung SM481Plus SM482 Plus SMD SMT установка для установки и установки светодиодных ламп

Product Overview

Description

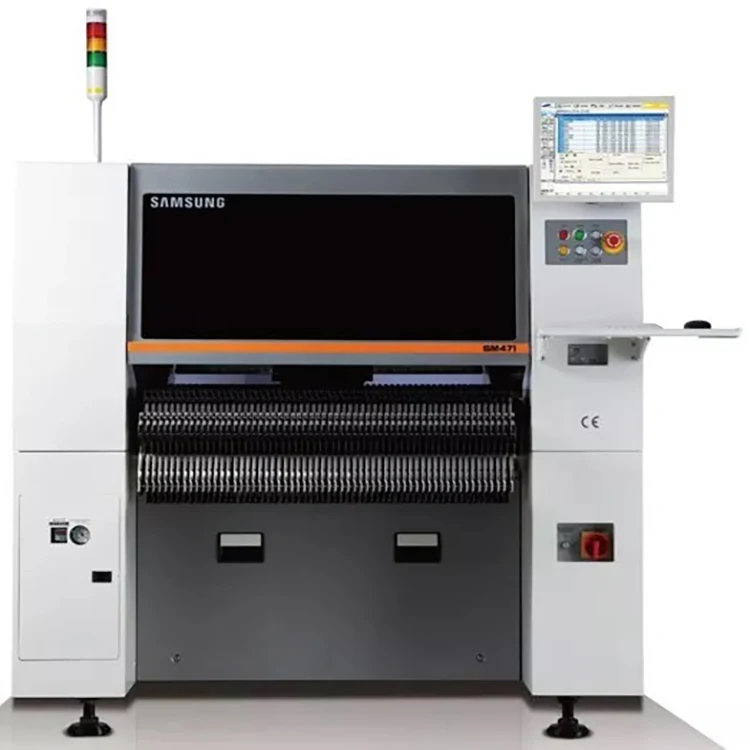

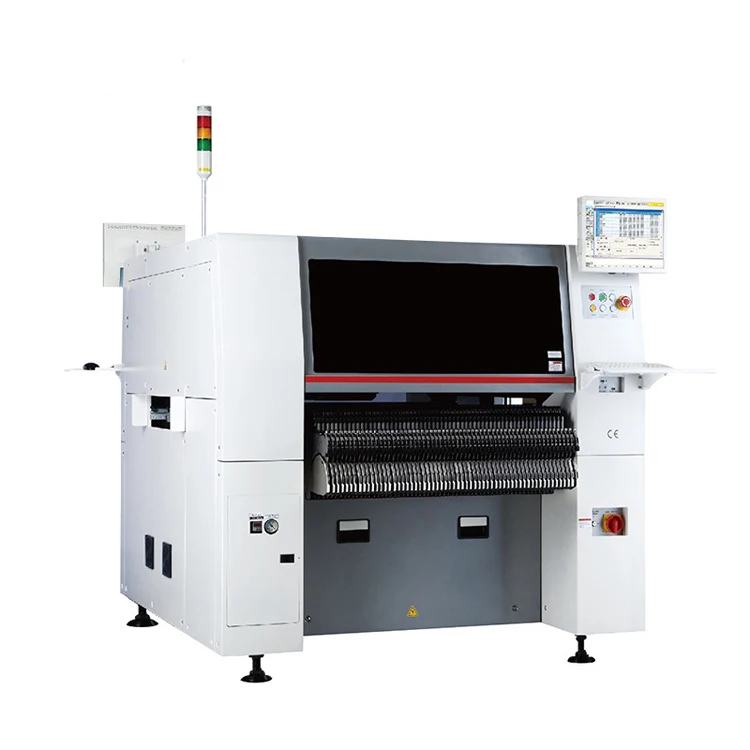

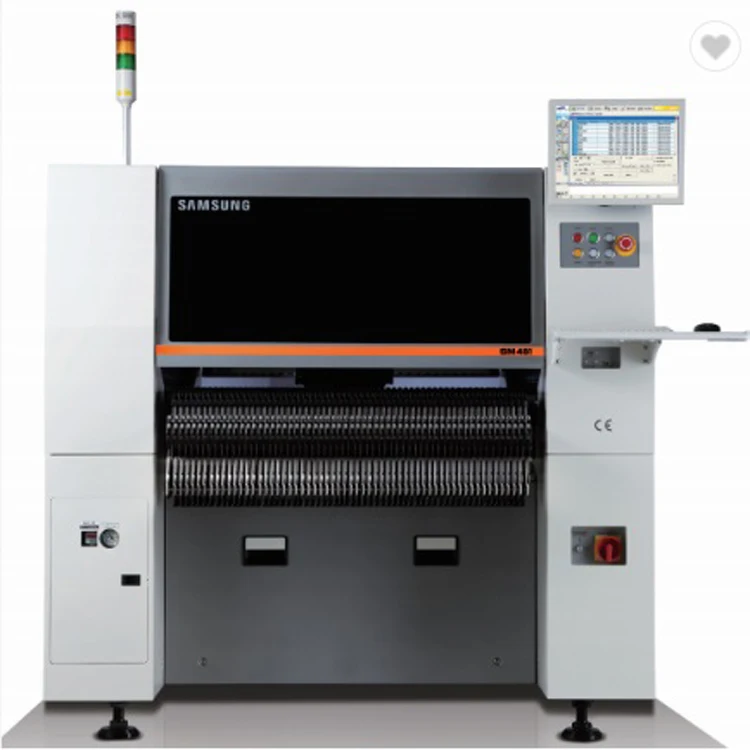

New and Used Hanwha Sumsung SM481Plus SM482 Plus SMD SMT Pick And Place Machine LED Placement Machine Chip Mounter

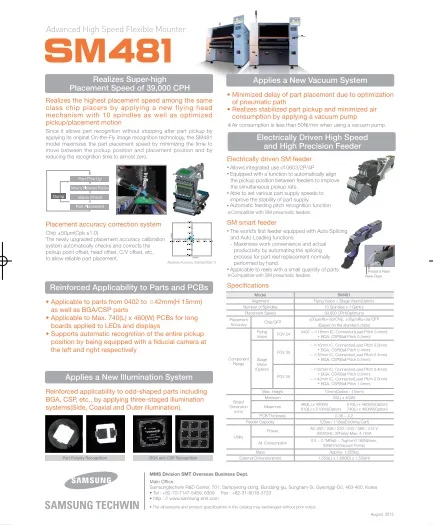

 Specification of Hanwha Chip Shooter



Model	Hanwha SM471 Plus	Hanwha SM481 Plus	Hanwha SM482 Plus
Spindles	10 Spindles ×2 Gantry	10 Spindles ×1 Gantry	6 Spindles ×1 Gantry
Placement Speed	78,000CPH(Optimum)	40,000CPH(Optimum)	30,000CPH(Optimum)
Placement Accuracy	±40μm@μ±3σ	±40μm@μ±3σ	±40μm@μ±3σ
Applicable Parts	0402 ~ 14mm(H 12mm)	0402 ~ 42mm(H 15mm)	0402 ~ 55mm(H 15mm)
Applicable PCB	Max. 510(L) x 460(W)(Standard)	Max. 460(L) x 400(W)(Standard)	Max. 460(L) x 400(W)(Standard)
	Max. 610(L) x 460(W)(Option)	Max. 1500(L) x 460(W)(Option	Max. 1200(L) x 510(W)(Option)
Dimension(mm)	1650×1690×1458	1650×1680×1530	1650×1680×1458

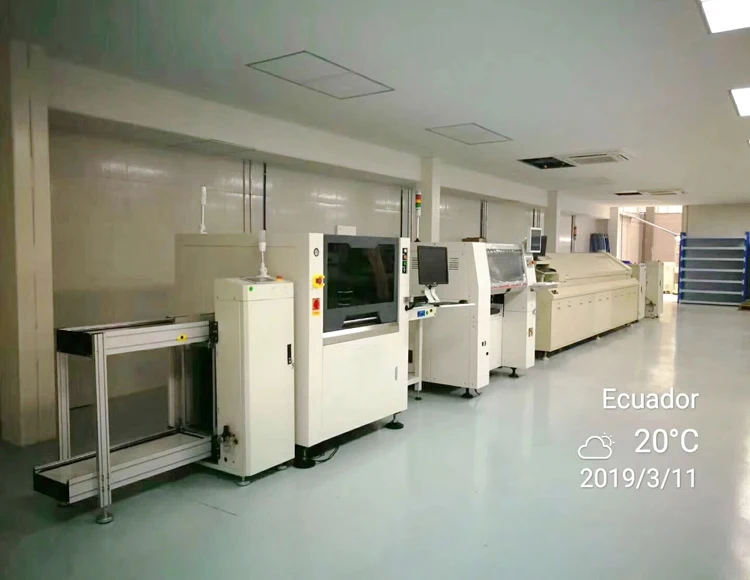

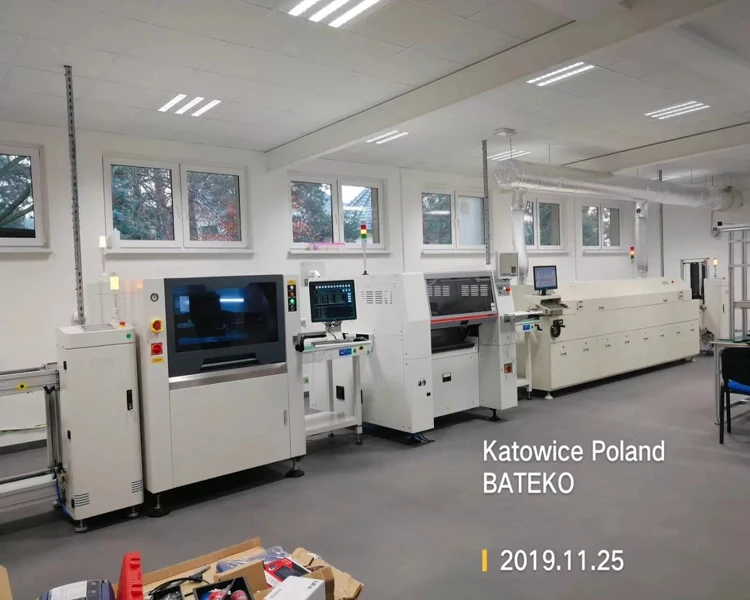

Successful Experience:

Eta's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

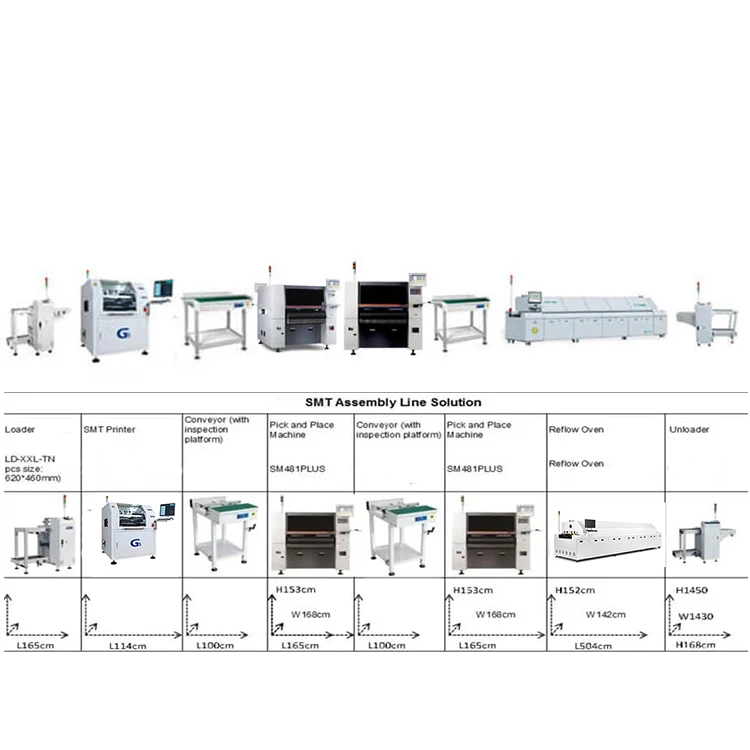

For SMT Factory Setup, We Can Do for You:

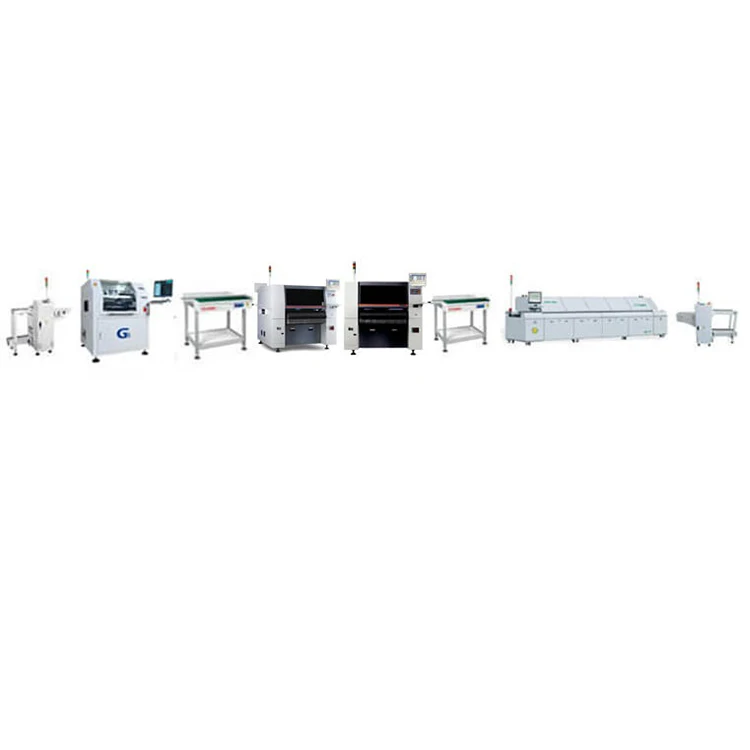

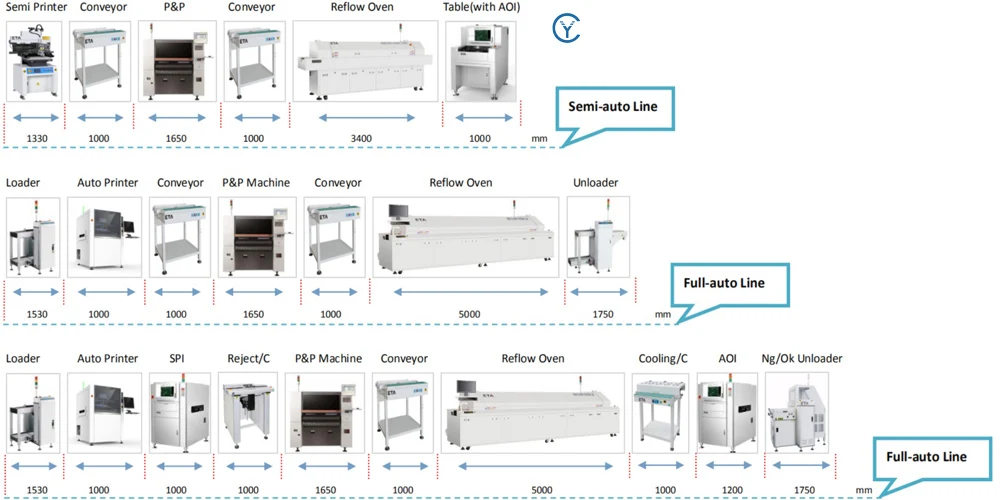

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT
