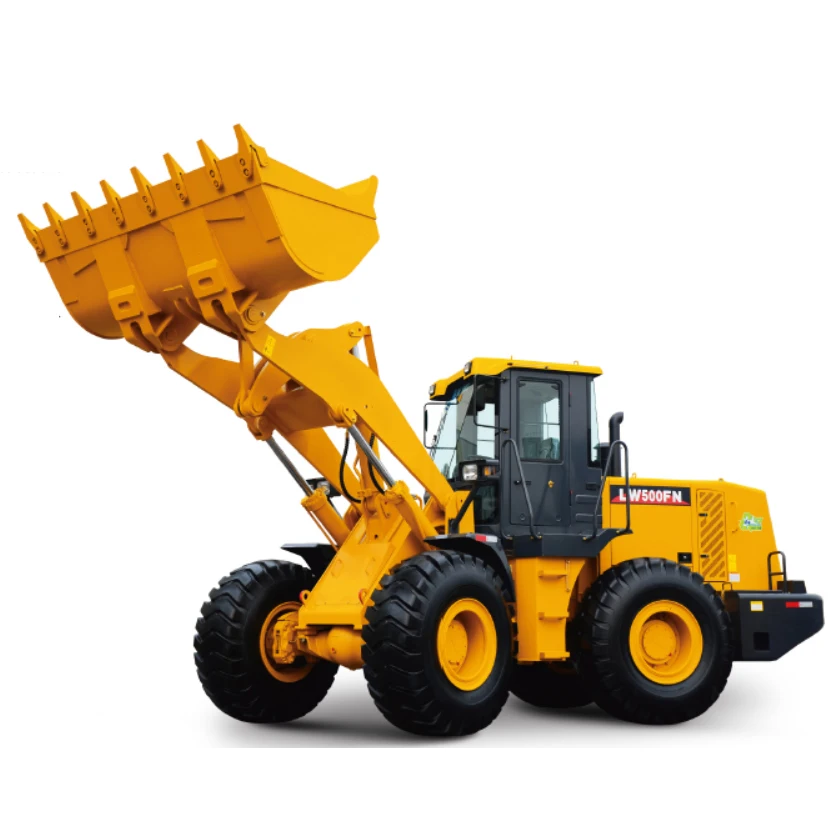

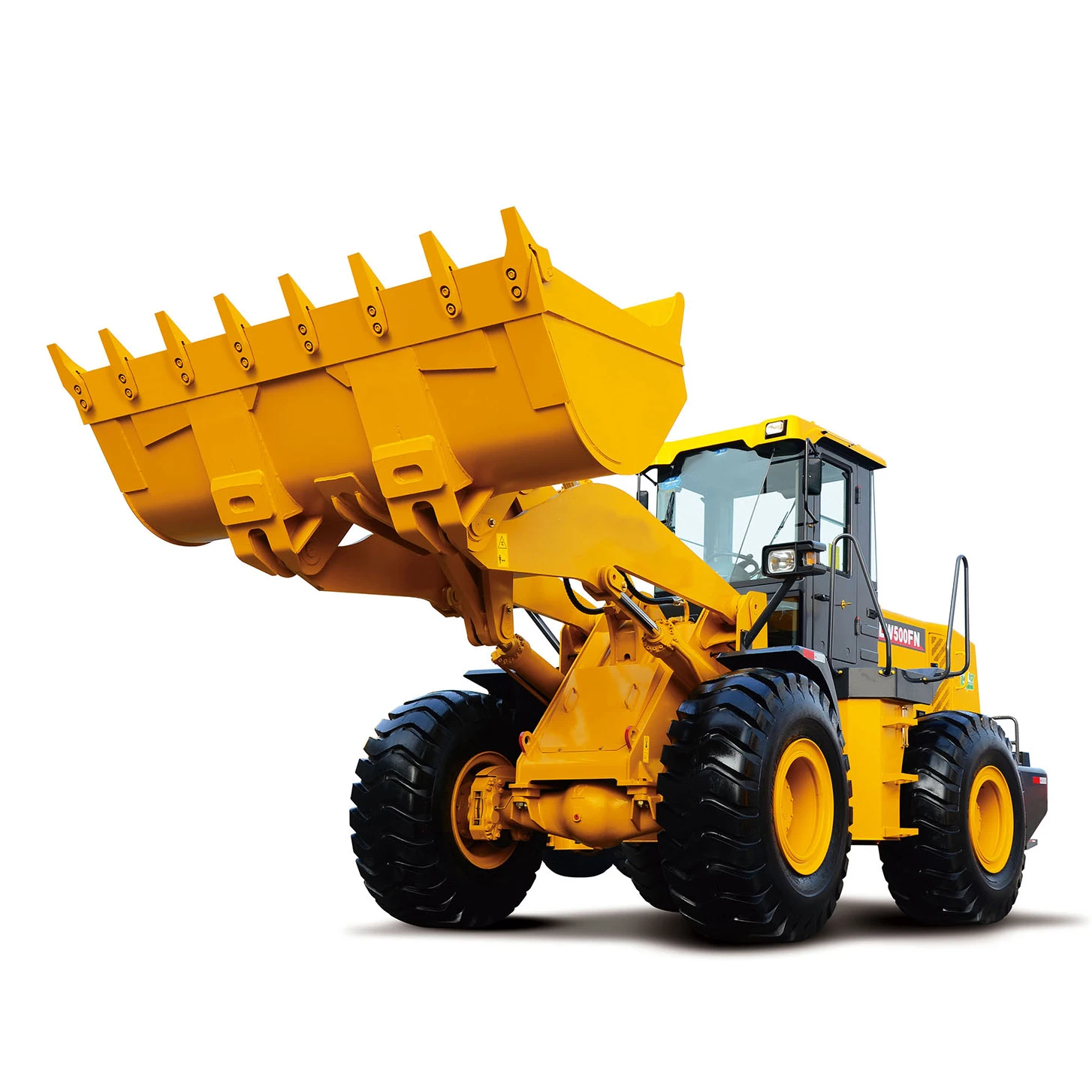

Hot Sale LW500FN 5 Ton Outstanding Performances Loader Wheel Front End Shovel Loader
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600498075232):
Product Overview
Description
Product information
Product parameters
ltem | Specifications | unit | ||
Rated load | 5000 | kg | ||
Rated bucket capacity | 3 | m³ | ||
Operation mass | 16700 | kg | ||
Dumping height(from ground to main blade plate) | 3100 | mm | ||
Dumping distance(from the front wheel to main blade plate) | 1200 | |||
Maximum breakout force | 162 | KN | ||
Maximum traction force | 160 | KN | ||
lifting time of swing arm | ≤6 | s | ||
Total cycling time | ≤11 | s | ||
Minimum turning radius(outer edge of bucket) | 6950 | |||
Minimum turning radius(tire center) | 5950 | |||
Articulated angle | 35 | |||
Gradeability | 28 | |||
tire size | 23.5-25 | |||

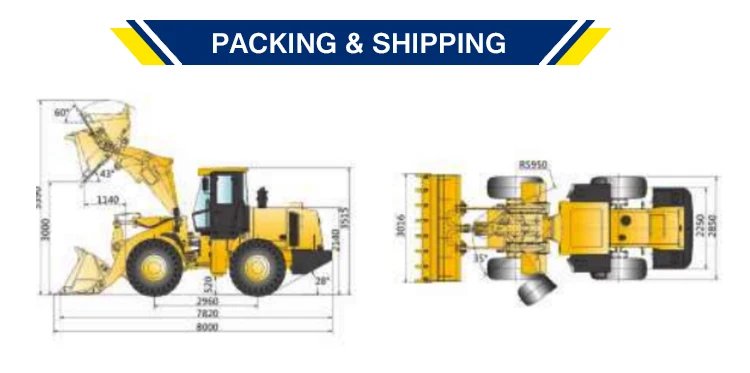

Overall demension of machine(L×W×H) | 8000×3016×3515 | mm | ||
Engine model | SC9D220.2G2B1 | |||
Rated power/rotate speed | 162/2000 | kW/r/min | ||
Travel speed | Gear I(F/R) 0~11.5/16.5 | km/h | ||
Gear II(F) 0~38 | km/h | |||
Long boom Loader parameter | ||||
Rocket bucket | Coal bucket | |||
Bucket capacity | 2.7m³ | 3.5m³ | ||
Rated load | 4.5t | 4.0t | ||
Dumping height | 3520mm | 3340mm | ||
Dumping distance | 1230mm | 1380mm | ||
Dimension | 8300×3016×3350 | 8530×3016×3350 | ||
Min. turning radius (bucket outer) | 7060mm | 7080mm | ||
Operating weight | 16.6t | 16.7t | ||
LW500FN is suitable for heavy loads under rock conditions; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

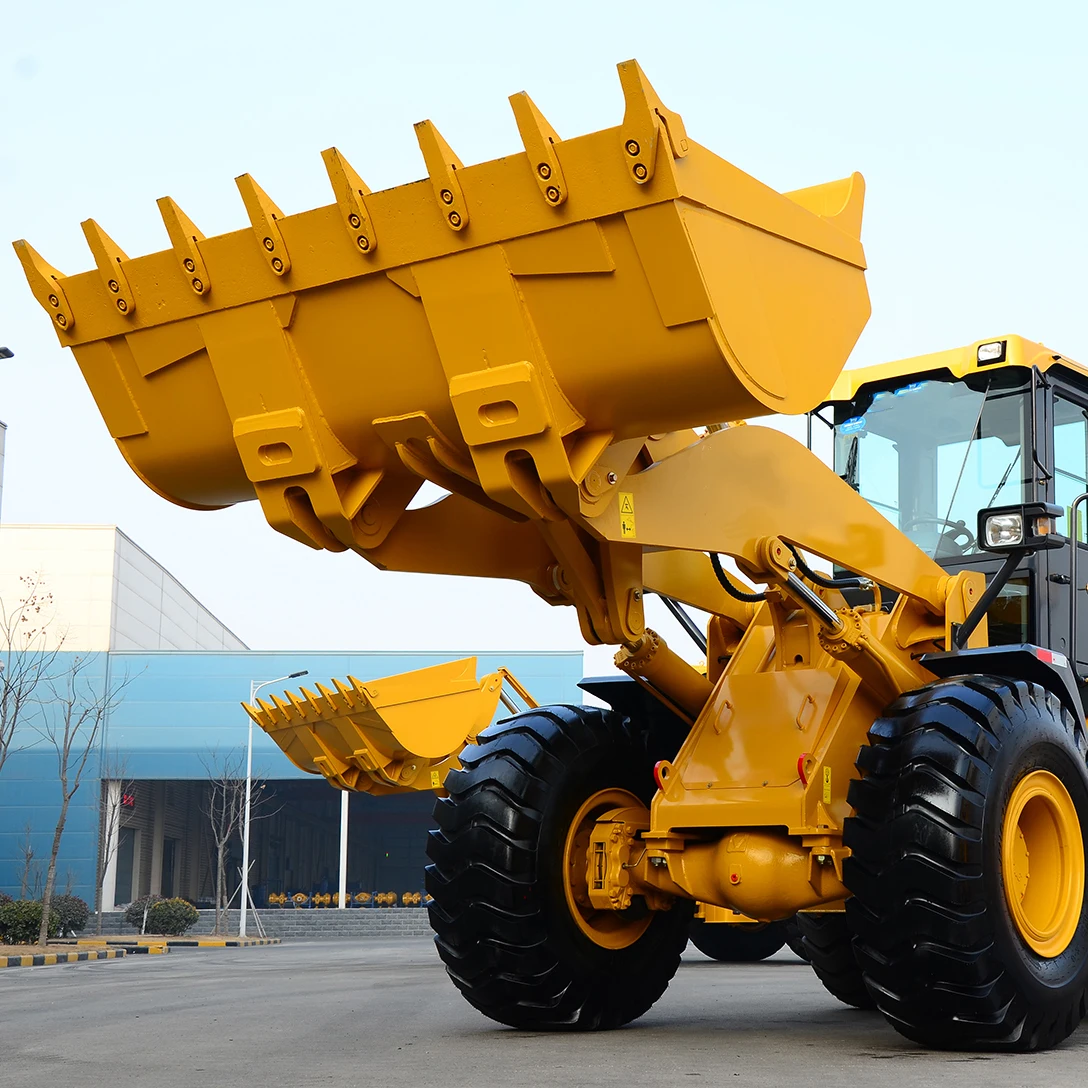

The large rock bucket with capacity of 3M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
Focusing on the customer value and emphasizing the customer experiences, RISEN ’s new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.
The large rock bucket with capacity of 3M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
Focusing on the customer value and emphasizing the customer experiences, RISEN ’s new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.
