Mini Portland Cement Plant Equipment For Active Lime Processing rotary kiln incinerator
- Category: Cement Making Machinery >>>
- Supplier: Henan,Zhongke,Engineering,&,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Show
01 Description of Rotary Kiln 》 》》
Superior Quality Quick Lime Rotary Kiln Cement Manufacturing Plant Cost
Rotary Kiln refers to rotating calcination kiln, belongs to construction material equipment. According to different materials, rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln. The cement kiln is used for making cement clinker and there are dry and wet methods to make cement. Metallurgy chemical kiln is applied in metallurgy industries and iron works for lean iron ore, chromium ore and ferro nickel ore calcination. Lime kiln is mainly used for calcine dolomite and active lime which is used in steel plant and ferroalloy factory.
02 Features of Rotary Kiln 》 》》
Rotary kiln has simply structure, easy operation in producing, less wearing parts, high efficiency,it's used in the cement plant to calcine high grade cement, at the same time can be used in metallurgy,chemical,constructure ect. rotary kiln features in strong structure, stable operation, high-quality products from the kiln, and we can offers advanced efficient shaft preheater, five-grade cyclone preheater.
03 Working Principle of Rotary Kiln 》 》》
1. With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.
2. Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.
3. The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.
category | model | Cylinder diameter (mm) | cylinder length (mm) | inclination (%) | capacity (t/h) | rotate speed (rpm) | power (kw) | weight (t) |
Straight rotary kiln | YZ1225 | 1200 | 2500 | 3 | 22 | 34 | ||
YZ1632 | 1600 | 3200 | 3.5 | 15 | 46.82 | |||
YZ1828 | 1800 | 2800 | 4 | 30 | 59.39 | |||
YZ1845 | 1800 | 4500 | 4.5 | 30 | 80 | |||
YZ1636 | 1600 | 36000 | 4 | 1.2～1.9 | 0.26～2.61 | 22 | 51.023 | |
YZ1939 | 1900 | 39000 | 4 | 1.6～3.4 | 0.31～2.82 | 37 | 70.704 | |
YZ2044 | 2000 | 44000 | 3.5 | 2.4～4 | 0.22～2.26 | 37 | 97.135 | |
YZ2245 | 2200 | 4500 | 3.5 | 3.2～5.3 | 0.23～2.25 | 45 | 125.462 | |
YZ2550 | 2500 | 50000 | 3.5 | 6.2～7.4 | 0.68～1.45 | 55 | 179.606 | |
YZ2555 | 2500 | 55000 | 3 | 7.3～9.8 | 0.79～2.38 | 55 | 191.203 | |
YZ2820 | 2800 | 20000 | 4 | 15～18 | 0.8～1.45 | 75 | 186.373 | |
YZ3028 | 3000 | 28000 | 4 | 18～23 | 0.8～1.45 | 75 | 180.737 | |
YZ3060 | 3000 | 60000 | 3.5 | 16～20 | 0.49～2.41 | 90 | 272.510 | |
YZ3226 | 3200 | 26000 | 4 | 22～27 | 0.8～1.45 | 90 | 185.107 | |
YZ3255 | 3200 | 55000 | 3.5 | 17～23 | 0.1～1.52 | 75 | 271.673 | |
YZ3529 | 3500 | 29000 | 4 | 28～40 | 0.16～1.38 | 110 | 238.031 | |
YZ3560 | 3500 | 60000 | 3.5 | 28～40 | 0.65～2.25 | 125 | 347.872 | |
YZ4030 | 4000 | 30000 | 4 | 52～70 | 0.38～3.52 | 160 | 415.103 | |
YZ4060 | 4000 | 60000 | 3.5 | 55`78 | 0.38～3.52 | 315 | 514.223 | |
YZ4262 | 4200 | 62000 | 3.5 | 80～105 | 0.38～3.52 | 315 | 541.615 | |
YZ4565 | 4500 | 65000 | 3.5 | 110～140 | 0.38～3.52 | 420 | 609.526 | |
YZ4772 | 4700 | 72000 | 3.5 | 150～190 | 0.38～3.52 | 550 | 795.325 | |
Diameter changes rotary kiln | YB1626 | 1600/1400 | 26000 | 4 | 0.7～1.1 | 0.41～3.85 | 18.5 | 38.621 |
YB1939 | 1900/1600 | 39000 | 4 | 2.2～2.7 | 0.27～2.58 | 22 | 60.841 | |
YB2245 | 2200/2000 | 45000 | 3.5 | 2.5～3.5 | 0.25～2.28 | 30 | 88632 | |
YB2545 | 2500/2200 | 45000 | 3.5 | 4.5～6.2 | 0.25～2.18 | 45 | 102.367 | |
YB2845 | 2800/2500 | 45000 | 3.5 | 7.5～10 | 0.68～1.45 | 55 | 192.622 | |
YB3560 | 3500/3000 | 60000 | 3.5 | 23`32 | 0.65～2.28 | 125 | 310.263 |
Technology Introduction
_______________________________________________________
_______________________________________________________
The rotary kiln produced by Zhongke has the calcining system equipment through technology innovation, which adopts the most advanced hydraulic catch wheel, high precision of measurement piston pump, flow speed control valve, and contact graphite piece of sealing device at home and abroad, In order to improve the degree of automation, kiln head adopts industrial TV watching fire, analog fluorescent screen for process flow, and calcination zone adopts the infrared scanner, directly reflecting the calcination situation in computer . All these new technology has a strong intuitive sense in use, easy to operate. Reliable and stable thermal condition improves the operation rate of the equipment. Compared with the same specification of equipment, the operation rate increases by 10%, the yield increases by 5%-10%, and the heat consumption decreases by 15%.
1.DOLOMITE 2.PLATINUM 3.MARBLE 4.CALCITE
1.CALCIUM ORE 2.CHROMIUM ORE 3.COBALT ORE 4.GRANITE
1.TALC 2.CHEMICAL INDUSTRY
3.BUILDING MATERIAL 4.GOLD MINE
1. PHOSPHATE ROCK 2.BAUXITE
3.ALUMINUM ORE 4.GANGUE
1.MAGNESIUM ORE 2.MANGANESE ORE
3.NICKEL ORE 4.BENTONITE
Product Details
_________________________
Our products have the following six major features,so that wecan lead other manufacturers at home and abroad
ROLLER RING
FRAME
BIG GEAR
MOTOR
SMALL GEAR
ROLLER SUPPORT
Product Showcase

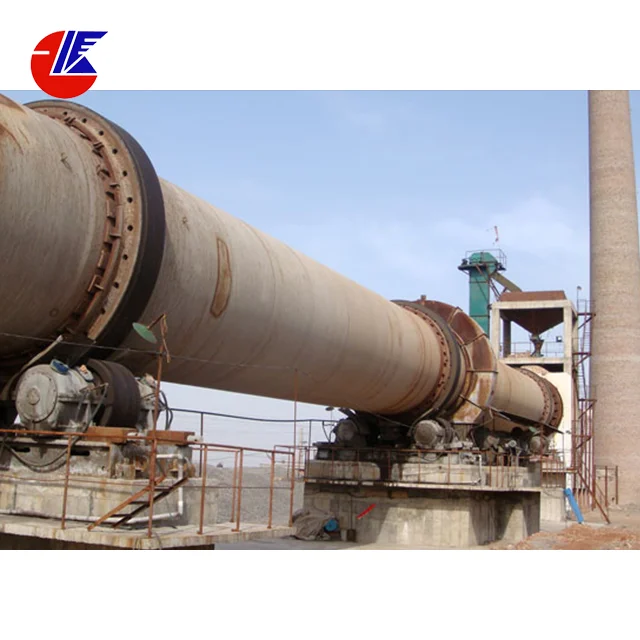

Installation Site
Company Information
Henan Zhongke Engineering & Technology Co., Ltd. is specialized in large and medium-sized series of mining machinery, metallurgical machinery, building materials equipments, cement equipment and rotary kiln. R&D, production and marketing into a joint-stock enterprise, our company is headquartered in Zhengzhou Country’s High-tech Industrial Development Zone, which consists of three branches, a research and development department.
Since the establishment of our company, always adopt advanced modern management system, and focused on innovation, has brought together a number of scientific and technological elite, our company develop very fast we have over 500 employees, 29 senior engineers and more than 100 middling technicians. We have a good long-term cooperation with domestic scientific research units, have introduced advanced technology and testing system at home and abroad.
Our company pays more attention to basic managements, we constantly improve and perfect the quality management system to ensure to provide high-quality products, work site achieve fixation management, logistic achieve ABC management; our office achieve computer automatization; production technology adopt computer management; product development process design using CAD,CAPP, PROE technology. We have completed ISO9001-2000 quality certification.
Our company constantly insist on the development of new products and development investment funds for technological renovation to meet with different requirements from different countries. Our products are very popular in Africa, South America and Southeast Asia.
Service---customers is the first!
We not only have experienced engineers and after-sales groups but deal with the trade through internet and form our own sales network.
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
7>. Provide technical exchanges.
Packaging & Shipping
__________________________
Packaging Details：We will make different packaging according to different machine sizes .standard international export packing, container, wooden box
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons
FAQ
_____________________________
Q1: How long is the warranty of the rotary kiln?
A1: Our warranty period is one year generally.
Q2: How long shall we replace the refractory brick?
A2:Usually 6-12 months(Depends on the time and temperature.)
Q3: Can l visit your factory?
A3:Yes. We warmly welcome you to visit our factory.We will take you to our customer site to have a real look.We will arrange a car to pick you up at the Xinzheng International Airport.
Q4: Do you provide equipment operation training?
A4:Yes.We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports.
Q5: Do you provide whole rotary kiln flow chart?
A5:Yes. Our experienced engineers are specialized in designing process flow for various project, such as cement production line, quick lime production line,magnesium production line etc.
Q6: Can you test our samples?
A6:Yes.You can send your samples to us for test and analysis.
Q7:How about price?
A7.We are factory and are able to give you the lowest price than market one and we have a policy that “for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
A1: Our warranty period is one year generally.
Q2: How long shall we replace the refractory brick?
A2:Usually 6-12 months(Depends on the time and temperature.)
Q3: Can l visit your factory?
A3:Yes. We warmly welcome you to visit our factory.We will take you to our customer site to have a real look.We will arrange a car to pick you up at the Xinzheng International Airport.
Q4: Do you provide equipment operation training?
A4:Yes.We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports.
Q5: Do you provide whole rotary kiln flow chart?
A5:Yes. Our experienced engineers are specialized in designing process flow for various project, such as cement production line, quick lime production line,magnesium production line etc.
Q6: Can you test our samples?
A6:Yes.You can send your samples to us for test and analysis.
Q7:How about price?
A7.We are factory and are able to give you the lowest price than market one and we have a policy that “for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
