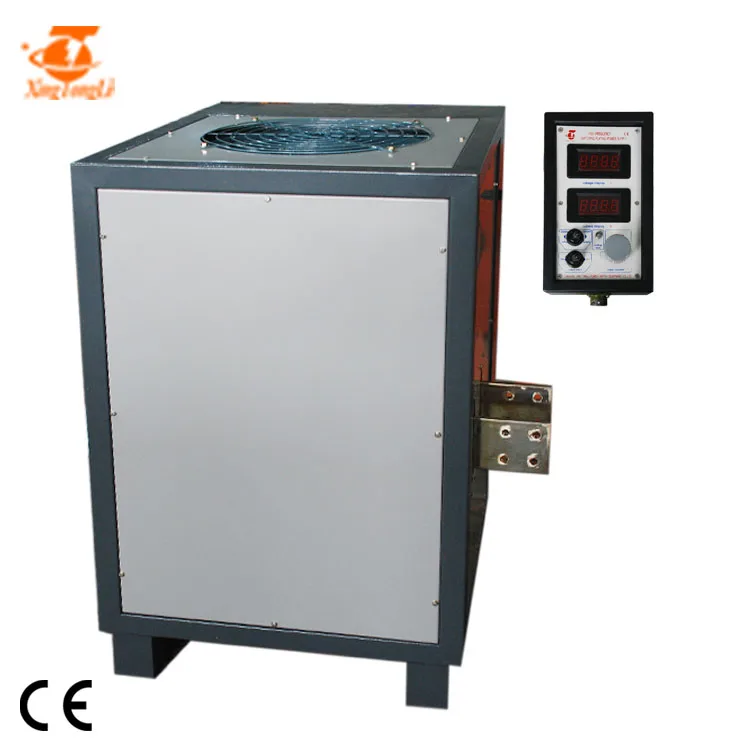

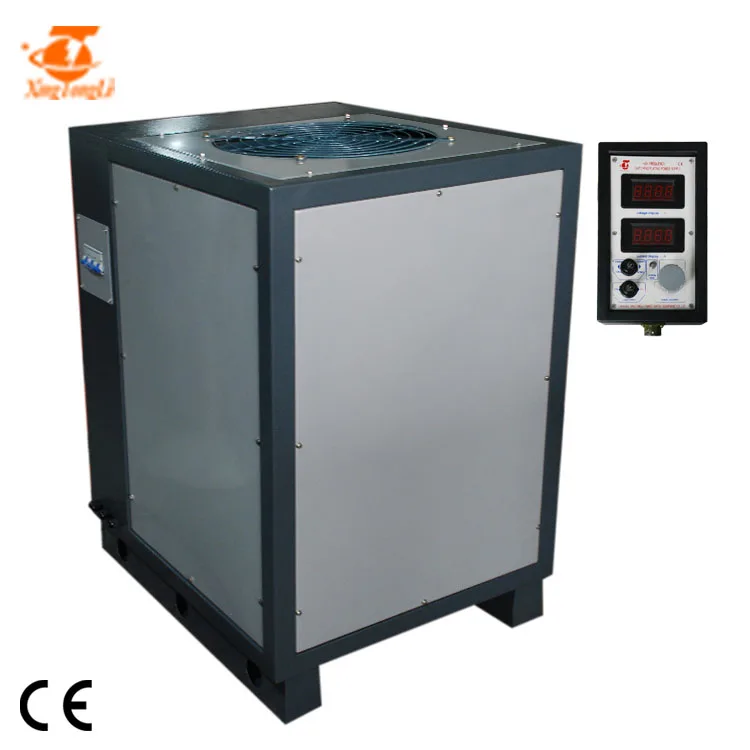

GKD28V 2000A Chrome Plating Plastic Machine Brass Gold Electro Plating Line
- Category: Metal Coating Machinery >>>
- Supplier: Chengdu,Xingtongli,Power,Supply,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Information
SPECIFICATION OF GKD(F)18V-2000CVC | ||
AC input(V) | AC 220V± 10% 3ø 50/60HZ AC 380V± 10% 3ø 50/60HZ | |
DC output(V) | 0~18V digital display, adjustable | |
DC output(A) | 0~2000A digital display, adjustable | |
Output power | 36KW | |
Power factor | ≥0.93 | |
Output efficiency | ≥ 85% | |
Constant-current precision (%) | 0.01% | |
Constant-voltage accuracy (%) | 0.5% | |
Switching frequency | 20KHZ | |
Protection function | Short circuit protection/ overheating protection/ phase lack protection/ input over/ lowvoltage protection | |
Environment temperature | -10°c ~ 45°c | |
Control mode | Local control/Remote control/ Local & Remote control | |
Working mode | Constant current/voltage | |
Cooling way | Air-cooling | |
Size L*W*H(mm) | 600*535*540 | |
Weight(kg) | 90 | |
Remark | Acousto-optical alarm can be provide when u selected | |
485/PLC communication interface can be provide when u selected | ||
Features
1. Small size, light weight, electricity-saving, high accuracy
2. The communication interface can be provided
3. Duration control can be provided
4. Douch screen can be provided
5. Control mode: Local control or Remote control(the length of cable is determined by customers)
6. Japan IGBT(the default choice) or Germany IGBT are adopted
7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
8. Easy to operate and repaire
1. Small size, light weight, electricity-saving, high accuracy
2. The communication interface can be provided
3. Duration control can be provided
4. Douch screen can be provided
5. Control mode: Local control or Remote control(the length of cable is determined by customers)
6. Japan IGBT(the default choice) or Germany IGBT are adopted
7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
8. Easy to operate and repaire
Product Display

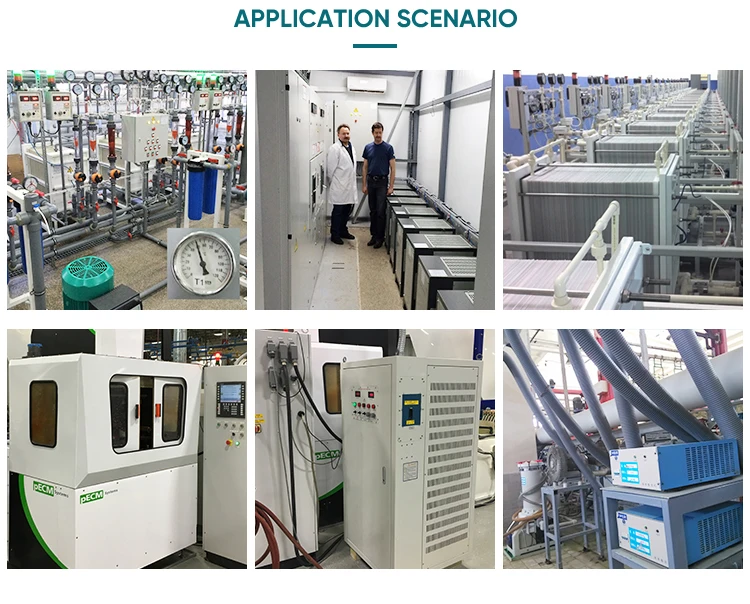

Application field
It is widely used in industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military industry, medical treatment, shipbuilding, railway and other high-tech fields.
Motor category
Electric vehicle motors, electric vehicle controllers, DC motor testing, etc.
Electric appliances
LED testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten filament gasification, etc.
Automotive
Automotive electronics, DC motors, car motor controllers, car lights, cigarette lighters, car audio and video
Electronics
Capacitors, resistors, relays, transistors, sensors, etc.
Display category
Display screen, liquid tank screen, touch screen, car DVD, mobile phone display, etc.
Electrochemical
Electrolysis, electroplating, anodizing, non-ferrous metal research, etc.
Other categories
Other areas of product testing and research and development that require DC power supply
It is widely used in industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military industry, medical treatment, shipbuilding, railway and other high-tech fields.
Motor category
Electric vehicle motors, electric vehicle controllers, DC motor testing, etc.
Electric appliances
LED testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten filament gasification, etc.
Automotive
Automotive electronics, DC motors, car motor controllers, car lights, cigarette lighters, car audio and video
Electronics
Capacitors, resistors, relays, transistors, sensors, etc.
Display category
Display screen, liquid tank screen, touch screen, car DVD, mobile phone display, etc.
Electrochemical
Electrolysis, electroplating, anodizing, non-ferrous metal research, etc.
Other categories
Other areas of product testing and research and development that require DC power supply
Related Products
Company Profile
Packaging / Transportation
FAQ
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent,
shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles.
Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent,
shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles.
Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
