Fully automatic stainless steel crystal pure ice machine
- Category: >>>
- Supplier: Guangzhou Icesource Co. Ltd.
Share on (1600498380004):
Product Overview
Description
Project Description

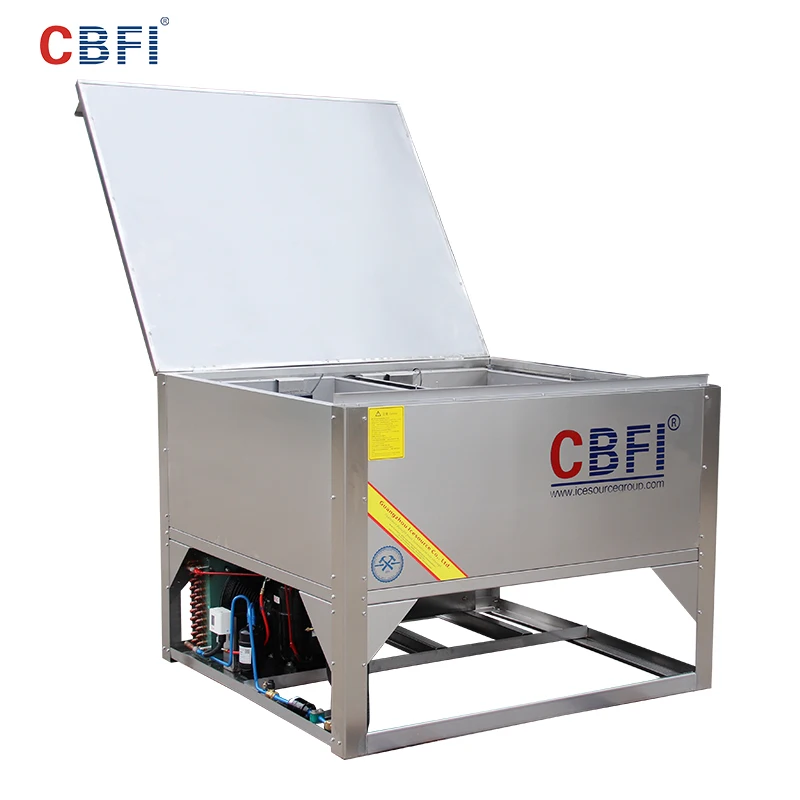

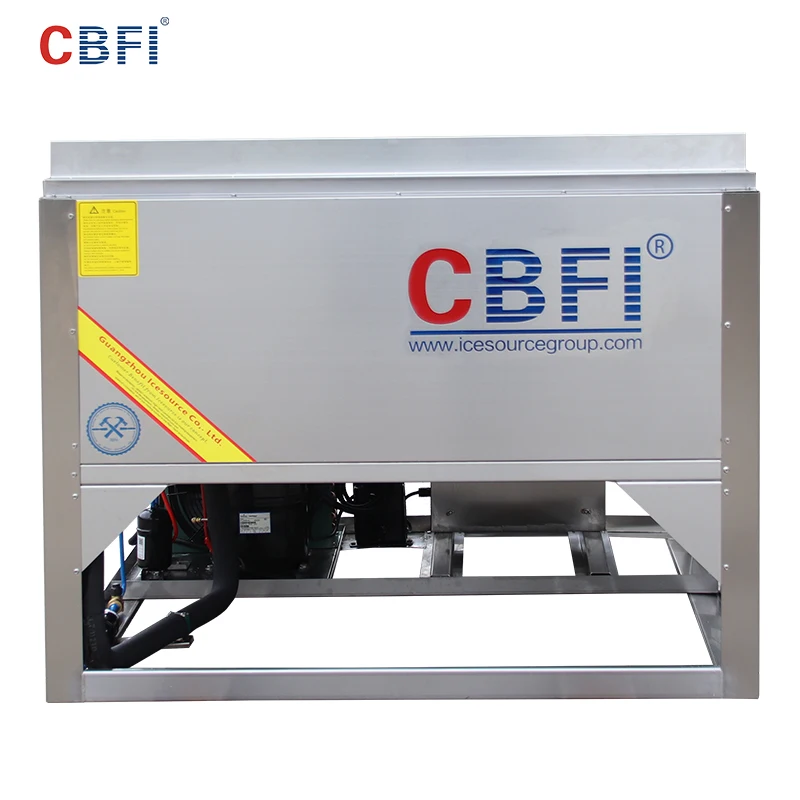

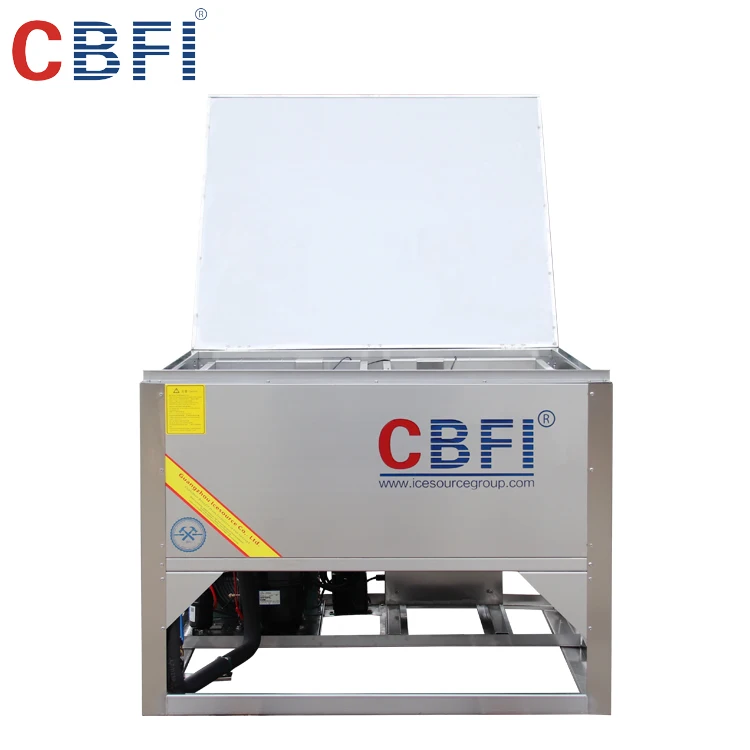

Pure Ice Machine Pure Ice Block Machine

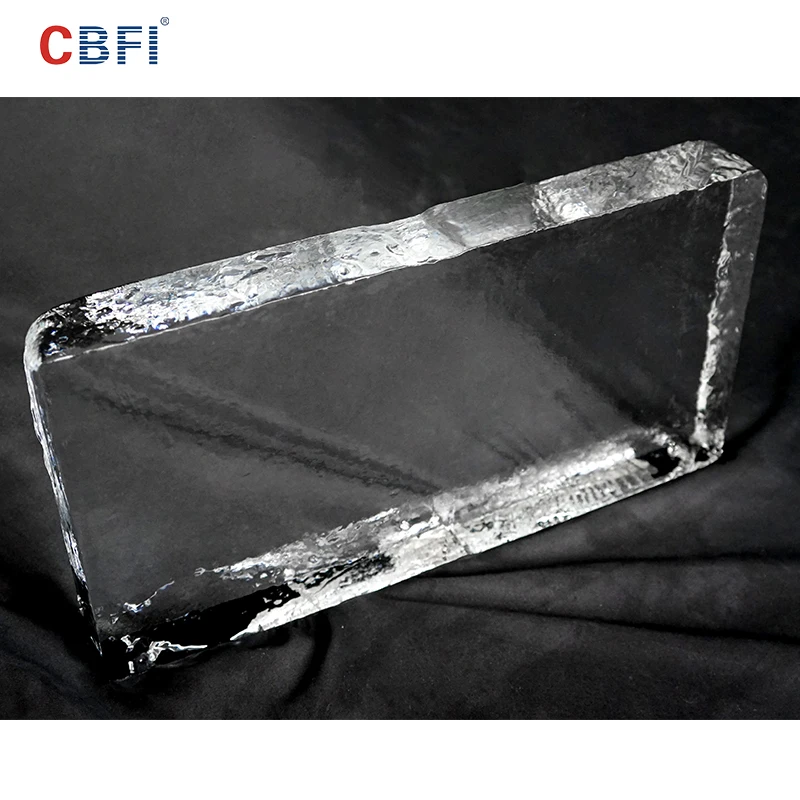

Pure Ice machine uses the direct refrigeration evaporator made of the aluminum alloy with highly efficient food grade. The machine storage the water on the direct refrigeration evaporator by mould.Different from the traditional brine system five sides freezing method, direct refrigeration Pure ice machine is only one side frozen at the bottom, so the ice forming speed is slow.However, the block ice have high transparency, no bubbles, high hardness, regular and no blank grooves in the middle, and It can be processed into ball ice, large cube ice(used for whisky), ice carving, etc.
Pure Ice machine uses the direct refrigeration evaporator made of the aluminum alloy with highly efficient food grade. The machine storage the water on the direct refrigeration evaporator by mould.Different from the traditional brine system five sides freezing method, direct refrigeration Pure ice machine is only one side frozen at the bottom, so the ice forming speed is slow.However, the block ice have high transparency, no bubbles, high hardness, regular and no blank grooves in the middle, and It can be processed into ball ice, large cube ice(used for whisky), ice carving, etc.
Pure Ice Machine Main Features
* Leading transparent ice ice forming technology, easy to operate and durable.
* Fully transparent ice, with no hollow groove, 100% ice utilization rate.
* On the premise of water sanitation, transparent ice can reach food standard.
* Compact equipment is easy to transport, move, install on site.
* It is widely used and is suitable for many places.
* Leading transparent ice ice forming technology, easy to operate and durable.
* Fully transparent ice, with no hollow groove, 100% ice utilization rate.
* On the premise of water sanitation, transparent ice can reach food standard.
* Compact equipment is easy to transport, move, install on site.
* It is widely used and is suitable for many places.

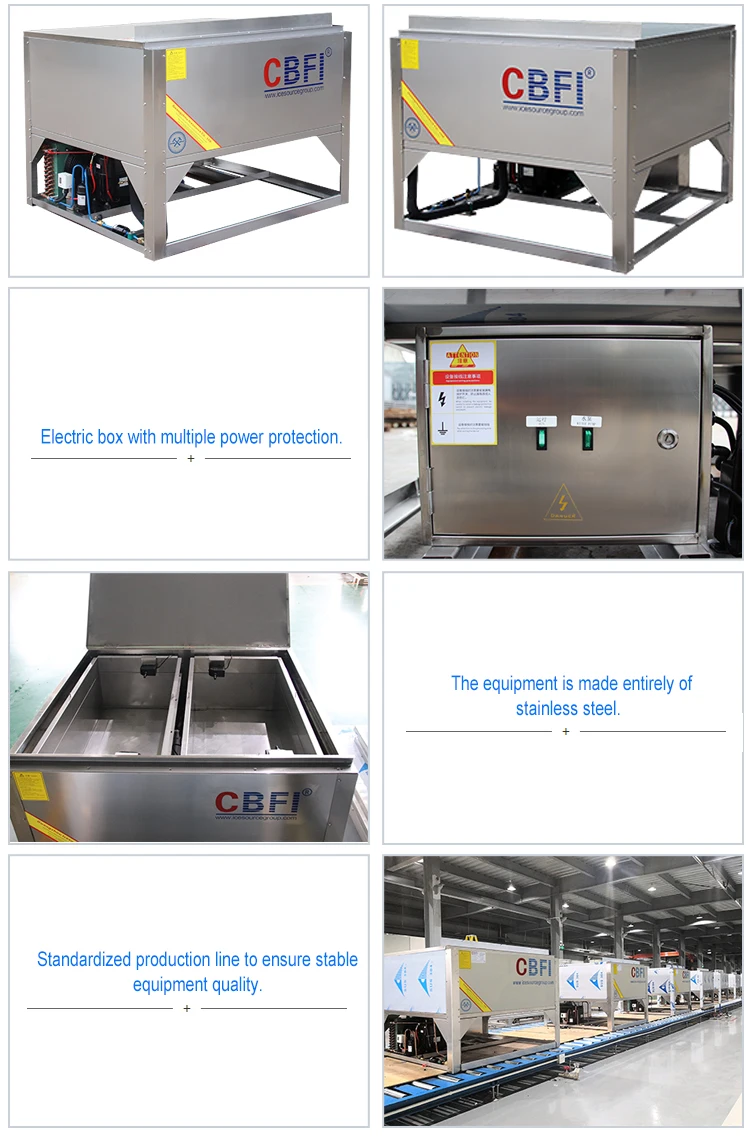

Product Details
Product Parameters
PIM-02 | ||||
Power Supply | 220V/50HZ/1P | |||
Refrigerant | R507 | |||
Evaporating Temperature | ℃ | -23 | ||
Condensing Temprature | ℃ | 40 | ||
Ambient Temperature | ℃ | 32 | ||
Water Supply Temperature | ℃ | 20 | ||
Ice Thickness | mm | 250 | ||
Ice Size | mm | 1000*500*250 | ||
Single Ice Block | Kg | 112.5 | ||
Capacity per time | Kg | 225 | ||
Quantity of ice per time | piece | 2 | ||
Ice Making Time | h | 70 | ||
Equipment Size (L*W*H) | mm | 1300*1225*973 | ||
Power | kW | 0.66 | ||
♦Compressor Brand: Copeland; Refrigerant: R507; Cooling Method: Air cooling; ♦ Power Supply: 220V/1P/50Hz; (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Remark: The actual ice production varies due to the influence of water supply temperature and ambient temperature. ♦ Remark: Design and specifications subject to change without notice. | ||||
Product Application
Our Services
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation
manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation
manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Contact us
About us
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),
Southeast Asia(16.00%),Africa(15.00%),Mid mEast(14.00%),South Asia(12.00%),South America(10.00%),
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room.
4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room.
4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish
