Full Color Chip LED Pixel Led Rgb ws2811 Side Light 4516 RGB Led SMD with IC
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600498862529):
Product Overview
Description

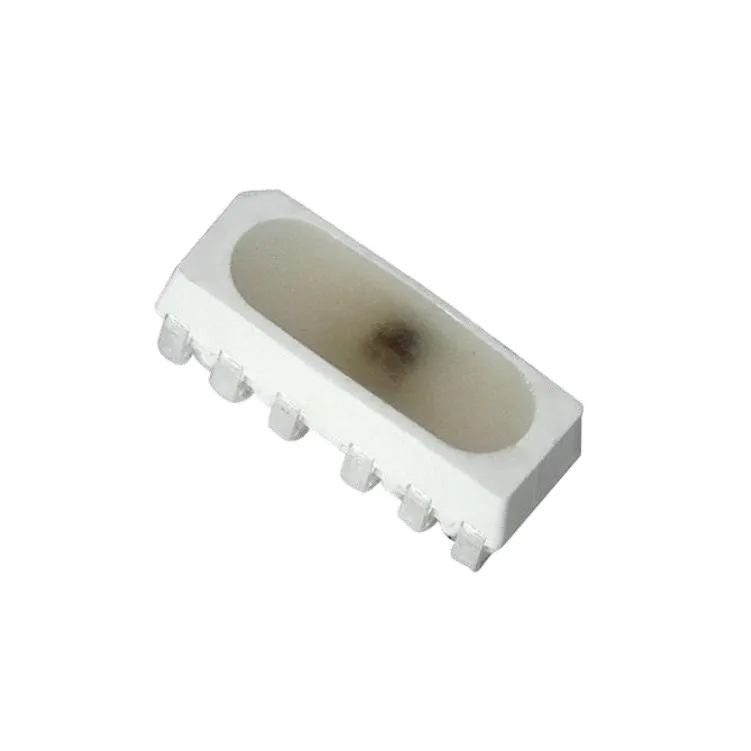

Full Color Chip LED Pixel Led Rgb ws2811 Side Light 4516 RGB Led SMD with IC
Product Features
1, RoHS2.0 Compliant
2, Packaged in 12mm tape on 7" diameter reels
3, EIA STD package
4, Compatible with automatic placement equipment and infrared reflow solder process
5, Preconditioning: accelerate to JEDEC level 5
6, RGB and driver chip are integrated in a package, to form a complete control of pixel point with constant current
7, One pixel contains R, G, and B color that each can achieve 256 level brightness grayscale, which forms 16, 777, 216combination colors. Internal clock frequency operates at 800 kHz.
8, Serial data transmission signal by single wire.
Typical Product Characteristics (Ta=25°C; VDD=5V)
Characteristics | Symbol | . | Min | Typ. | Max. | Unit | Test condition | |
Luminous Intensity | Iv | R | - | 750 | - | mcd | IF=20mA | |
G | - | 1450 | - | |||||
B | - | 240 | - | |||||
W | - | 2050 | - | |||||
Dominant Wavelength | λd | R | 615 | - | 630 | nm | IF=20mA | |
G | 515 | - | 525 | |||||
B | 460 | - | 475 | |||||
Color Coordinate | x | - | 0.2661 | - | - | IF=20mA | ||
y | - | 0.2846 | - | - | ||||
View Angle | 2θ1/2 | - | 120 | - | deg | IF=20mA | ||
Electrical Characteristics (Ta=25°C; VDD=5V)
Characteristics | Symbol | Condition | Min. | Typ. | Max. | Unit |
Supply voltage | VDD | 4.5 | 5.0 | 5.5 | V | |
Input high voltage | VIH | 2.7 | - | VDD+0.4 | V | |
Input low voltage | VIL | -0.4 | - | 1.0 | V | |
The clock high level width | TCLKH | 30 | - | - | ns | |
The clock low level width | TCLKL | 30 | - | - | ns | |
Data set up time | TSETUP | 10 | - | - | ns | |
Data hold time | THOLD | 5 | - | - | ns | |
Working current(IC) | IDD | I out= “OFF” | - | - | 2 | mA |
Standby current | I sleep | Sleep mold | 5 | uA | ||
Rate of data signal | FCLK | 1 | 15 | MHZ | ||
ESD pressure | VESD | HBM | 6000 | V |
Switching Characteristics (Ta=25°C)
Characteristics | Symbol | Condition | Min. | Typ. | Max. | Unit |
Rate of data signal | FDIN | - | 800 | - | KHZ | |
Transfer time | TPLH | DIN→DOUT | - | - | 80 | ns |
TPHL | 80 | ns | ||||
Conversion time of IOUT R/G/B | Tr | IOUT R/G/B =12mA RL=200Ω, CL=15pF | - | - | 50 | ns |
Tf | 100 | ns |

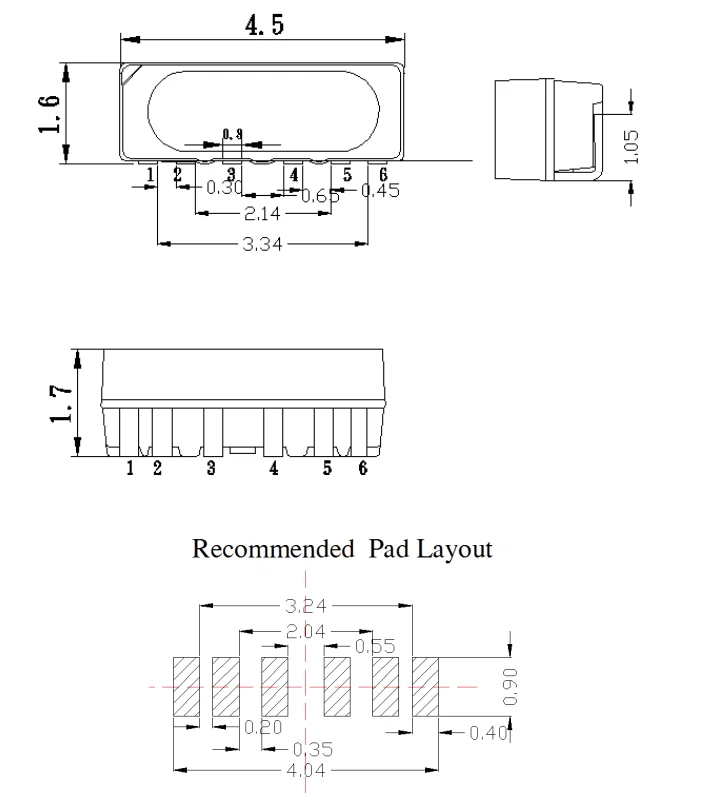

Dimensional Drawing
Remark:
1, All dimensions are in millimeters.
2, Tolerance is ±0.1mm unless other specified.
3, Specifications are subject to change without notice.
Applications
1, Telecommunication, office automation, home appliances, industrial equipment
2, Status indicator
3, Signal and symbol luminaire
4, Front panel backlighting
5, Full-color strip
6, Indoor decorative lighting / curtain display
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
