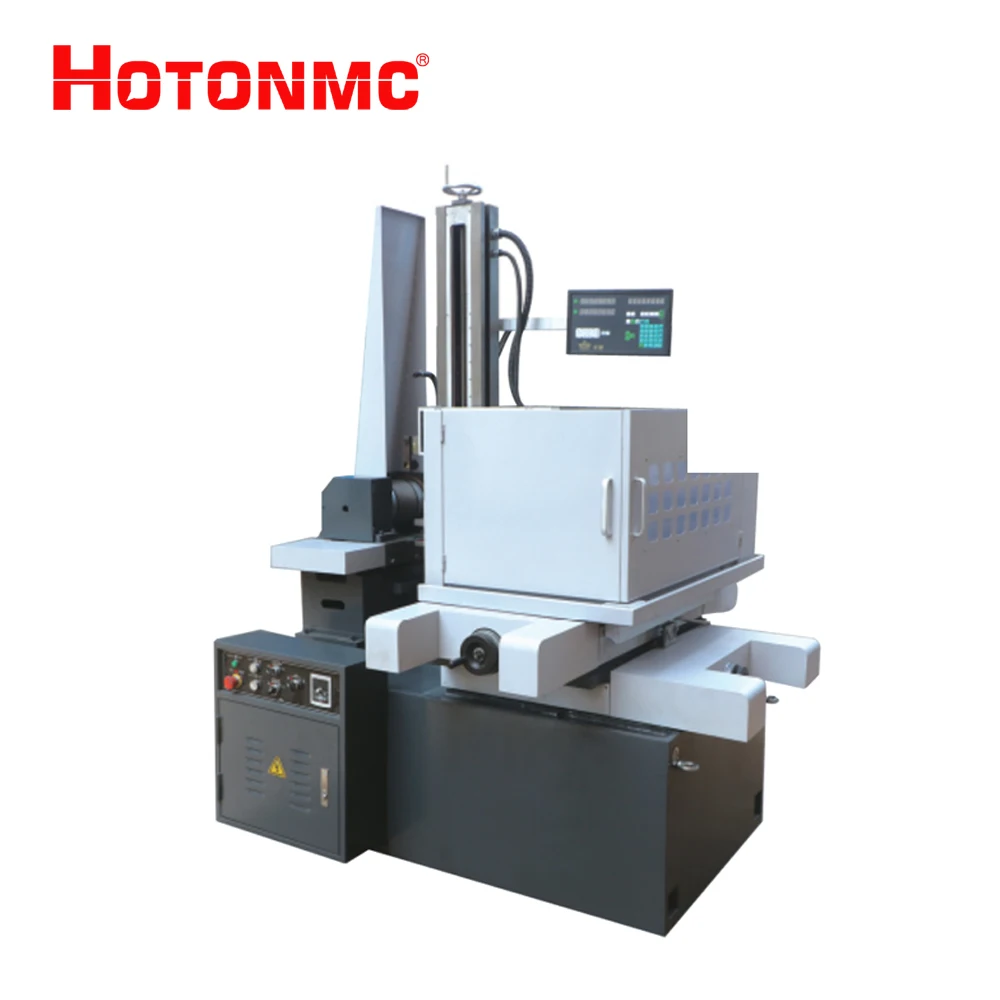

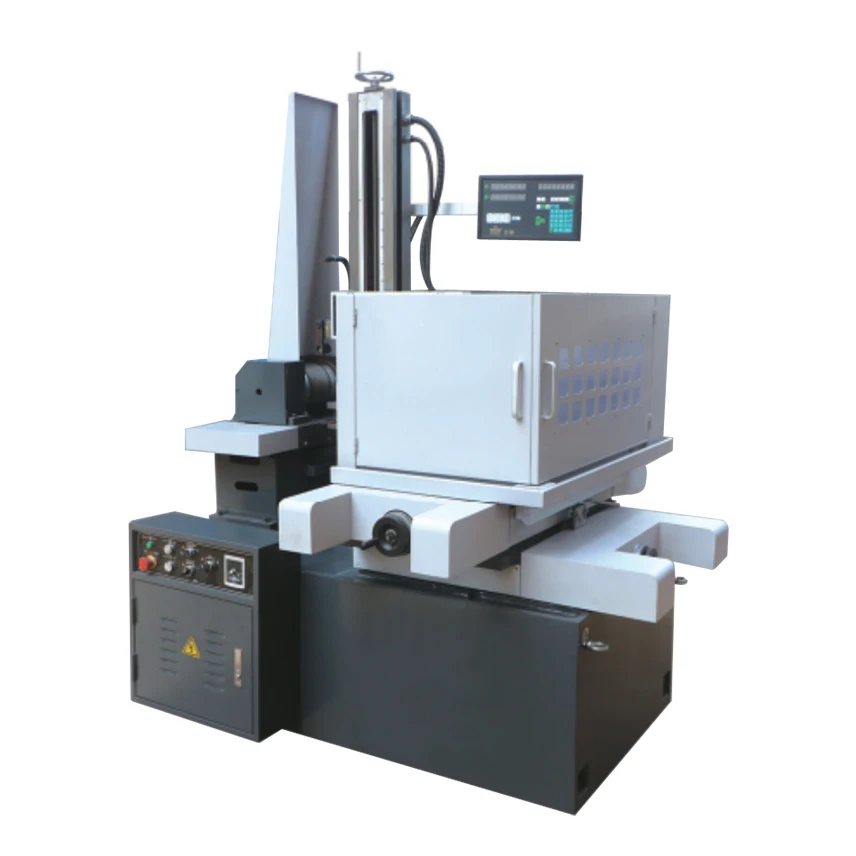

DK77 Series CNC Molybdenum Wire Cut EDM Machine Chispas DK7712 DK7720 DK7725 DK7730 DK7735
- Category: >>>
- Supplier: Tengzhou Hoton Machinery Co. Ltd.
Share on (1600498929752):
Product Overview
Description
WELCOME
Accessories:
Product Discription:
●High precision: imported high rigidity and high strength guide rail, double nut ball screw and machine tool are adopted, and the manufacturing process parameters are 3 ~ 5 times higher than the national standard.
●High finish: it adopts a variety of wire cutting methods and automatic wire tightening device, which can realize multiple cutting and fast wire walking machine for middle wire walking.
●Speed: DK series high-speed and high-precision power supply and new environmental protection cutting fluid independently developed by Datong railway are adopted, the processing efficiency is 2 ~ 3 times higher than that of ordinary medium wire walking, and the cutting speed can reach 400mm2 / min.
●High precision: imported high rigidity and high strength guide rail, double nut ball screw and machine tool are adopted, and the manufacturing process parameters are 3 ~ 5 times higher than the national standard.
●High finish: it adopts a variety of wire cutting methods and automatic wire tightening device, which can realize multiple cutting and fast wire walking machine for middle wire walking.
●Speed: DK series high-speed and high-precision power supply and new environmental protection cutting fluid independently developed by Datong railway are adopted, the processing efficiency is 2 ~ 3 times higher than that of ordinary medium wire walking, and the cutting speed can reach 400mm2 / min.
Main Technical Date | ||||||||||||||||
Type | Worktable size (mm) | Worktable Travel (mm) | Max.cut thickness (mm) | Taper (optinal) | Max. Load weight (kg) | Net weight (kg) | Dimensions (mm) | Power supply (kw) | ||||||||
DK7712 | 200x270 | 120X160 | 100 | / | 50 | 600 | 900X700X1250 | 2KW | ||||||||
DK7720 | 270x420 | 200x250 | 200 | 6°/80mm | 100 | 800 | 1160X880X1400 | 2KW | ||||||||
DK7725 | 340x520 | 250x220 | 400 | 6-12°/80mm | 200 | 1200 | 1485X1010X1700 | 2KW | ||||||||
DK7730 | 340x560 | 300x360 | 400 | 6-12°/80mm | 200 | 1250 | 1485X1050X1700 | 2KW | ||||||||
DK7732 | 380x600 | 320X400 | 400 | 6-30°/80mm | 300 | 1400 | 1640X1280X1700 | 2KW | ||||||||
DK7735 | 380X650 | 350X450 | 400 | 6-30°/80mm | 300 | 1440 | 1660X1330X1700 | 2KW | ||||||||
DK7740 | 410x710 | 400x500 | 400 | 6-60°/80mm | 450 | 1600 | 1830X1490X1700 | 2KW | ||||||||
DK7745 | 500x750 | 450x550 | 400 | 6-60°/80mm | 450 | 1650 | 1865X1520X1700 | 2KW | ||||||||
DK7755 | 596x880 | 550x650 | 500 | 6-60°/80mm | 800 | 2500 | 2070X1170X1790 | 2KW | ||||||||
DK7763 | 790x1260 | 630x1000 | 600 | 6-60°/80mm | 1000 | 3500 | 2265X2160X1930 | 2KW | ||||||||
DK7780 | 900x1500 | 800x1200 | 600 | 6-60°/80mm | 1500 | 5500 | 2900X2500X2150 | 2KW | ||||||||
DK77120 | 1300x1900 | 1200x1600 | 600 | 6-12°/80mm | 4000 | 10000 | 4200X3700X2000 | 2KW | ||||||||
DK77160 | 1400X2500 | 1600X2000 | 800 | 6-12°/80mm | 5000 | 12000 | 5000X4200X2200 | 2KW | ||||||||
