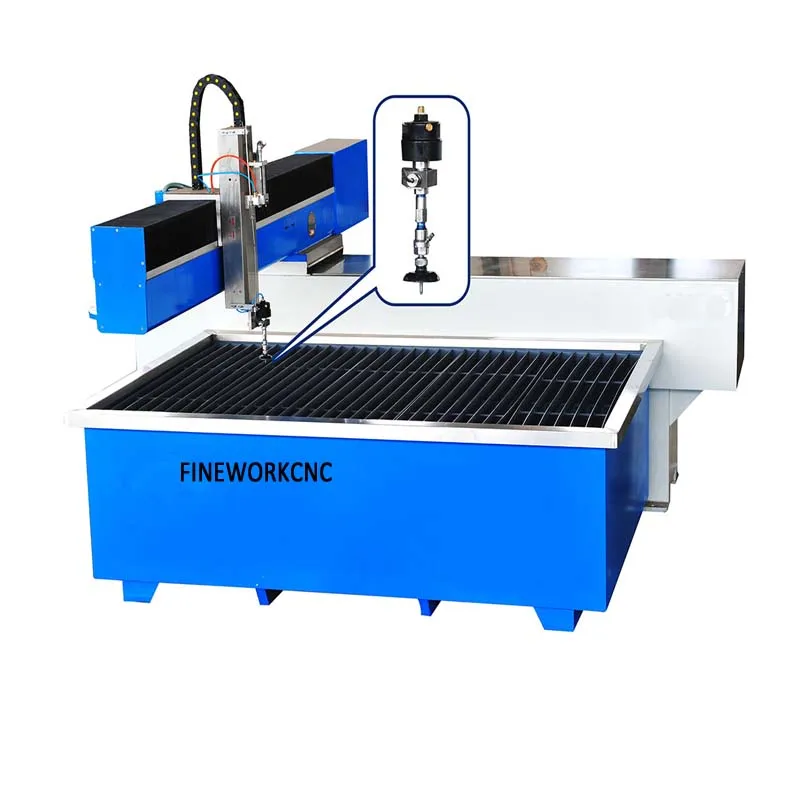

Brass Cnc Water Jet Machine Price Water Jet Cnc Machine 5 Axis Waterjet Cutting Machinery
- Category: >>>
- Supplier: Jinan Finework CNC Machinery Co. Ltd.
Share on (1600498944014):
Product Overview
Description

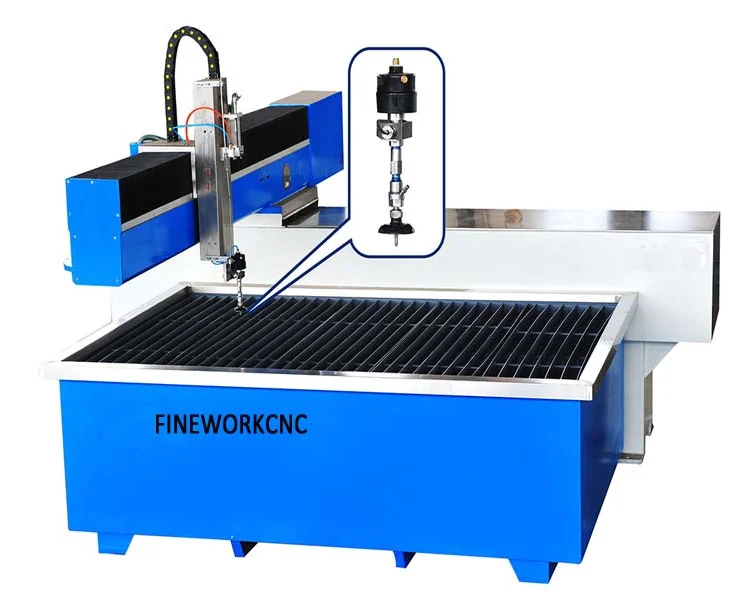

This is a waterjet cutting machine which is popular with stones and tiles businessman. Compared with the classical 3axis waterjet machine,AV-5axis jetting machine could be straight cutting and angles cutting.Its cutting application is wider.
Compared with the traditional 4axis waterjet machine,AV-5axis jetting machine could auto adjust the cutting angles.Its cutting precision would be higher and cutting speeo would be faster.
When you need to cut the stones and ceramic tiles as the floor inlay,you couldchoose the 2-4 degrees and realize any shape cutting.
Compared with the traditional 4axis waterjet machine,AV-5axis jetting machine could auto adjust the cutting angles.Its cutting precision would be higher and cutting speeo would be faster.
When you need to cut the stones and ceramic tiles as the floor inlay,you couldchoose the 2-4 degrees and realize any shape cutting.
No need for the secondary machining after the cutting.It can help you save the production costespecially the places which own not too much population or labor cost is huge high.
Due to the high-pressure water line has the feature of distribution, if you choose straight cutting and the lower surface would be bigger than the upper surface.
Due to the high-pressure water line has the feature of distribution, if you choose straight cutting and the lower surface would be bigger than the upper surface.
So that if you request the surface between the upper and lower is the sameespecially when you need to cut the metals the better way is to choose small angles cutting Each of the metals,like steel platestainless steel platealuminum platecopper plate. You can cut with different angles according to your machining requirement, and the precision would be higher.
Item | Water jet cutting machine | ||||||||||
Model | 1313 | 1325 | 1530 | 2515 | 2030 | 2040 | |||||
Working size (mm) | 1300*1300 | 1300*2500 | 1500*3000 | 2500*1500 | 2000*3000 | 2000*4000 | |||||
Cutting Degree | AV 5 axis +-5 degree | ||||||||||
Noise level | < 90db | ||||||||||
Cutting Accuracy | +/- 0.02mm | ||||||||||
Maximum pressure | 413Mpa(60000psi) Axial Plunger pump | ||||||||||
Maximum flow rate | 3.8L/min Hydraulic system | ||||||||||
Power supply | 380v 50HZ 3P Hp Cylinder only support 380V three phase | ||||||||||
Motor rated power | 66A | ||||||||||
Motor | Japan servo motor and driver | ||||||||||
Screw | TBI/ Taiwan enterprise | ||||||||||
Guide-way | Hiwin/ Taiwan enterprise | ||||||||||
CUTTING TABLE
Cutting Tank:Tank is welded by double steel plate total weight is up to3000-4000kgs.Strong tank ensures the cutting being more stable.
Servo Motor:Machines running is driven by
famous brand servo motor.Servo motor can better improve cutting precision.
Screw &Guide Rail:HIWIN ball screw &quide rail. with oil-immersed structurecan make cutting being more precise and protect elements.
Sand Valve:Patent design of sand valvecan save10%-15% sand per hour.It can help customers ive more cost.
Servo Motor:Machines running is driven by
famous brand servo motor.Servo motor can better improve cutting precision.
Screw &Guide Rail:HIWIN ball screw &quide rail. with oil-immersed structurecan make cutting being more precise and protect elements.
Sand Valve:Patent design of sand valvecan save10%-15% sand per hour.It can help customers ive more cost.

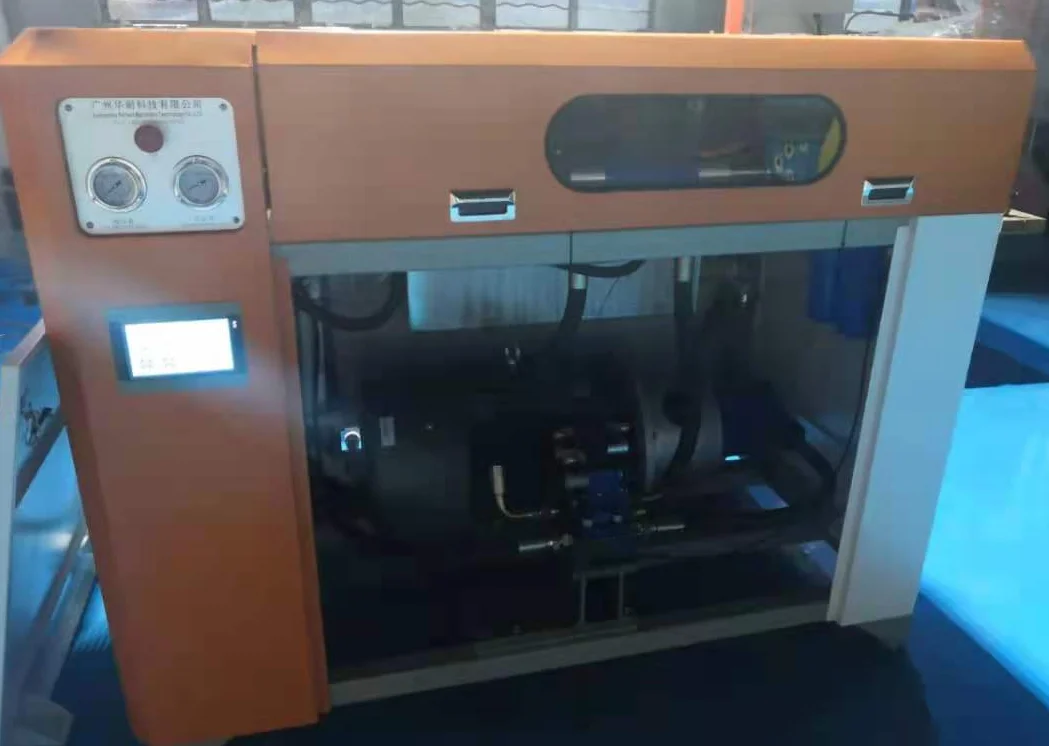

INTENSIFIER PUMP
Pump Motor:37kw/50hp Siemens motor is
equipped in the pumpcan better help cut being thicker faster more stable
Electrical Equipment:ABB famous Germany brans as AC contactor.Fully protect using safety for elec- tricity and being more stable.
Detection Device:Micro touch screen computer detects equipments statecan help customer oper- ate. and do the maintenance easier.
Cooling Device:Wing cooling structure is equipped inside the pump; better help save the spaces and protect elements.
equipped in the pumpcan better help cut being thicker faster more stable
Electrical Equipment:ABB famous Germany brans as AC contactor.Fully protect using safety for elec- tricity and being more stable.
Detection Device:Micro touch screen computer detects equipments statecan help customer oper- ate. and do the maintenance easier.
Cooling Device:Wing cooling structure is equipped inside the pump; better help save the spaces and protect elements.

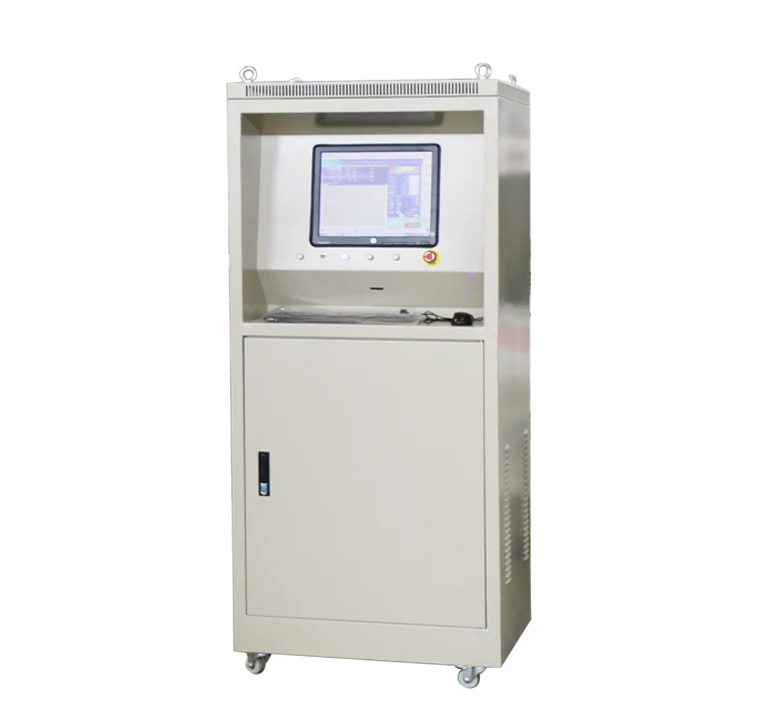

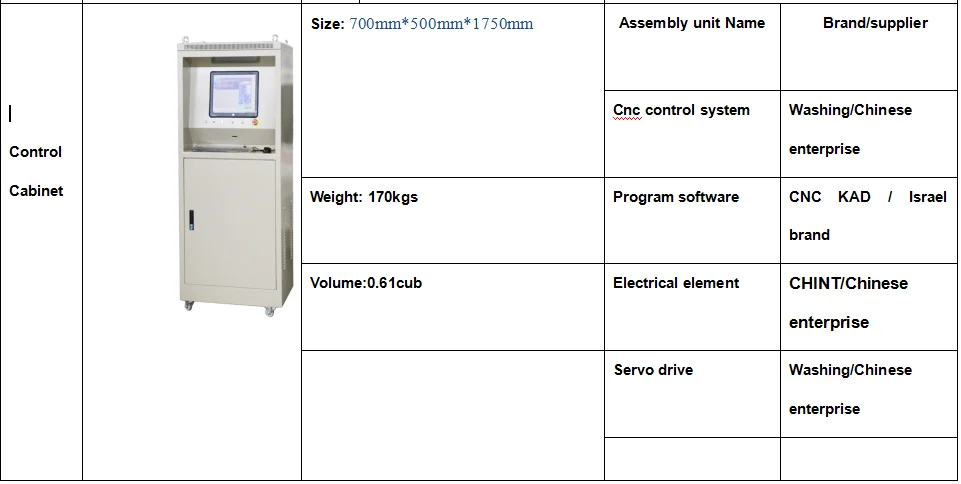

CONTROLCABINET
Cutting Software:NcStudio software,has English& Chinese language,help new uses better study operation easier and faster
Servo Driver:A series of servo drivers are arranged inside the cabinet detect the machinesrunning all the time.
Operate Device:Wireless keyboard & mouseas easier operate devicebetter help improve the working efficiency.
ABRASIVE FEEDER
FUNCTION:Use pneumaticstechnologyrealize automatic sand supply.
FEATURE:Automatic;high efficiency;less cost
ADVANTAGE:Can provide two machinesworking100L can provide 300-500mins sand quantity.
FEATURE:Automatic;high efficiency;less cost
ADVANTAGE:Can provide two machinesworking100L can provide 300-500mins sand quantity.
