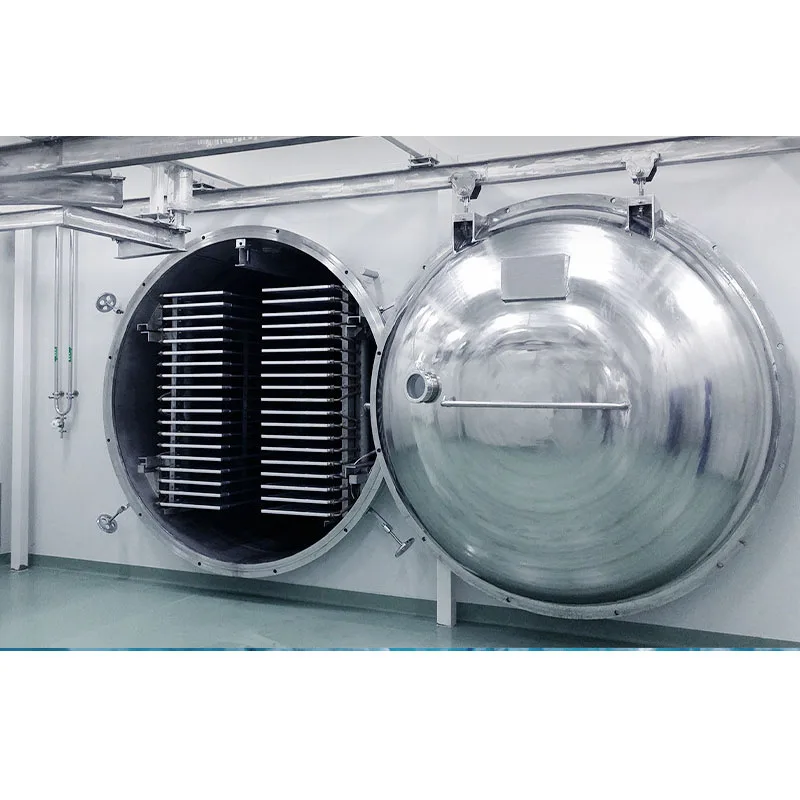

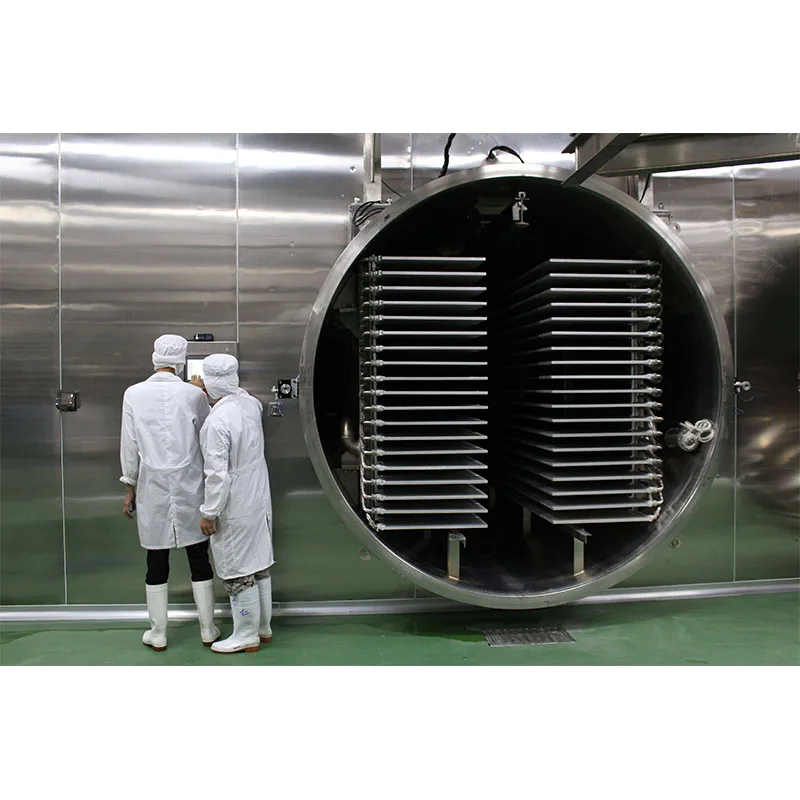

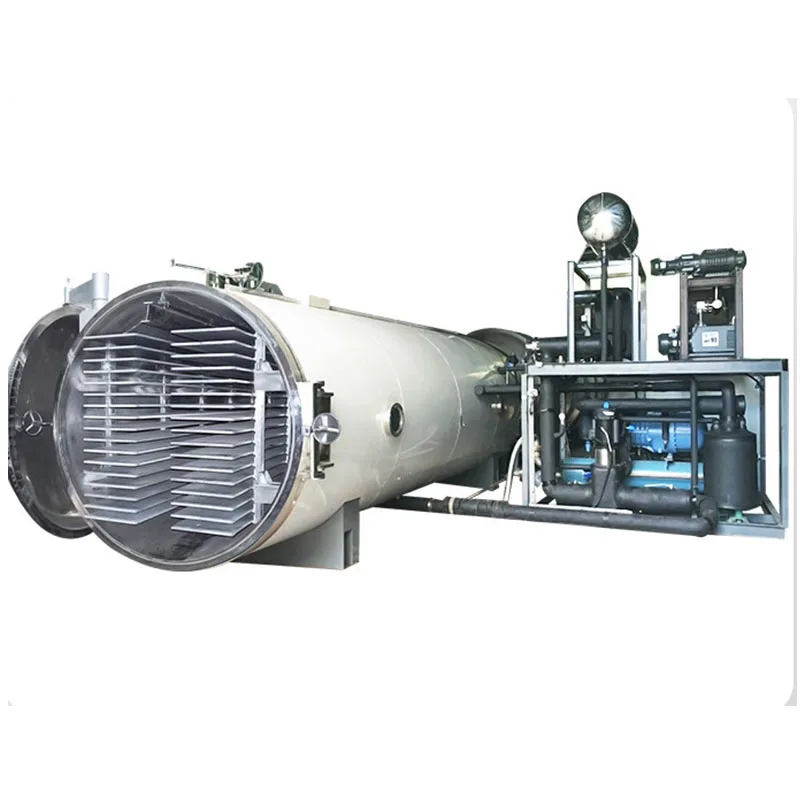

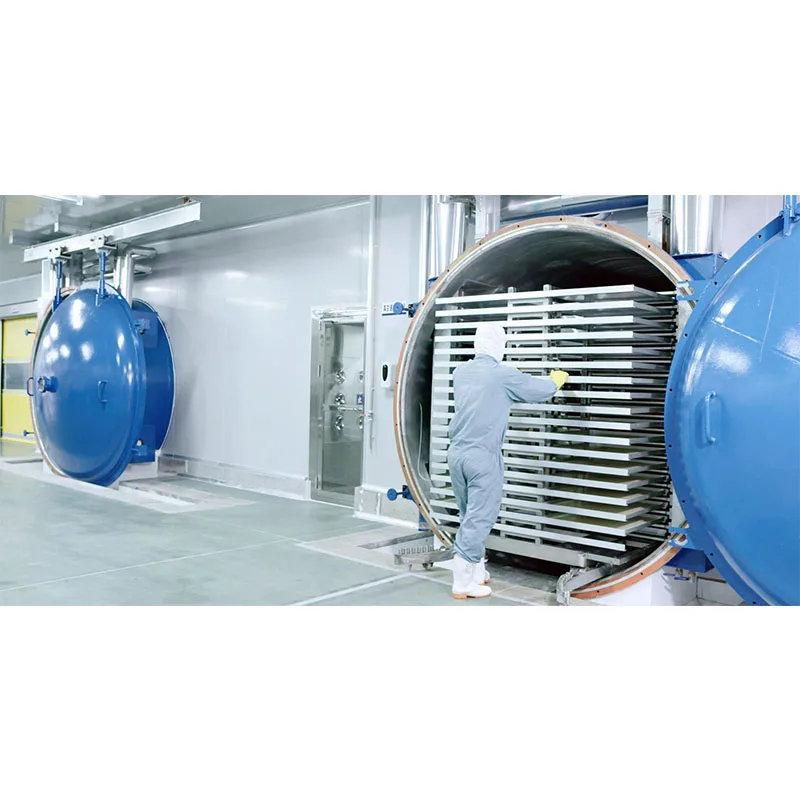

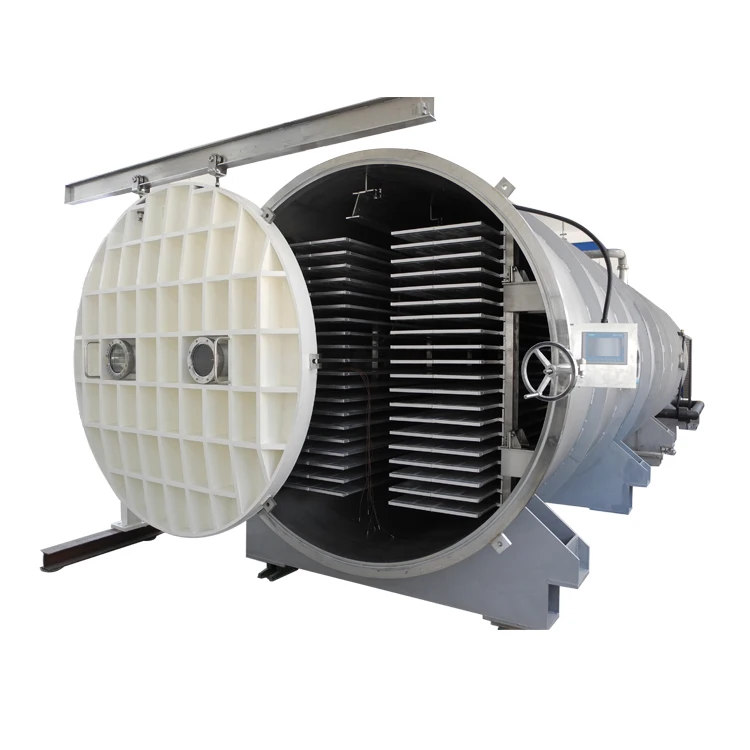

FD 50 Medium Square Meters Industrial Fresh Food Fruit Vegetable Vacuum Freeze Dryer Dehydrator Machine
- Category: >>>
- Supplier: Hangzhou Ouhui Machinery Co. Ltd.
Share on (1600499013668):
Product Overview
Description
Product Description
Specification
item | value |
Type | Freeze Drying Equipment |
Application | Medicine Processing, Food Processing |
Condition | New |
Place of Origin | China |
Zhejiang | |
Brand Name | ouhui |
Voltage | 380V/50HZ |
Power | 73~457 kw |
Dimension(L*W*H) | As actual |
Key Selling Points | Long Service Life |
Warranty | 1 Year |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms |
Showroom Location | Viet Nam, Philippines, Brazil, Peru, Indonesia, Mexico, Thailand, Chile |
Marketing Type | New Product 2020 |
Machinery Test Report | Not Available |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Pump, Motor, PLC |
Evaporation Capacity(kg/h) | 60-400 |
Heating Method | Steam Heating |
Material | SUS304 |
Product name | Industrial Fruit Dryers |
Keywords | Dryer Drying Machine |
Function | Food Vegetable Fruit Dehydrator |
Heating source | Elctricity |
Feature | High Efficiency Low Cost |
Company Profile
Hangzhou OuHui Machinery Co., Ltd. is a high-tech company which has internationally advanced R&D, production and sales ability.
Workshop is equipped with modern production lines and world's leading production equipment and computer-controlled monitoring system. Our products are low temperature cooling liquid circulating pump, high and low temperature circulation tank, rotary evaporator, glass reactor and low temperature reaction vessel. Integrity management has always been our strategy, with advanced technology to reduce costs and be rewarded high-performing. So we look forward to working with you to bring you the best results.
Workshop is equipped with modern production lines and world's leading production equipment and computer-controlled monitoring system. Our products are low temperature cooling liquid circulating pump, high and low temperature circulation tank, rotary evaporator, glass reactor and low temperature reaction vessel. Integrity management has always been our strategy, with advanced technology to reduce costs and be rewarded high-performing. So we look forward to working with you to bring you the best results.
Parameters | FD-10 | FD-15 | FD-20 | FD-35 | FD-50 | FD-75 |
Shelf usable area (m2) | 10 | 15 | 20 | 35 | 50 | 75 |
Condenser capacity (Kg/B) | 200 | 300 | 400 | 700 | 1000 | 1500 |
Cylinder(Diameter*Length)(mm) | 1300*2230 | 1300*3010 | 2000*2350 | 2000*3300 | 2200*3650 | 2200*4950 |
Shelf size(Width*Length) (mm) | 600*1520 | 600*2300 | 1000*1250 | 1000*2200 | 1000*2500 | 1000*3750 |
Shelf number (No) | 11+1 | 11+1 | 16+1 | 16+1 | 20+1 | 20+1 |
Shelf temperature range (℃) | -140 | -140 | -140 | -140 | -140 | -140 |
Cooling water qty:≤30℃,0.15-0.2MPa (m3/hr) | 12 | 17 | 21 | 25 | 36 | 52 |
Compressed air consumption:0.6-1.0MPa (l/min) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
Vacuum defrost water(m3/b) | 0.035 | 0.053 | 0.071 | 0.125 | 0.178 | 0.267 |
Water consumption for deicing:≈50℃,0.1-0.2MPa (m3/hr) | 0.5 | 0.7 | 1 | 1.6 | 2.3 | 3.5 |
Installed power:400V,3P5W,50Hz(±5%) (kw) | 40 | 50 | 70 | 120 | 140 | 160 |
Dimension (mm) | 2300*2000*2000 | 3100*2000*2000 | 2400*2700*2500 | 3300*3000*2500 | 3700*3400*2500 | 5000*3400*2500 |
Valid Area | 10 | 15 | 20 | 35 | 50 | 75 |
Installation and after sales service: Installing and Commission.
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting
the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket
to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of
our technician, the service charges US $ 50 per day will be charged extra.
the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket
to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of
our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period.
There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the
spare part is free. The service of the machine all though the machine’s life.
spare part is free. The service of the machine all though the machine’s life.
After sales service.
We have seven technicians who gets passport ready to travel all over world to offer service to you. 2.We have 24hours hot line for
Technical Support. 3.We get 18hours internet line for technical support. 4.Video camera in workshop to help you adjust and solve
machine problem in working situation.
Technical Support. 3.We get 18hours internet line for technical support. 4.Video camera in workshop to help you adjust and solve
machine problem in working situation.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2019,sell to North America(30.00%),Western Europe(20.00%),Southeast Asia(15.00%),Domestic Market(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
freeze dryer,Lyophilization machine,fruit freeze dryer,vegetable freeze dryer,food freeze dryer
4. why should you buy from us not from other suppliers?
Hangzhou Ouhui Machinery Co.,Ltd.,is one step solution of freeze dryer machines.
We locate in Hangzhou, the beautiful city in China, near to Shanghai within one hour of fast train. We have over 12 years of experience in the field of freeze dryer machines.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Cash;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2019,sell to North America(30.00%),Western Europe(20.00%),Southeast Asia(15.00%),Domestic Market(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
freeze dryer,Lyophilization machine,fruit freeze dryer,vegetable freeze dryer,food freeze dryer
4. why should you buy from us not from other suppliers?
Hangzhou Ouhui Machinery Co.,Ltd.,is one step solution of freeze dryer machines.
We locate in Hangzhou, the beautiful city in China, near to Shanghai within one hour of fast train. We have over 12 years of experience in the field of freeze dryer machines.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Cash;
Language Spoken:English,Chinese
