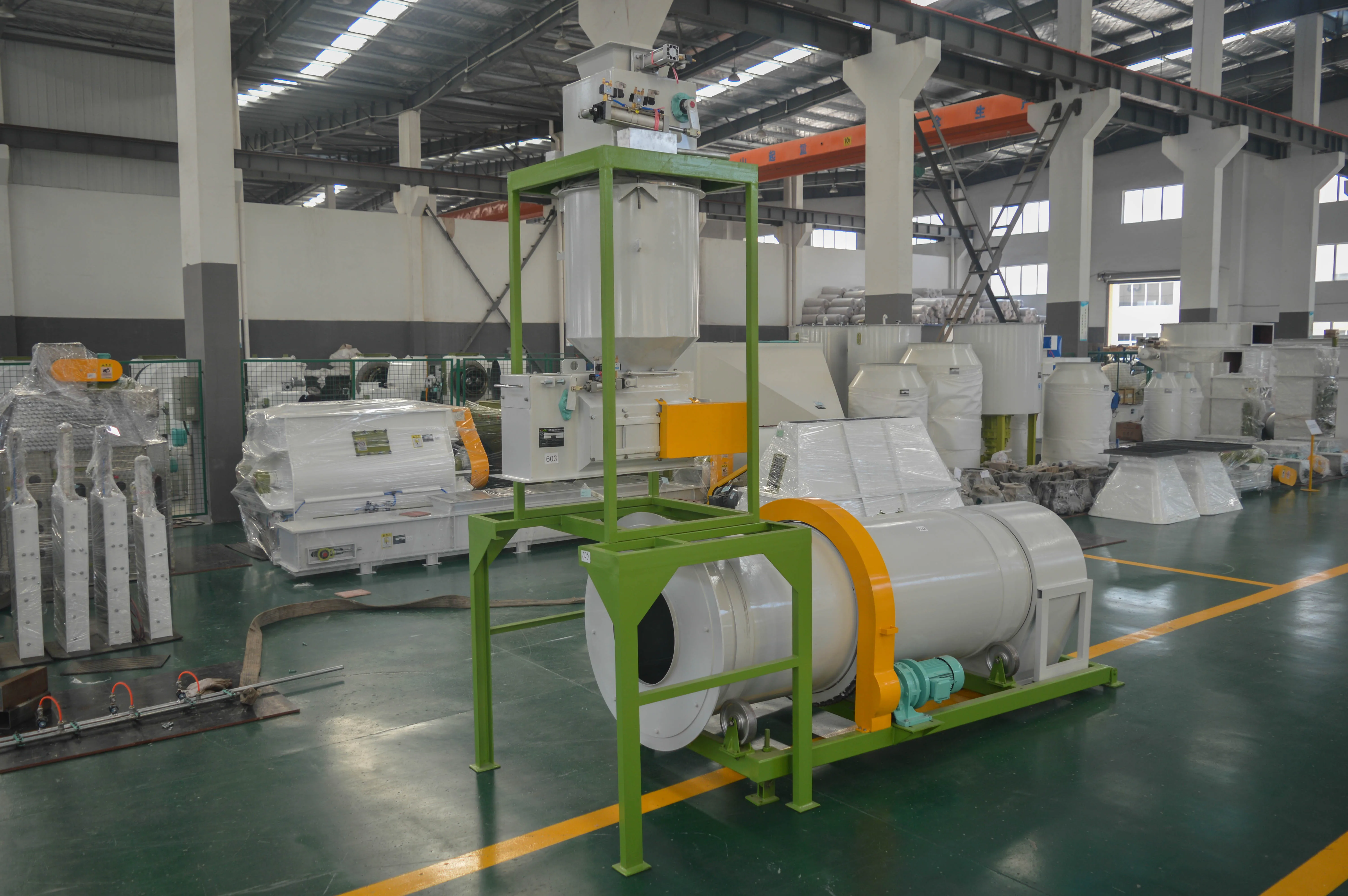

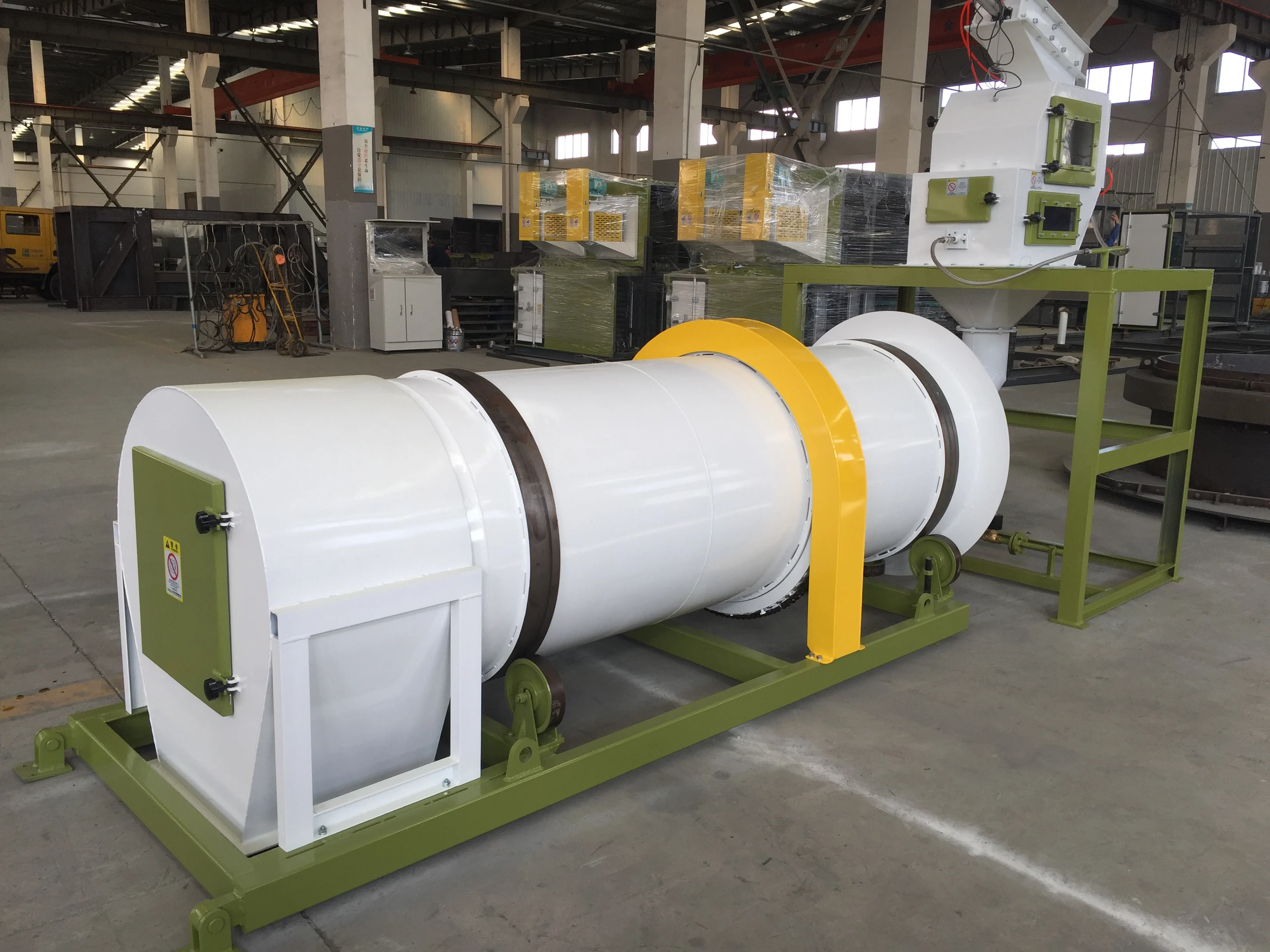

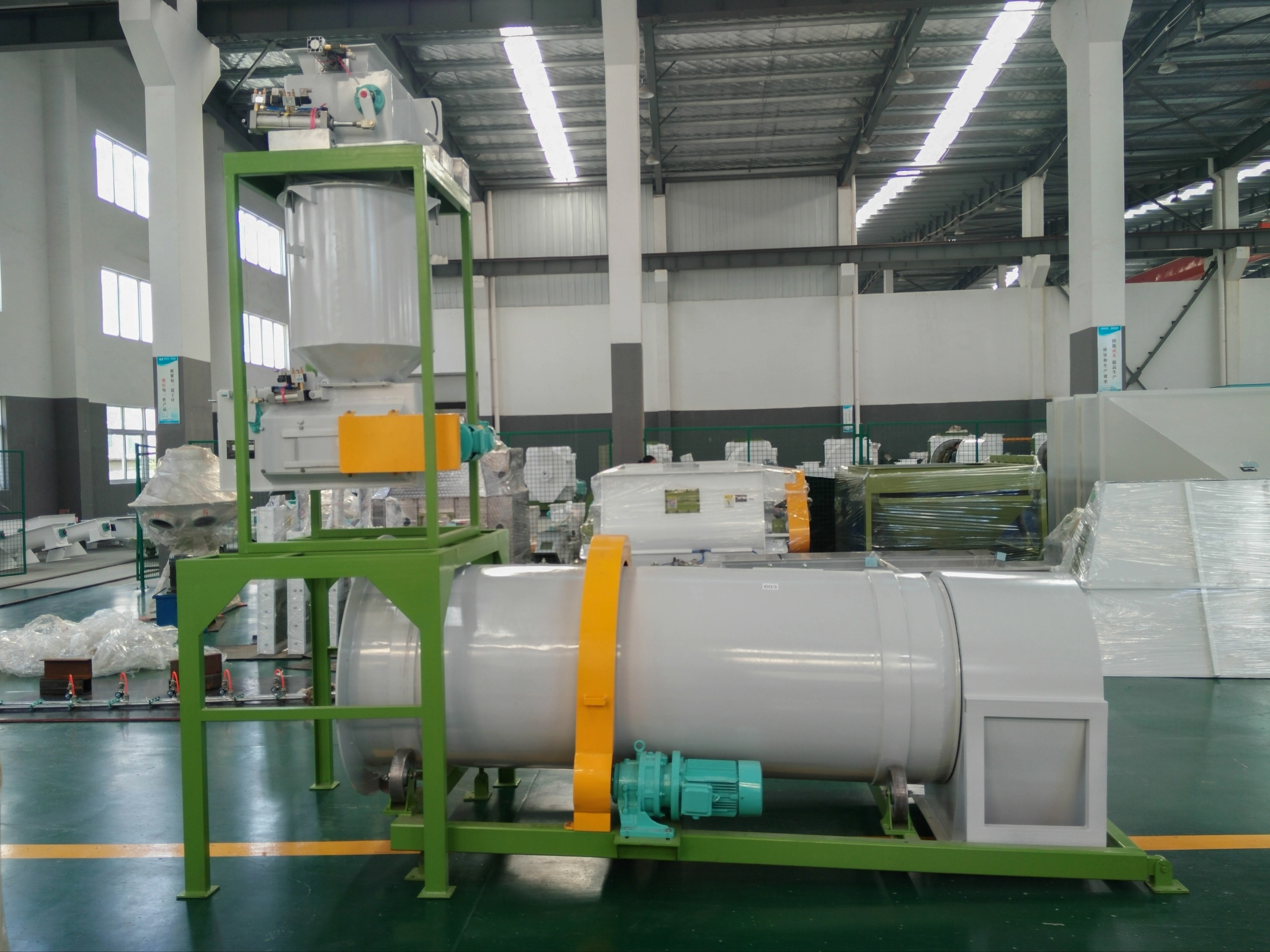

Drum feed pellets oil coating oil spraying machine feed oil coater

Share on (1600499026930):


Price:

Quantity:


Product Overview

Description


Product Description


It is called: Oil spraying machine, grease filling machine, molasses adding machine, oil adding machine, grease liquid adding machine, auto sprayer machine, auto weighing filling adding machine, auto weighing spraying and adding machine, liquid sprayer adding machine, liquid auto filling and spraying machine.


1.The machine use drum to keep the material moving, high-pressure spraying nozzle sprays liquid and full contact with the surface of feed, to ensure uniform spraying.


2.Widely applicable in spraying grease, molasses, enzymes, vitamins, organic acids and other nutrients and drugs on the surface of pellets and extruded feed, especially applicable for the production of high energy feed.


3.Additive amount is controlled by the system,quantity of liquid addition is 1%-8%.


4.Achievement of automatic combination for spraying is possible according to the additive amount.


5.Diameter of drum:850mm.


6.Oil injection quantity:1.5l/h-600l/h.


7.Volume of oil tank: 50-200kg.


8.Spraying proportion:3%~8%.


9.Rotation speed of drum:7-8rpm.

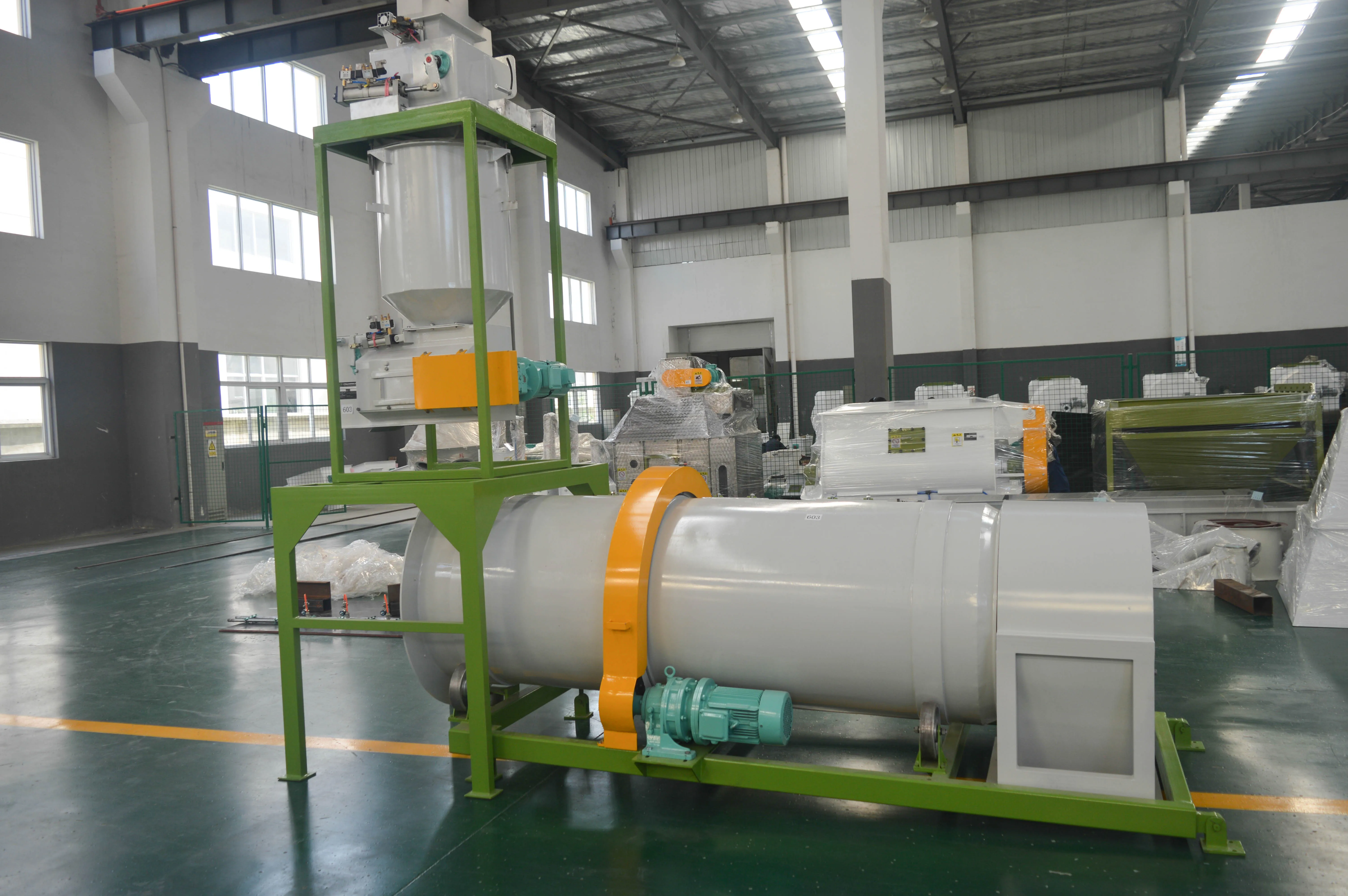

6 DSC_0051 DSC_0055






































Model


Power
(KW)


Capacity
(T/H)


Appending proportion


Diameter of drum (MM)


SPYG850


5.2


1-5




1% - 8%


850


SPYG1200


6.3


1-10


1200


SPYG1500


8.1


4-14


1500


SPYG1800


8.5


6-20


1800


paste-pic-dp_uuid_eq1jy


.jpg








Company Information


DSC08849-4


Jiangsu YONGLI Machinery Co.,Ltd. was founded in 2003. We are an excellent provider and operator for feed,biomass, fertilizer and Silo equipments. With the principle of High Quality, Competitive Price, Technical Innovation, Excellent Service, we constantly develop domestic market and abroad market, until now, we have finished thousands feed, biomass, fertilizer and silo projects which closely connected with the pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, feed mill, fish feed extruder, cooler, conveyors, bucket elevator etc, and gain great reputation from our clients.  YONGLI insist on “Quality is the soul of company", and passed the audit of ISO9001 quality system and all finished products meet the CE standard.


Our equipments have exported  to more than 50 countries: Canada, USA, Portugal, Greece, Russia, Latvia, France, Lithuania, Slovenia, Belgium, Hungary, Ukraine, Croatia, Romania, Turkey, Tunisia, Algeria, Malaysia, Vietnam, Korea, Thailand, Indonesia, Japan, Sri Lanka, Dubai, Australia, New Zealand and so on.  With high-quality staffs, CAD & Solidworks design center and strong technical force, we could provide process design, manufacturing, installation, commissioning, personnel training, after-sales service and other service for our customers. We promise that customers can get optimum benefit at minimum investment.





CE Certification


CE (2)








Production Flow


If you are interested in it, please kindly review the working process flow of our machine in YONGLI workshop:


Production Process 1.jpg





Our Services


1)Consultation service before, during and after-sales.


2) Project planning and design service.
3) Debugging of equipment until every process is functional.
4) Training of equipment maintenance and operating personally.
5) Provide shipping service from YONGLI factory to client's discharge port.
6) Provide 1-2 years warranty for main machine and life-time maintenance service.

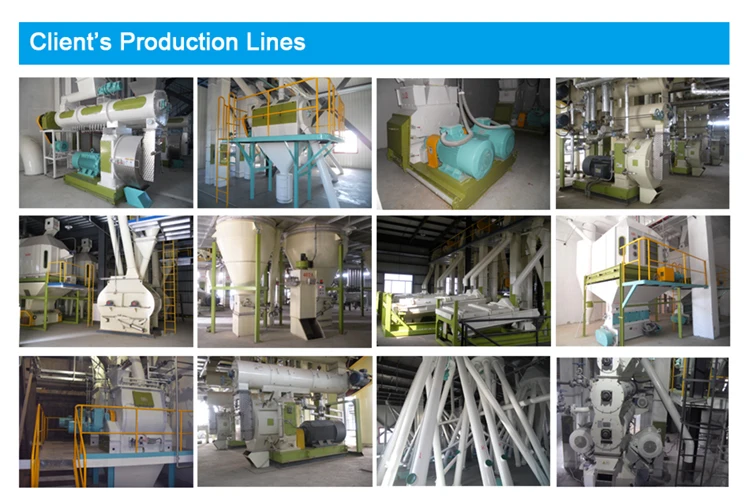

Our Customers


Many clients come to visit YONGLI factory for face to face discussing the technology drawing and order for details! You are also always welcome!


Our client.png





Advantages


YONGLI’s strength as below:


1. Group strength. Founded in the year 2003, with a history of more than 20 years in the area of processing organic waste, YONGLI has developed core equipment with premium performance and abundant experience on organic waste processing engineering.


2. Engineering Design. As the earlier pioneer in organic fertilizer equipment area, YONGLI has accumulated designing experiences and processing technology data from thousands of organic waste processing projects, which will help us satisfy different customers’ requirement in furthest content. With these experience, YONGLI offers processing line with advanced core equipment, reasonable process, and economical operation.


3. Sample Projects. YONGLI has contracted a large number of organic waste processing projects with capacity of more than 500 thousand metric ton per year. On this process, YONGLI has developed standard and efficient management system covering delivery, installation, on-site commissioning, and after-sales service. This lays a solid foundation for our contracting and implementing this organic waste composting project.





YONGLI’s strength as below:


1. Group strength. Founded in the year 2003, with a history of more than 20 years in the area of processing biomass pellet line.


2. Engineering Design. As the earlier pioneer in biomass pellet line, YONGLI has accumulated designing experiences and processing technology data from thousands of processing projects, which will help us satisfy different customers’ requirement in furthest content. With these experience, YONGLI offers processing line with advanced core equipment, reasonable process, and economical operation.


3. Sample Projects. YONGLI has contracted a large number of biomass pellet processing projects with capacity of more than 500 thousand metric ton per year. On this process, YONGLI has developed standard and efficient management system covering delivery, installation, on-site commissioning, and after-sales service. This lays a solid foundation for our contracting and implementing this biomass pellet line project.


YONGLI’s strength as below:


1. Group strength. Founded in the year 2003, with a history of more than 20 years in the area of processing feed line.


2. Engineering Design. As the earlier pioneer in feed pellet line, YONGLI has accumulated designing experiences and processing technology data from thousands of processing projects, which will help us satisfy different customers’ requirement in furthest content. With these experience, YONGLI offers processing line with advanced core equipment, reasonable process, and economical operation.


3. Sample Projects. YONGLI has contracted a large number of feed pellet processing projects with capacity of more than 5000 thousand metric ton per year. On this process, YONGLI has developed standard and efficient management system covering delivery, installation, on-site commissioning, and after-sales service. This lays a solid foundation for our contracting and implementing this feed pellet line project.





Packaging & Shipping


YONGLI provide shipment terms per clients request like EXW factory, FOB shanghai, CFR & CIF client's port. The details for of shipment pictures for YONGLI machine as below:


Packing and Shipping.png
