Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
PLC Control BOPP/PP/ PE Bag Making Machine Side Seal Bag Making Machine Factory
- Category: Packaging Material Making Machine >>>
- Supplier: Ruian Lingfeng Machinery Co. Ltd.
Share on (1600499037359):
Product Overview
Description
RQL Series PLC Control BOPP/PP/ PE Bag Side Seal Bag Making Machine
Suitable for:
BOPP, HDPE,LDPE,CPP, PP , POF, PVC etc materials. The machine can make clothing bag, socks bag, towel bag, toiletry bag, stationery bag, bread bag etc plastic side sealing packing bag.
Feature:
1. Machine adopt PLC computer control, Step motor driving.
2. Arbitrarily length setting on computer, printing photo sensor tracking printing mark, stable and exact cutting size. Machine automatic stop if lost printing singal from Sensor.
3. Machine included Automatic quantity counting on computer, arbitrarily length setting , automatic alarm after reached setting quantity, automatic electric heating constant temperature, synchronization hole punching by pneumatic.
4. Main engine frequency control of motor speed, eliminate surface static etc.
5. Raw material PP PE open edge, crevasse upsiding down edges rubberizing gluing, insert bottom, Fold pillow bags, Double ruffled handbag
6. Machine included monolithic BOPP pearly-lustre film ultrasonic hobbing, automatic correct an error, magnetic power brake, no material automatic stop.
7. Machine included automatic clear up conveyor or working table
8. Main material: box iron, steel plate, Machine color: Main white
Machine Specification:
| Machine Model | RQL-600 | RQL-700 | RQL-800 | RQL-1000 |
| Unwinding Roll Diameter | ∅550mm | ∅550mm | ∅550mm | ∅550mm |
| Bag Width | ≤600mm | ≤700mm | ≤800mm | ≤1000mm |
| Bag Length | 55-650mm | 55-650mm | 55-650mm | 55-650mm |
| Machinery Speed | 50-200pcs per mins | 50-200pcs per mins | 50-200pcs per mins | 50-200pcs per mins |
| Machine Voltage | 220/380V 50HZ | 220/380V 50HZ | 220/380V 50HZ | 220/380V 50HZ |
| Machine Power | 5.5KW | 5.5KW | 5.5KW | 7.5KW |

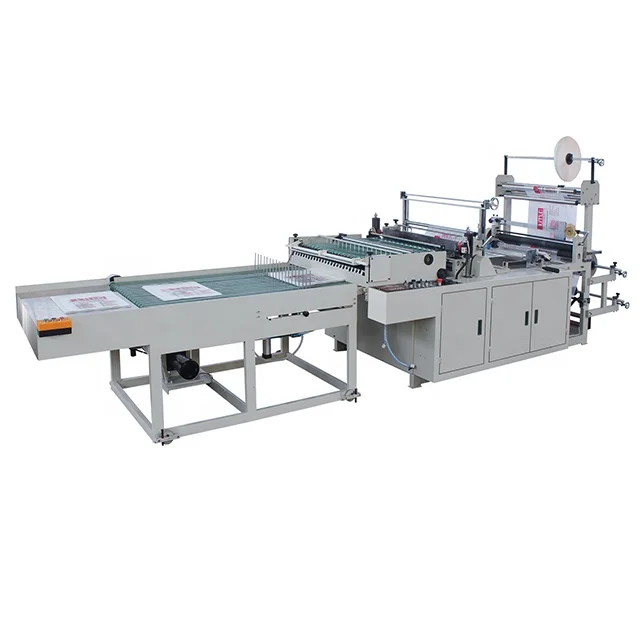

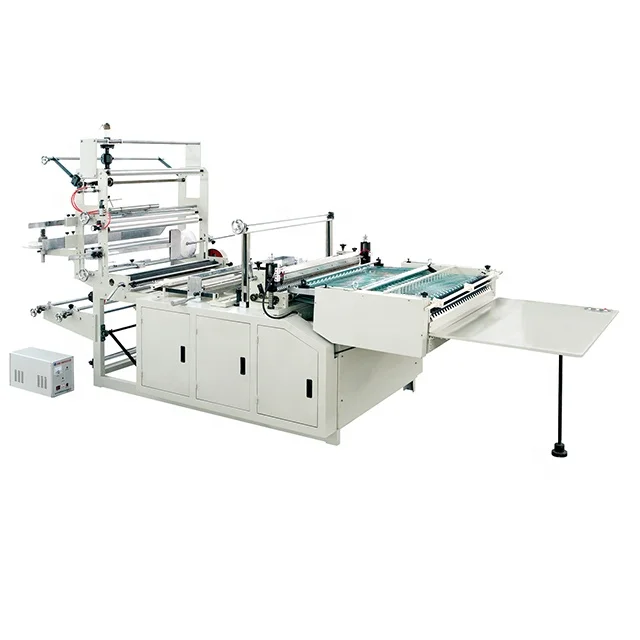

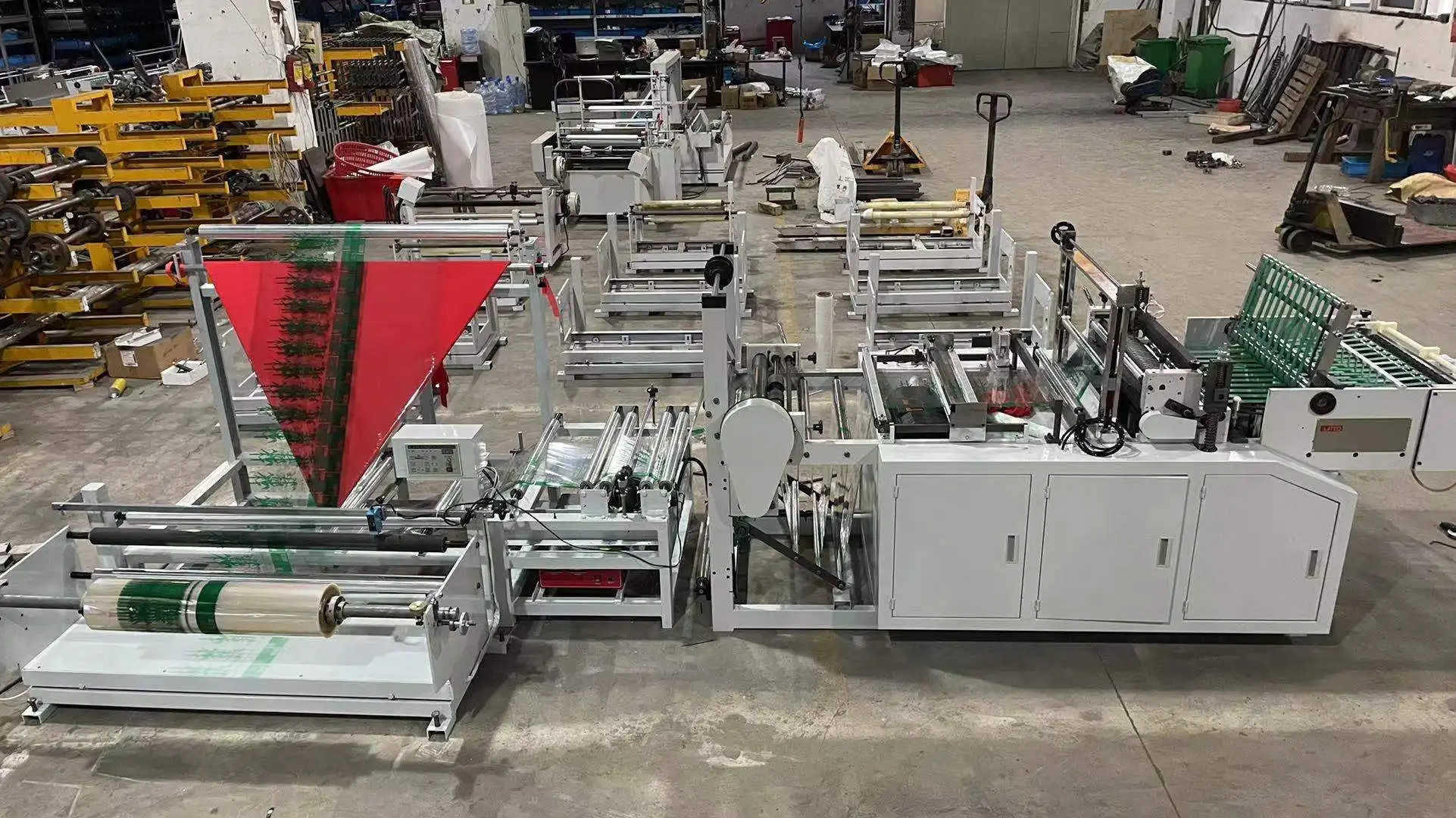

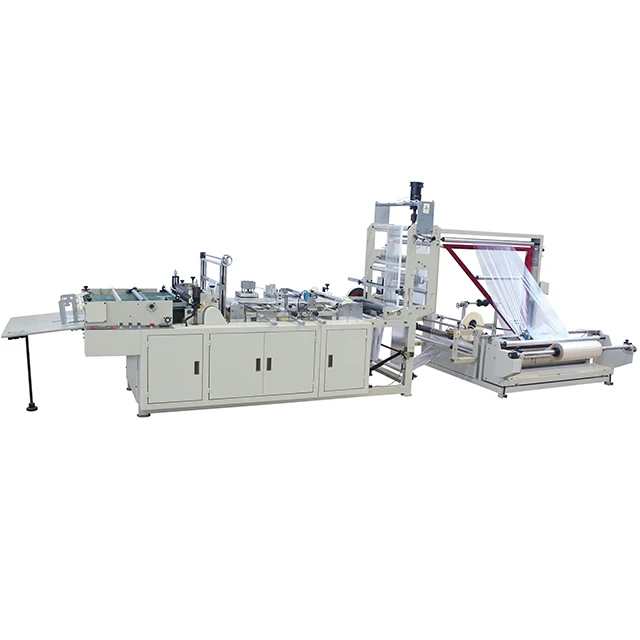

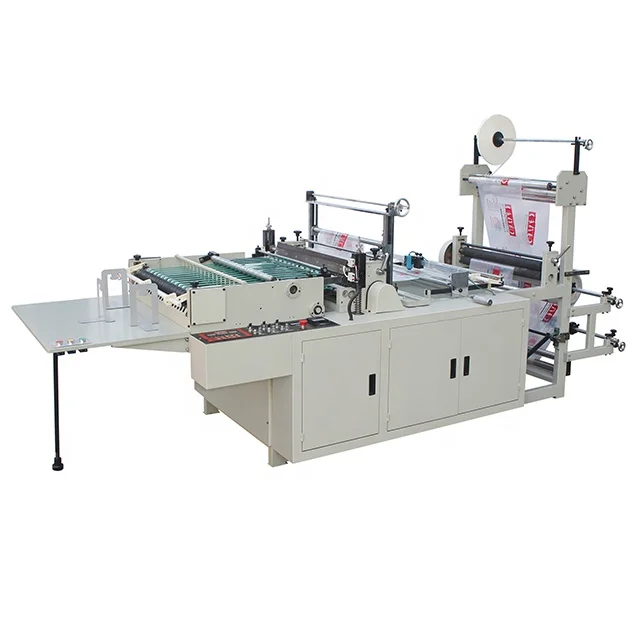

Machine Sample:

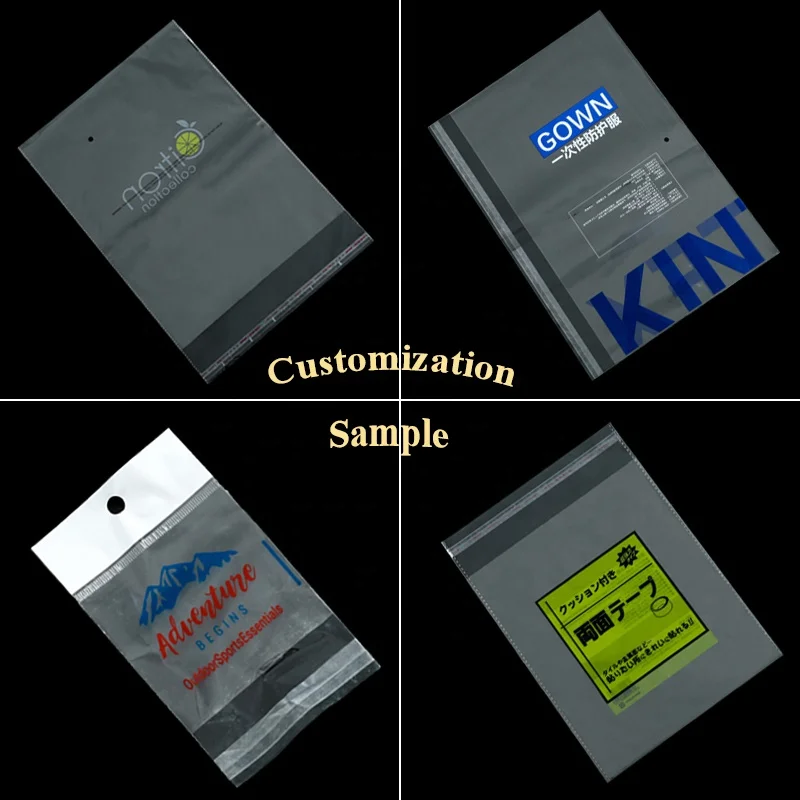

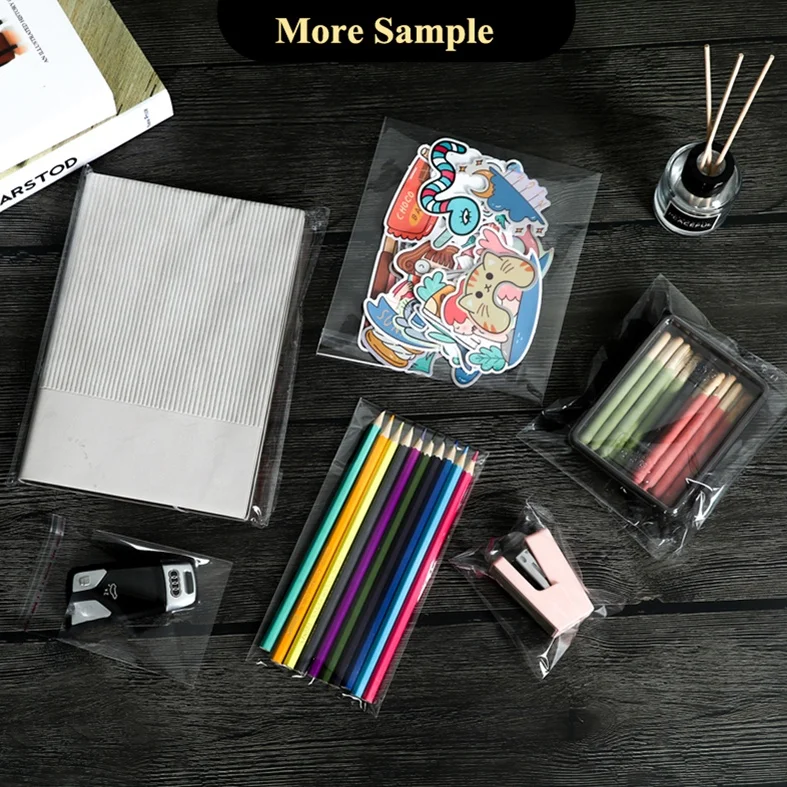

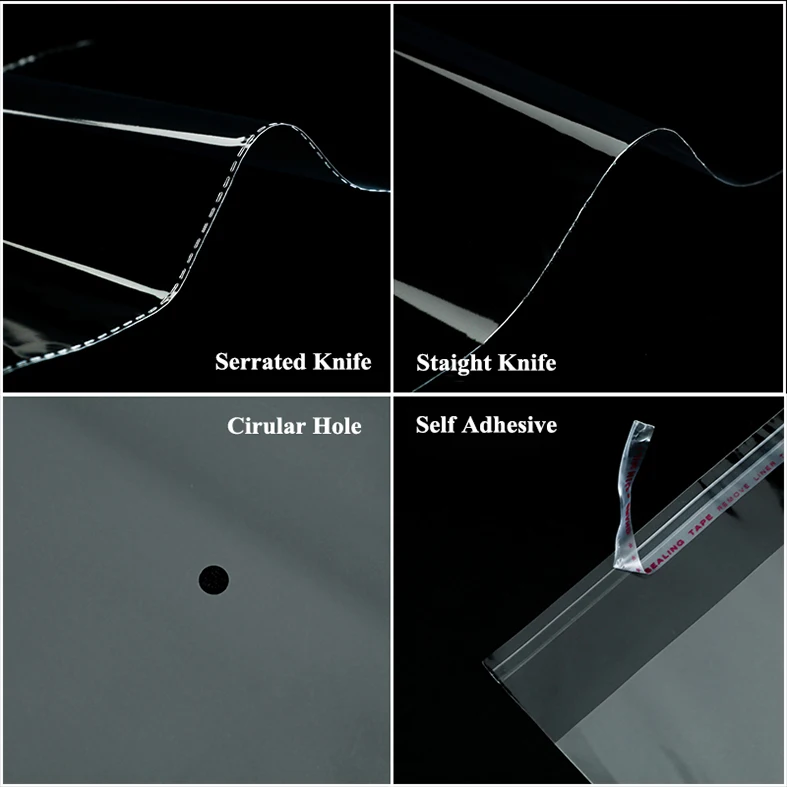

Finsihed Bag Sample:

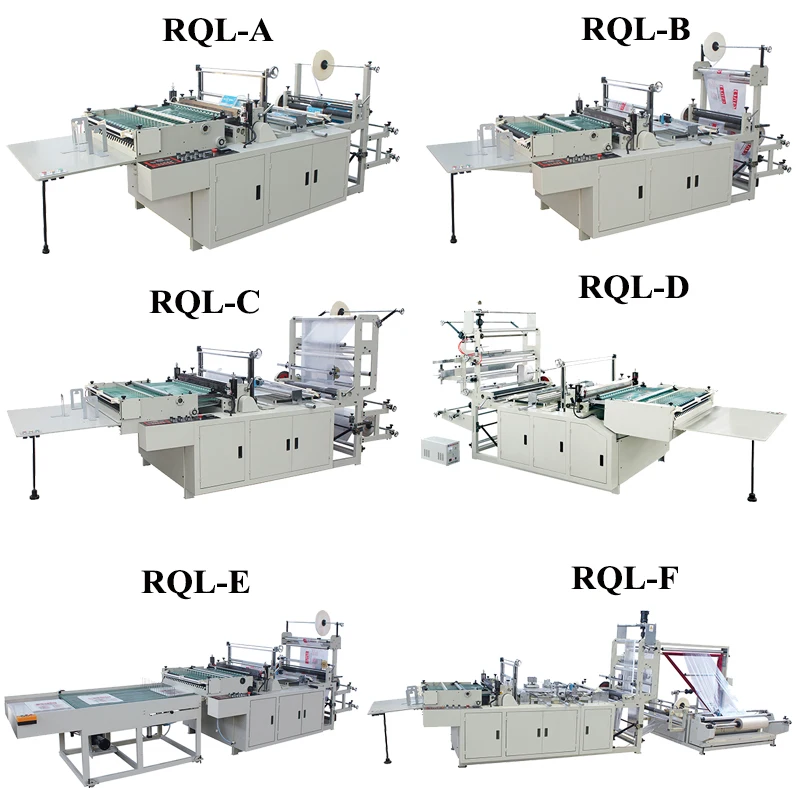

Machine has different Model as different configuration:
PS: please accoridng your actully request to purchase machine, you can ask sale man if don't know how to choose.

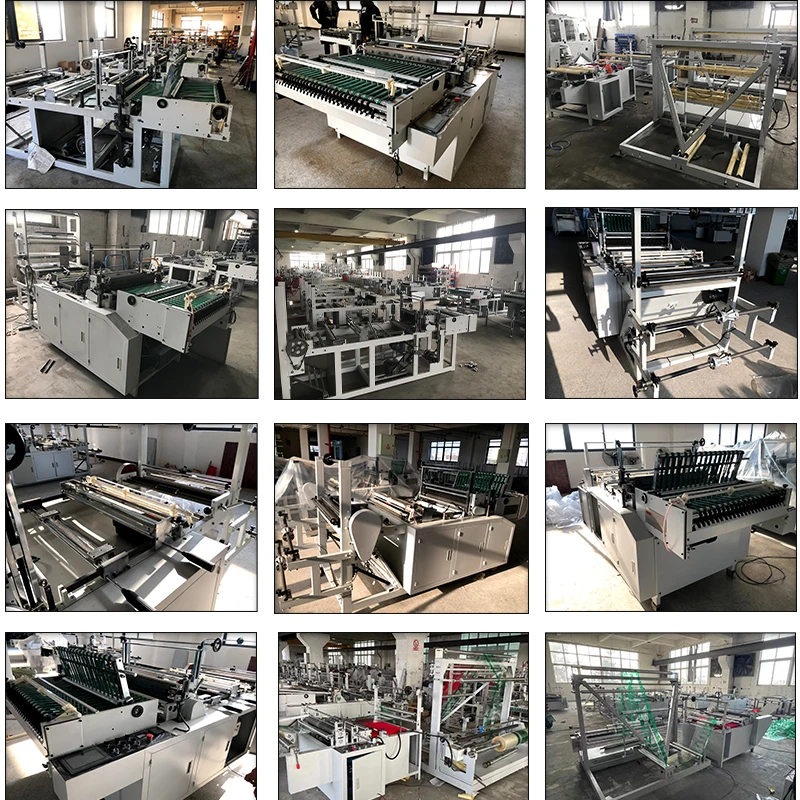

Some Machine Details Picture:
Machine Configuration:
| Computer | Digital Computer |
| Driver System | 3Phase Hybrid Driver + 350A Step Motor |
| Motor | Main Motor: 1.1-4KW 3 Phase Motor Front Traction Motor: 370W DC Motor Unwinding Feeding Motor: 300W DC Motor |
| Puncher | 6mm Hole Puncher |
| Sensor | Photo Sensor for Tracking Printing Mark |
| Inverter | 1.5KW Inverter |
| Heat Cutting Knives | Double type together(Serrated Knife and Staight Knife) |
| Static Eliminator | Box+ 2pcs static bar |
| Silicon Roller | High Quality Silicon Roller + Teflon Tape |
| Synchronous Belt | One Full Set Synchronous Belt |
Packaging & Shipping
Company Information
1. 20 YEARS TECHNOLOGY EXPERIENCE AND PROFESSIONAL WORKER TEAM
2.FOCUS ON PAPER ROTARY CUTTING MACHINE, CROSS SHEET CUTTING MACHINE, SLITTING REWINDING MACHINE,REWINDING MACHINE,PAPER BOX FORMING MACHINE,PAPER CUP MAKING MACHINE,PAPER BAG MAKING MACHINE ETC
3.PROVIDE PROFESSIONAL 24H TECHNOLOGY SUPPORT ONLINE
4. 20DAYS DELIVERY TIME FOR STANDARD MACHINE ORDER
5.SUPPORT OEM SERVICE,PROFESSIONAL ENGINEER TECHNOLOGY SUPPORT.
6.OWNNER WORKSHOP
FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
