Factory cheap price Ptfe Coated Mesh Conveyor Belt
- Category: >>>
- Supplier: Jiangsu Bocheng New Tech Materials Co. Ltd.
Share on (1600499079609):
Product Overview
Description
Product Description

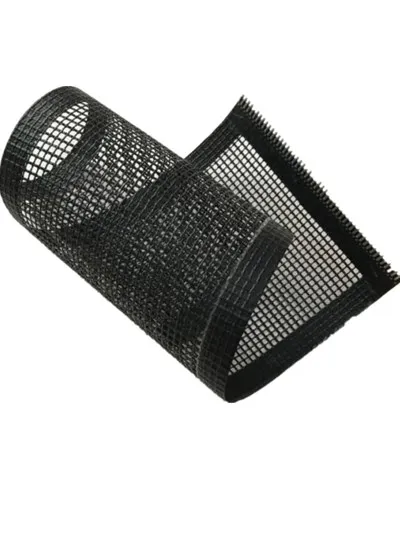

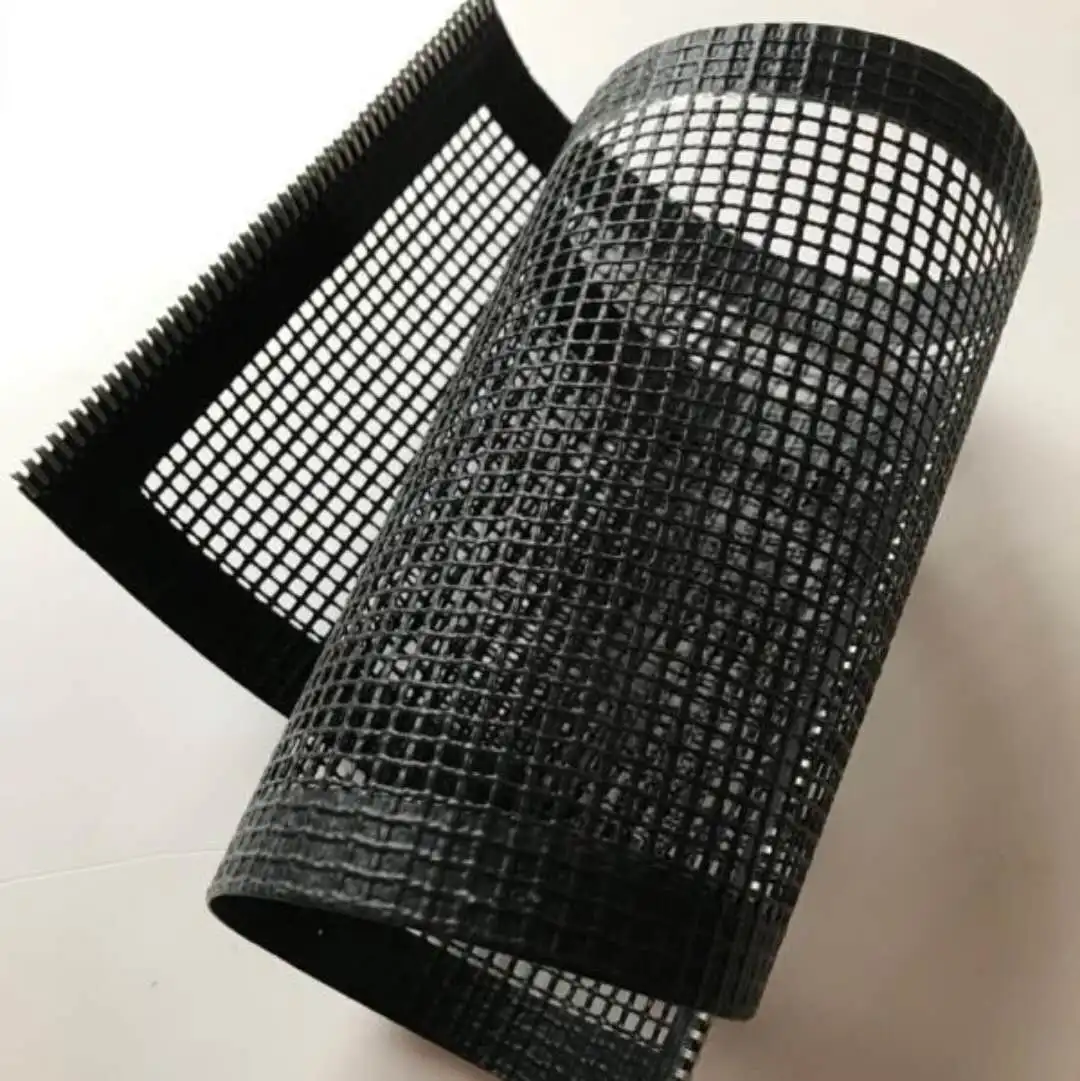

PTFE OPEN MESH CONVEYOR BELT
PTFE coated fiberglass open mesh conveyor belt,also named PTFE belt,we select fine fiberglass,Kevlar or Nomex as basic weaving
material,coated with excellent PTFE resin to make it into various of PTFE belt.PTFE belt features:high temperature
resistance,chemical resistance,anti corrosion,non stick and easy to clean,it is suitable for textile drying,chemical and medicine
drying industries etc.
material,coated with excellent PTFE resin to make it into various of PTFE belt.PTFE belt features:high temperature
resistance,chemical resistance,anti corrosion,non stick and easy to clean,it is suitable for textile drying,chemical and medicine
drying industries etc.
Specification
Item No. | Mesh size | Basic materials | Nominal weight | Res. Temperature | Width | Tensile Strength |
KW001 | 1*1MM | PTFE+glass | 450g/m² | -70-260℃ | 3000mm | 1600/1500N/5cm |
KW004 | 4*4MM | PTFE+glass | 480g/m² | -70-260℃ | 4000mm | 2100/1500N/5cm |
KW004D | 4*4MM | PTFE+glass | 580g/m² | -70-260℃ | 4000mm | 2800/1580N/5cm |
Details Images

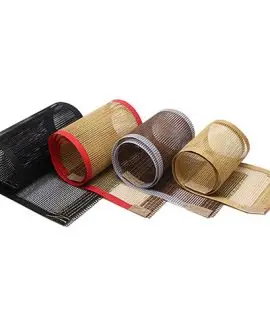

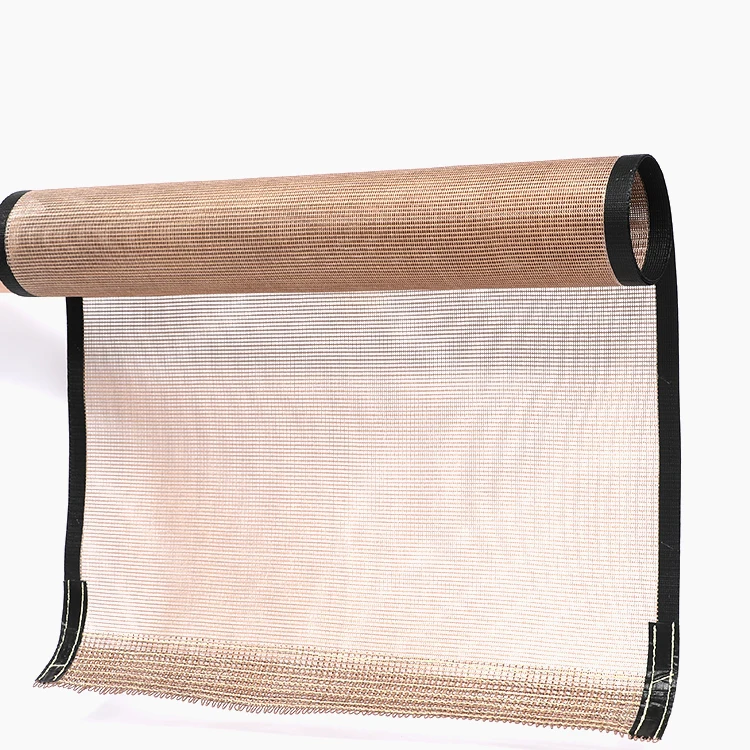

PTFE belt open mesh belt edge reinforcement methods:
1.due to crisp character of fiberglass,the PTFE fiberglass conveyor belt should not be fold,wrinkled,or the strength of the belt
would decrease.2.The PTFE fiberglass conveyor belt should be packed in roll shape,placed under ordinary temperature,dry condition.

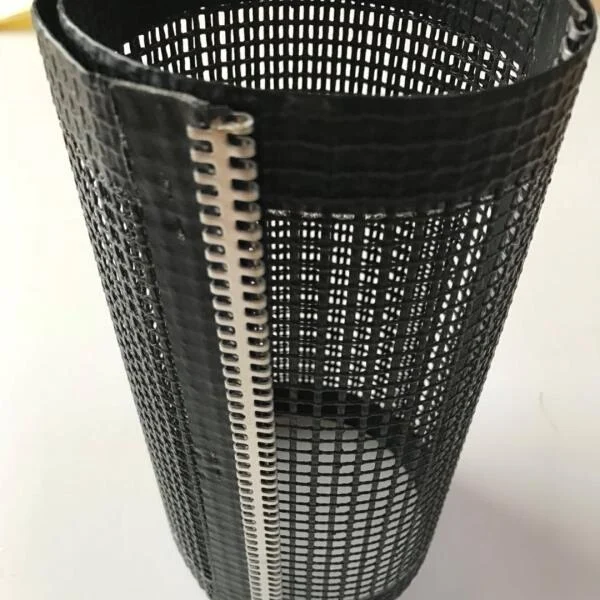

3.Different joint method is suitable to different size PTFE fiberglass belt，generally,when the belt is wider than 2m,or longer
than 10m,then it is better to choose bullnose joint,or people could choose steel alligator joint ans spiral joint.
would decrease.2.The PTFE fiberglass conveyor belt should be packed in roll shape,placed under ordinary temperature,dry condition.
3.Different joint method is suitable to different size PTFE fiberglass belt，generally,when the belt is wider than 2m,or longer
than 10m,then it is better to choose bullnose joint,or people could choose steel alligator joint ans spiral joint.
4.PTFE fiberglass belt normally used for those machines whose roller diameter bigger than 10mm,for smaller roller,it is better to
choose steel alligator or spiral joint.
5.For microwave drying machine,never choose metal joint like alligator.6.6008,6012,6007 have double weft yarn.Double weft yarn
belt have better strength and perform better on wide machines.If the machine width is bigger than 2 m,then it is better to choose
double weft PTFE fiberglass belt.
choose steel alligator or spiral joint.
5.For microwave drying machine,never choose metal joint like alligator.6.6008,6012,6007 have double weft yarn.Double weft yarn
belt have better strength and perform better on wide machines.If the machine width is bigger than 2 m,then it is better to choose
double weft PTFE fiberglass belt.

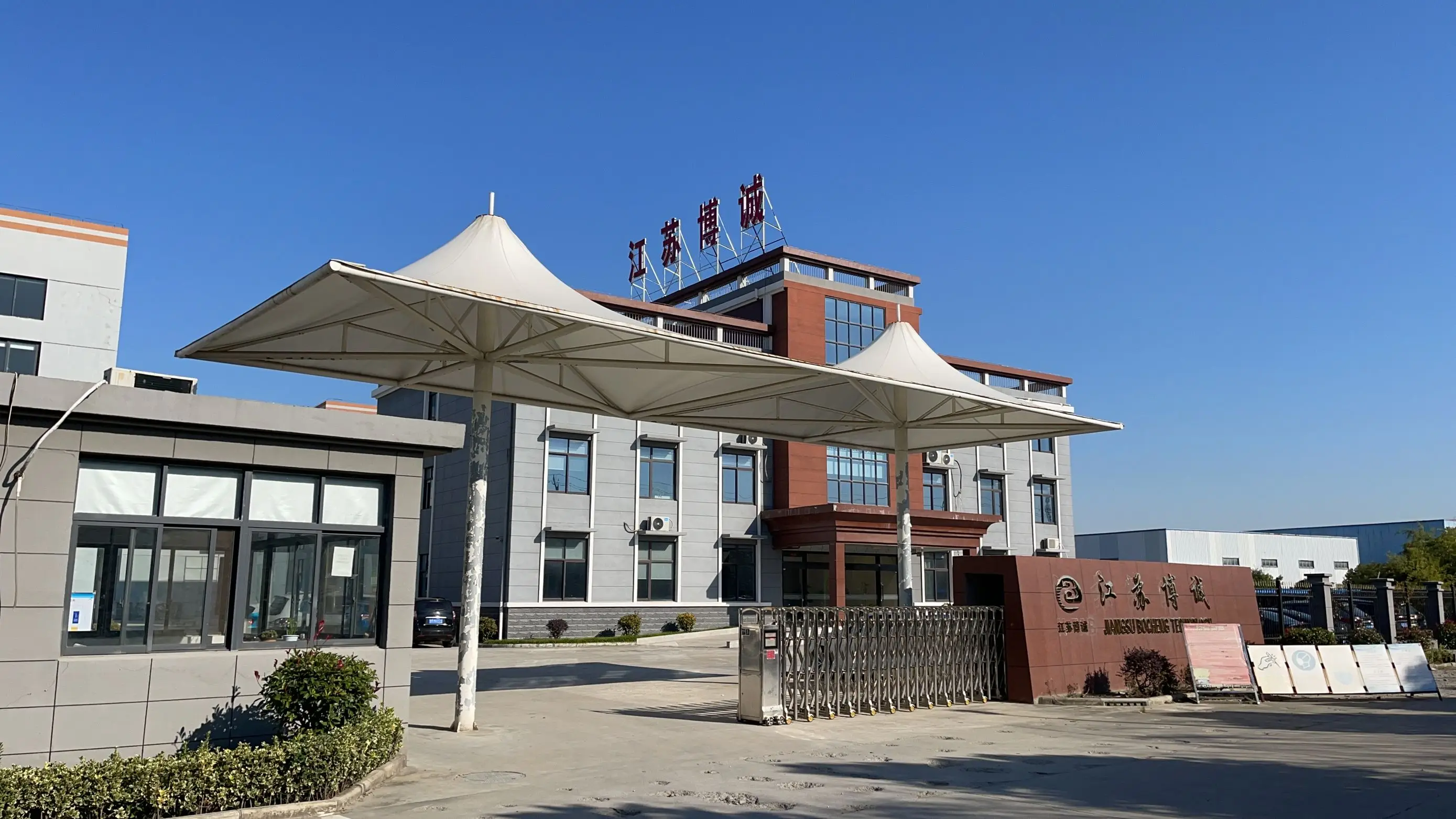

Company Profile
FAQ
1.Can I customize the PTFE fiberglass open mesh conveyor belt?Yes,you can.
2.Can I have your sample？
Yes,we will send to you if you need but the postage on your own.
2.Can I have your sample？
Yes,we will send to you if you need but the postage on your own.
