Product Overview
Description

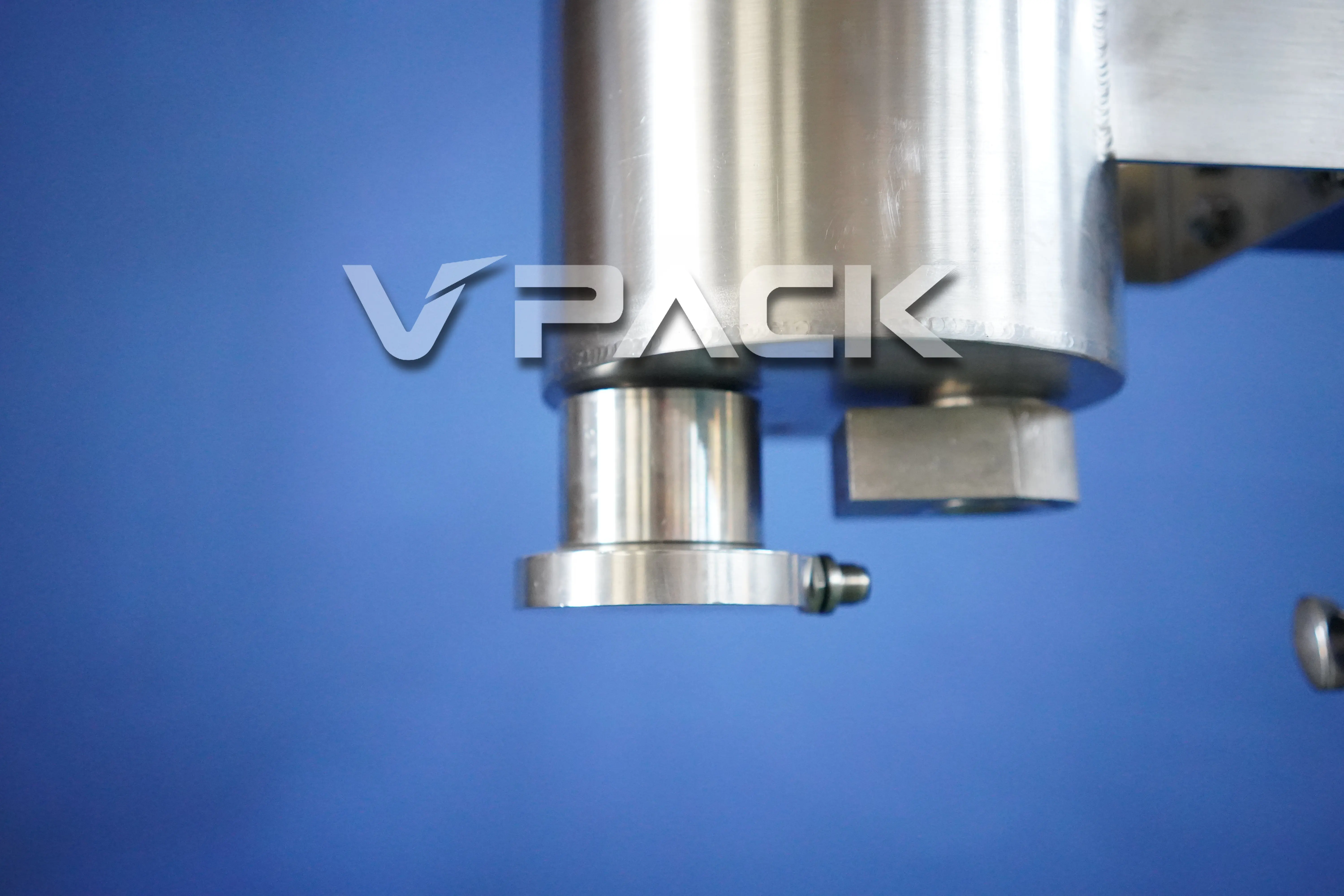

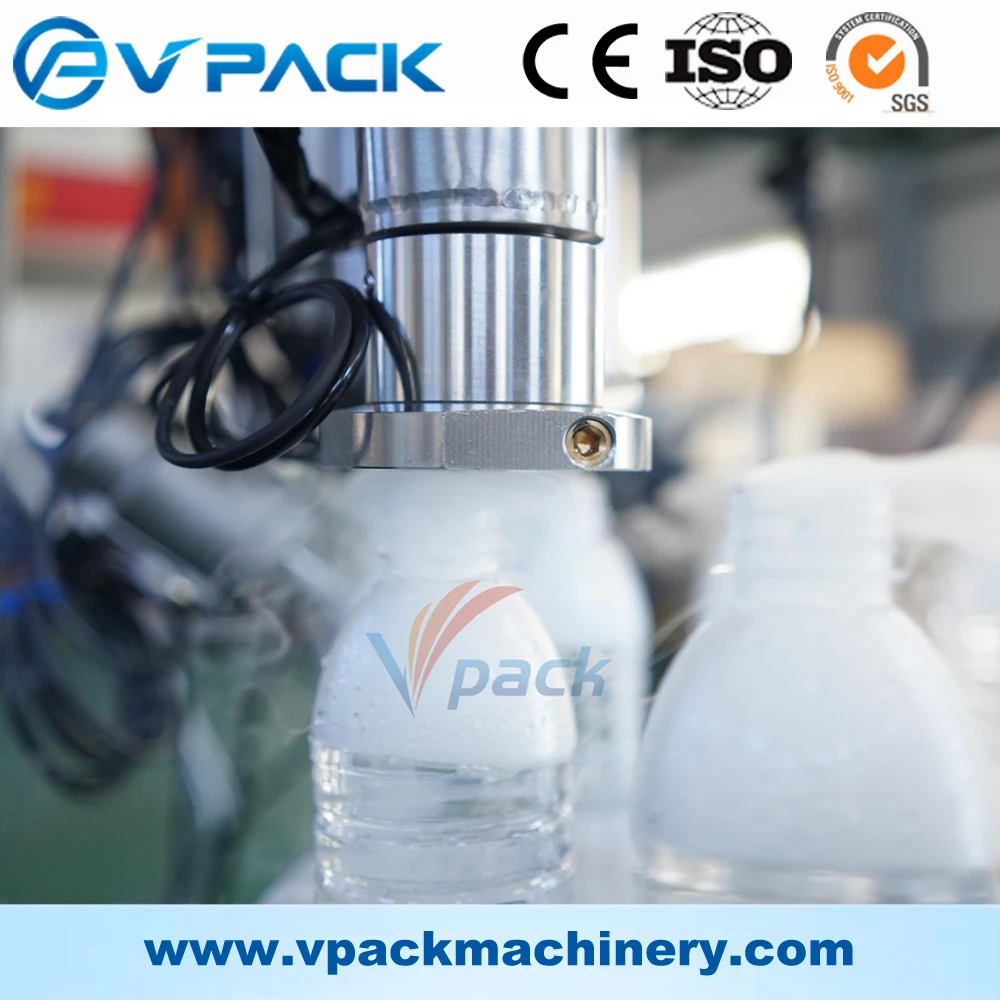

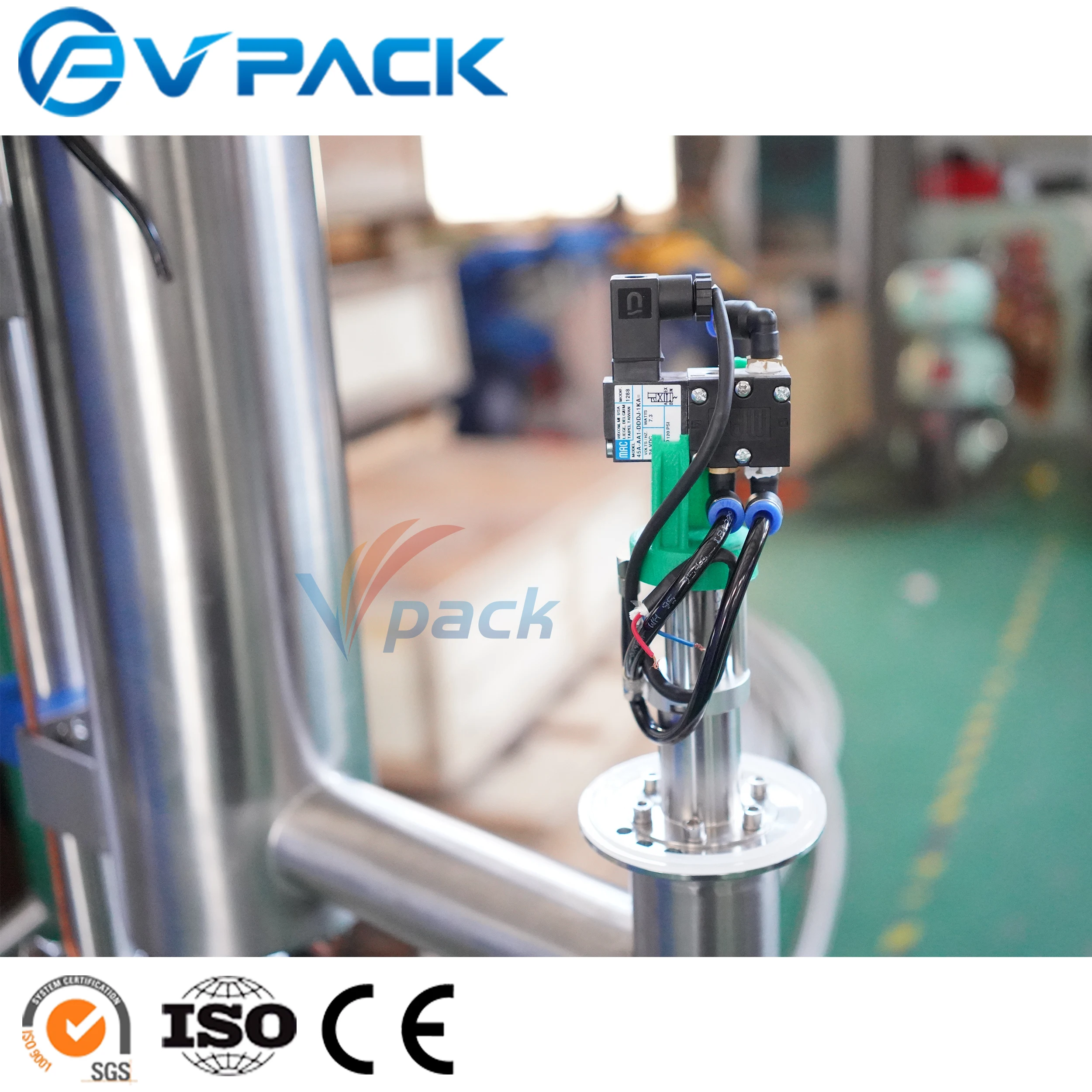

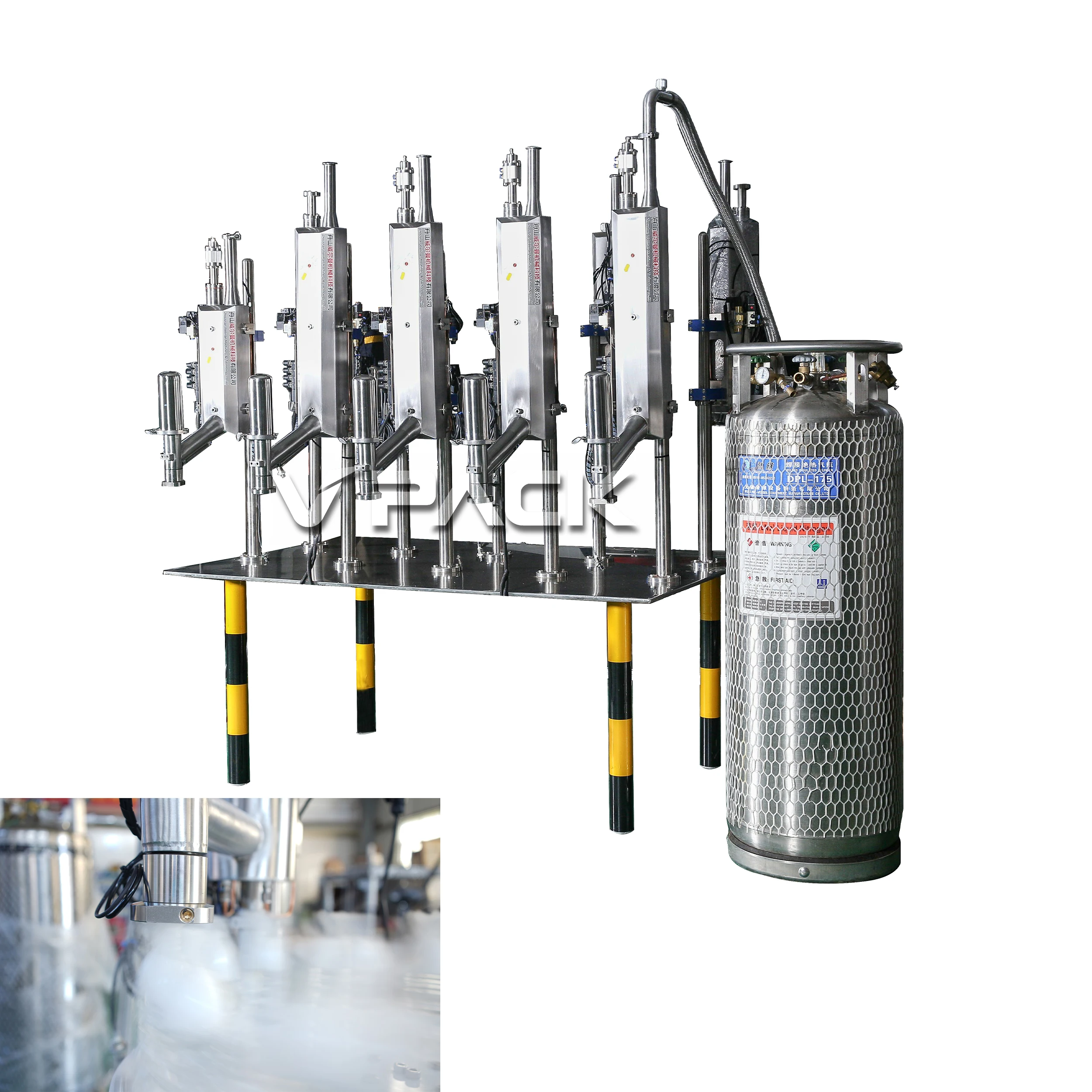

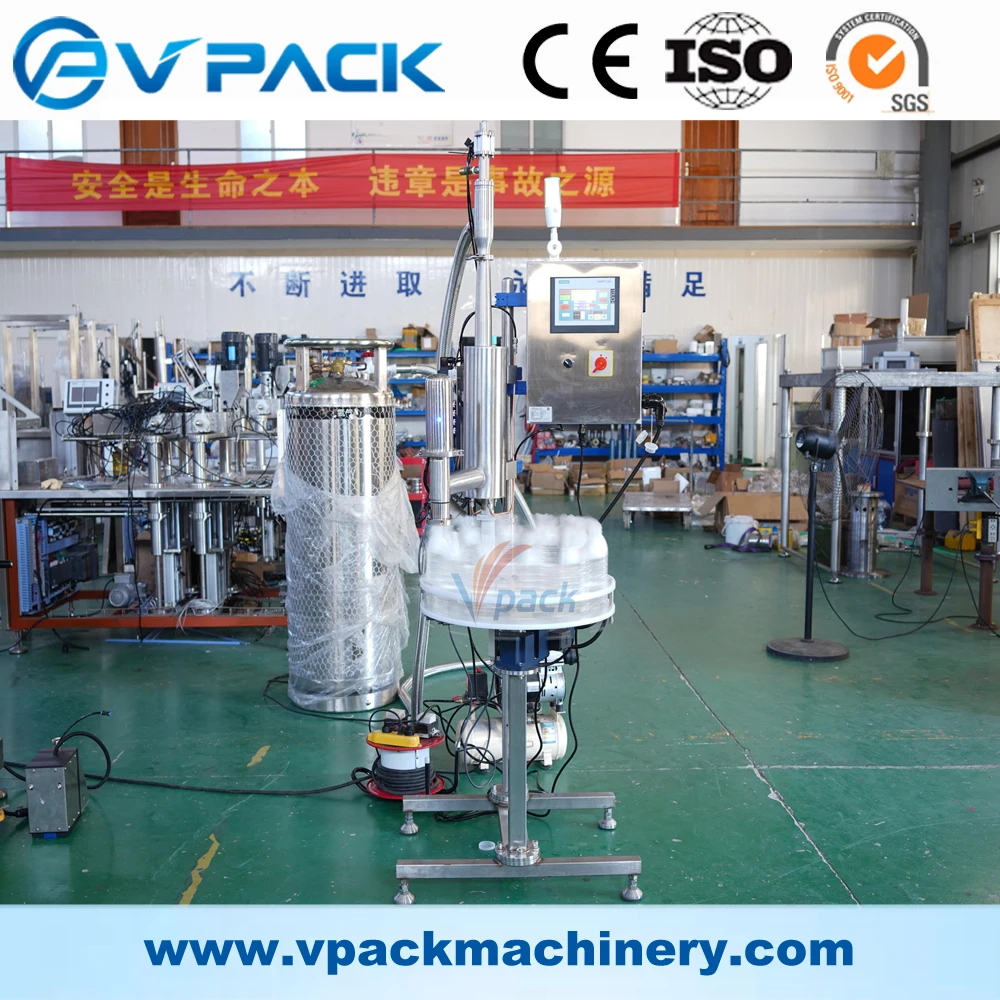

Liquid Nitrogen Machine
Description: For the Aluminum cans or light PET beverage filling is completed. and Upcoming seal or in the Process of the screw cap,system will be accurate measurement of liquid nitrogen, precise join in cans or bottles. Join in cans or bottles of liquid nitrogen can quickly heat gasification (into a gas), volume expansion, 700 times, ore will be on the top of the iar / bottle oxygen out, two inner pressure.completely solved the problem of the dented cans / bottles. For products in the air are replaced by
nitrogen at the same time. improve the product quality and prolong the life of the product. What is more important for your
packaging cost and shipping cost to save 15% above.
nitrogen at the same time. improve the product quality and prolong the life of the product. What is more important for your
packaging cost and shipping cost to save 15% above.
What is the technology of "nitrogen filling and keeping fresh"? The main components of edible oil are glycerol and fatty acid,which are easy to be oxidized and produce rancidity, which affects the taste, destroys the nutritional value and produces harmful components to the human body. The "nitrogen-filled fresh-keeping" is to replace the air with nitrogen, so that the edible oil does not come into direct contact with the oxygen in the air, so as to extend the shelf life of the edible oil, while nitrogen is an inert gas non-toxic and harmless, and will not cause the edible oil to oxidize and deteriorate.

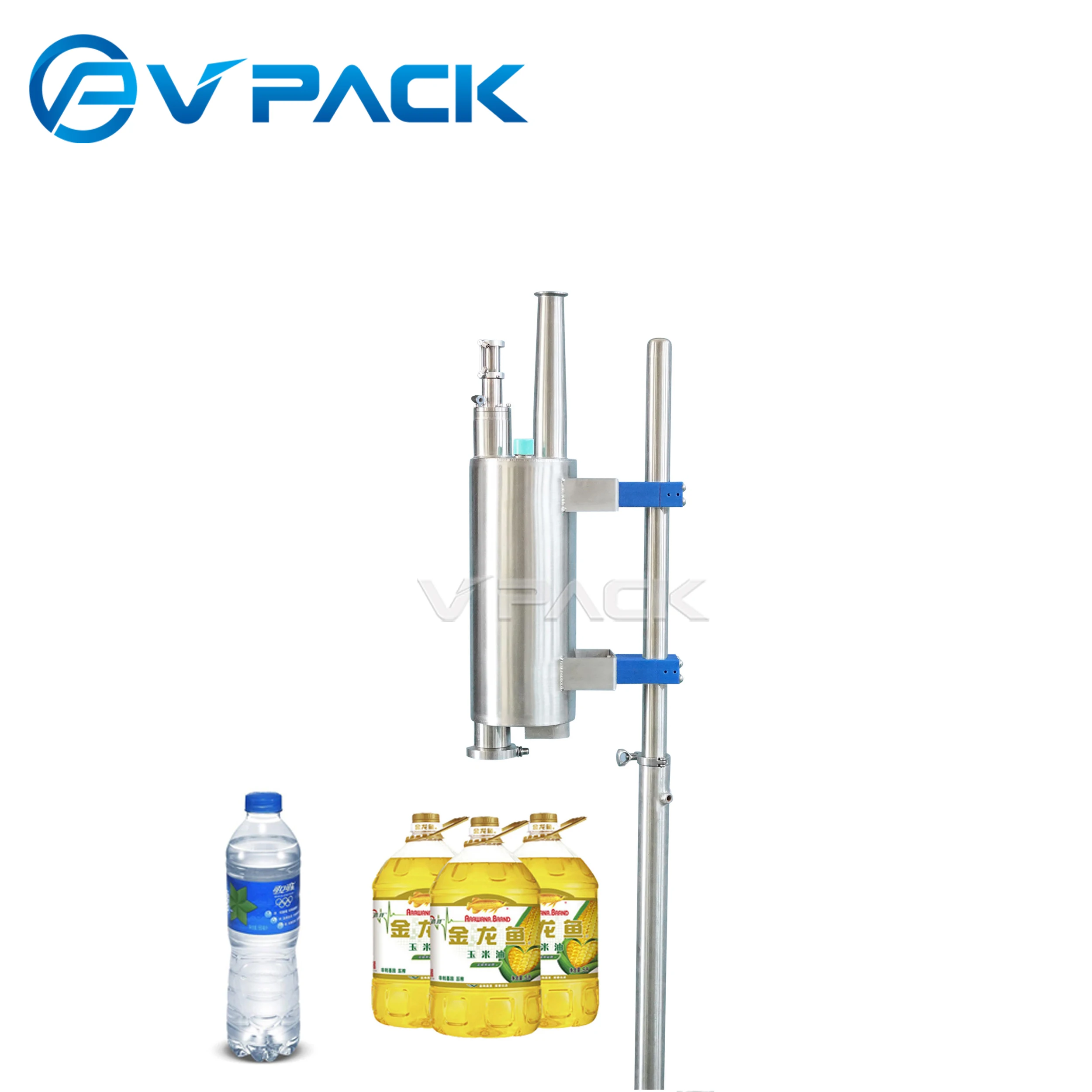

Nitrogen injection machine design for Edible oil .

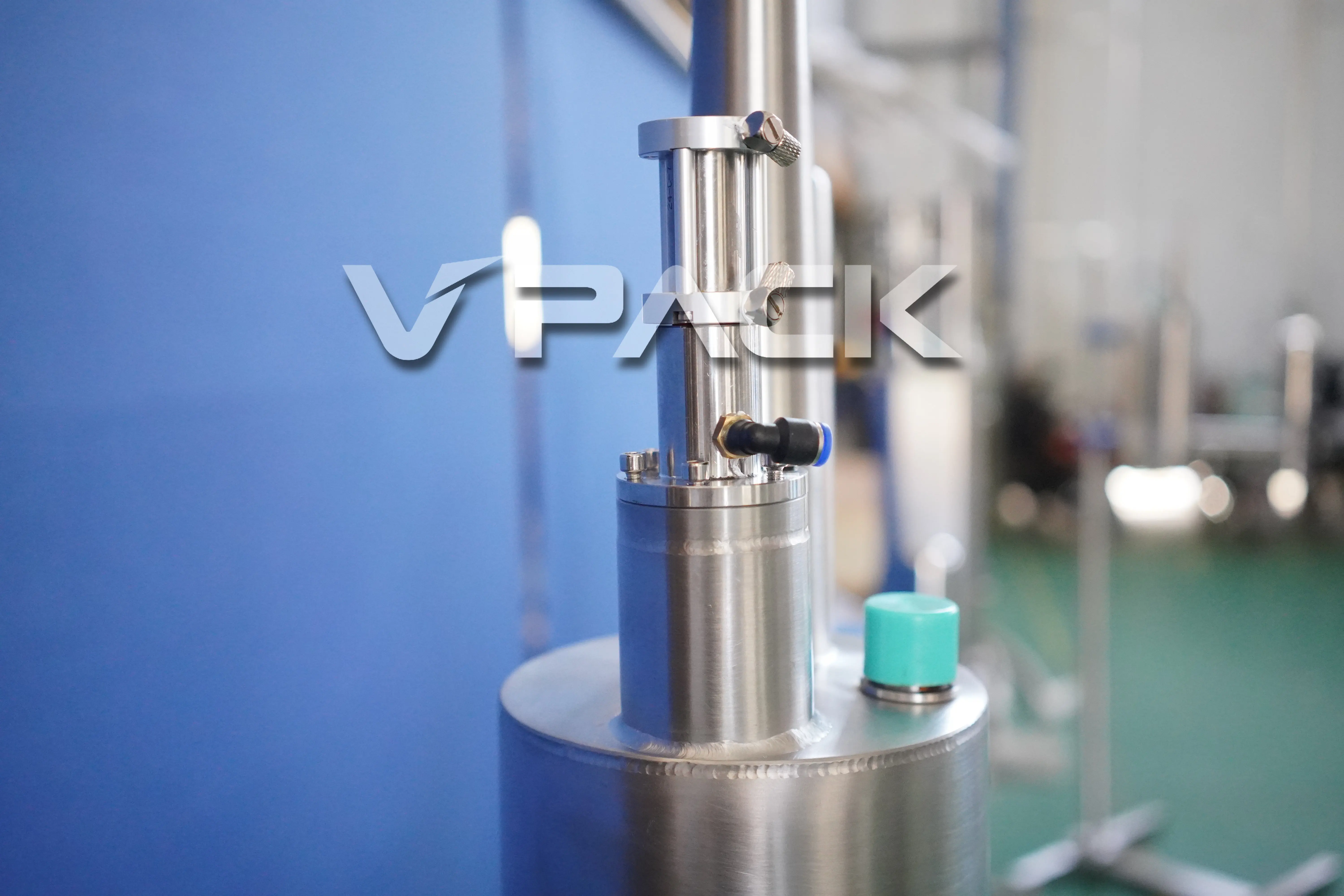

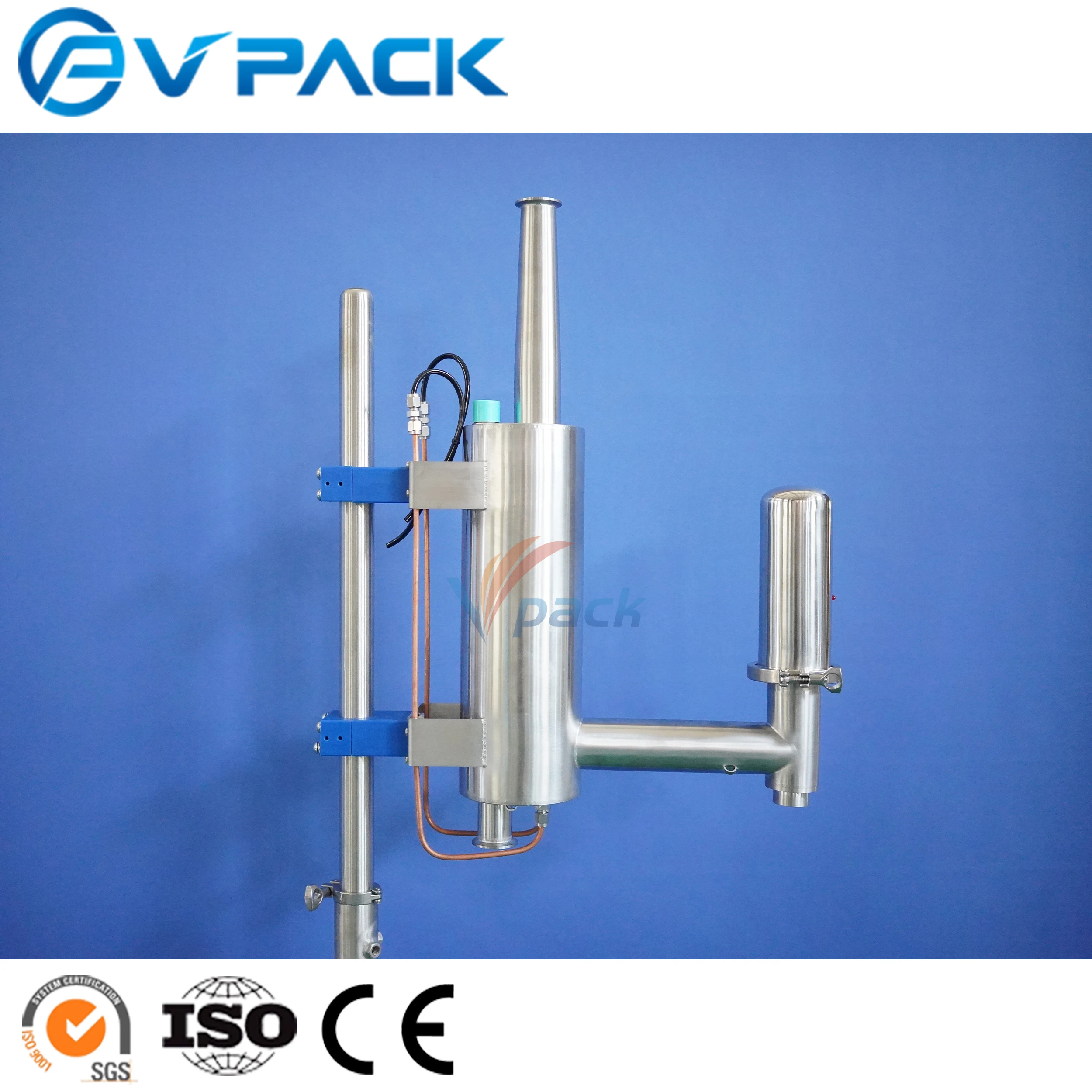

This liquid nitrogen injection system adopts the heat insulation like rocket and human-machine interface. Precisely injection,automatic adjustment and tracing technology. No container/No dose capability. The anti-freeze function raises utilization of the liquid nitrogen. This machine is easy operation.All of the three-piece can drink and food can be replaced by the thinner two-piece can. After filling, the liquid nitrogen will be injected into the can before sealing through the modern liquid nitrogen injection technique.The -196°C liquid nitrogen in the cans will become to nitrogen gas and expanded 700times when the liquid nitrogen absorbed the heat after sealing.Thus the nitrogen gas crowded out the air in the can prolonging the shelf life of the products.Moreover, the nitrogen gas will increase the inner pressure of the can, so the can will avoid flat tank after cooling when the can sterilized in the retort under 121°C for a long time and keep the products in a good condition during transportation.
This liquid nitrogen injection system adopts the heat insulation like rocket and human-machine interface. Precisely injection,automatic adjustment and tracing technology. No container/No dose capability. The anti-freeze function raises utilization of the liquid nitrogen. This machine is easy operation.All of the three-piece can drink and food can be replaced by the thinner two-piece can. After filling, the liquid nitrogen will be injected into the can before sealing through the modern liquid nitrogen injection technique.The -196°C liquid nitrogen in the cans will become to nitrogen gas and expanded 700times when the liquid nitrogen absorbed the heat after sealing.Thus the nitrogen gas crowded out the air in the can prolonging the shelf life of the products.Moreover, the nitrogen gas will increase the inner pressure of the can, so the can will avoid flat tank after cooling when the can sterilized in the retort under 121°C for a long time and keep the products in a good condition during transportation.
Product Paramenters
Model | VPK300 | VPK600 | VPK800 |
Nozzle | 1mm、1.5mm、2.0mm | 1mm、1.5mm、2.0mm | 1mm、1.5mm、2.5mm |
Weight | 20kgs | 20kgs | 21kgs |
Material | 304 stainless steel | 304 stainless steel | 304 stainless steel |
Volume size | 950×177×603mm | 1200×177×568mm | 1320×177×765mm |
Filling head size | 280×50mm | 280×50mm | 280×50mm |
Note arm length | 328mm | 340mm | 500mm |
Supply facilities | Liquid nitrogen＜0.15Mpa | Liquid nitrogen＜0.15Mpa | Liquid nitrogen＜0.15Mpa |
Supply facilities | Nitrogen＜0.5-0.65Mpa | Nitrogen＜0.4-0.65Mpa | Nitrogen＜0.4-0.65Mpa |
220V ; 50Hz ;100W | 220V ; 50Hz ;100W | 220V ; 50Hz ;100W | |
Liquid nitrogen evaporation depletion | 0.15L/H | 0.2L/H | 0.2L/H |
Vacuum insulation | YES | YES | YES |
PLC platform | Siemens | Siemens | Siemens |
Show | Siemens | Siemens | Siemens |
Filling time | 15-1000ms | 15-1000ms | 15-1000ms |
Filling amount | 0.01 to 14g/times | 0.01 to 14g/times | 0.01 to 14g/times |
Individual filling maximum speed | 300 | 600 | 800 |
Continuous filling maxium speed | 2000 | 2000 | 2000 |
Speed sync compensation mode | YES | YES | YES |
Betting targeting technology | YES | YES | YES |
Fixed delayed betting mode | YES | YES | YES |
Note accuracy | ±Bet Weight | ±Bet Weight | ±Bet Weight |
Language | English | English | English |
Details Images

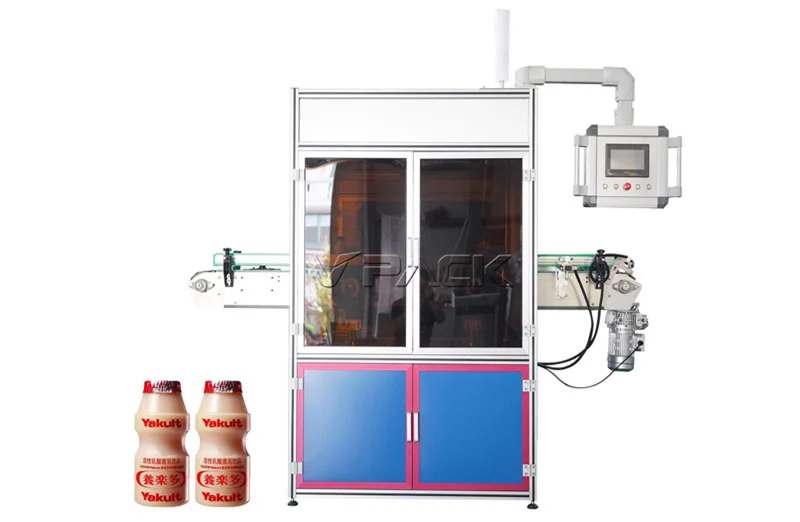

X-ray liquid level detection machine
YW600 Filling liquid level detector is a kind of liquid level measuring instrument developed by our company.
The principle that the intensity of rays varies with the position of the material surface to control the capacity of liquid
material to be tested and filled because of its non-contact measurement.
It solves the problem that the conventional weighing method can not measure the volume of liquid material on production line.
So it is widely used in food.medicine and chemical industry. whether bottle or can on-line automatic control of liquid material production line.
Application: on-line detection of liquid level,such as cans、PET bottles、glass bottles、Etc.
The principle that the intensity of rays varies with the position of the material surface to control the capacity of liquid
material to be tested and filled because of its non-contact measurement.
It solves the problem that the conventional weighing method can not measure the volume of liquid material on production line.
So it is widely used in food.medicine and chemical industry. whether bottle or can on-line automatic control of liquid material production line.
Application: on-line detection of liquid level,such as cans、PET bottles、glass bottles、Etc.
Technical Parameter | ||
Model | VPH-YW600 | |
Capacity | 600-1500 C/M | |
Suitable Can Size | At will | |
Power | 300W | |
Weight | 50Kgs | |
Dimension | 300mm×200mm×1800mm | |
Functional description :Scope of application: online liquid level detection of two- piece-can, three-piece-can, PET bottle and glass bottle
1. Technological characteristics
(1)Without warming-up, the detection can be conducted directly after starting up the product.
(2)Non-contact inspection, fast inspection speed, and high accuracy.
(3)The product can automatically fit to the different production line speed and realize dynamics detection.
(4)The product is manufactured with stainless steel shell and seal design mainframe, which is anti-fog, anti-water drop and possesses strong environmental suitability.
(5)The radiation of high-frequency ray will be automatically interdicted at free time.
(6)The product employs hardware circuit implementation and built in operate system, which can ensure long-term stable operation.
(7)Simultaneous alarm of sound and light, automatic remove of unqualified container.
(8)The 9 inch touch screen display provides simple and reliable man-machine operate interface, which is flexible and convenient to change bottle type.
(9)Large screen Chinese display, LED backlit liquid crystal, clear and bright character, man and machine communicate method operation.
(10)Without isotope radioactive source, the product employs soft ray design while its ray protection is safety and reliable.
2. Major technological indicators
(1)Band carrier linear speed of production: ≤1.8M/s
(2)Container diameter:20MM-100MM (Different detectors for different containers concentrations and diameters)
(3)Dynamics container resolution: ±2MM(bubble and shaking may influence the accuracy)
(4)Static liquid level detection accuracy: ≤0.5MM (water)
(5)Static l detection stability of 8 hours: ≤0.15MM(water)
(6)Unqualified container remove ratio: ≥99%(detection speed:1200 can/min)
(7)Temperature error:0-40 ℃ ≤0.25MM for the temperature error of the detection value of 20 ℃
(8)Working requirements:10MS minimum time width (both with and without can)
(9)Usage environment: 0-40 ℃ temperature, relative humidity≤95%
1. Technological characteristics
(1)Without warming-up, the detection can be conducted directly after starting up the product.
(2)Non-contact inspection, fast inspection speed, and high accuracy.
(3)The product can automatically fit to the different production line speed and realize dynamics detection.
(4)The product is manufactured with stainless steel shell and seal design mainframe, which is anti-fog, anti-water drop and possesses strong environmental suitability.
(5)The radiation of high-frequency ray will be automatically interdicted at free time.
(6)The product employs hardware circuit implementation and built in operate system, which can ensure long-term stable operation.
(7)Simultaneous alarm of sound and light, automatic remove of unqualified container.
(8)The 9 inch touch screen display provides simple and reliable man-machine operate interface, which is flexible and convenient to change bottle type.
(9)Large screen Chinese display, LED backlit liquid crystal, clear and bright character, man and machine communicate method operation.
(10)Without isotope radioactive source, the product employs soft ray design while its ray protection is safety and reliable.
2. Major technological indicators
(1)Band carrier linear speed of production: ≤1.8M/s
(2)Container diameter:20MM-100MM (Different detectors for different containers concentrations and diameters)
(3)Dynamics container resolution: ±2MM(bubble and shaking may influence the accuracy)
(4)Static liquid level detection accuracy: ≤0.5MM (water)
(5)Static l detection stability of 8 hours: ≤0.15MM(water)
(6)Unqualified container remove ratio: ≥99%(detection speed:1200 can/min)
(7)Temperature error:0-40 ℃ ≤0.25MM for the temperature error of the detection value of 20 ℃
(8)Working requirements:10MS minimum time width (both with and without can)
(9)Usage environment: 0-40 ℃ temperature, relative humidity≤95%

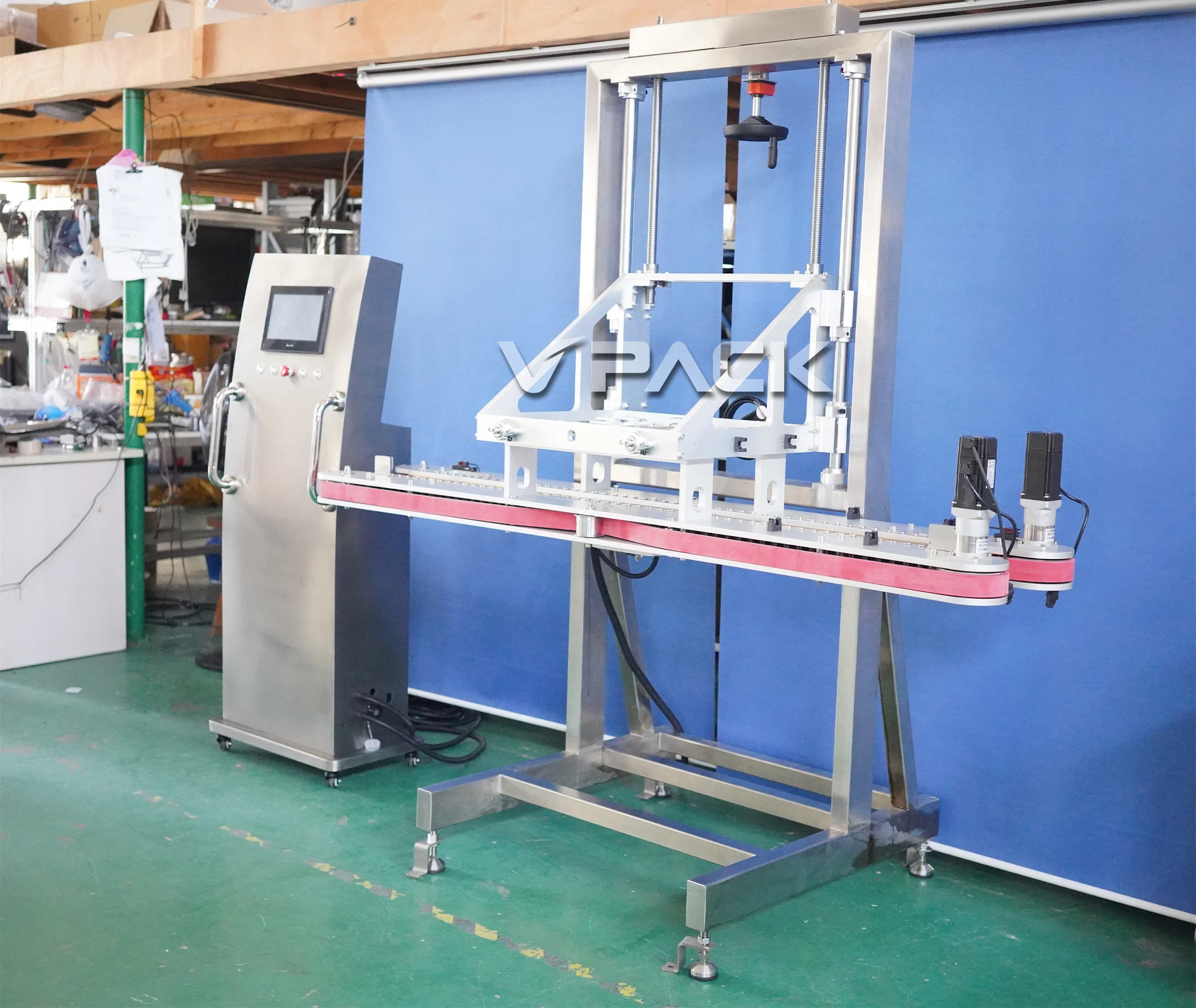

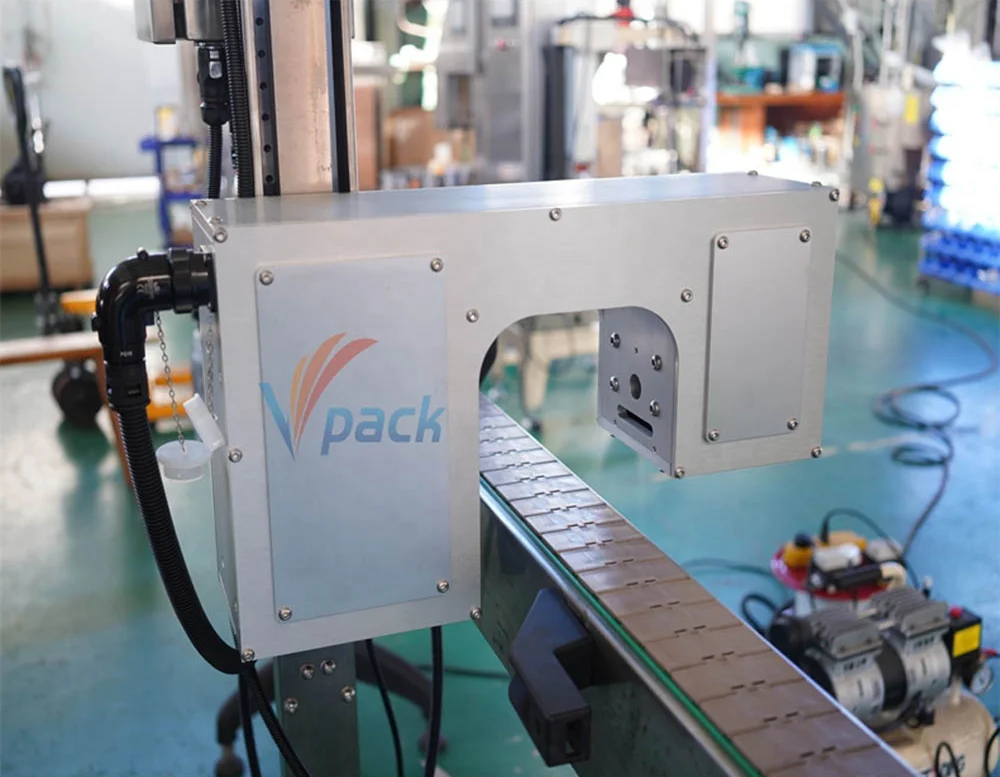

Internal Pressure Detection Machine
It can be used to monitor real-time internal pressure and by liquid nitrogen filling cans and PET bottles and test other pressure by filling with steam.
The device can quickly detect and remove unqualified products and provide sound and light alarm, allowing users to always monitor whether the front-end equipment works properly to put an end to unqualified products flowing to the market ending with adverse effects.
When the remove of continuous substandard products is helpful to find the problems of the front-end equipment. If necessary, it can be set to automatically stop the front-end equipment to reduce the loss.
In addition, it facilities the detector to adjust liquid nitrogen machine filling volume. The device has capability of
determining whether the internal pressure is qualified instead of destroying the tank.
The device can quickly detect and remove unqualified products and provide sound and light alarm, allowing users to always monitor whether the front-end equipment works properly to put an end to unqualified products flowing to the market ending with adverse effects.
When the remove of continuous substandard products is helpful to find the problems of the front-end equipment. If necessary, it can be set to automatically stop the front-end equipment to reduce the loss.
In addition, it facilities the detector to adjust liquid nitrogen machine filling volume. The device has capability of
determining whether the internal pressure is qualified instead of destroying the tank.
The detect system makes use of Siemens PLC and high-precious dynamic tracking sensor, which is able to detect the small pressure change data. It gains judging results in time through the PLC and comparison and performs real-time monitoring for each product.
Technical Parameter | ||
Model | VPK-300 | |
Capacity | 0-400 Cans per minute | |
Rated input voltage | 220V/AC-50HZ (By Order) | |
Current | ≤5A | |
Weight | 150Kgs | |
Test accuracy | 99.99% | |
Noise | Continuous noise≤78DB(A) | |
Main Machine in Can juice/csd drink filling packing production plant/ line
1.Preparing System
2.Water Treatment Syatem
3.Empty can unloading machine
4.Slide - type empty tank spray washer

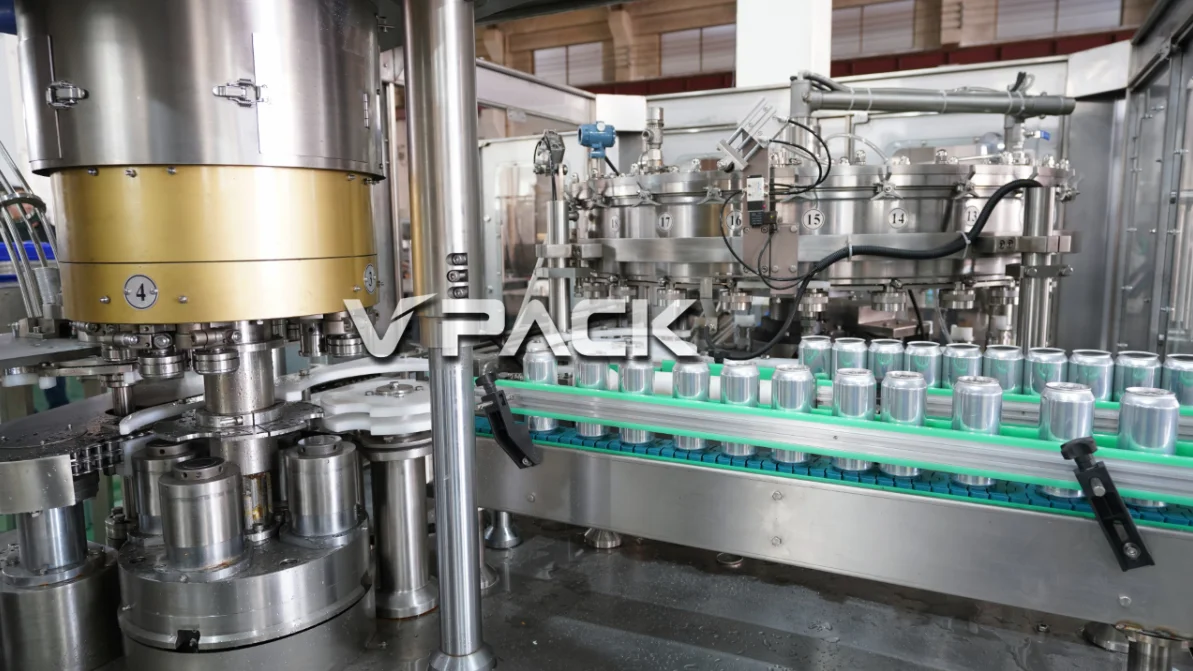

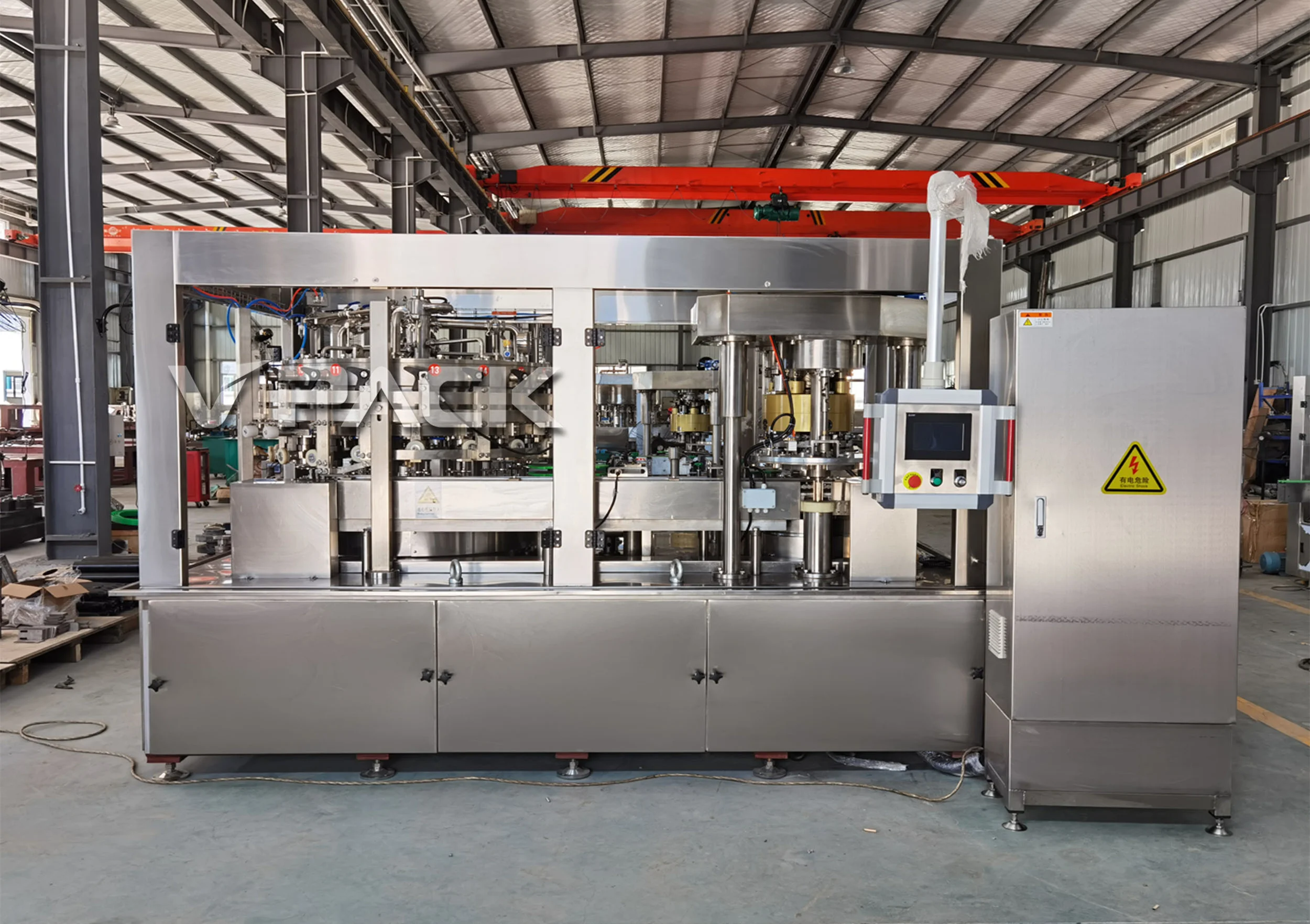

5.Can juice/csd drink filling sealing 2 in 1 monoblock
6.Spray sterilizing chiller (including local control cabinet and electrical control device)
7.Wrapping machine
2.Water Treatment Syatem
3.Empty can unloading machine
4.Slide - type empty tank spray washer
5.Can juice/csd drink filling sealing 2 in 1 monoblock
6.Spray sterilizing chiller (including local control cabinet and electrical control device)
7.Wrapping machine
Model | Capacity | Overall dimensions | Filling heads | Sealing heads | Power | Weight |
DGD1204 | 90 cans/min | 3350*2150*2100 mm | 12 | 4 | 3.5 kw | 3500 kg |
DGD2004 | 150 cans/min | 3400*1950*1900 mm | 20 | 4 | 5.5 kw | 4000 kg |
DGD2404 | 200 cans/min | 3350*2150*2100 mm | 24 | 4 | 5.5 kw | 5300 kg |
DGD3006 | 300 cans/min | 3488*2288*2168 mm | 30 | 6 | 7.5 kw | 8000 kg |

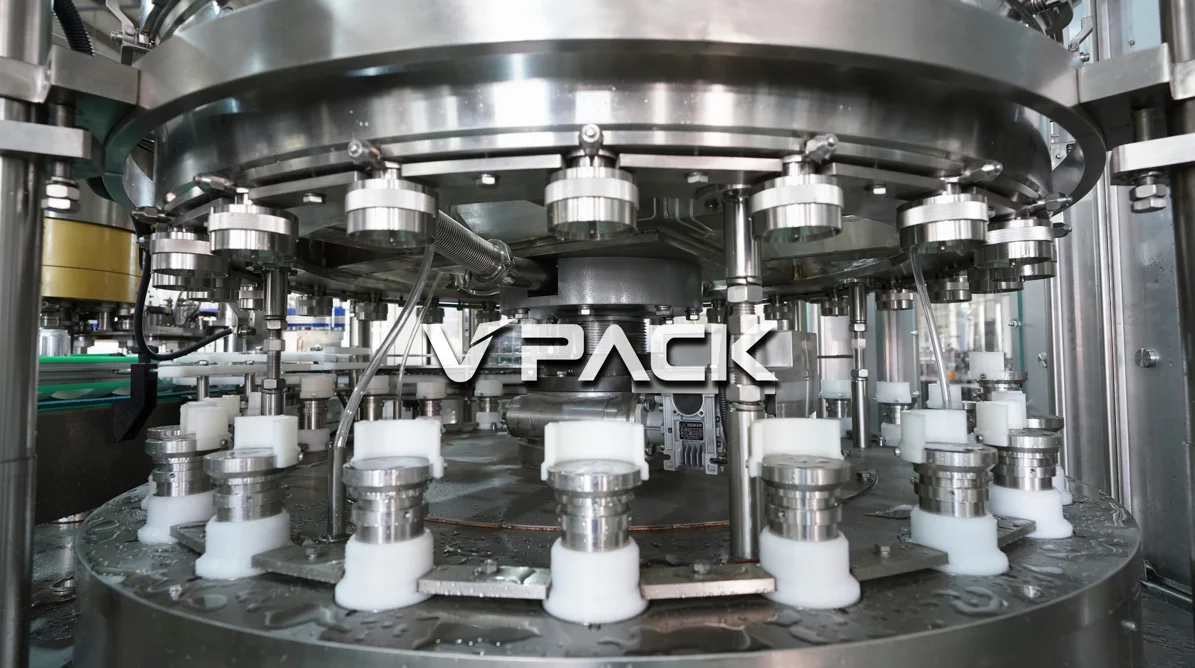

Filling heads.
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

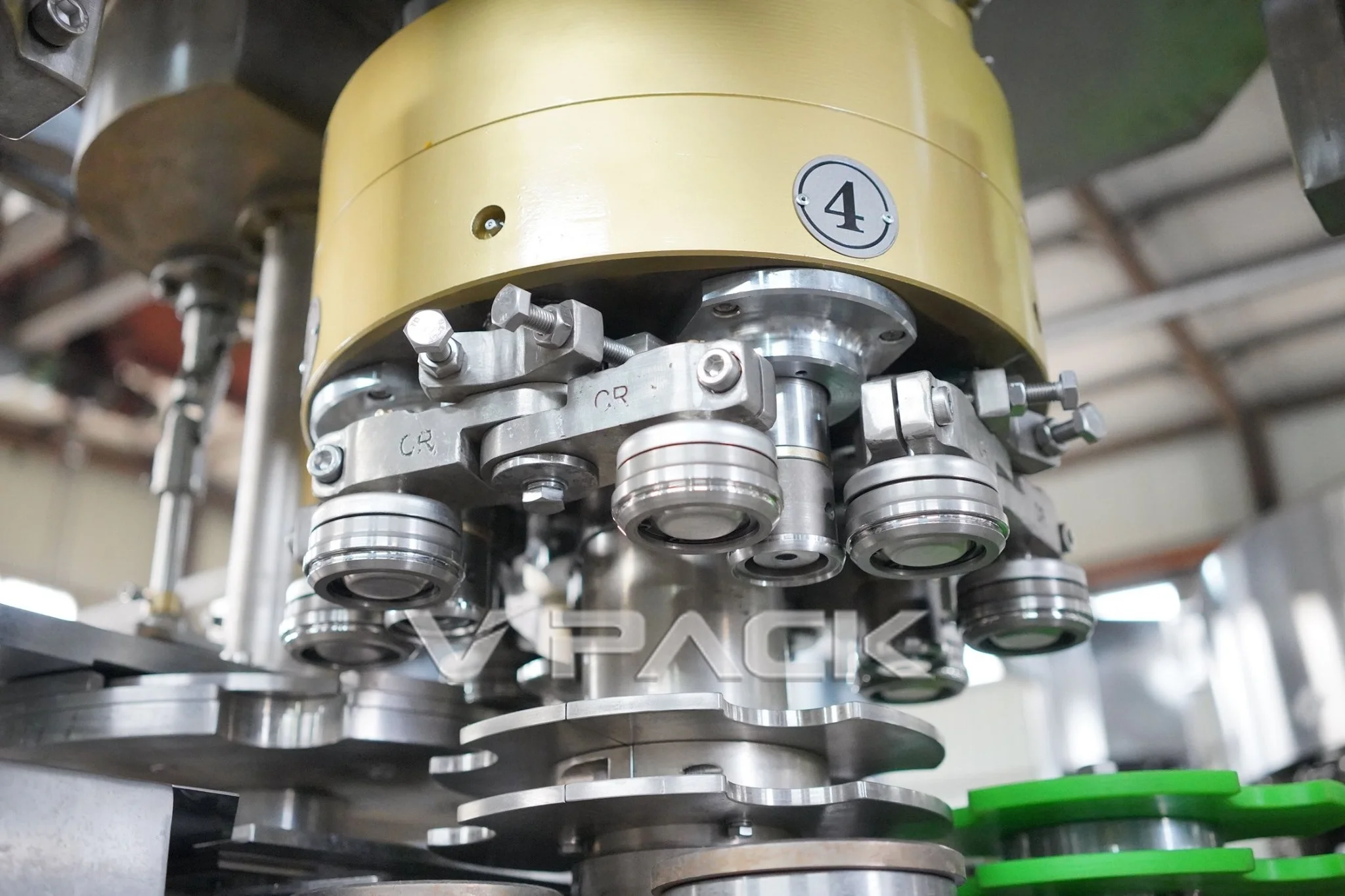

Capping heads.
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2% .
capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2% .

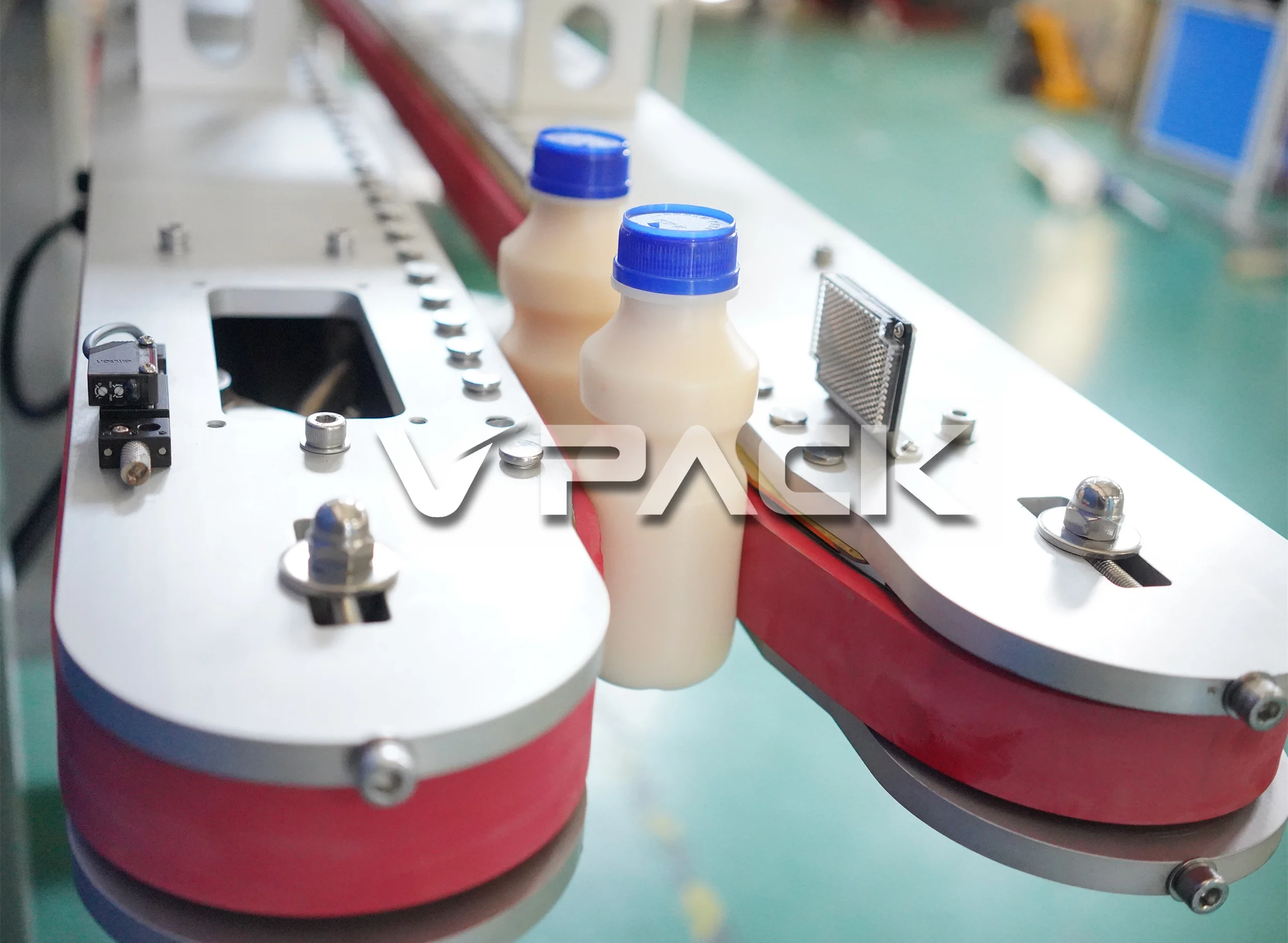

Flat conveyor.
<1>Energy saving. High efficient. Adapt to customer factory layout
<2>Special lubrication system, keep products clean, health, safety
<3>Extended service life
<4>Electric eyes design keep whole line running safety and quickly
<5>Overload protection mechanism to effectively ensure the safety of the machine
<2>Special lubrication system, keep products clean, health, safety
<3>Extended service life
<4>Electric eyes design keep whole line running safety and quickly
<5>Overload protection mechanism to effectively ensure the safety of the machine
