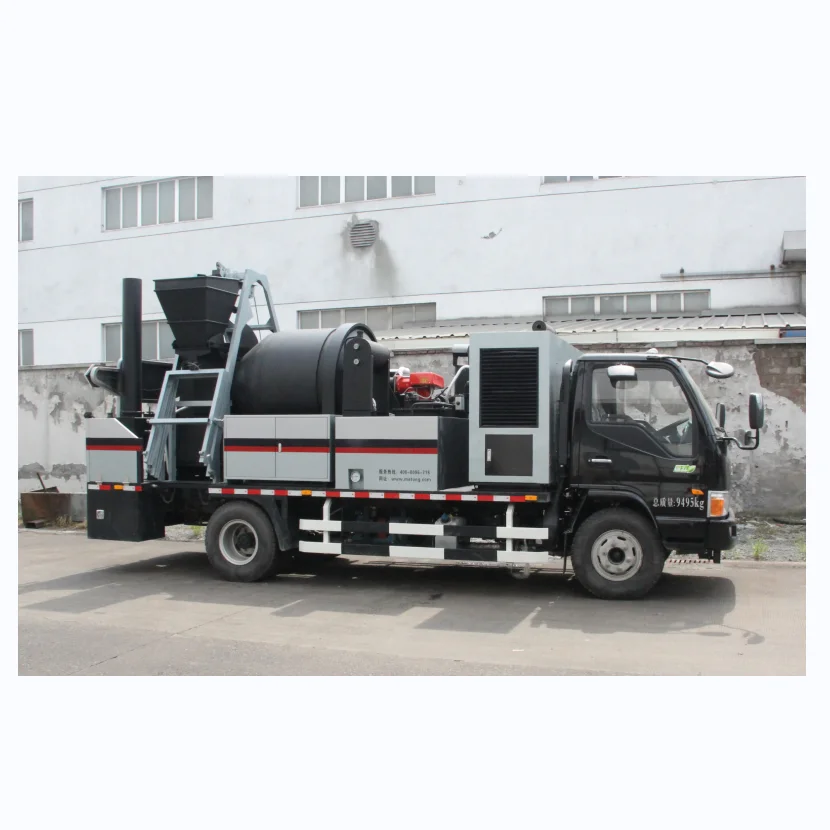

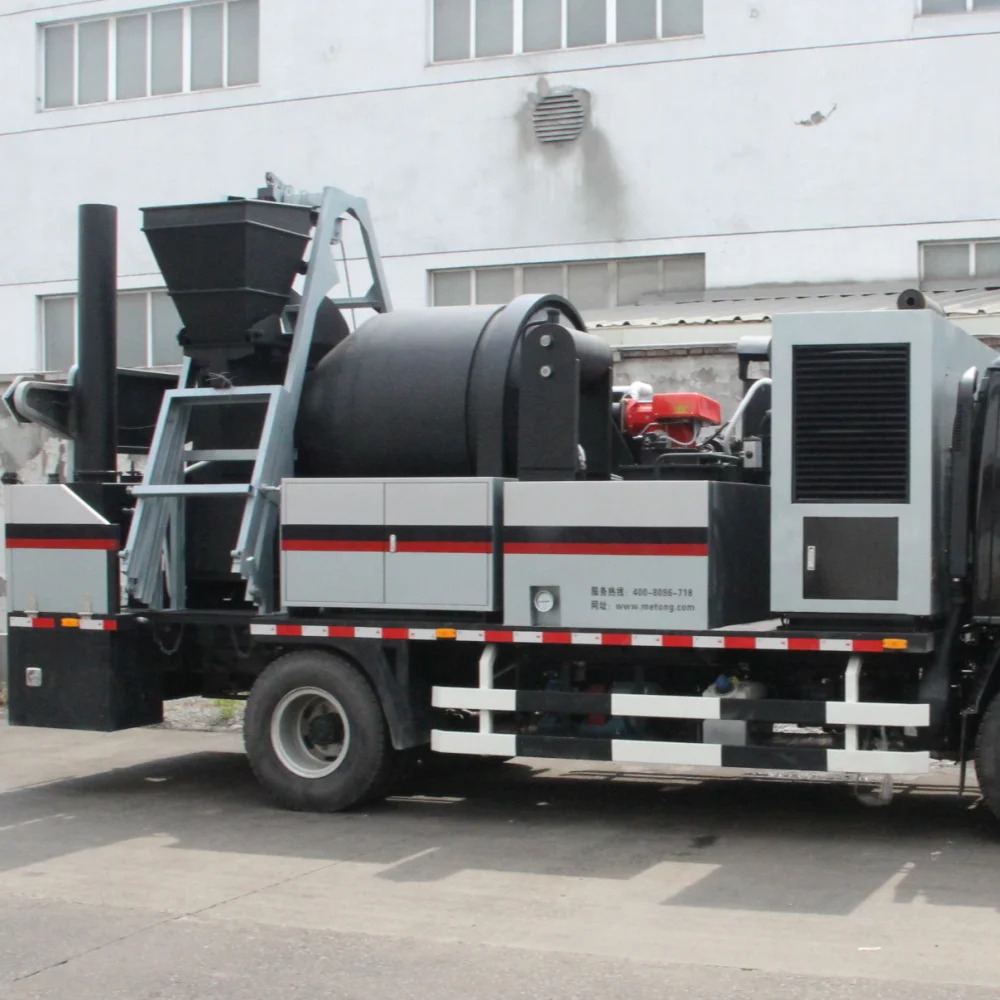

Asphalt Recycle Road Maintenance Vehicle Construction Truck
- Category: >>>
- Supplier: Titeco Industry Technology Inc.
Share on (1600499101840):
Product Overview
Description
Products Description
Category | Item | Parameter |
Total parameter | Capacity | ≤4-6 t/h |
Dimension | 6870x2206x3500mm | |
Chassis | Brand | Dongfeng |
Model | C16-771 | |
Total max. mass | 7945 kg | |
Engine power | 92 kW | |
Emission standard | Euro II | |
Asphalt tank | Asphalt tank capacity | 1000 L |
Heating method | Hot oil | |
Asphalt metering tank capacity | 40 L | |
Measurement type | Ball float type lever controller | |
Burner capacity | 100 x10³kcal/h | |
Asphalt pump capacity | 3 m³/h | |
Hot oil pump capacity | 1.5 m³/h | |
Aggregate hopper | Capacity | 0.25 m³ |
Hoist capacity | 1000 kg | |
Drying drum | Capacity | 0.3 m³ |
Speed | 20 r/min | |
Drive power | 3 kW | |
Burner capacity | 3 x105kcal/h | |
Vertical mixer | Capacity | 0.38 m³ |
Speed | 24 r/min | |
Power | 5.5 kW | |
Dust removing system | Air supply rate | 1450 m³/h |
Motor power | 1.5 kW | |
Water tank capacity | 170 L | |
Generator | Generator power | 30/380 (kW) / (VAC) |
Air compressor | Air presser | 0.8 MPa |
Air flow volume | 0.17 m³/min | |
Motor | 1.5 kW | |
Control system | PLC (automatic / manual ) | |
Optional part | Plate compactor | 18 kN |
Electric breaker | 1450 time/min | |
Blower | 5000 m³/h |
Introduction:
The LMT5091TYH is we cooperation with America Phoenix company and also studying the advanced technology advantage from America BErgkamp and Python. The road maintenance truck main use for the repair of shallow pit, crack, and operation.The operation process: The break crush or damage asphalt road → clean up the old material → spray the asphalt sticky layer → fill up the new mixture → compaction → end the operation.
Imported burner from Italy Riello fast heating and saving time and cost for
construction.
construction.
In the asphalt tank has hot oil pipe for heating, which can use emulsion bitumen and hot bitumen both. All the pipe valve and pump etc. device for bitumen pass insulated with hot oil , which can make sure not easy to be blocked;
Use the cyclone and water double dust extraction. The structure is compact and greatly reducing smoke pollution.
Use the big power diesel generator supplier the power to the upper part.
Has the tools electric and air power inter
Dry drum has simple construction design easy to fix and the drum position can be adjusted.
The burner of dry drum has one cover plate. Then can protect the burner and with a nice appearance.
Use the drum drying aggregate and then mixing with asphalt in the vertical agitator tank to make sure the efficient mixing
The big capacity tools box, can storage some spare parts or maintenance tools.
Company Profile
TITECO is a global producer of construction equipment and vehicles, which is specialist in road building, repair and maintenance machinery equipment and vehicles. We offer our customers technologically first-class quality products, creative design services and sound service for optimum, economic production processes. With over 20 years experience in concrete & asphalt road building and maintenance, TITECO's applied technology service will help you to improve your performance. All our products are synonymous of power and stability, always provide the innovative solutions for complex issues.
Our Advantages
1. More than 20 years of cutting edge innovation and expertise help us to provide you all the best solutions of your projects.
2. With all kinds of our products commissioned for the concrete and asphalt industry projects,we believed that we know the cares and concerns of our customers well.
3. TITECO manufactures all equipment in our own factory under the strick quaility control system, makes the equipment much more reliable.
Production Process
