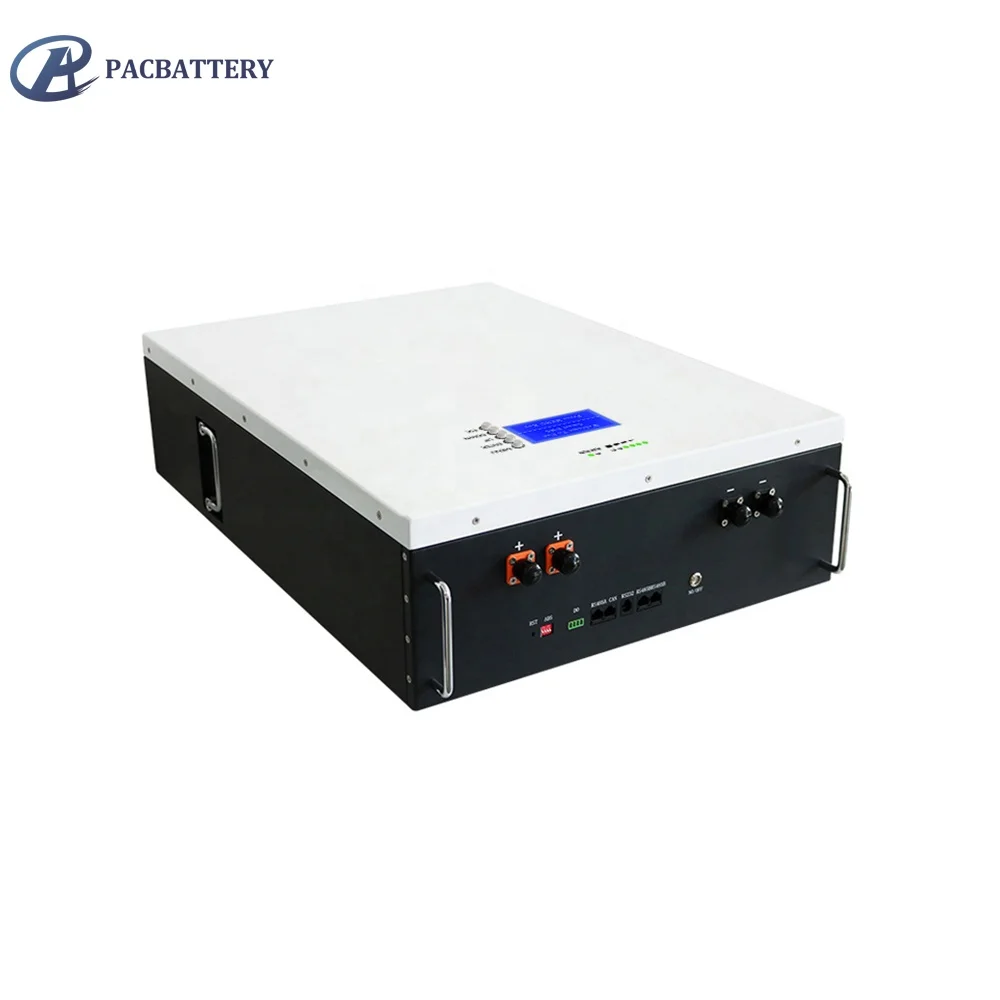

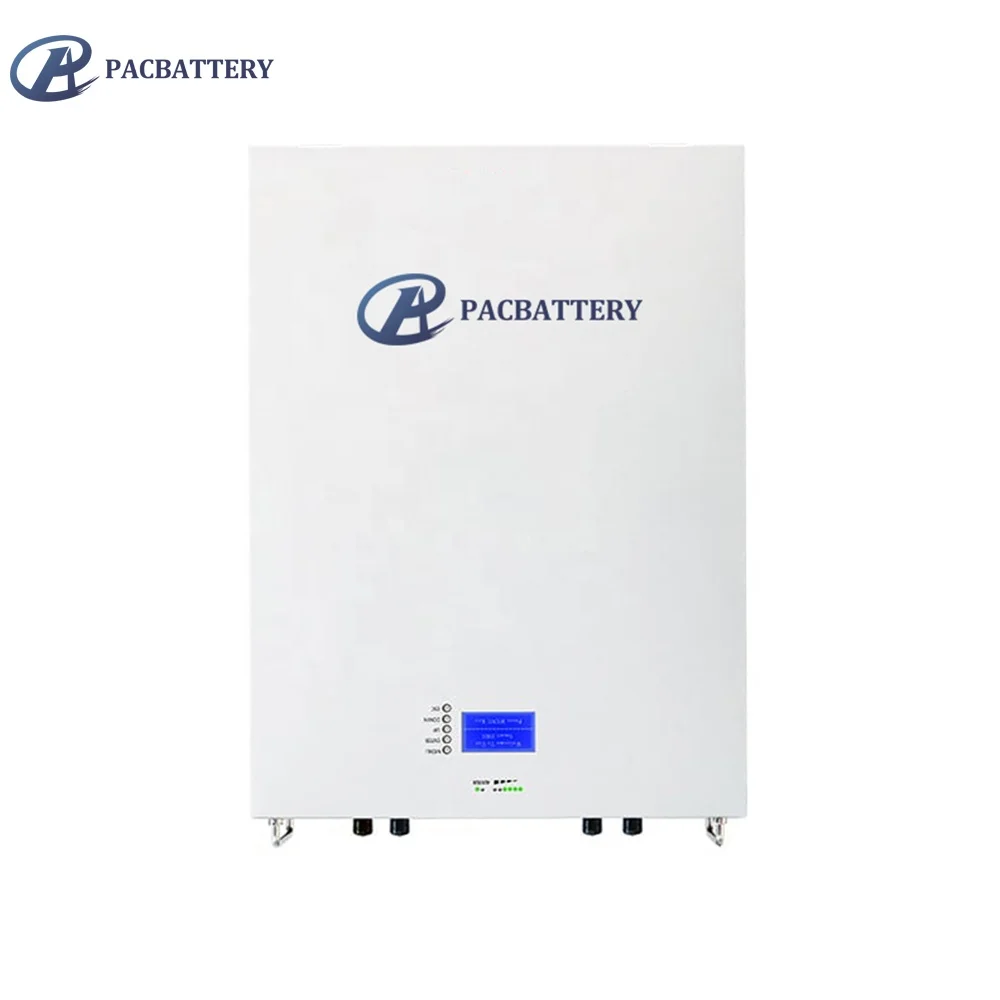

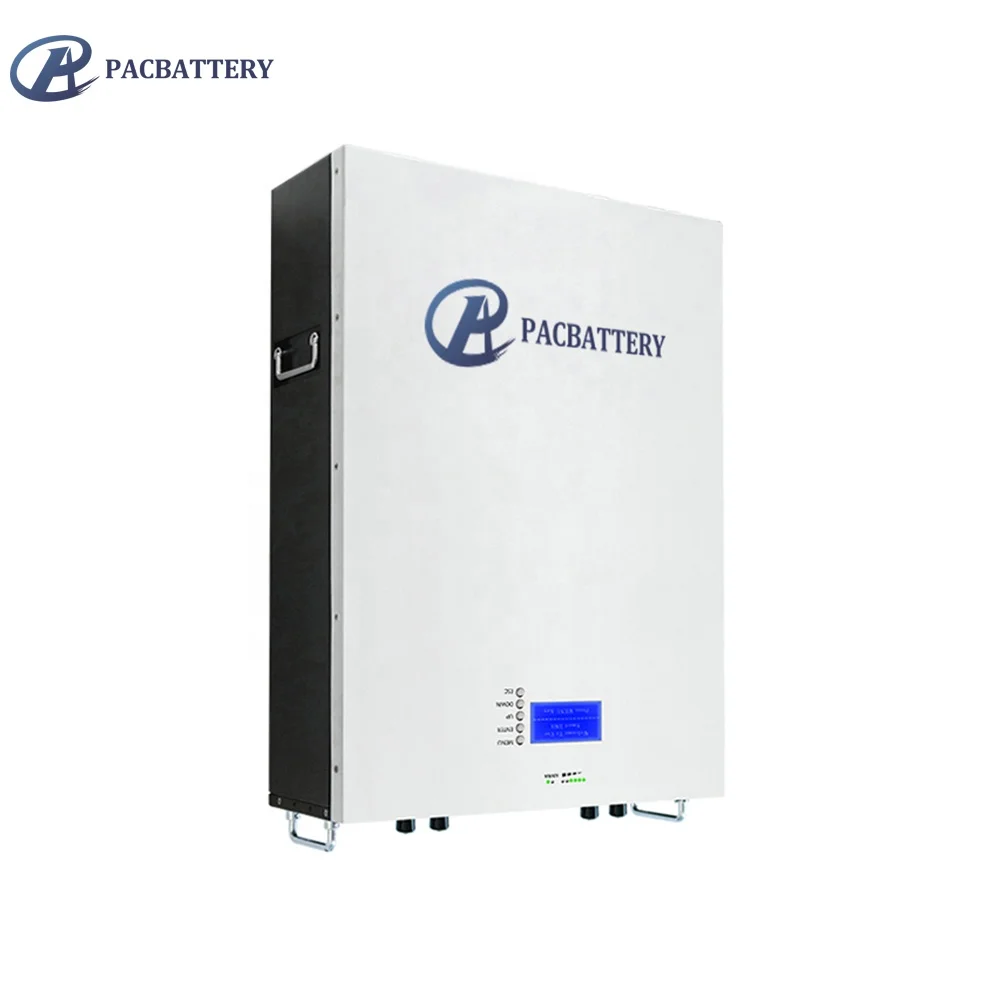

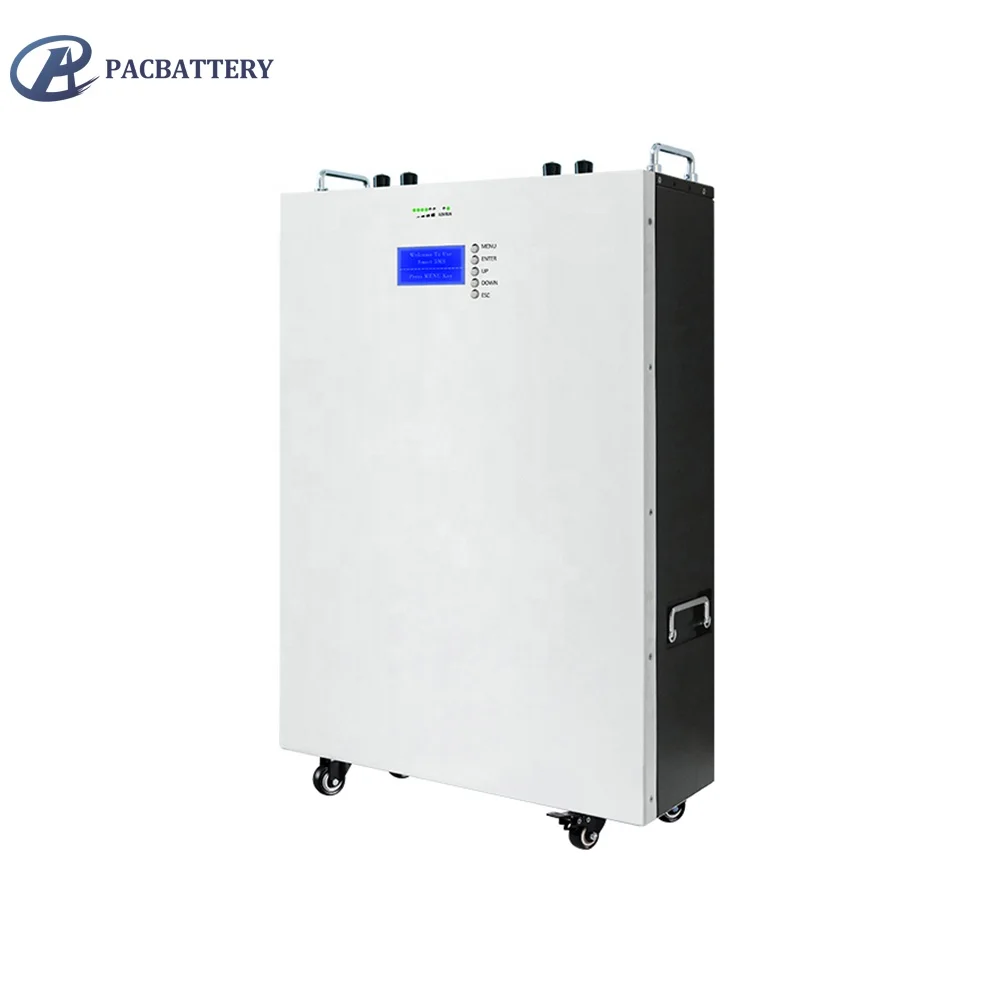

PAC solar energy storage 200ah 48v 10kwh solar price lithium lifepo4 10kwh 48v home battery
- Category: >>>
- Supplier: Shenzhen PAC Technology Co. Ltd.
Share on (1600499134332):
Product Overview
Description
Battery Specifications | ||||||||||
Model No. | PAC-5KWH | PAC-7KWH | PAC-10KWH | PAC-15KWH | PAC-20KWH | |||||
Nominal Parameters | ||||||||||
Nominal Voltage | 48V/51.2V | 48V/51.2V | 48V/51.2V | 48V/51.2V | 48V/51.2V | |||||
Nominal Capacity | 100Ah | 150Ah | 200Ah | 300Ah | 400Ah | |||||
Energy | 4.8kWh/5.12kWh | 7.2kWh/7.68kWh | 9.6kWh/10.24kWh | 14.4kWh/15.36kWh | 19.2kWh/20.48kWh | |||||
Dimensions (H x L x W) | 680x480x180(220)mm | 920x730x235mm | ||||||||
Weight | 58.5kg/60.5kg | 75kg/78kg | 96.5kg/105.5kg | 140kg/150kg | 235kg/250kg | |||||
Basic Parameters | ||||||||||
Life time(25°C) | 15~20 years | |||||||||
Life cycles(80% DOD, 25°C) | 6000 Cycles | |||||||||
Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | |||||||||
Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | |||||||||
Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | |||||||||
Battery standard | UL1973/UL2580(CELL), IEC62619, UN38.3, CE-EMC | |||||||||
Enclosure protection rating | IP21 | |||||||||
Electrical Parameters | ||||||||||
Operation voltage | 42-54 Vdc/44.8-57.6 Vdc | |||||||||
Max. charging voltage | 54 Vdc/57.6 Vdc | 54 Vdc/57.6 Vdc | 54 Vdc/57.6 Vdc | 54 Vdc/57.6 Vdc | 54 Vdc/57.6 Vdc | |||||
Max. constant charging/discharging current | 100A | 100A | 100A | 200A | 200A | |||||

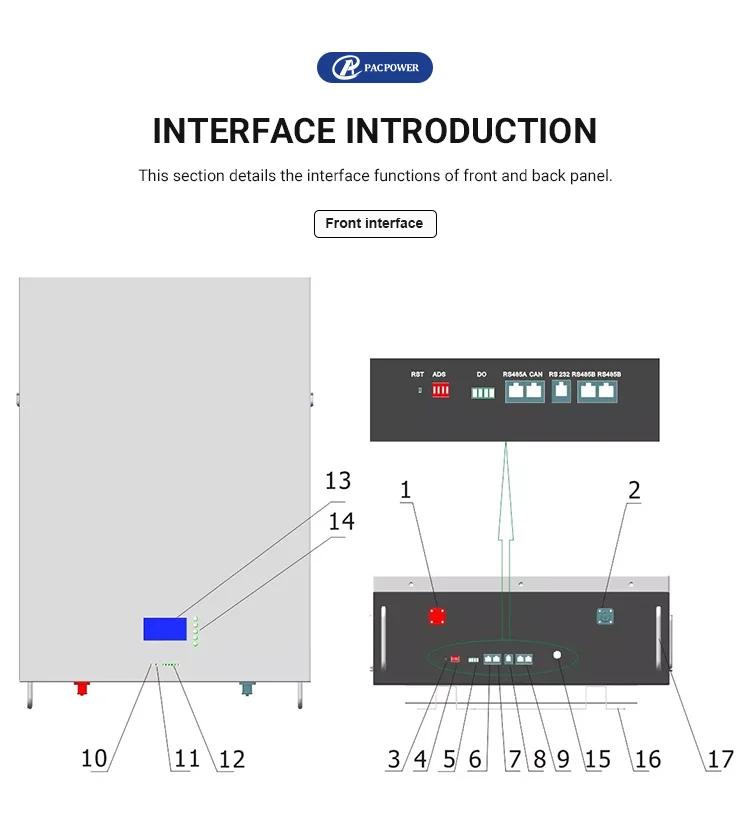

No. | Description | Silk-screen | Remark |
1 | UES0800 | P+ | Output terminal |
2 | UES0800 | P- | Output terminal |
3 | port Reset button | RST | Reset the battery |
4 | Dial switch | ADS | Set the address |
5 | Do | ||
6 | RS485A Port | RS485A | RS485 and inverter connection port |
7 | CANbus Port | CAN | CANbus and inverter connection port |
8 | RS232 Port | RS232 | RS232 communication port |
9 | RS485B port | RS485B | RS485 parallel communication interface |
10 | LED | RUN | Operation indicator |
11 | LED | ALM | Alarm indicator |
12 | LED | CAPACITY | Capacity indicator |
13 | LCD | ||
14 | LCD Key | ||
15 | switch | ||
16 | Bracket | ||
17 | Handle |
1. Can you provide a sample for quality test?
---Yes, we can provide samples.
2. Can you accept OEM and ODM Service?
---Yes, Most of our batteries are customized, so please tell me your requirements, we will provide the best solution for you.
---Yes, we can provide samples.
2. Can you accept OEM and ODM Service?
---Yes, Most of our batteries are customized, so please tell me your requirements, we will provide the best solution for you.
3. What’s the minimum order MOQ?
---This depends on the battery model. For power storage wall battery, power storage brick battery and rack Lifepo4 battery module, we don’t have MOQ requirements.
---This depends on the battery model. For power storage wall battery, power storage brick battery and rack Lifepo4 battery module, we don’t have MOQ requirements.
4. What’s your payment term?
---TT, LC, West Union, Paypal etc.
---TT, LC, West Union, Paypal etc.
5. What’s your warranty for products?
---5~15 years, depends on different batteries. For quality problems, we can send new ones for replacement.
---5~15 years, depends on different batteries. For quality problems, we can send new ones for replacement.
6. How long will be the delivery?
---Generally delivery time is 15-30 days, depends on the shipping method.
---Generally delivery time is 15-30 days, depends on the shipping method.
7. How do you control your product quality.
---We control quality from the source. We choose the top quality electric vehicle grade battery cells with best consistency, use advanced assembly technology and modular design, do 100% inspection after each process.
---We control quality from the source. We choose the top quality electric vehicle grade battery cells with best consistency, use advanced assembly technology and modular design, do 100% inspection after each process.
8. How can you send batteries to our address?
---We can send the lithium batteries by sea, by air, by express, by train and by truck, with DDU/DDP service.
---We can send the lithium batteries by sea, by air, by express, by train and by truck, with DDU/DDP service.
