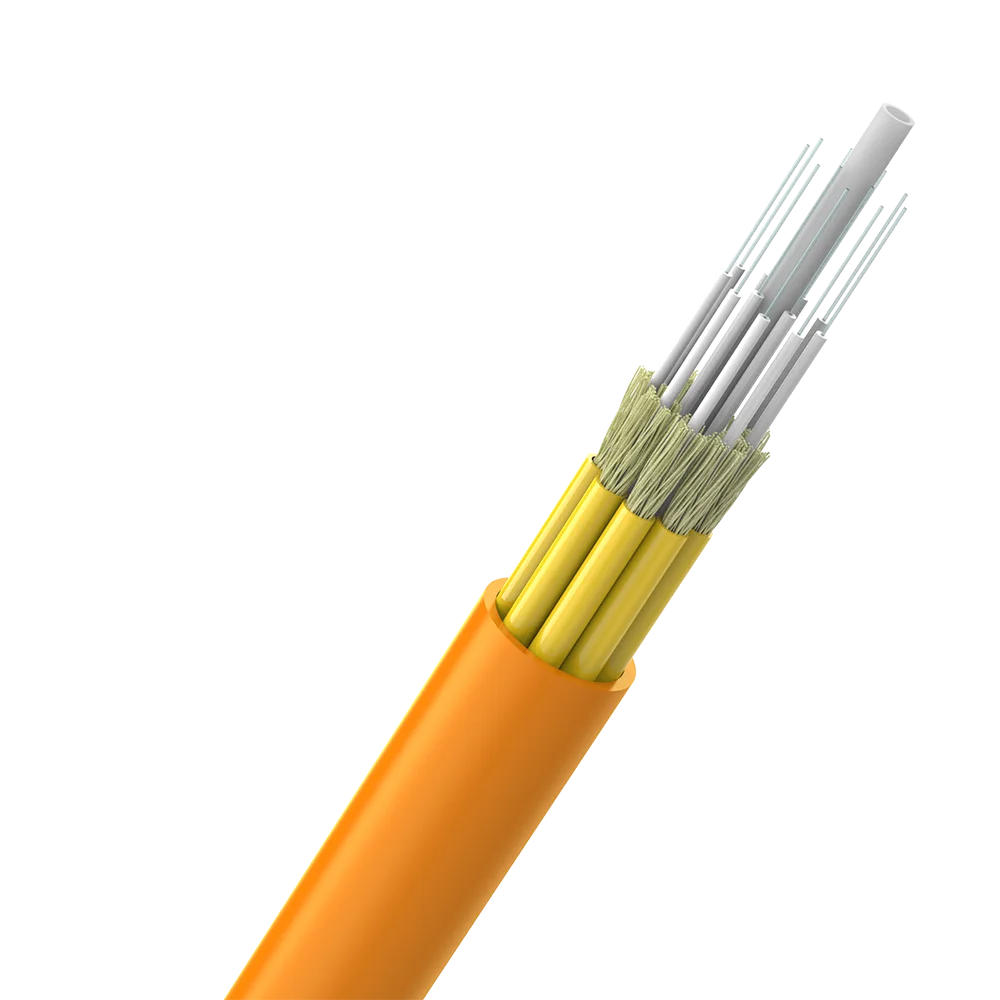

Mini Cable Multi fiber 1 144 Cores with High Modulus Aramid Yarn PVC LSZH Jacket Indoor Optical Fiber Cable
- Category: >>>
- Supplier: Shenzhen Sdgi Photoelectricity Technologies Co. Ltd.
Share on (1600499138188):
Product Overview
Description
Product Description
Mini-Cable
Specification

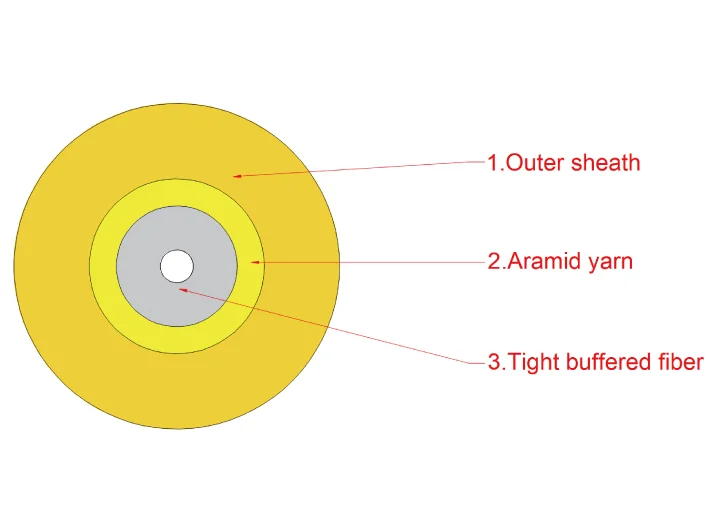

1~32 cores mini- cable takes the discrete fiber as the basic unit, high modulus aramid yarn as the strength member, and polyvinyl chloride (PVC) or low smoke zero halogen flame-retardant polyolefin (LSZH) as the jacket material.

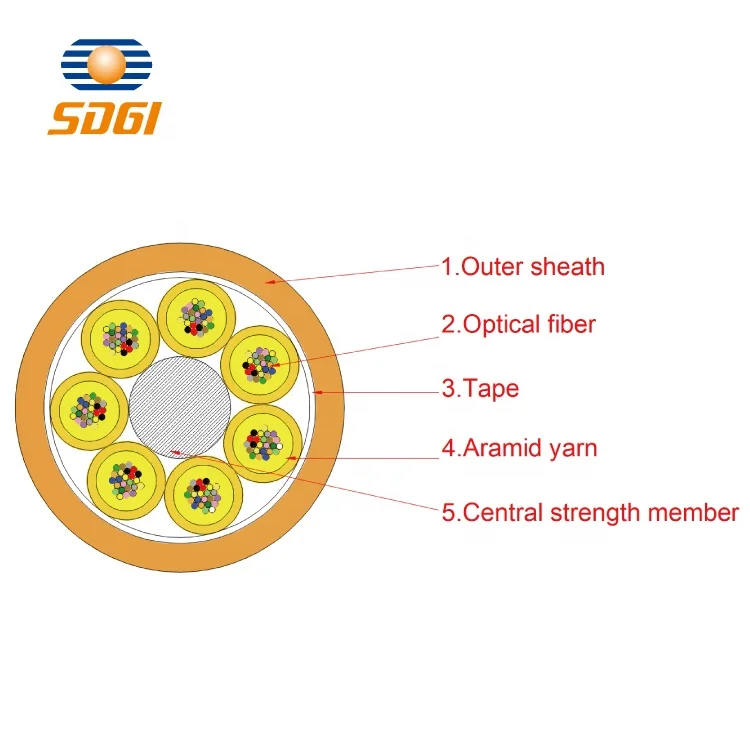

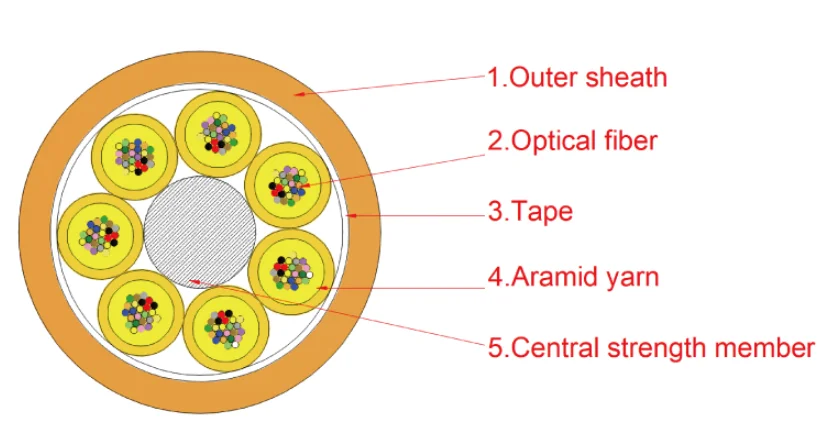

Branched mini-cable is composed of a multi-fiber basic unit (single-tube mini- cable), fiber-reinforced composite plastic
(GFRP/CFRP) central strength member, single cable stranded around the central strength member, and polyvinyl chloride(PVC) or low smoke zero halogen flame-retardant polyolefin (LSZH).
Fiber count | Strength member | Cable diameter (mm) | Cable weight (kg/km) | Minimum bending radius (mm) | Tensile load(N) | Crush load(N/100mm) | ||||||
static | dynamic | Short term | Long term | Short term | Long term | |||||||
2 | high modulus aramid yarn | 2.0±0.1 | 3.2 | 30 | 60 | 100 | 50 | 500 | 100 | |||
8 | high modulus aramid yarn | 2.4±0.1 | 4.9 | 30 | 60 | 150 | 70 | 500 | 100 | |||
12 | high modulus aramid yarn | 3.0±0.1 | 6.9 | 30 | 60 | 200 | 80 | 500 | 100 | |||
16 | high modulus aramid yarn | 3.4±0.1 | 9 | 34 | 68 | 220 | 100 | 500 | 100 | |||
24 | high modulus aramid yarn | 3.5±0.1 | 9.5 | 35 | 70 | 250 | 120 | 500 | 100 | |||
32 | high modulus aramid yarn | 5.0±0.1 | 25.3 | 50 | 100 | 250 | 120 | 1000 | 200 | |||
48 | high modulus aramid yarn | 9.5±0.3 | 183.8 | 95 | 190 | 600 | 200 | 1000 | 200 | |||
64 | high modulus aramid yarn | 13.5±0.5 | 285.2 | 135 | 270 | 800 | 400 | 1000 | 200 | |||
72 | high modulus aramid yarn | 11.5±0.5 | 381.4 | 120 | 240 | 1000 | 500 | 1000 | 200 | |||
96 | high modulus aramid yarn | 13.5±0.5 | 495.3 | 135 | 270 | 1200 | 400 | 1000 | 200 | |||
144 | high modulus aramid yarn | 13.5±0.5 | 391.4 | 135 | 270 | 1320 | 400 | 1000 | 200 | |||
144 | high modulus aramid yarn | 26.4±0.8 | 728.4 | 264 | 528 | 1320 | 400 | 1000 | 200 | |||
Temperature range（℃）: -20℃~+60℃

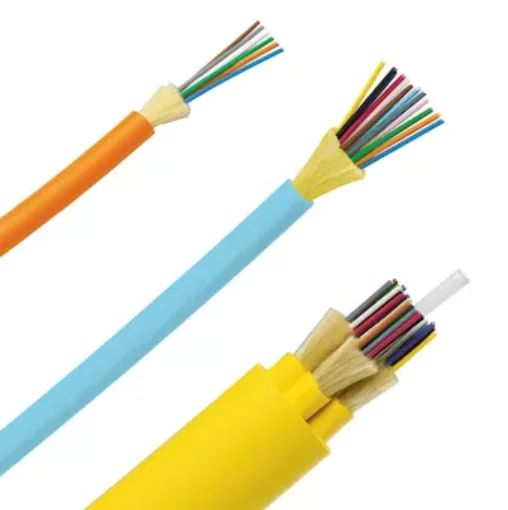

Detail Images
