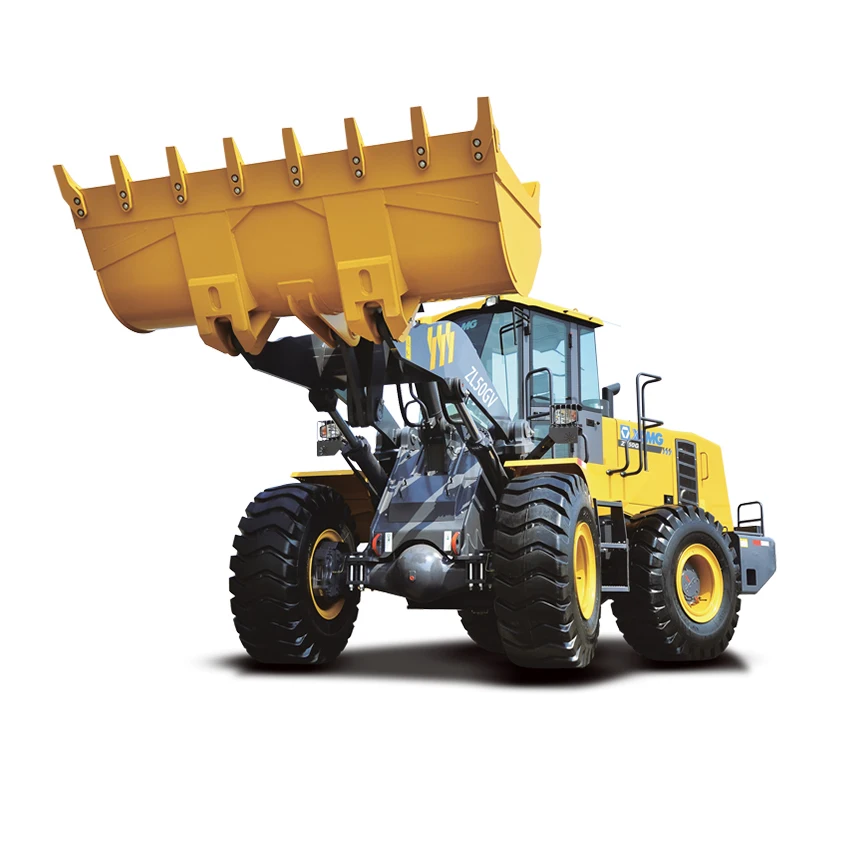

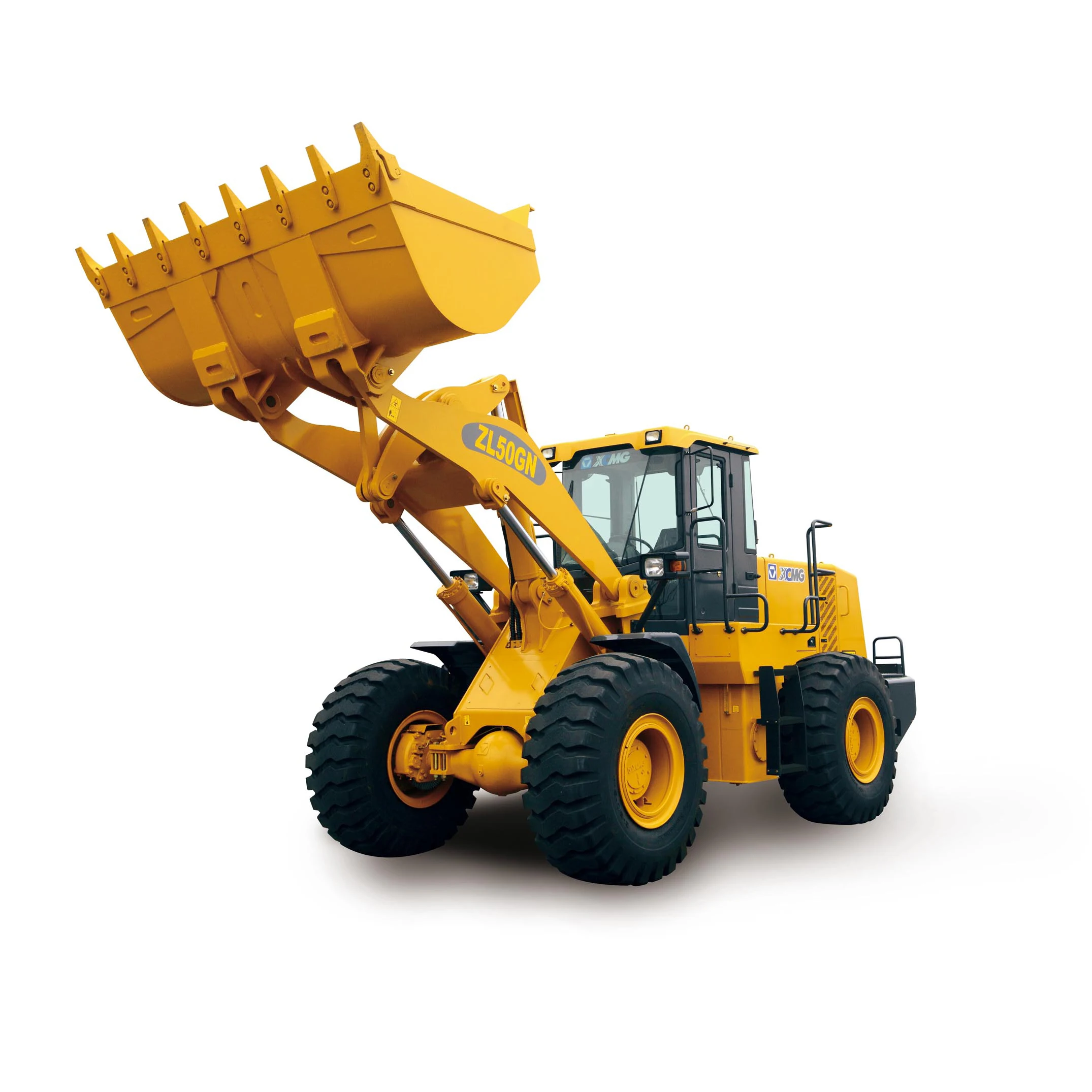

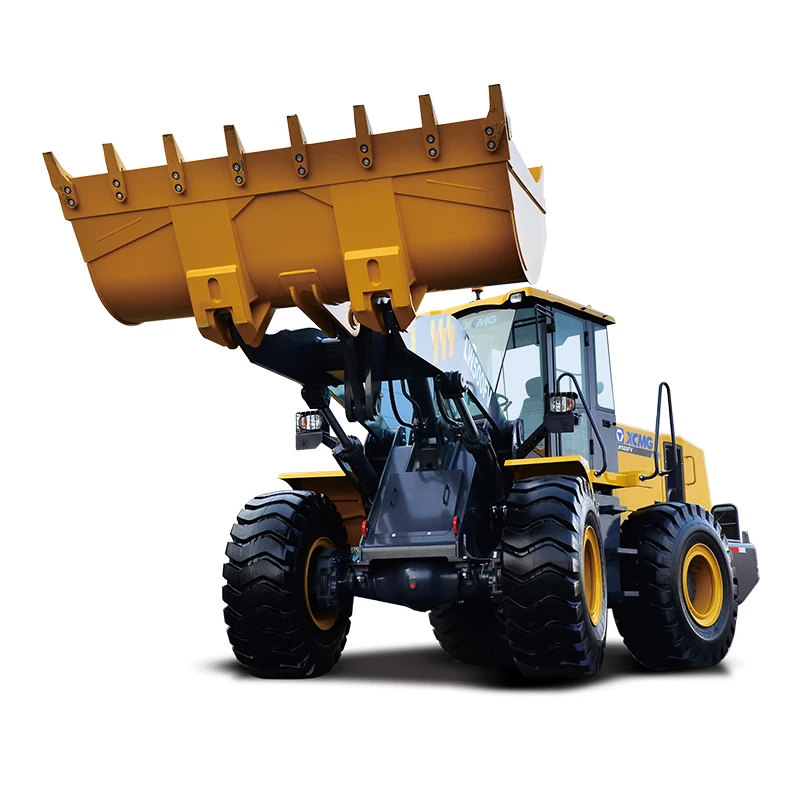

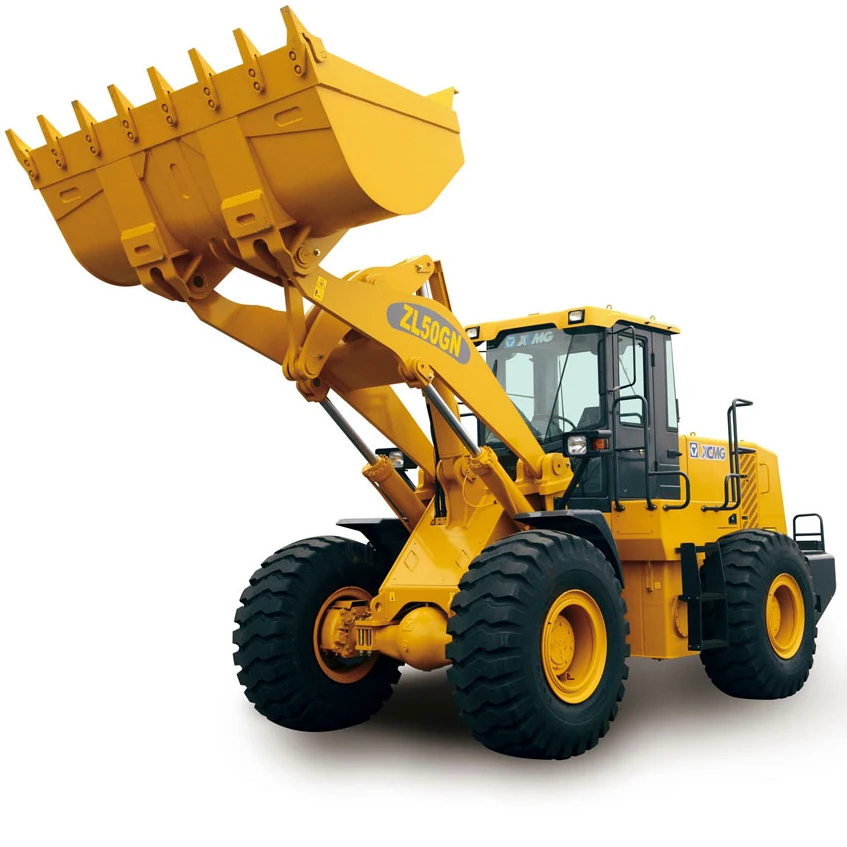

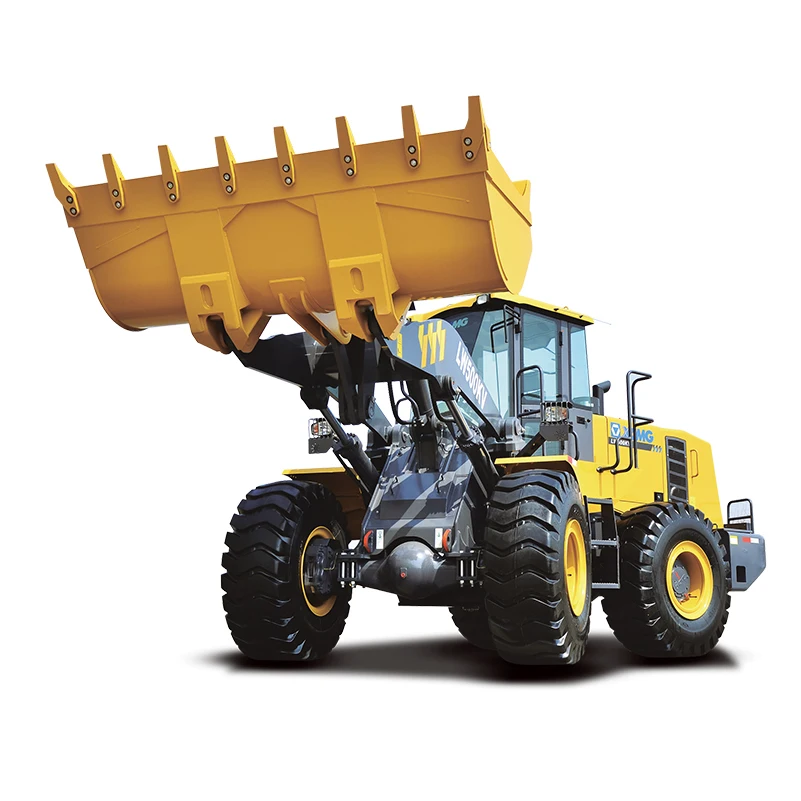

China Panda Brand 5t Wheel Loader / Front End Loader ZL50G Simple Maintenance And Low Cost Loader
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600499150597):
Product Overview
Description
Product information
Product parameters

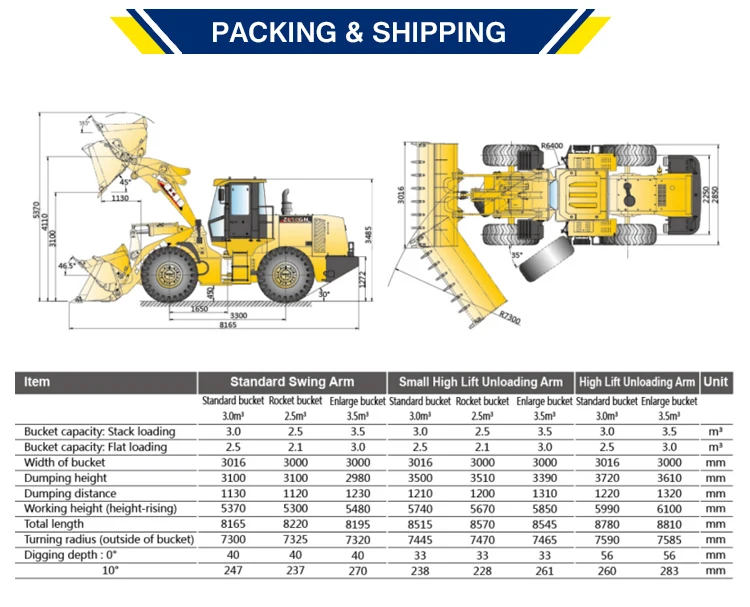

4.2.1 Overall dimensions | ||
Overall 1ength (bucket on the ground) | 8165 mm | |
Overall width | 2850 mm | |
Bucket width | 3016 mm | |
Overall height | 3485 mm | |
Wheel base | 3300 mm | |
Tread | 2250 mm | |
Min. ground clearance | 450 mm | |
4.2.2 Specification | ||
Rated capacity | 5000 kg | |
Bucket volume | 3 m3 (Standard bucket) | |
Operating weight | 17500kg±300kg | |
Traveling speeds | ||
ForwardⅠ/Reverse Ⅰ | 0~11.5/0~16.5 km/h | |
Forward Ⅱ/Reverse Ⅱ | 0~38 km/h | |
Max. tractive force | 165±5kN | |
Max. climbing gradient | 30 º | |
Max. dumping angle | 45 º | |
Max. dumping height | ≥3090 mm (main cutting edge) | |
Dumping reach | ≥1130 mm (main cutting edge) | |
Dumping angle of bucket | ≥45 º | |
Max. Breakout force | ||
Breakout force of bucket | 170 KN | |
Breakout force of lifting | 134 KN | |
Maximum digging depth | 40 mm (the bucket bottom is level) | |
Lifting time of boom | ≤6 s | |
Total cycling time | ≤11 s | |
Min. Turning radius | ||
Outside of the bucket | 7300 mm | |
Center of the tyre | 6400 mm | |
Turning angle of the chassis | 35 º | |
Oscillating angle of the rear axle | ±12 º | |
4.2.3 Engine | ||
Model | SC11CB220G2 | |
Type | Single line, vertical, four-stroke | |
Rated power | 162kW | |
Rated speed | 2200r/min | |
Max. torque | 850 N.m | |
Speed | 1300r/min | |
Rated fuel consumption ratio | 230±5%g/kW.h | |
4.2.4 Transmission system | ||
A. Torque converter | ||
Model | YJSW340D | |
Type | 1 stage, 4-elements（dual-trubo） | |
Cyclic diameter | 340mm | |
Conversion coefficient | K=3.98 | |
Cooling method | Oil cooling-pressure circulating type | |
Oil inlet pressure | 0.3~0.45MPa | |
Oil outlet pressure | 0.20~0.30MPa | |
B. Gearbox | ||
Model | 2BS315 | |
Type | Hydraulic power shift | |
Gear number | 2 forward and 1 reverse | |
Transmission ratio | ||
ForwardⅠ/Reverse Ⅰ | 2.444/1.7884 | |
Forward Ⅱ/Reverse Ⅱ | 0.6557 | |
Working pressure of transmission pump | 1.08~1.47MPa | |
Working pressure of transmission pump | 140l/min/2200r/min | |
C. Front and rear axle | ||
Axle model | ||
Front | DA1170B(II) | |
Rear | DA2170A(II) | |
Main reducer | ||
Type | Spiral gear-one stage deceleration | |
Speed ratio | 4.625 | |
Hub reducer | ||
Type | One stage-planetary deceleration | |
Speed ratio | 4.94 | |
Connection type of front axle | Rigid connection with chassis | |
Connection type of rear axle | Swing | |
4.2.5 Tyres | ||
Tyre specification | 23.5-25 | |
Inflating pressure | Fore tyre: 0.38-0.40MPa | |
Rear tyre: 0.32-0.34MPa | ||
4.2.6 Braking system | ||
Dry drive axle | ||
Foot brake | Oil disc braking on 4 wheels | |
Braking air pressure | 684~786kPa | |
Hand brake | Soft shaft operation, inner expanding shoe type | |
Wet drive axle | ||
Foot brake | Full hydraulic wet brake on 4-wheels | |
Braking pressure | 10.2 Mpa | |
Hand brake | Electrical control, clamp disc | |
4.2.7 Steering system | ||
Type | Articulation, flow magnifying type, hydraulic steering | |
Model of steering device | BZZ3-125 | |
Steering pump model | CBGj2080H | |
Displacement of oil pump | 80ml/r | |
System pressure | 15MPa | |
Steering cylinder | Ø 90mm×350mm | |
Flow magnifying valve | ZLF25A1 | |
Steering limit valve | XF-B6 | |
Maximum steering angle | 35º | |
4.2.8 Hydraulic system of working equipment | ||
Model of working oil pump | P7260-100/10 | |
Displacement of oil pump | 100ml/r | |
System pressure | 17.5MPa | |
Pilot valve | DXS-00 | |
Selecting valve | SF8 | |
Boom cylinder | Ø160×840mm | |
Tilt cylinder | Ø180×585mm | |

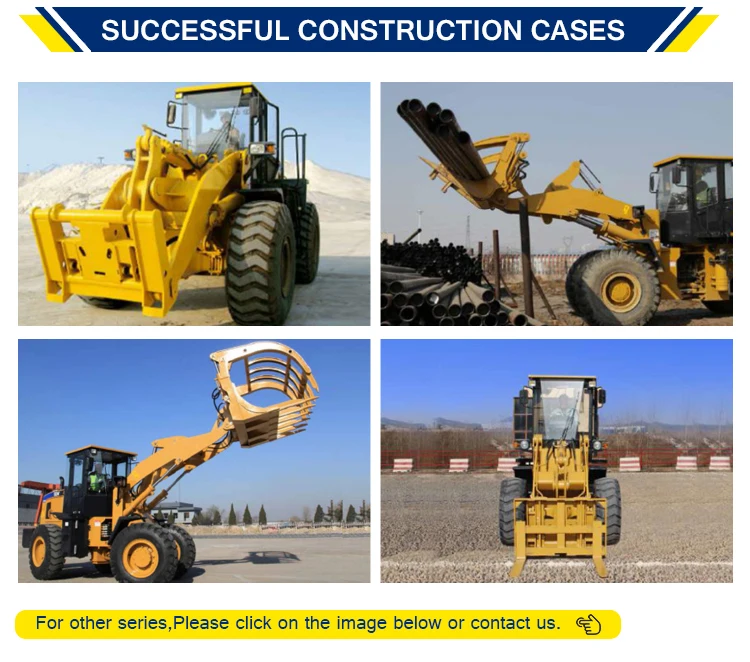

Successful construction cases

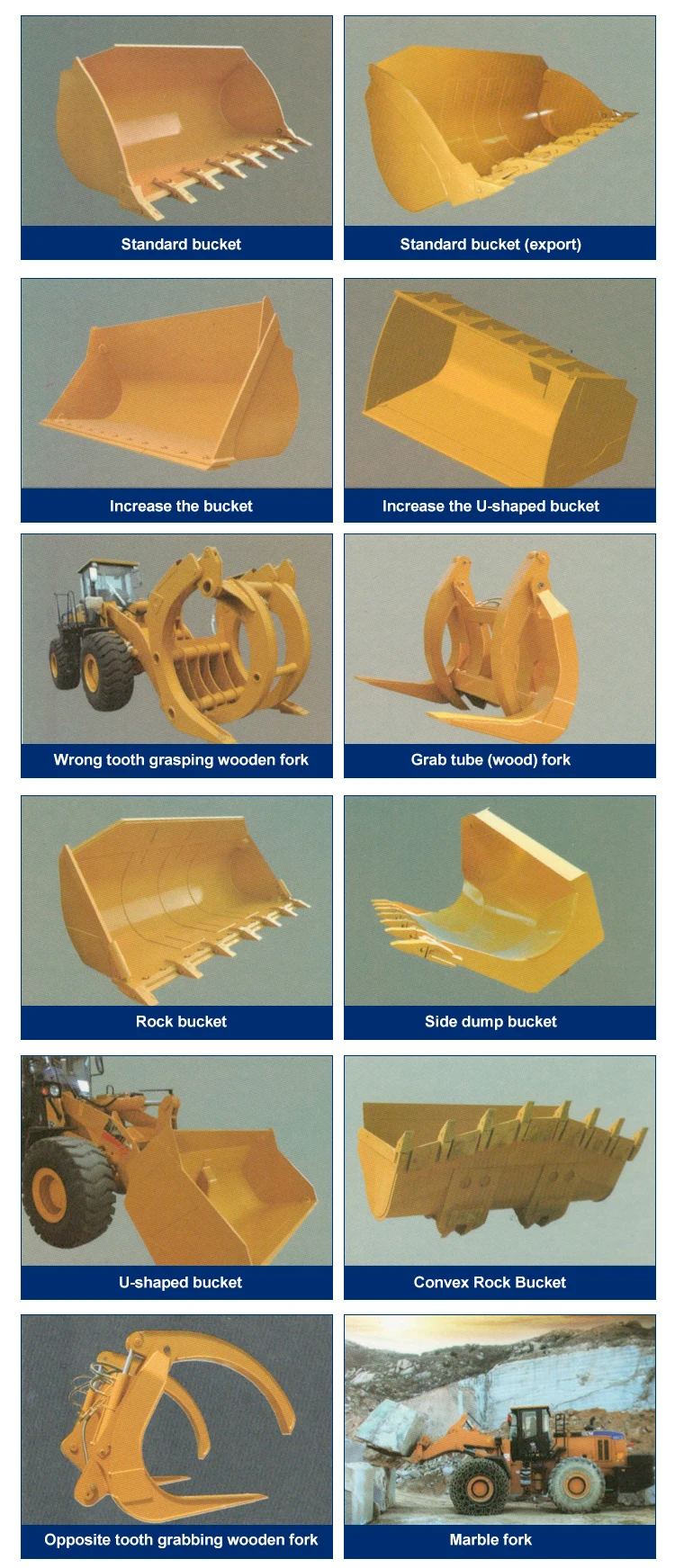

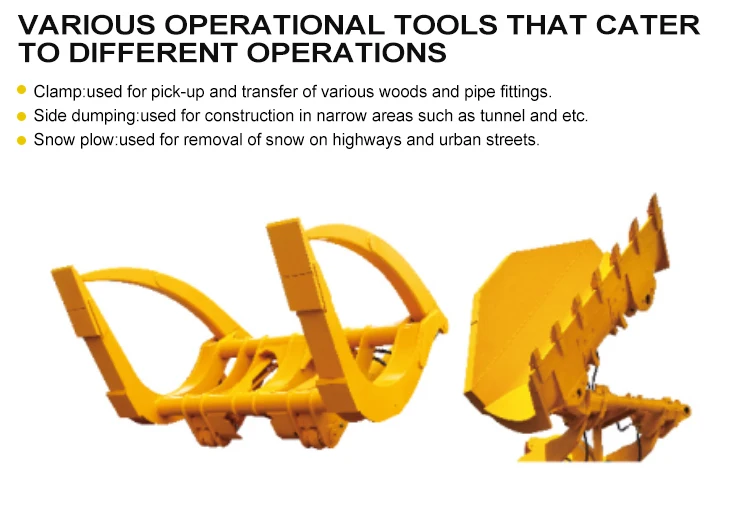

We can accept customize the attachments according to customer requirements.Now we have more than 60 kinds of attachments which can match whith the loaders.According to the different working environment and construction demands ,different kinds of attachments can be selecte to made your job much simpler and easier.
