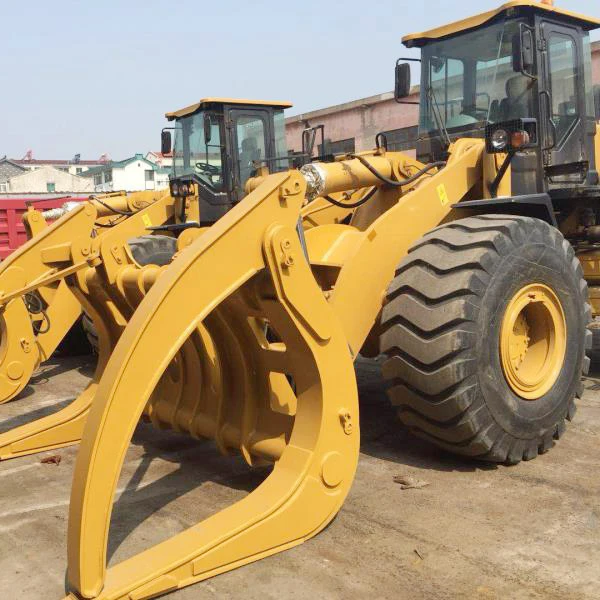

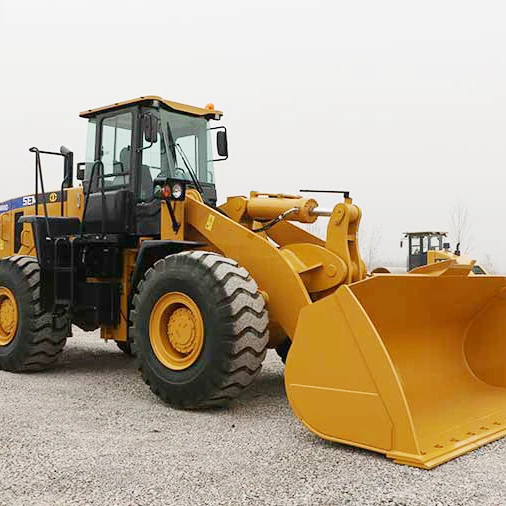

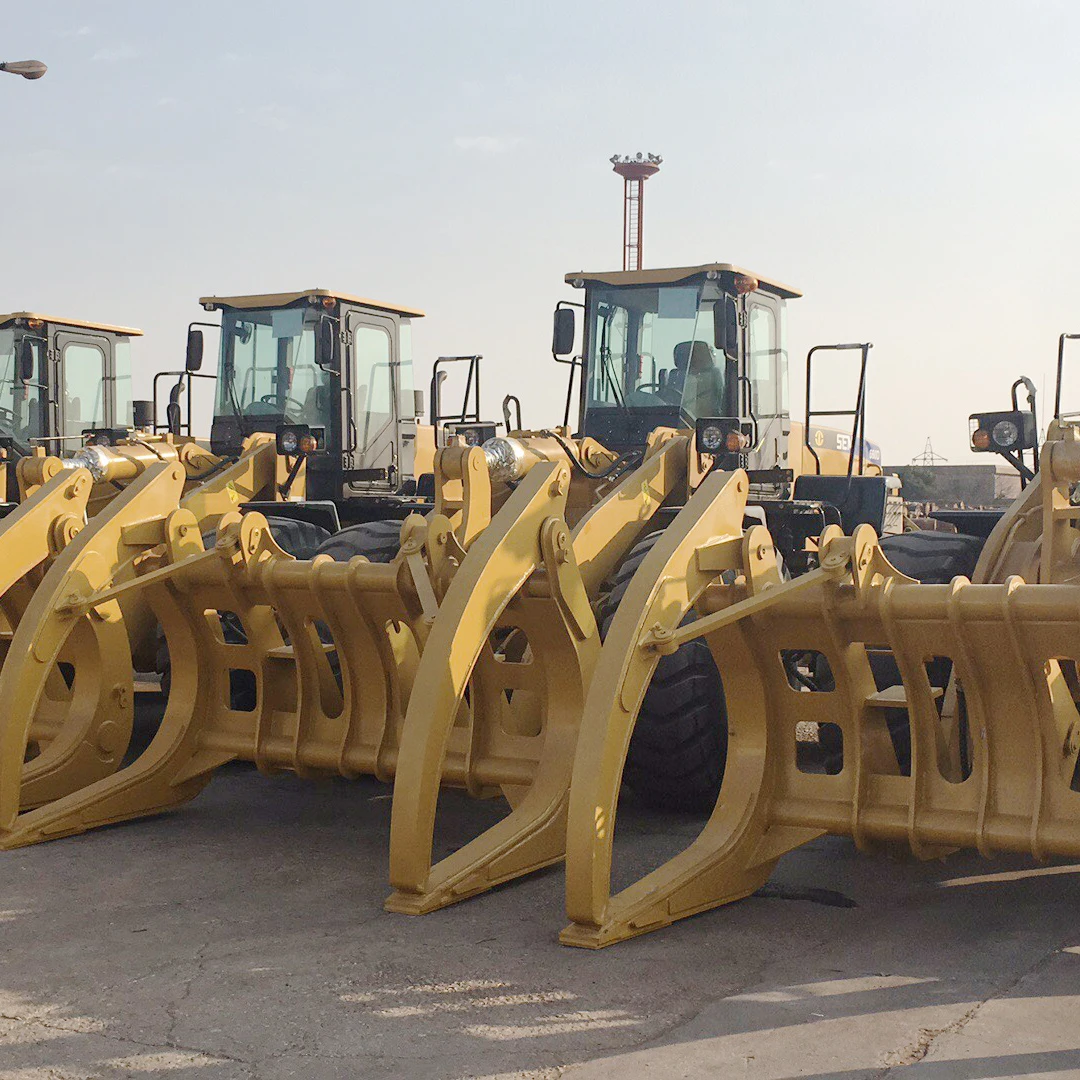

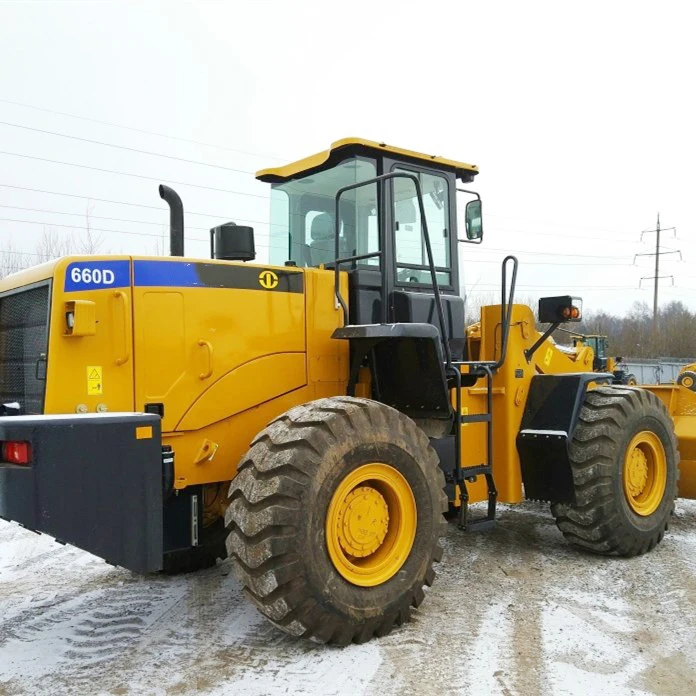

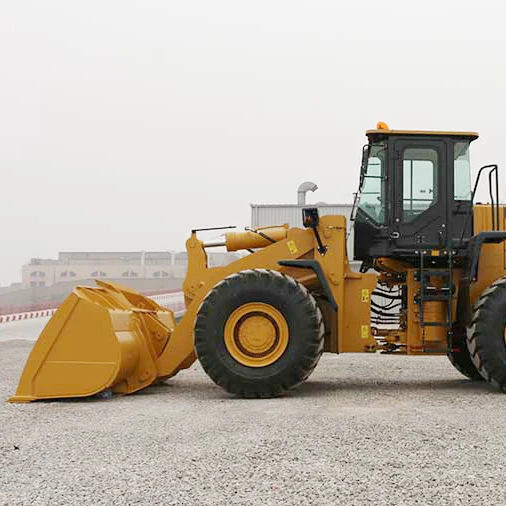

6ton Front Bucket Wheel Loader 660D 5.5 Cubic Meter Large Bucket Capacity Loader For Sale
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600499157361):
Product Overview
Description
Product information
Product parameters
Items | 660D | |||
Main Specifications | ||||
Steering System | ||||
Rated Load | kg | 6 000 | ||
Operating Weight with Standard Bucket | kg | 20 000 | ||
Bucket Capacity | m³ | 3.3-5.5 | ||
Wheel Base | mm | 3 350 | ||
Overall Dimension (outside of tire) | mm | 8 414X3 370X3 458 | ||
Operating Specifications | ||||
Breakout Force (GRD) | kN | 183 | ||
Dump Clearance | mm | 3 048 | ||
Articulated Angle | ° | 38±1 | ||
Transmission | ||||
Transmission Type | Countershat, power shift | |||
Transmission Gears | F4/R4 | |||
Torque Converter Type | Single stage 3 elements | |||
Maker & Type | TR200 | |||
Forward I/ Reverse I | km/h | 7.4/7.4 | ||
Forward II/ Reverse II | km/h | 14/14 | ||
Forward III/ Reverse III | km/h | 22/22 | ||
Forward IV/ Reverse IV | km/h | 38/38 | ||
Axle | ||||
Main Drive Type | Spiral bevel gear, single stage | |||
Final Drive Reduction Type | Planetary type, single stage | |||
Rear - Oscillating +/- | ° | ±11 | ||
Engine | ||||
Model | WD10G240E203 | |||
Rated Power | kW | 178 | ||
Rated Speed | r/min | 2 000 | ||
Displacement | L | 9.726 | ||
Implement Hydraulic | ||||
Service Brake | Dry & caliper, air to oil control | |||
Parking Brake | Drum type shoe brake,spring applied & oil released | |||
Steering System | ||||
System Type | Flow amplifying | |||
Steering Pump Type | Piston pump | |||
System Presure Setting | Mpa | 18 | ||
Steering Angle (L/R) | ° | 38±1 | ||
Tires | ||||
Size | 23.5-25（26.5-28） | |||
Type | Bias | |||
Layer | 20 | |||
Textured Type | L3/E3 | |||

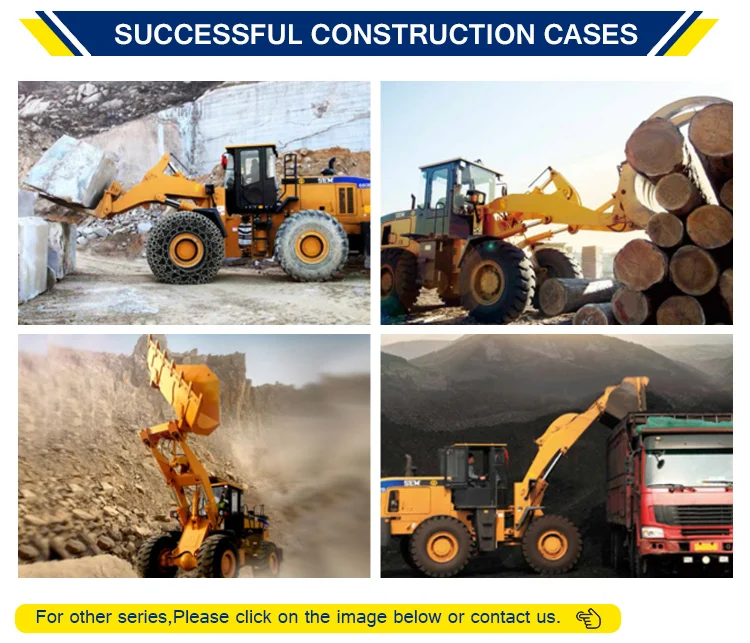

Successful construction cases
Packing & Delivery
About us
FAQ
How long will your price be valid?
we are an honest and friendly supplier, providing value to our customers is our working philosophy. We are not greedy businessmen. Normally, our offer is valid for 6 months. We will only consider changing the price if the RMB appreciates substantially and the factory notifies us of the price increase of raw materials.
Which payment terms can you accept?
Normally we can work on T/T payment.
30% down payment is required in advance, and a 70% balance shall be paid before shipment.
What logistics ways you can work for shipment?
We can ship construction machinery with various transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East, Oceania, Southeast Asia, etc., either by container or RoRo/Bulk shipment.
(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send them by international courier services, such as DHL, TNT, USP, or FedEx.
we are an honest and friendly supplier, providing value to our customers is our working philosophy. We are not greedy businessmen. Normally, our offer is valid for 6 months. We will only consider changing the price if the RMB appreciates substantially and the factory notifies us of the price increase of raw materials.
Which payment terms can you accept?
Normally we can work on T/T payment.
30% down payment is required in advance, and a 70% balance shall be paid before shipment.
What logistics ways you can work for shipment?
We can ship construction machinery with various transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East, Oceania, Southeast Asia, etc., either by container or RoRo/Bulk shipment.
(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send them by international courier services, such as DHL, TNT, USP, or FedEx.
