Product Description
Main features:

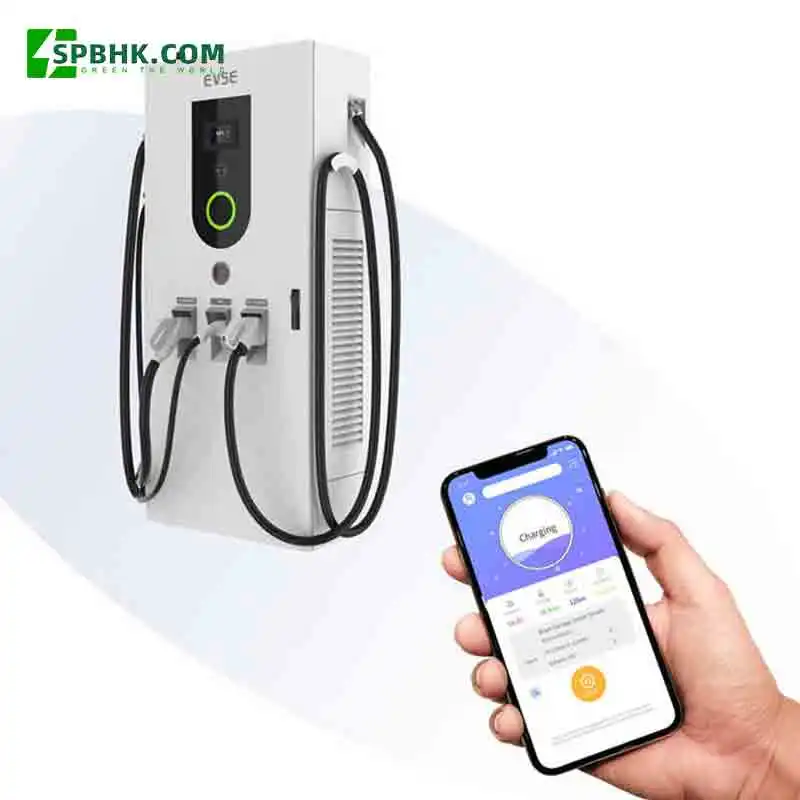

*Modular design including control system, power source system, distributed power system, power factor system *Auto sleep mode after fully charged with low standby power consumption at <5W *Remote firmware upgrade with APP *Remote power module upgrade
*Remote diagnostic function simplifis data collection and analysis process
*Modular design including control system, power source system, distributed power system, power factor system *Auto sleep mode after fully charged with low standby power consumption at <5W *Remote firmware upgrade with APP *Remote power module upgrade
*Remote diagnostic function simplifis data collection and analysis process

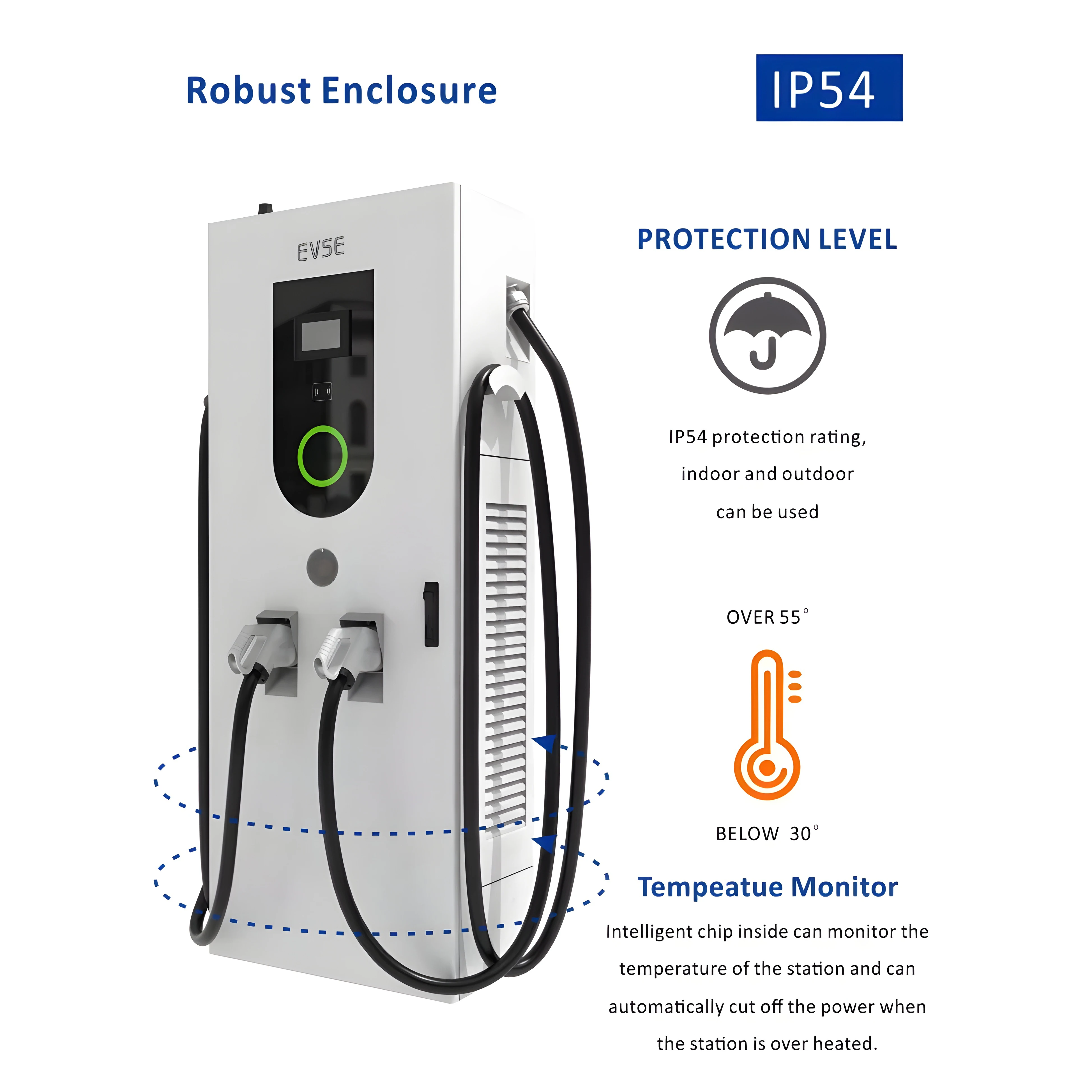

*IP54 protection and 1K10 vandal-proof enclosure
*7"colored touch LCD display for easy configuration.
*IEC 61851 Electric vehicle conductive charging system
*IEC 62196 plugs, socket-outlets, vehicle connectors and vehicle
inlets-conductive carging of electric vehicle
inlets-conductive carging of electric vehicle
*DIN 70121 Electromobility-Digital communication between a d.c. EV charging stationand an electric vehicle for control of d.c. charging in the combined charging system *ISO 15118 Road vehicles-Vehicle-to-GridCommunication Interface

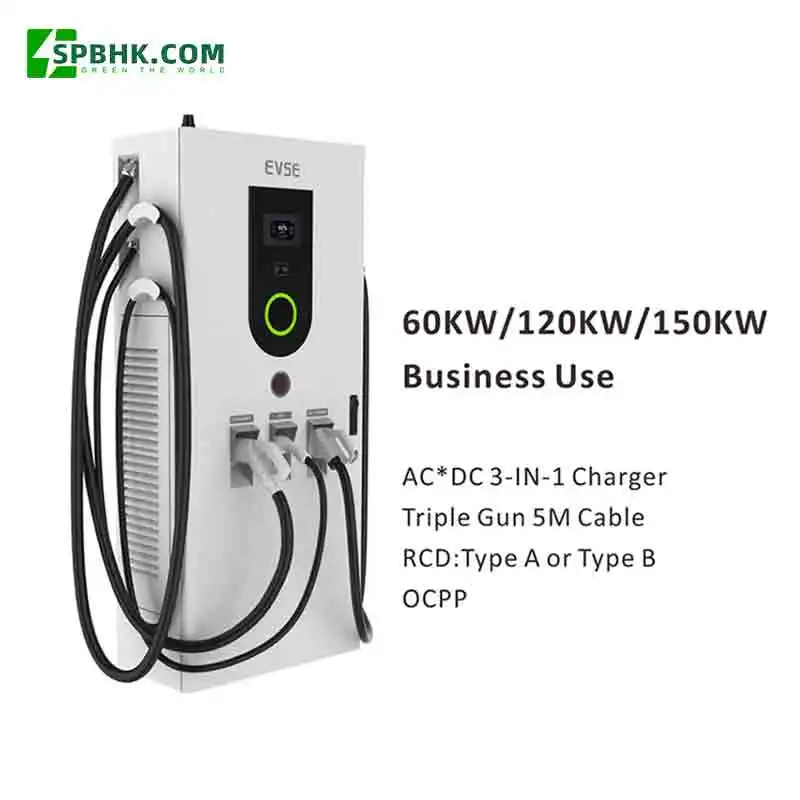

Reliable Ev Charger Manufacturers 60kw Ccs Chademo Type2 Ev Dc Charging Pile Electric Vehicle Car Charging Station
Main Parameters:
Model | SPBEV90K-D4 | SPBEV120K-D5 | SPBEV120K-D6 | |||
Technical Features | ||||||
Max Power | Up to 90KW | Up to 120KW | Up to 150KW | |||
Input/Output power | 400VAC±10%-50/60Hz- 3phase | 400VAC±10%-50/60Hz- 3phase | 400VAC±10%-50/60Hz- 3phase | |||
Power factor | ≥0.98 | |||||
Efficiency | >95% | |||||
Measuring accuracy | Level 0.5 | |||||
Output voltage range | CCS: 250~1000VDC | |||||
Output current range | 0-165A | 0-200A | 0-250A | |||
Communication | PLC (between charger & vehicle) Ethernet/4G/Wififi/OCPP 1.6J(optional) | |||||
User interface | LCD 7 inch Touch Screen / RFID card and APP | |||||
Versatility | EN/IEC 61851-1: 2019, EN/IEC 61851-23: 2014 | |||||
Security design | Over/under voltage protection, overload protection, current leakage protection, grounding protection,lightening surge protection | |||||
DC Plugs | CCS 2Plugs 7M or 10M(Optional) | |||||
Energy Meter | PTB certifified | |||||
RCD | Type A or Type B(optional) | |||||
Physical Properties | ||||||
Warranty | 1 year | |||||
Cooling | Air cooled | |||||
IP Level | IP54 | |||||
Sound noise | <70DB in all directions | |||||
Operating temperature | -20°C to +50°C | |||||
Humidity | Max.95%(non-regulating) | |||||

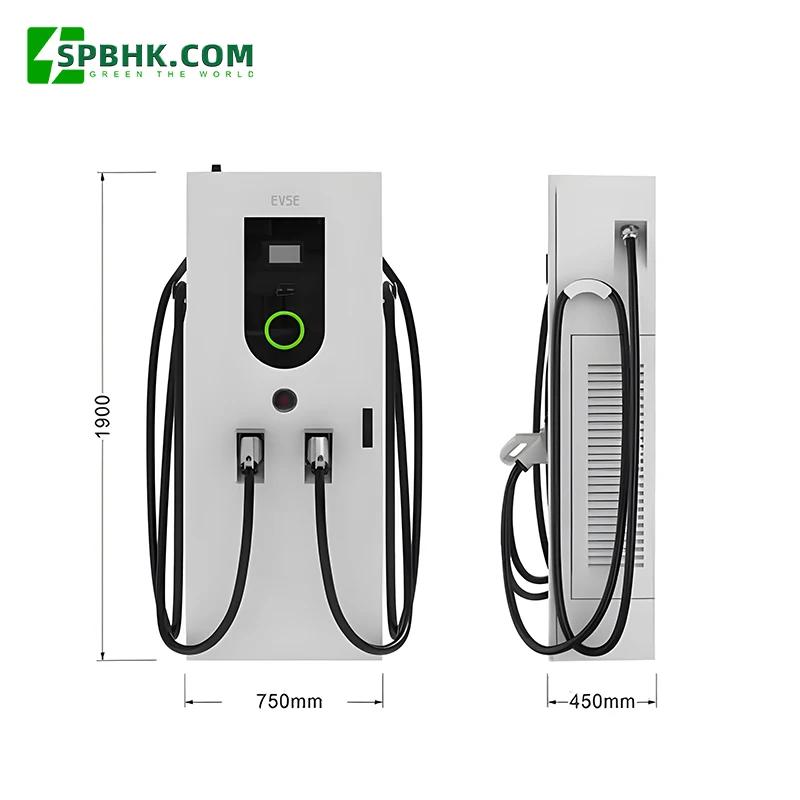

Product Dimensions | 750*770*1900mm | |||||
Package Dimension | 800*850*2000(L*W*H)mm Wooden packing | |||||
