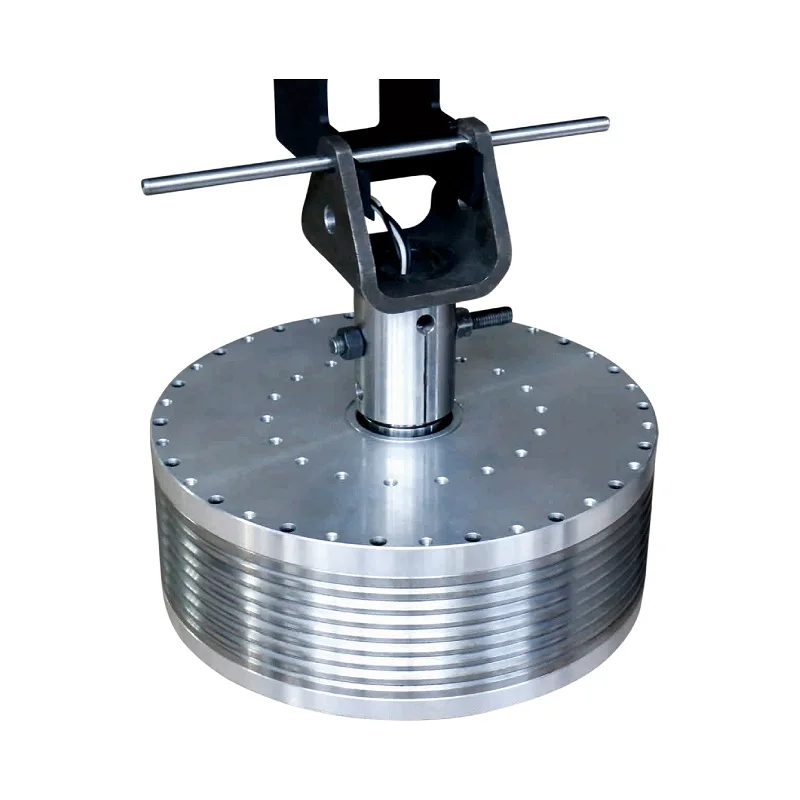

China good quality 1.5kw 65rpm Direct drive permanent magnet servo motor pmsm hvls fan motor price
- Category: >>>
- Supplier: Ningbo Xingtai Technology Co. Ltd.
Share on (1600499175320):
Product Overview
Description
Product Description
Specification

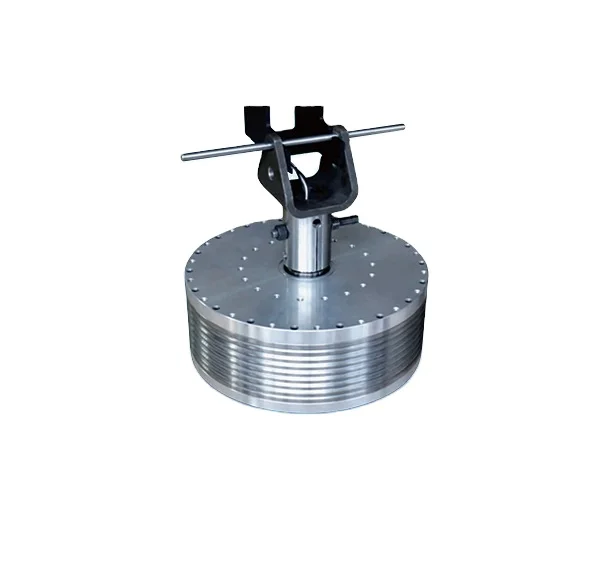

TFM3370 Direct Drive Motor Specification
Under high voltage 380V
Items | Data | Units | Remark |
Rated Voltage | 380 | Vac | 380-440Vac |
Rated Current | 2.7 | Amp | |
Rated Power | 1500 | Watt | |
Rated Efficiency | 85% | PCT | |
Rated Speed | 62 | RPM | Related to fan characteristic load |
Max Speed | 65 | RPM | |
Rated Torque S1 | 232 | Nm | |
Rated Torque S6 | 250 | Nm | |
Ke | 5800 | V/Krpm | |
KT | 86 | Nm/A | |
Temperature Sensor | KTY84-130 | N/A | Standard Feature |
Insulation Grade | 150 | ℃ | F-class Insulation |
IP Grade | IP55 | N/A |
TFM3370 Direct Drive Motor Specification
Under high voltage 220V
Items | Data | Units | Remark |
Rated Voltage | 220 | Vac | 380-440Vac |
Rated Current | 4.7 | Amp | |
Rated Power | 1500 | Watt | |
Rated Efficiency | 85% | PCT | |
Rated Speed | 62 | RPM | Related to fan characteristic load |
Max Speed | 65 | RPM | |
Rated Torque S1 | 232 | Nm | |
Rated Torque S6 | 250 | Nm | |
Ke | 3340 | V/Krpm | Related to fan characteristic load |
KT | 49.4 | Nm/A | |
Temperature Sensor | KTY84-130 | N/A | Standard Feature |
Insulation Grade | 150 | ℃ | F-class Insulation |
IP Grade | IP55 | N/A |

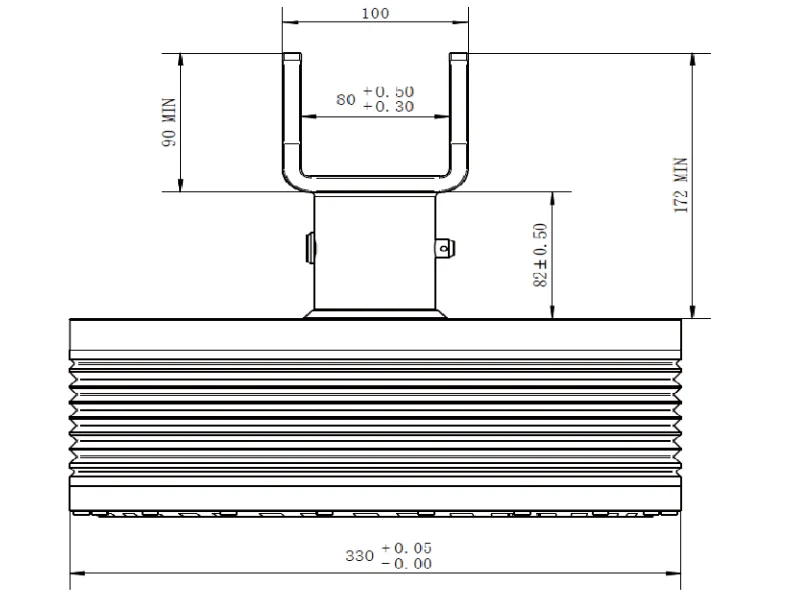

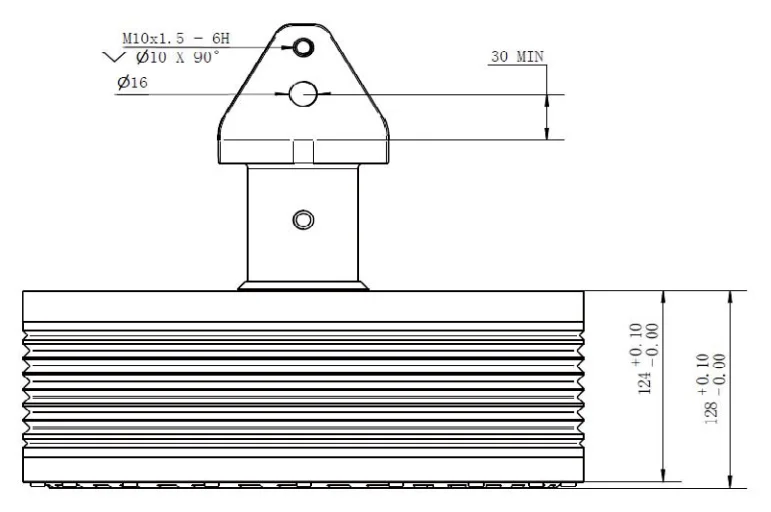

Motor Diemension
OD | 330 | mm | |
Height | 128 | mm | |
Fixed shaft OD | 52 | mm | Fixed shaft extension diameter |
Motor Weight | 32.5 | kgs | |
Motor Weight | 35 | kgs | With lifting lugs |
Application

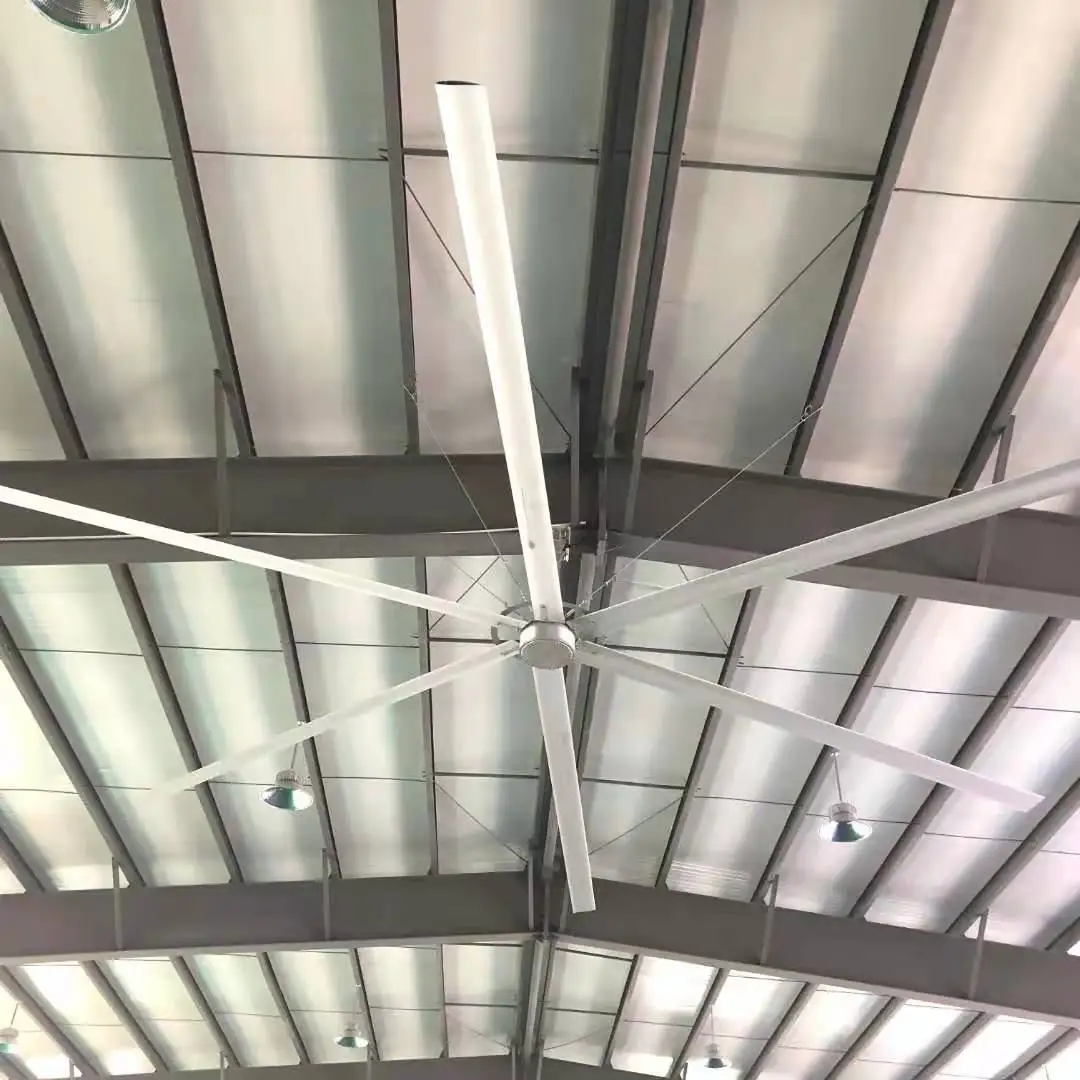

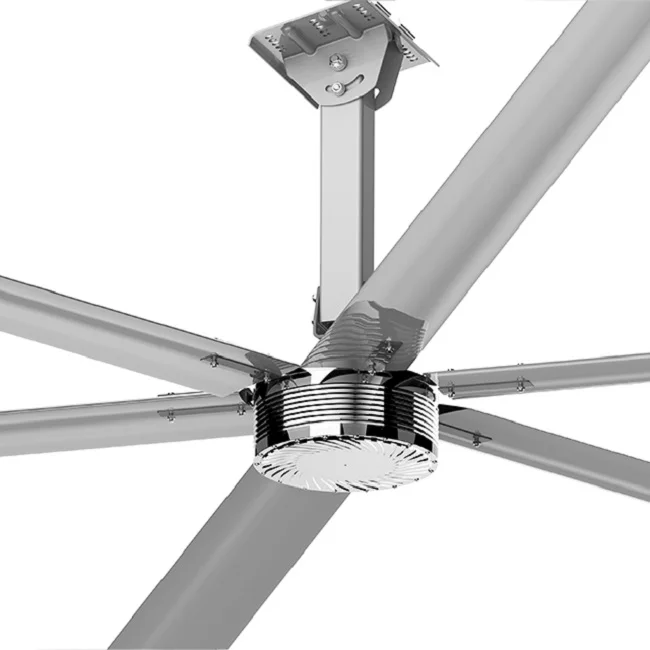

7.3m Large Industrial Ceiling Fan:
The big ceiling fan with this Direct drive servo motor has an efficiency of 84% within the speed range, especially under 70%
Optimized Design of the Fan Drive and Direct Drive Motor:
1)Along with the motor we R&D a servo drive which uses a fanless cooling design, even the fan cooling is not used, the temperature rise of our drive system is controlled within 20 degrees;
2) By optimizing the structural design, no traditional fan distribution box is needed to save investment and installation space for customers;
3) Designed and optimized software to achieve better electromagnetic noise control goals;
4) Developed corresponding protection programs according to the fan operating characteristics of various scenarios, enhancing safety Protective measures can realize overload protection, temperature protection and overvoltage protection, protection against collision and severe dynamic imbalance;
5) Intuitive operation interface allows users to directly operate without reading the user manual at a glance.
2) By optimizing the structural design, no traditional fan distribution box is needed to save investment and installation space for customers;
3) Designed and optimized software to achieve better electromagnetic noise control goals;
4) Developed corresponding protection programs according to the fan operating characteristics of various scenarios, enhancing safety Protective measures can realize overload protection, temperature protection and overvoltage protection, protection against collision and severe dynamic imbalance;
5) Intuitive operation interface allows users to directly operate without reading the user manual at a glance.
Packing & Delivery
BLDC motor packing
Fan blades packing
Two order choices for you:
1.Order motor and drive only
2.Order a whole set of fan (including connecting plate, blade holder, fan bldes etc.)
2.Order a whole set of fan (including connecting plate, blade holder, fan bldes etc.)

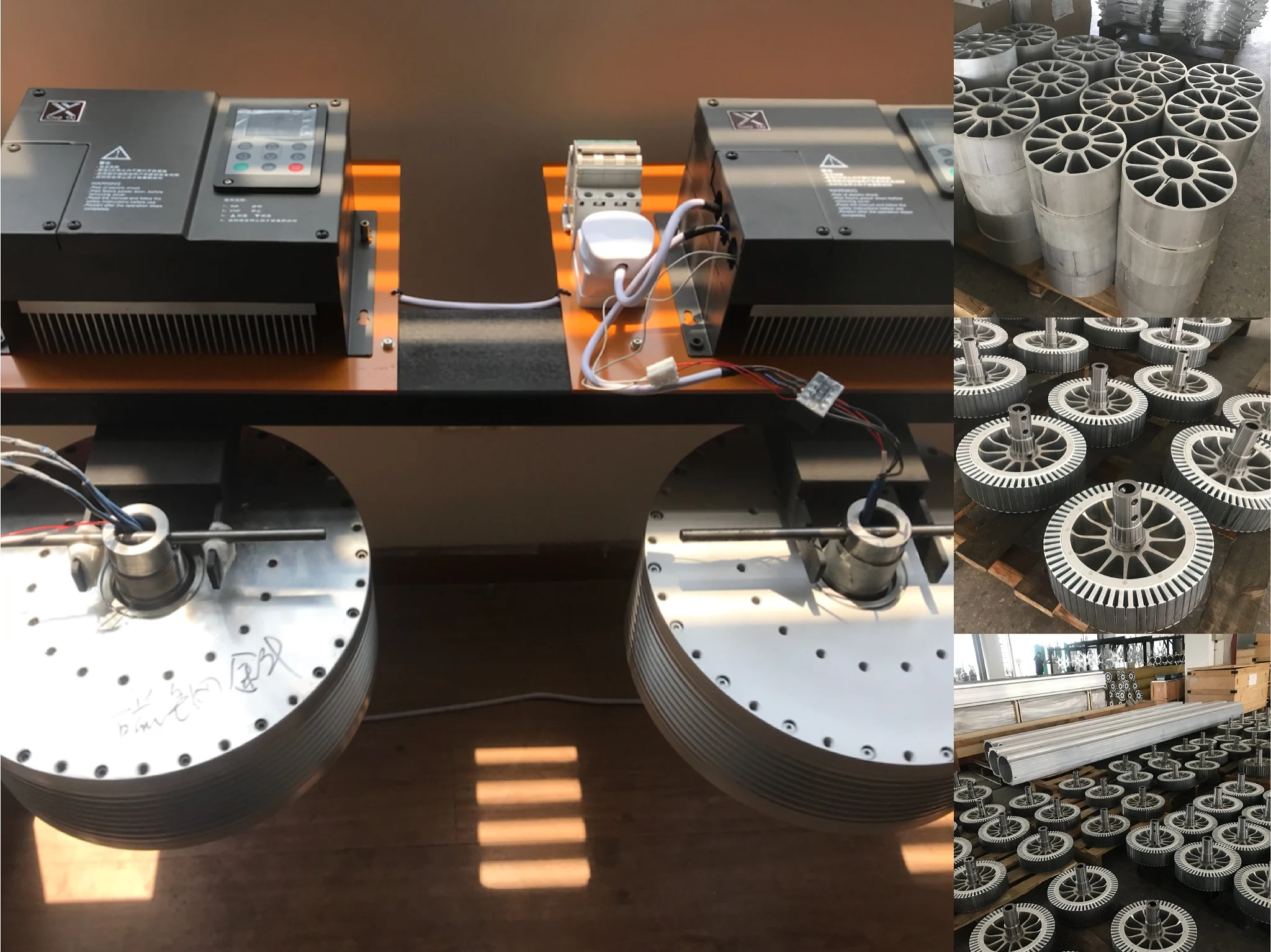

Order motor and drive only
Set of Direct drive motor along with its controll driver for fan factory.

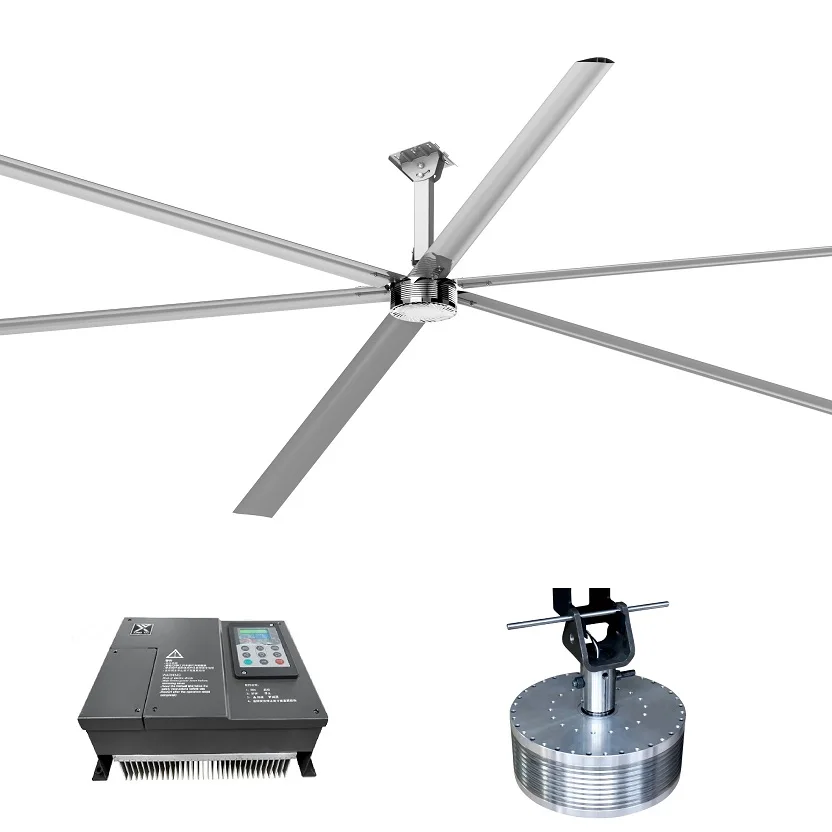

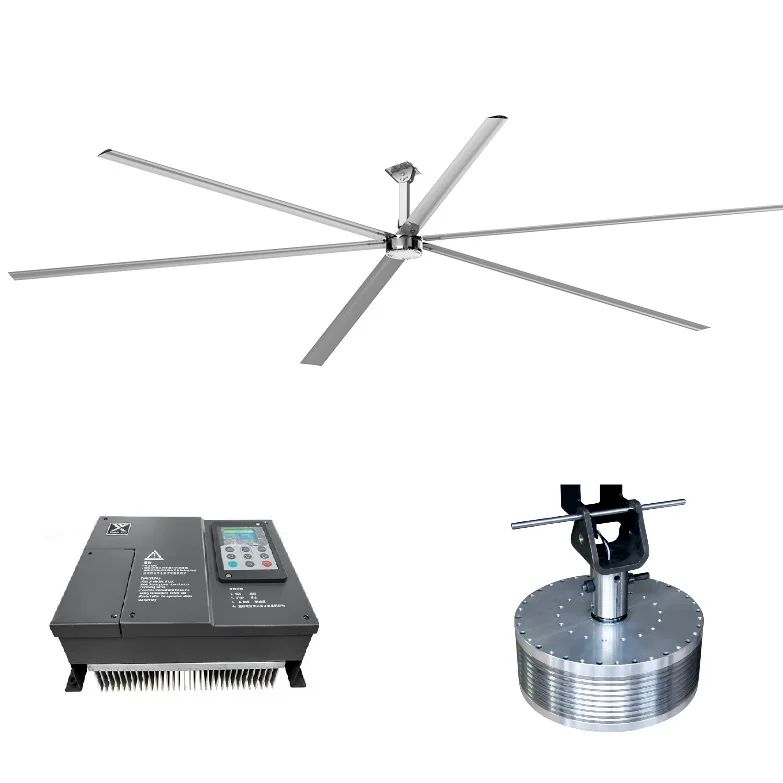

Order a whole set of large ceiling fan
Complete set of 24ft industrial ceiling fan ,including Motor, controller,6 blades,connecting plate, blade holder,etc
Company Profile
We independent R&D,Manufacture high performance XT690 Series servo drive and servo motor for injection molding machine ,Direct Drive motor for large industrial ceiling fan,We also offer Hvls 24ft/7.3m large industrial ceiling fan !
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2002,sell to Domestic Market(70.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South America(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
industrial fan,servo motor,Servo system,hvls fan,brushless direct drive motor
4. why should you buy from us not from other suppliers?
We independent R&D,Manufacture high performance XT690 Series servo drive and servo motor for injection molding machine and Direct Drive motor for large industrial ceiling fan,.
We also offer Hvls 24ft/7.3m large industrial ceiling fan !
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2002,sell to Domestic Market(70.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South America(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
industrial fan,servo motor,Servo system,hvls fan,brushless direct drive motor
4. why should you buy from us not from other suppliers?
We independent R&D,Manufacture high performance XT690 Series servo drive and servo motor for injection molding machine and Direct Drive motor for large industrial ceiling fan,.
We also offer Hvls 24ft/7.3m large industrial ceiling fan !
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
