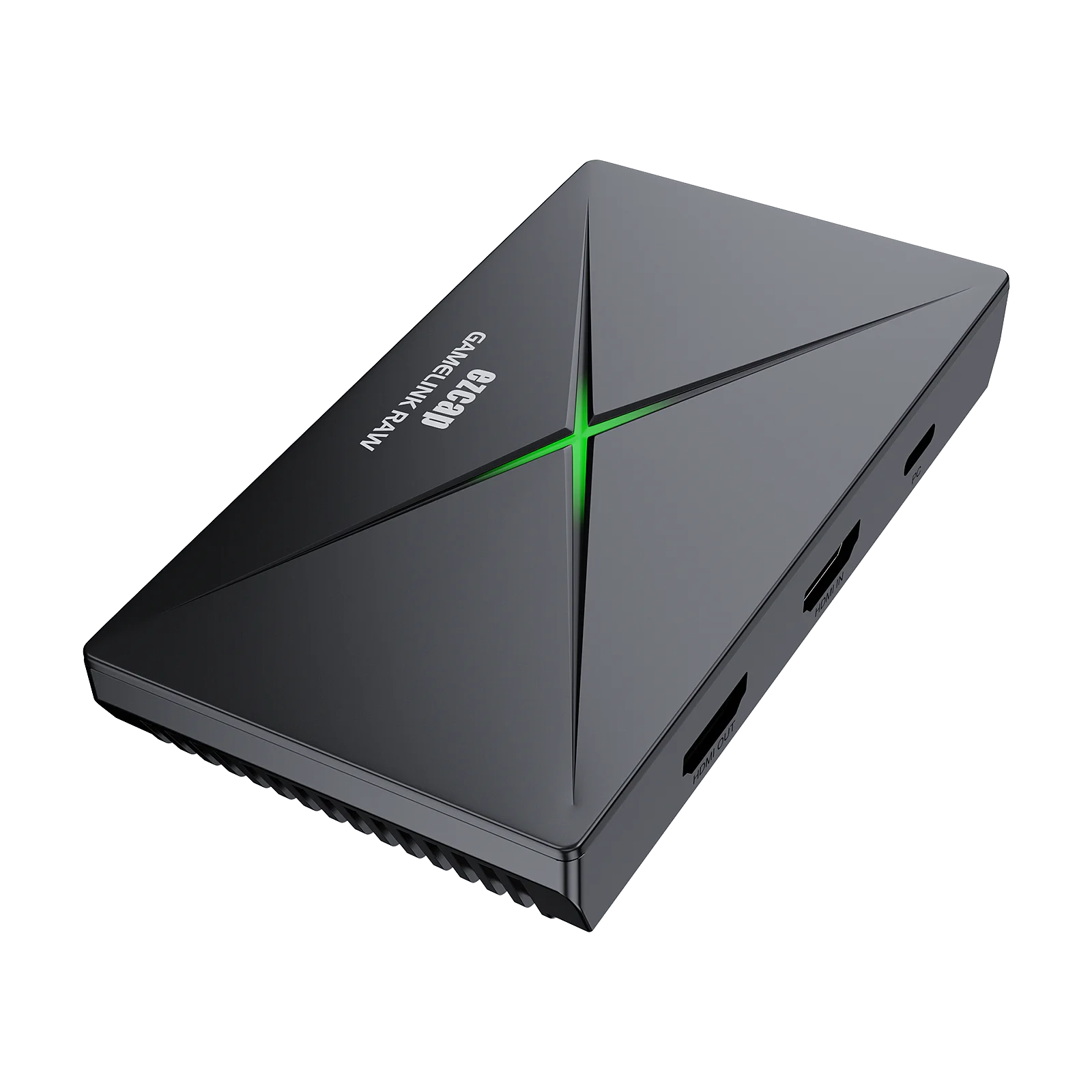

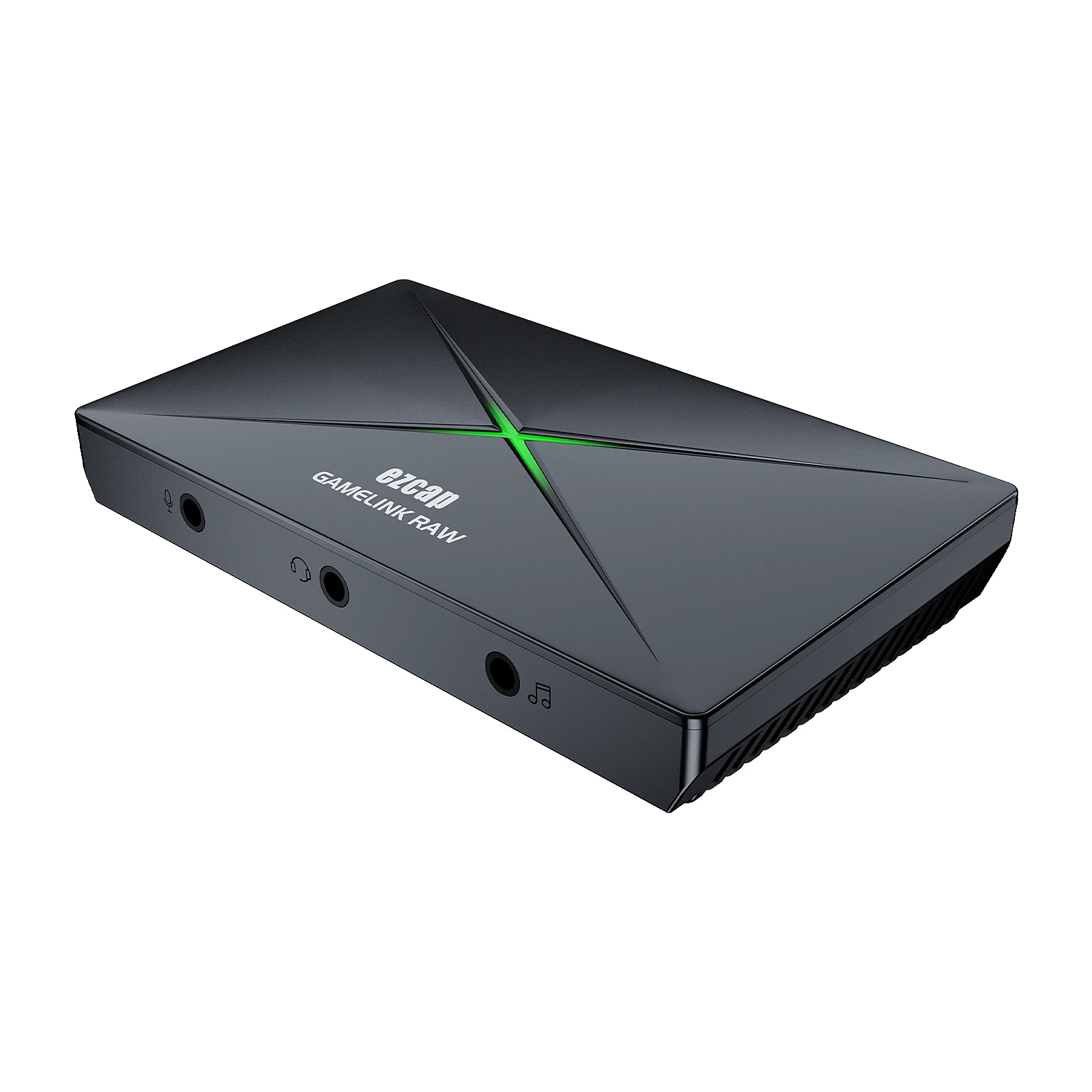

Game Link Raw 4K30/2K120 Input/Output/Capture/Streaming
- Category: >>>
- Supplier: Shenzhen Forward Video Technology Co. Limited
Share on (1600499196626):
Product Overview
Description
Product Description
4K30/2K120 Input/Output/Capture/Streaming
The best game capture live card that supports 2160p30 and 1080p120 input, output, capture and live broadcast. No chromatic aberration, no delay, no need to manually install the driver. With rich audio interface: microphone input, line audio input, and headset, easy to mix any audio sources. Equipped with self-developed collection and live broadcast software -ezcap Link, no setting is required, and it can be used immediately.
Specification
item | USB3.1 Type-C HDMI Video Capture |
Private Mold | Yes |
Brand Name | ezcap |
Model Number | ezcap333 |
Place of Origin | GUA |
Color | Black |
USB 3.1 Gen1 UVC
USB 3.1 Gen 1 super fast speed, USB-C port, capture and live streaming video up to 1080p120 or 2160p30 smoothly, no any latency.
UVC solution, no need to install any drivers, and works with almost the third party softwares - OBS, PotPlayer ... Also supports Windows, Mac, Linux and Android.
UVC solution, no need to install any drivers, and works with almost the third party softwares - OBS, PotPlayer ... Also supports Windows, Mac, Linux and Android.

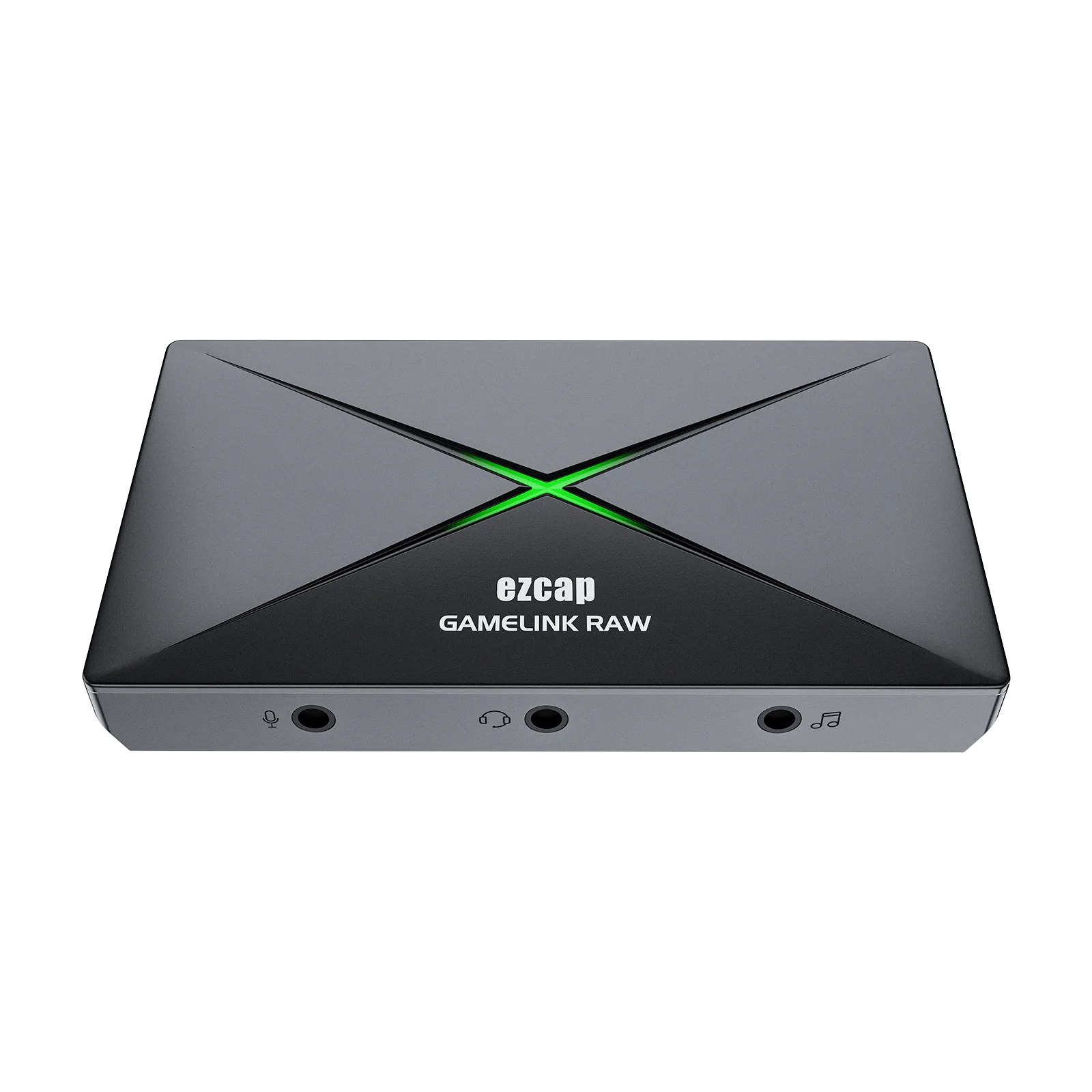

Rich Audio Interface
Includes the most comprehensive audio interface: both of 3-pole TRS microphone and 4-pole TRRS headset ports, still Line In port to connect mixer.

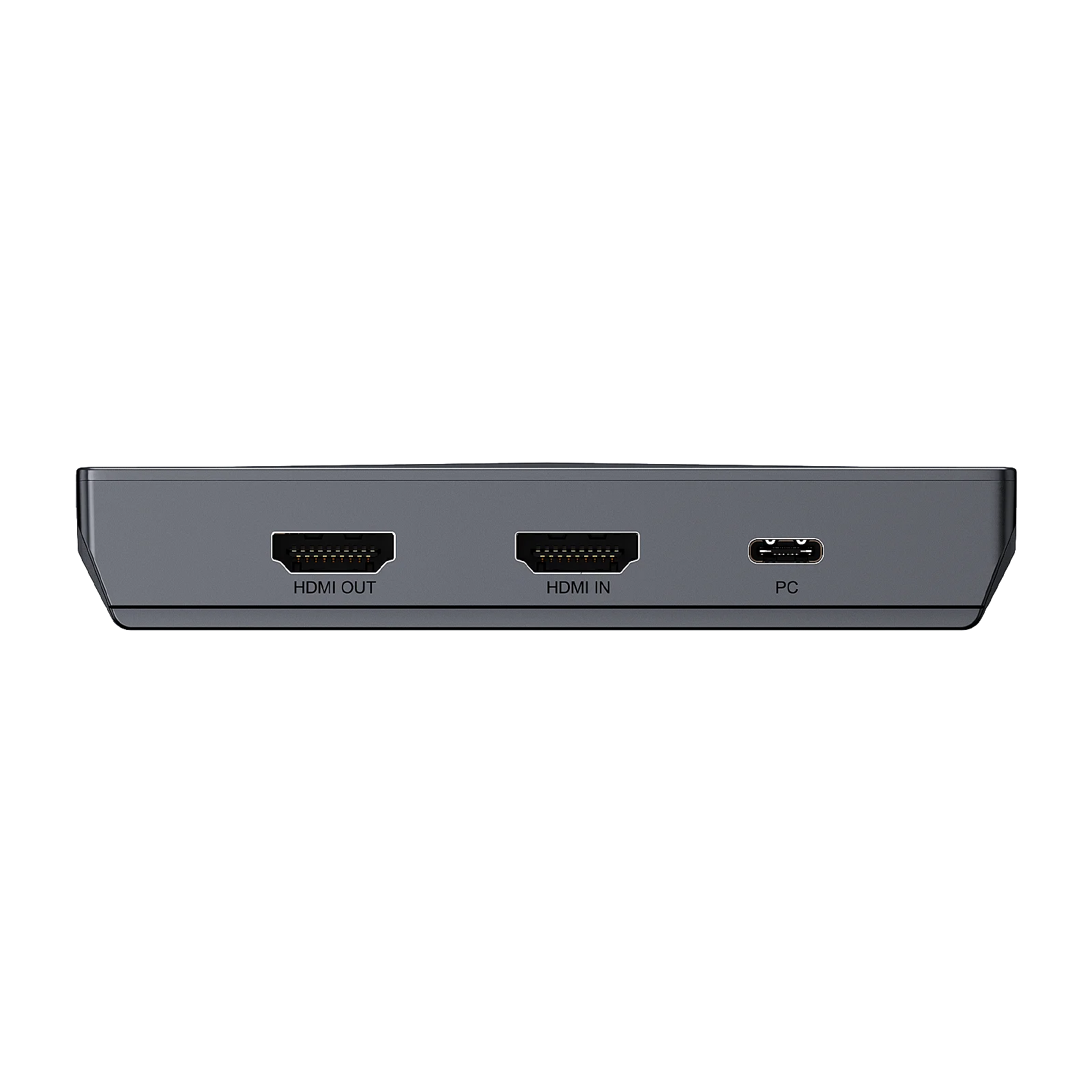

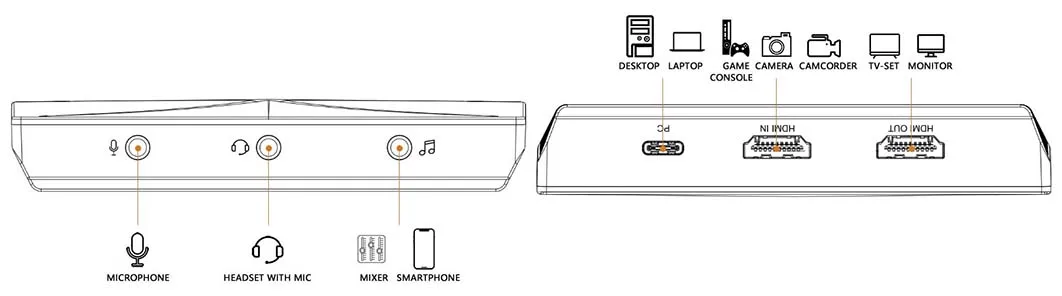

Product Connections
SPECIFICATIONS

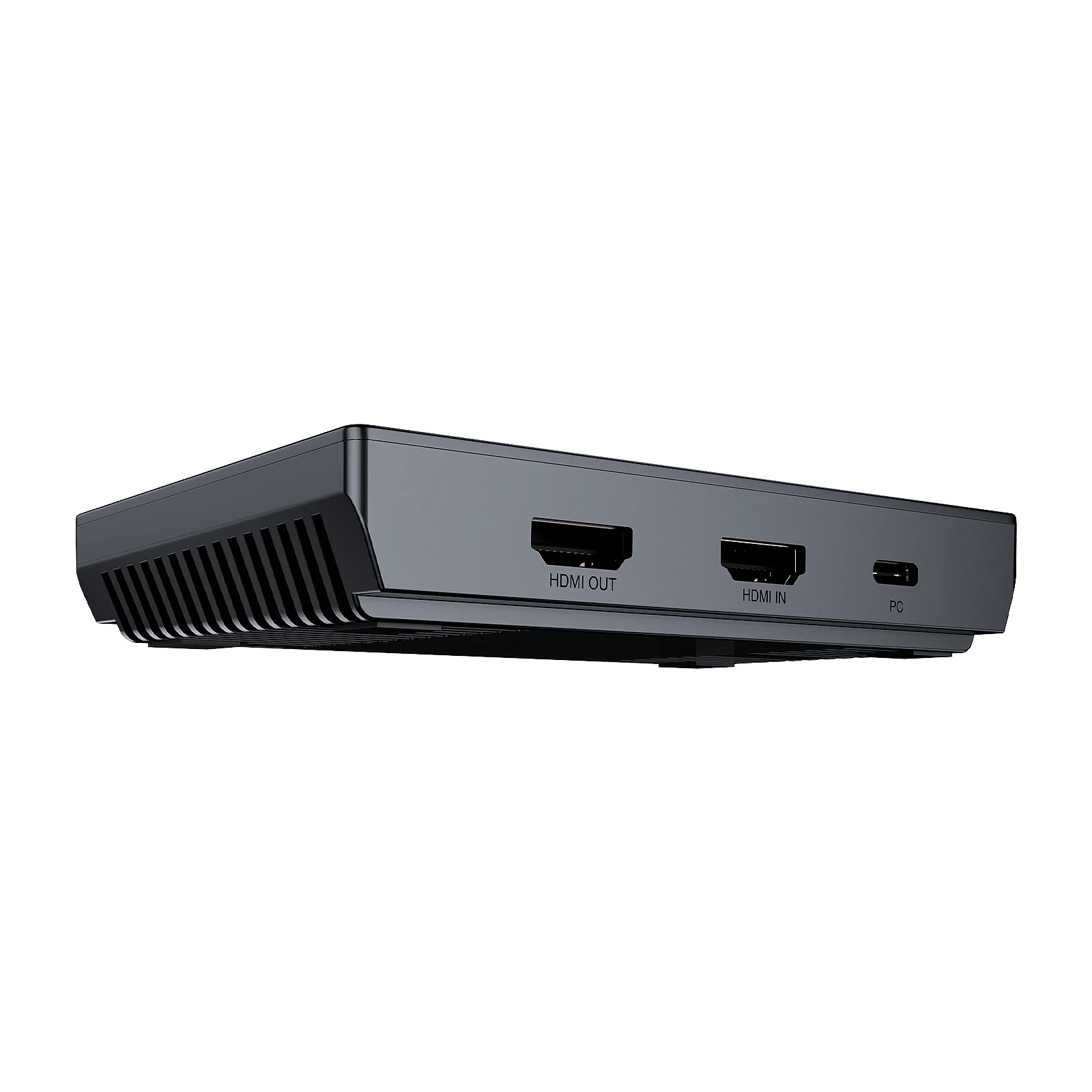

- Interface: USB-C 3.1 - Video Input: HDMI 1.4
- Audio Input: HDMI, Microphone In (3.5mm TRS), Line In (3.5mm TRS), Microphone In (3.5mm TRRS)
- Video Output: HDMI 1.4
- Audio Output: HDMI, Line out (3.5mm TRRS)
- Max. Pass-Through: 2160p30, 1440p60, 1080p120
- Max. Recording: 1080p120, 2160p30, 1440p60
- Supported Resolution: 2160p, 1440p, 1080p, 720p
- Output Video Format: YUY2, NV12, RGB
- Recording Resolution and Max FPS: 3840x2160 - NV12/30; 2560x1440 - NV12/60, YUY/50; 1920x1080 - NV12/120, YUY/60, XRGB/30; 1280x720 - NV12/60, YUY/60, XRGB/60.
- LED status indicator: Red-power, Blue-HDMI signal input, Green-run.
System Requirement:
Windows 10 x 64Laptop:
For 4Kp30 or 1080p120 recording: Intel Core i7-7700HQ or above, NVIDIA GeForce GTX1050 Ti or above, 8 GB RAM.
For 1080p60 recording: Intel Core i7-4810MQ, NVIDIA GeForce GTX 870M or above, 8 GB RAM.
Desktop:
For 4Kp30 or 1080p120 recording:Intel Core i5-6XXX / AMD, Ryzen 3 XXX or above, NVIDIA GTX 1060 / AMD RX 5700 or above, 8 GB RAM.
For 1080p60 recording:Intel Core i7-3770 recommended, NVIDIA GeForce GTX 650 / AMD Radeon R7 250X or above, 4 GB RAM.
Mac OS High Sierra 10.15 and above.
For 4Kp30 or 1080p120 recording:
iMac 2019: 3.2GHz 6-core Intel Core i7, Radeon Pro 555X with 2GB of GDDR5 memory, 16GB of 2400MHz DDR4 memory.
MacBook Pro 2018: 2.6GHz 6-core Intel Core i7, Radeon Pro 560X with 4GB of GDDR5 memory or above, 16GB of 2400MHz DDR4 memory.

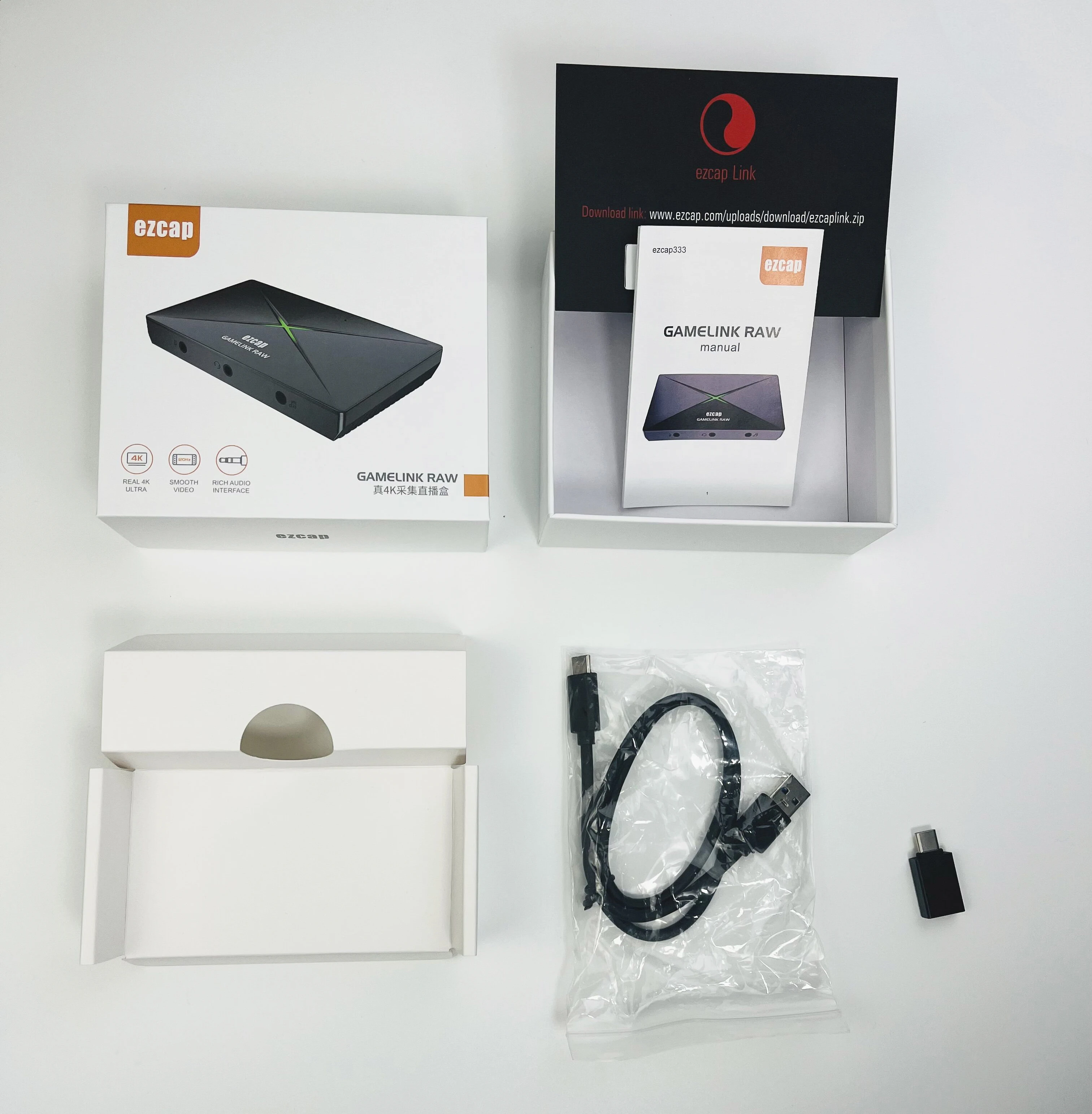

- Package Contents: ezcap333 Game Link Raw, USB-C to USB-A 3.0 cable, USB-A to USB-C adapter, Manual
- Dimensions: 110 x 63 x 22 mm
Packing & Delivery
GIFT BOX PACKING
22pcs/carton
45*22*32.5cm
G.W.:7.5KG
22pcs/carton
45*22*32.5cm
G.W.:7.5KG

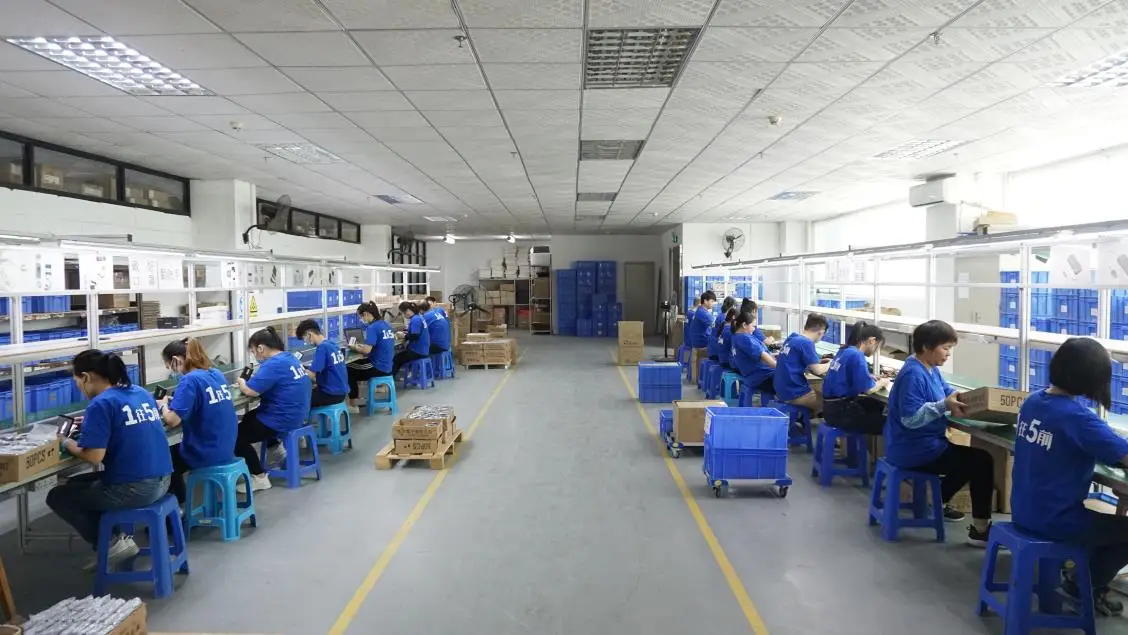

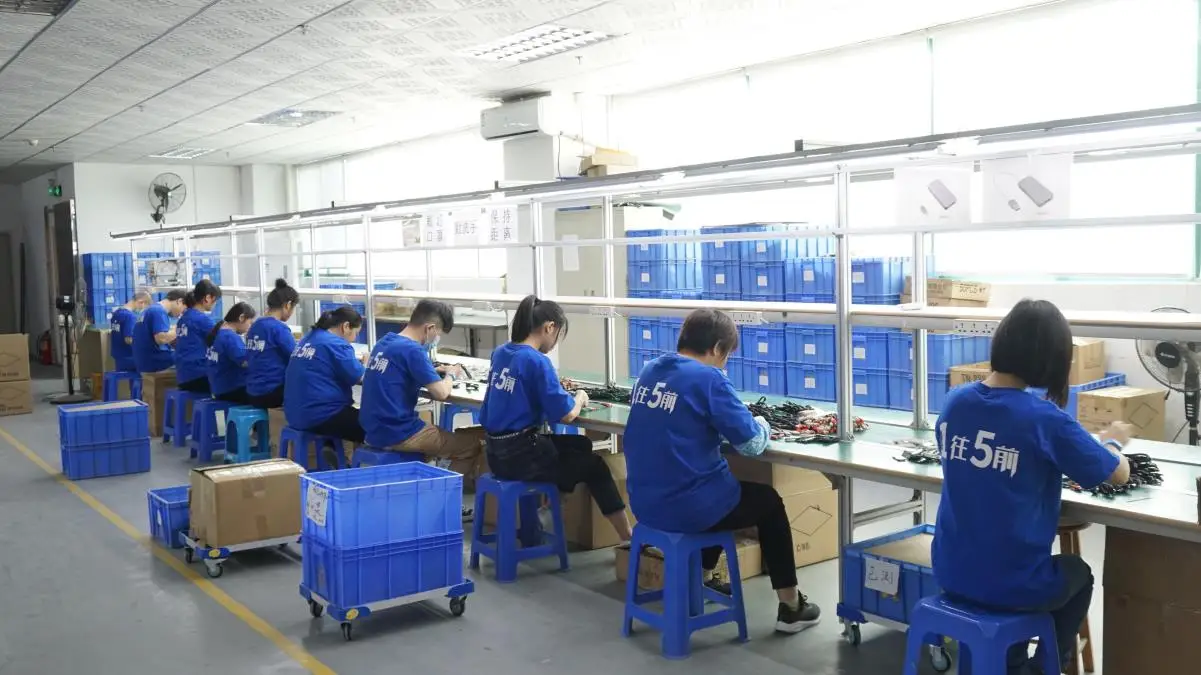

Company Profile
