milled fiber glass powder for friction material

Product Overview

Description

                                               milled fiber glass powder for friction material

Specifications

Fiberglass Chopped strand for BMC
1.glass type:E-glass
2.good distribution
3.good surface finish
4.good mechanical properties

                                                                      PRODUCTION PROCESS

BRIEF INTRODUCTION

Fiberglass chopped strand for bulk moulding compounds (BMC) was cut from E-glass roving,treated by silane-based coupling agent and special sizing formula, has good compatibility with polyester resins.

PRODUCT CHARACTERISTICS

fiberglass chopped strands for bulk moulding compounds (BMC)with property:high integrity.

fiberglass chopped strands for bulk moulding compounds (BMC) with property:good distribution in BMC paste.

fiberglass chopped strands for bulk moulding compounds (BMC) with property:good processing.

fiberglass chopped strands for bulk moulding compounds (BMC) with property:good mechanical properties.

PRODUCT SPECIFICATIONS:

Type of glass	:	E	Size content %	:	1.40 ± 0.20
Filament diameter (µ)	:	Nom.11	Flow properties	:	Very good
Moisture content %	:	max. 0.10	Resin compatibility	:	Polyester
Coupling agent	:	Silane	Chopped length (mm)	:	4.5
	This model of fiberglass chopped strand is produced conforming ISO 9001: 2000

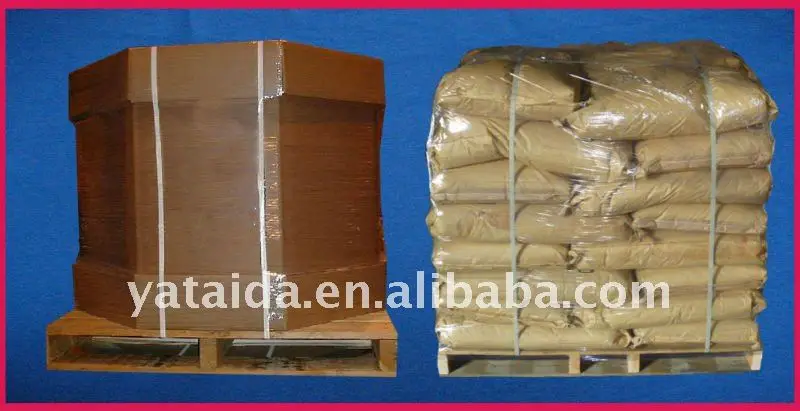

 PRODUCT PACKAGING

Packaging Item	Net weight (kg)	Number of  bags on pallet	Pallet size (cm)	Pallet  height (cm)	Pallet net  weight (kg)
Paper-plastic Bag	25	36 / 40	110x110	105	900 / 1000
Octabin	--	1octabin	112x112	105	800
Big Bag	--	1 big bag	110x110	105	900

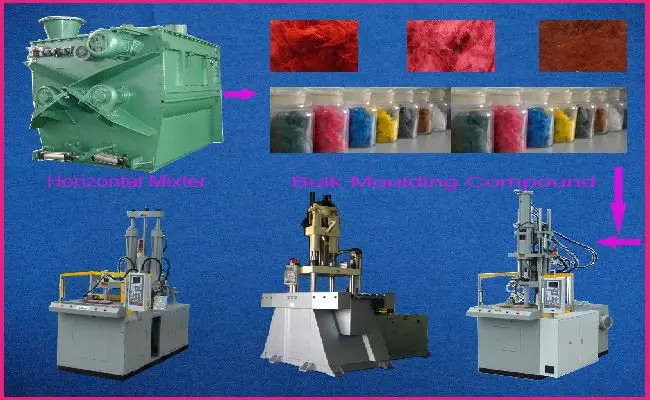

BULK MOULDING COMPOUNDS(BMC) PRODUCT SPECIFICATIONS

ITEM	STANDARD	UINT	DATA
Density	ISO R1183	g/cm3	1.7-2.0
Hardness	BS 2782	BS	50-80
Tensile strength	ISO R527	Mpa	21-70
Flexural strength	ISO 178	Mpa	42-162
Impact strength	ISO R179	kJ/m2	15-25
Press strenght	ASTM D695	Mpa	105-210
Voltage resistance	Iec 243	Kv/min	10-15
Electric arc resistance	ASTM D495	S	100-109

DOWNSTEAM PRODUCTS
