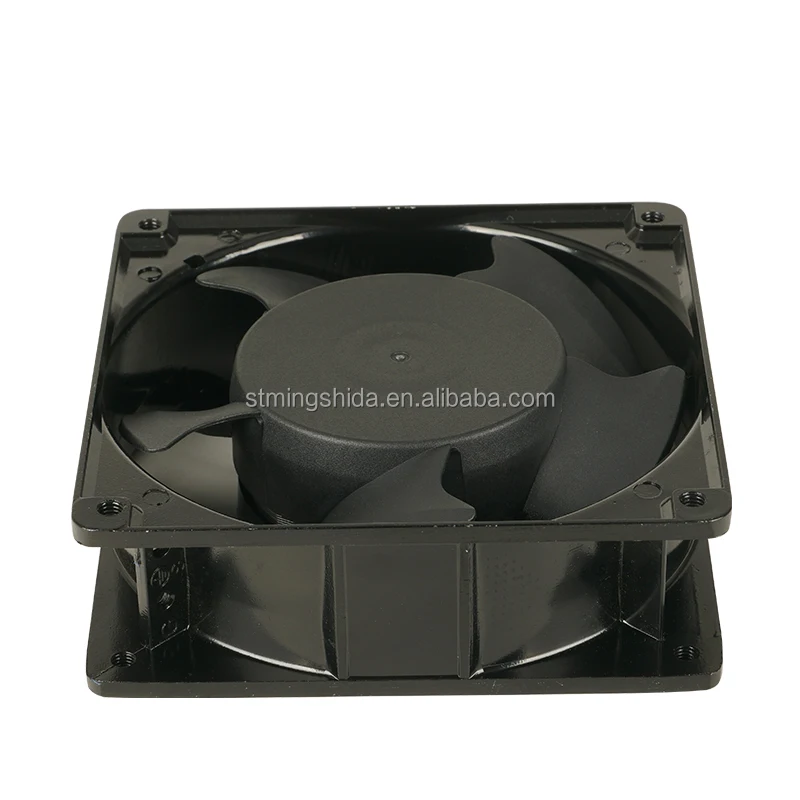

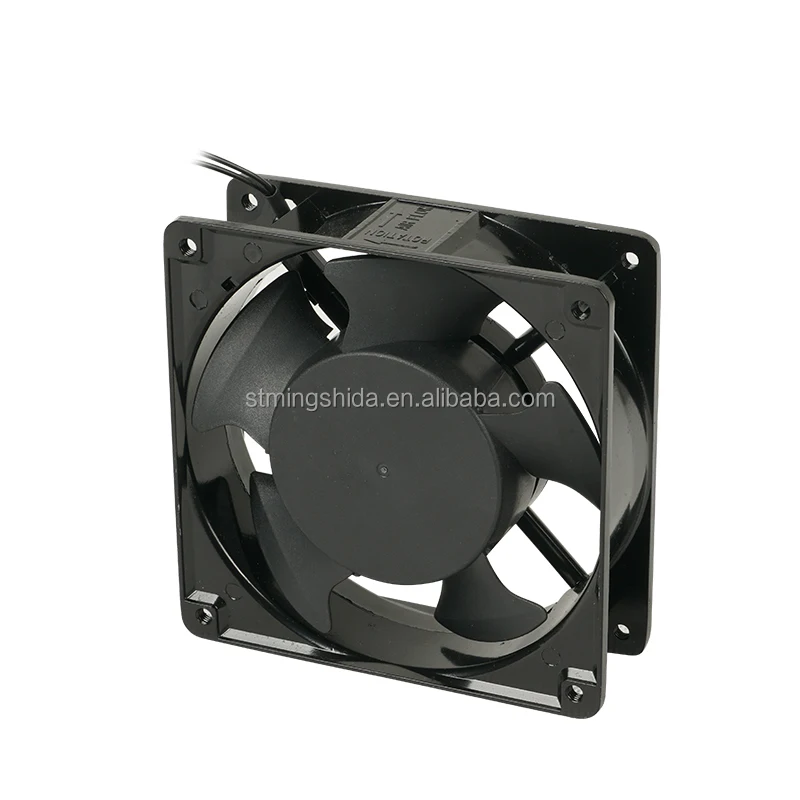

12cm 12038 jf12038ha2hbl cooling fan AC 220V cabinet distribution box electric welding machine axial flow fan mask cooling fan
- Category: >>>
- Supplier: Shantou Mingshida Electronic Technology Co. Ltd.
Share on (1600499210243):
Product Overview
Description
Product Description
Specification

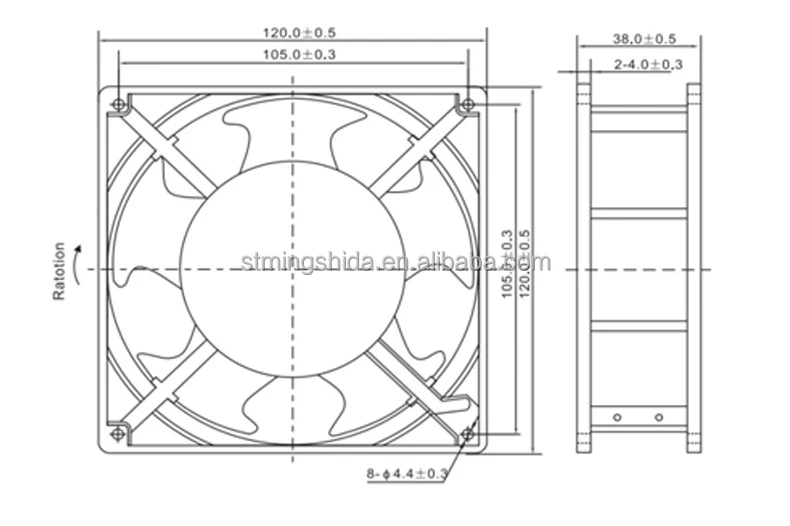

Specification: 120X120X38MM (mm)
Distance between left and right center screw holes: 105mm
Hole spacing of diagonal center screw: 148mm
Bearing structure: s: sleeve (oil bearing)
Voltage: 220 ~ 240V (AC)
Current: 0.14a
Power: 29 / 31 (W)
Frequency: 50 / 60 (Hz)
Speed: 2700-3100 (R / min)
Air volume: 2.68/3.25 (m3 / min)
Packaging: there is no separate packaging box, and 40 sets /1 full box are packed in ordinary cardboard boxes;
Outer frame: aluminum frame
Wind leaf: Plastic leaf
Bearing: low noise imported oil bearing
Wiring mode: lead type (wire length 25cm)
Operating voltage: 220V (voltage range: 185v ~ 245v)
Rotation direction of fan: counterclockwise when viewed from the direction of fan blade;
Operating ambient temperature (℃): - 20 ℃ ~ 50 ℃
Distance between left and right center screw holes: 105mm
Hole spacing of diagonal center screw: 148mm
Bearing structure: s: sleeve (oil bearing)
Voltage: 220 ~ 240V (AC)
Current: 0.14a
Power: 29 / 31 (W)
Frequency: 50 / 60 (Hz)
Speed: 2700-3100 (R / min)
Air volume: 2.68/3.25 (m3 / min)
Packaging: there is no separate packaging box, and 40 sets /1 full box are packed in ordinary cardboard boxes;
Outer frame: aluminum frame
Wind leaf: Plastic leaf
Bearing: low noise imported oil bearing
Wiring mode: lead type (wire length 25cm)
Operating voltage: 220V (voltage range: 185v ~ 245v)
Rotation direction of fan: counterclockwise when viewed from the direction of fan blade;
Operating ambient temperature (℃): - 20 ℃ ~ 50 ℃
Products Description
Company Profile
Shantou Mingshida Electronic Technology Co., Ltd.
We established,we are always focusing on the R&D,production and selling the cooling fans,and committed to becoming the top brand in Chinese cooling fan industry.After years of effort from all the staffs,we had built the good product R&D and production system,such as:Reliability Laboratory,Noise Testing Room,Air Flow&Pressure Testing System,Mold Manufacturing and Plastic Injection
FAQ
1. What's the difference between the sleeve and ball bearing fan?
The ball bearing brand was NMB bearing imported from Japan.The warranty for ball bearing fan is 50,000 hours but sleeve bearing just 20,000 hours.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof(IP68 optional), PWM function ,Temperature control etc.
3.What's your MOQ and delivery date ?
MOQ 200PCS
Sample lead time:3-5 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Sample lead time:3-5 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
4. What's your payment terms ?
We accept Payment by T/T, Trade assurance order
