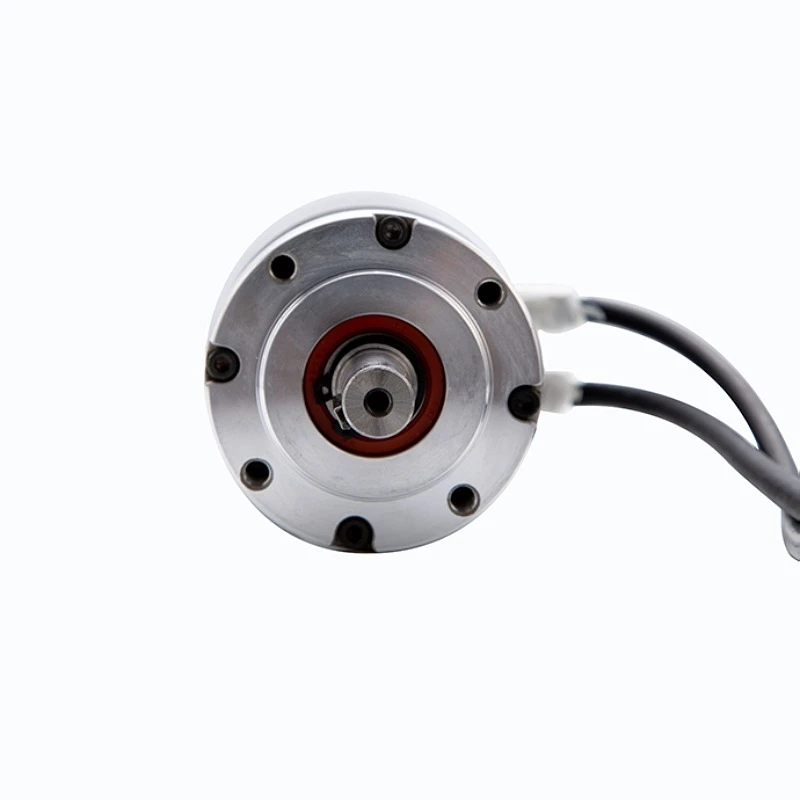

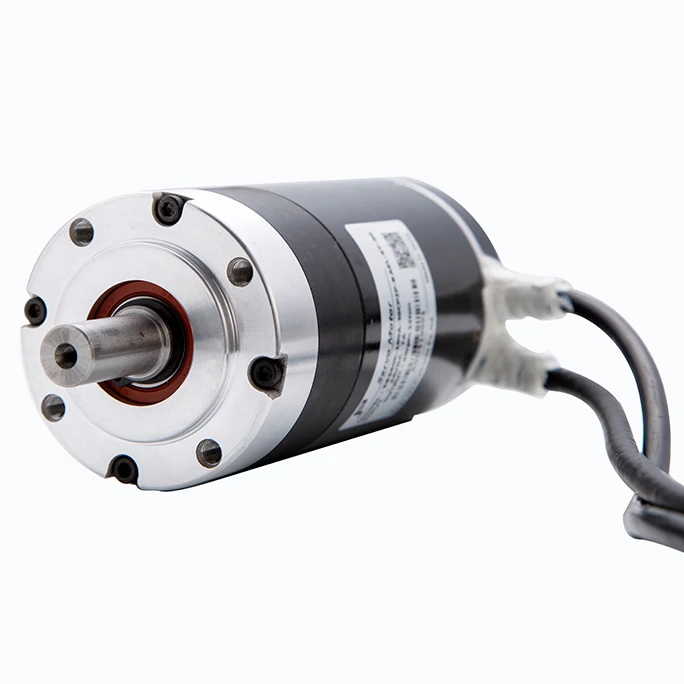

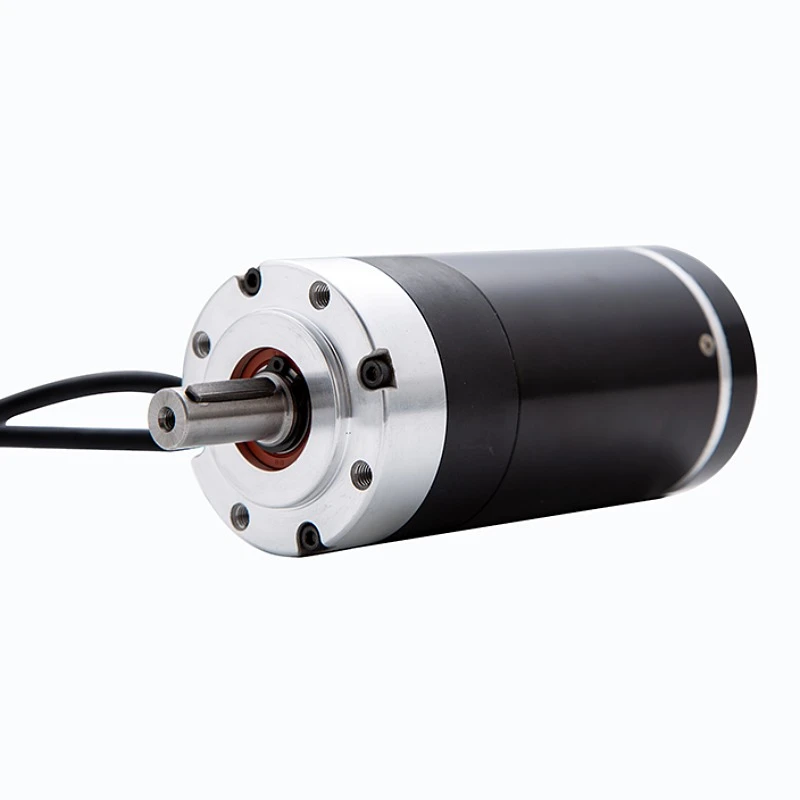

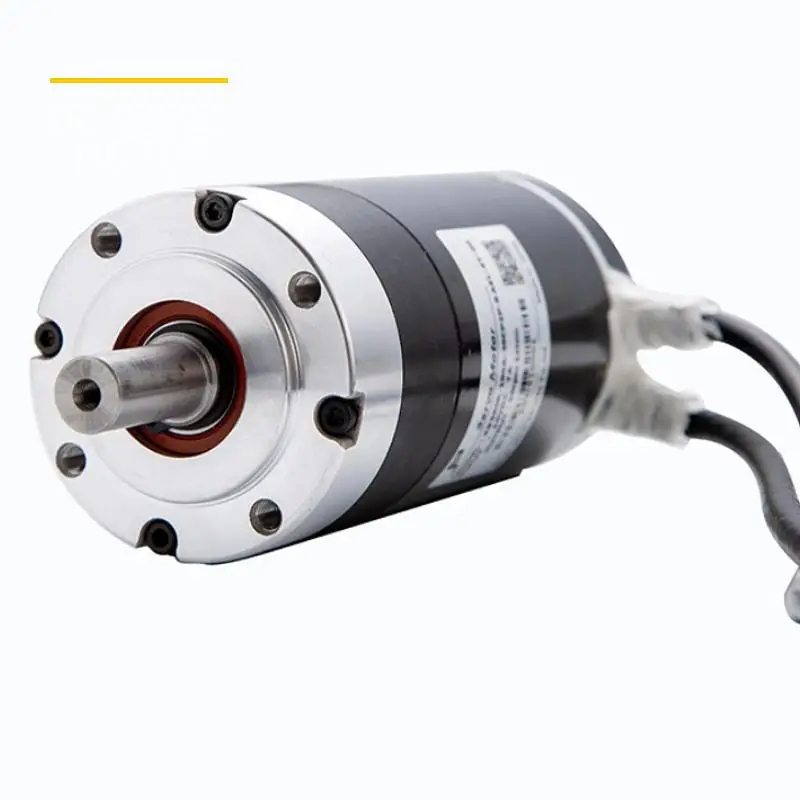

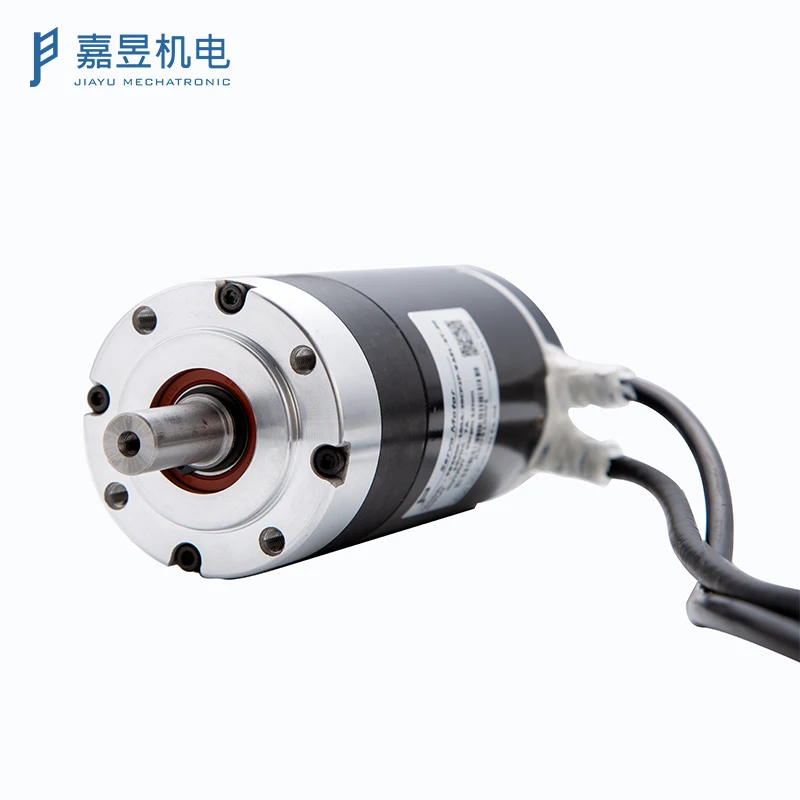

Swing Barrier Optical Turnstile motor Swing turnstile gate motor
- Category: >>>
- Supplier: Shenzhen Jiayu Mechatronic Co. Ltd.
Share on (1600499224230):
Product Overview
Description
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | JIAYU |
Model Number | EBS60R-100A-30CP2P-BAEL-ST-01(1:38) |
Usage | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Channel gate |
Certification | ce |
Type | SERVO MOTOR |
Torque | 0.32N.m |
Construction | Permanent Magnet |
Commutation | Brushless |
Speed(RPM) | 3000rpm |
Continuous Current(A) | 14A |
Efficiency | Ie 3 |
Rated voltage | DC24V |
Rated power | 100W |
Continuous rated speed | 3000rpm |
Continuous rated torque | 0.32N.m |
Continuous rated current | 7A |
Peak current | 14A |
Output speed | 78rpm |
Output torque | 12N.m |
Encoder resolution | 4000ppr |
Keywords | Assembly of motor and reducer |

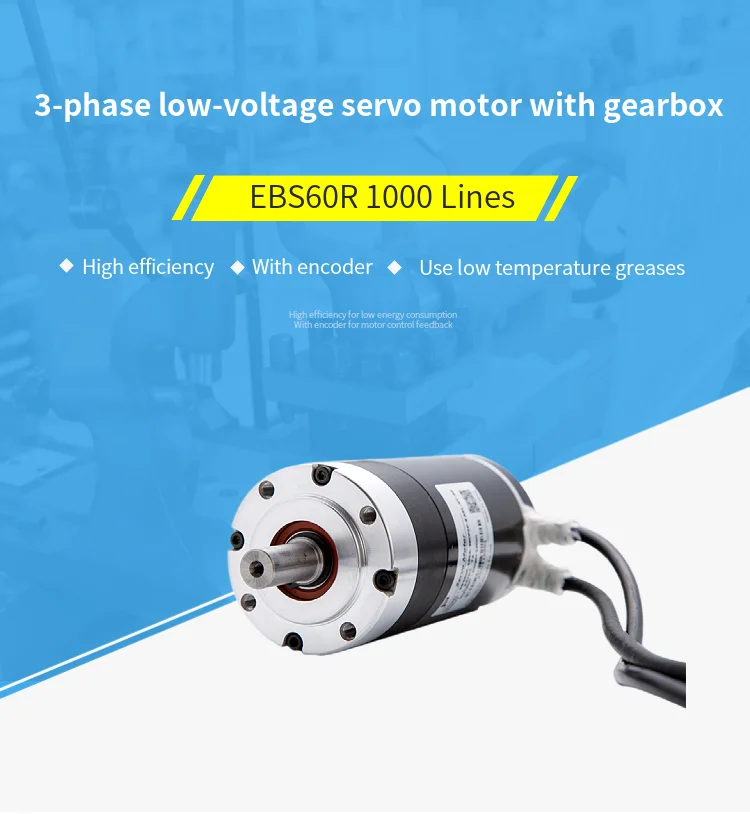

3-phase low-voltage servo motor with gearbox
High efficiency for low energy consumption

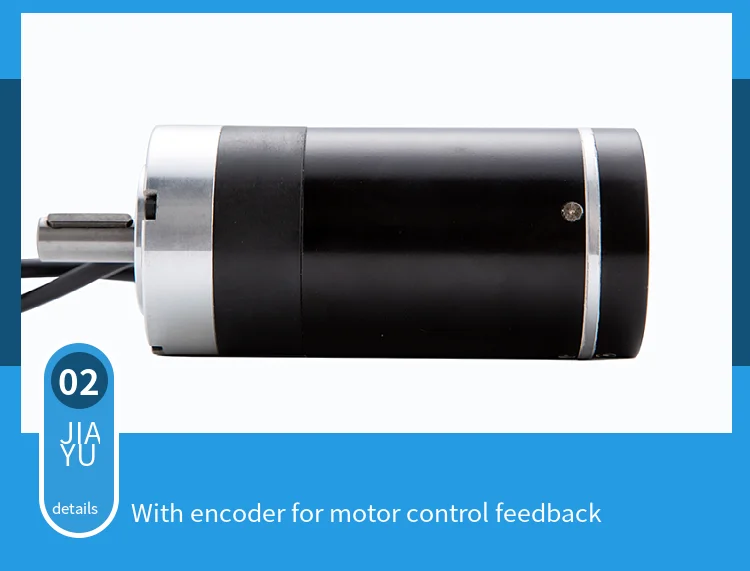

With encoder for motor control feedback
Use low temperature greases for gearbox
Available in reduction ratio, 1:38 & 1:30& 1:63
Available in 1 wiring method
High efficiency for low energy consumption
With encoder for motor control feedback
Use low temperature greases for gearbox
Available in reduction ratio, 1:38 & 1:30& 1:63
Available in 1 wiring method
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
1. Are you Factory or Trader?
We are factory,and have professional R&D team as introduced in company information.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate control technology.
Committed to the R&D,production,sales and pre-sales and after-sales service of the core module of the automatic gate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,
Professional solutions in installation and maintance.
6. Do you get the relevant certifications?
All products are made according to ISO9001, CE requirements.
7. How about the delivery?
－Sample: 3-5 days,
－Bulk order: 15-30 days.
We are factory,and have professional R&D team as introduced in company information.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate control technology.
Committed to the R&D,production,sales and pre-sales and after-sales service of the core module of the automatic gate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,
Professional solutions in installation and maintance.
6. Do you get the relevant certifications?
All products are made according to ISO9001, CE requirements.
7. How about the delivery?
－Sample: 3-5 days,
－Bulk order: 15-30 days.
