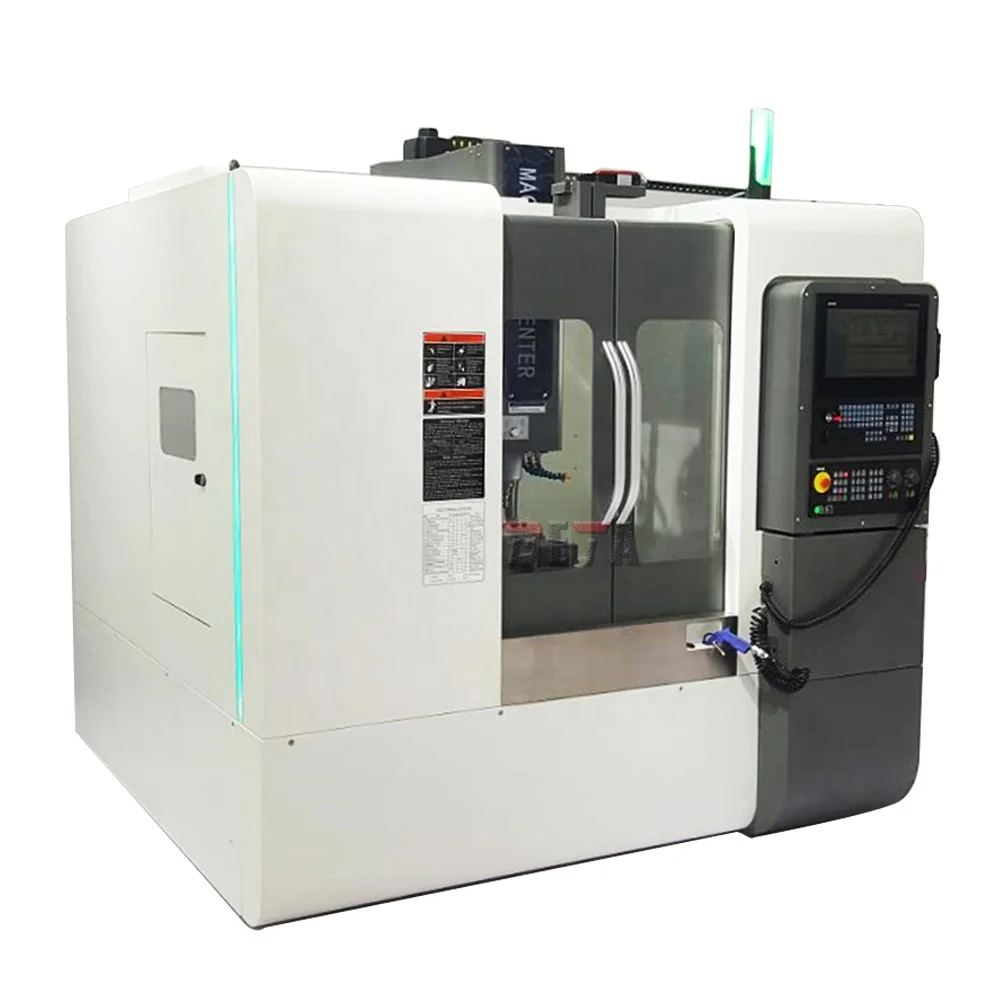

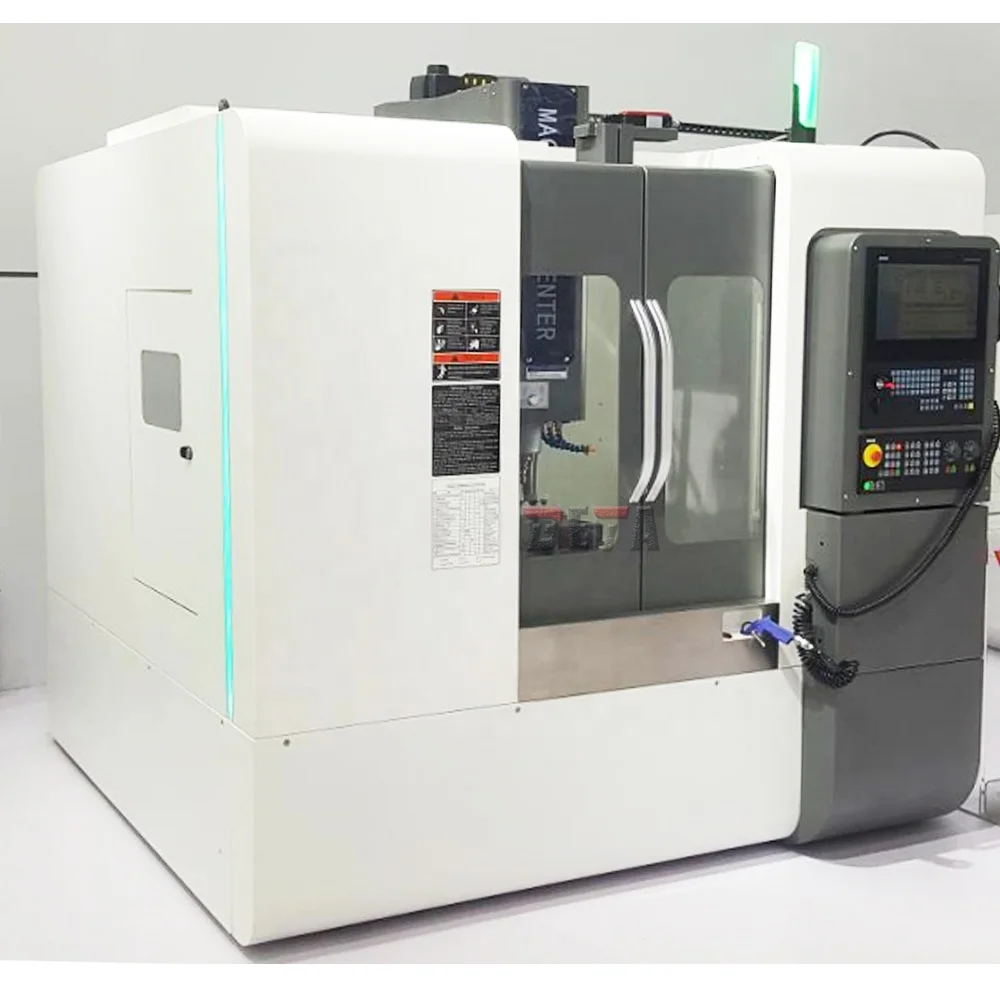

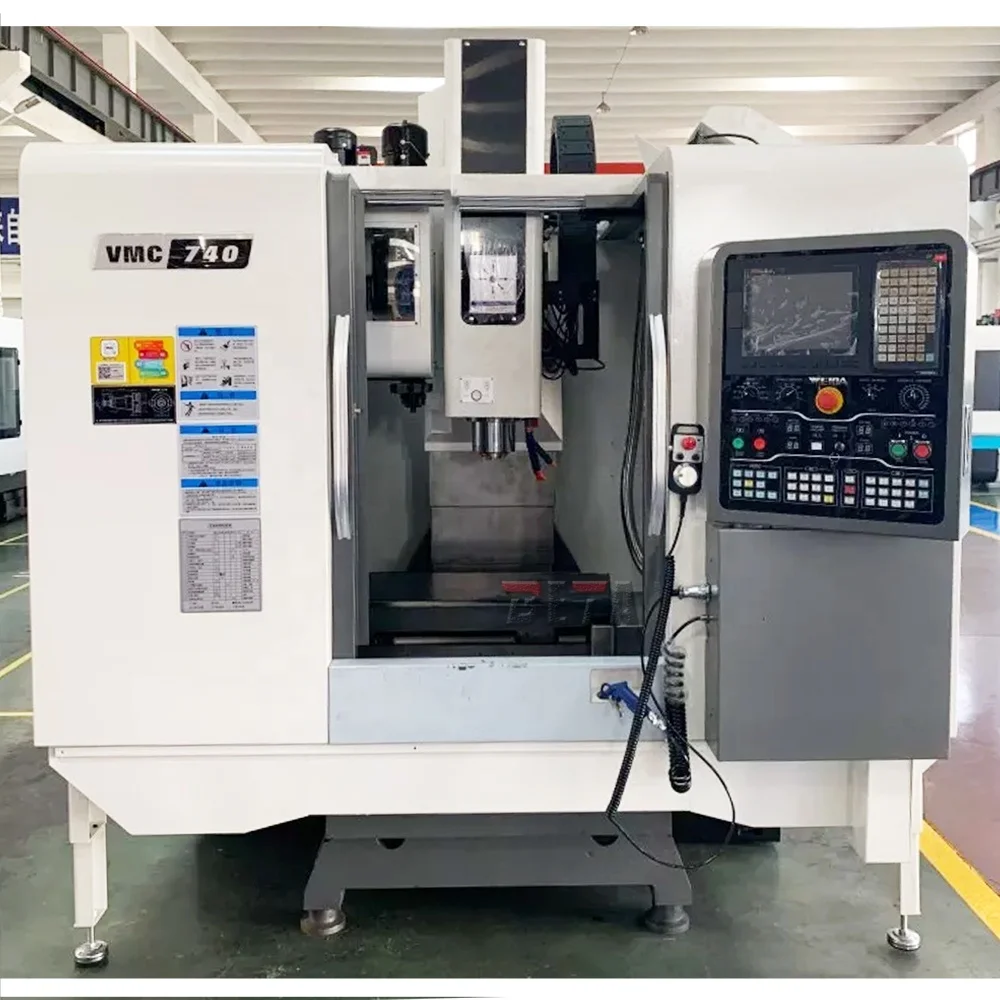

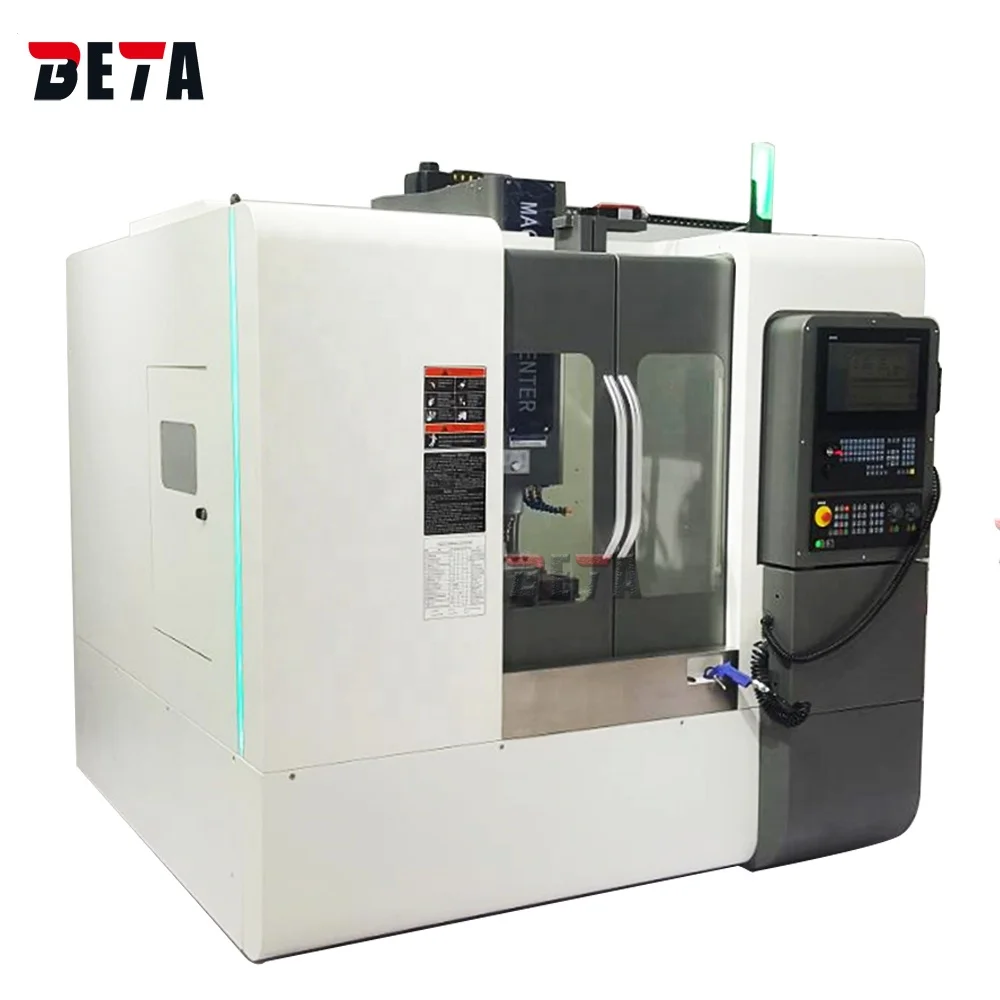

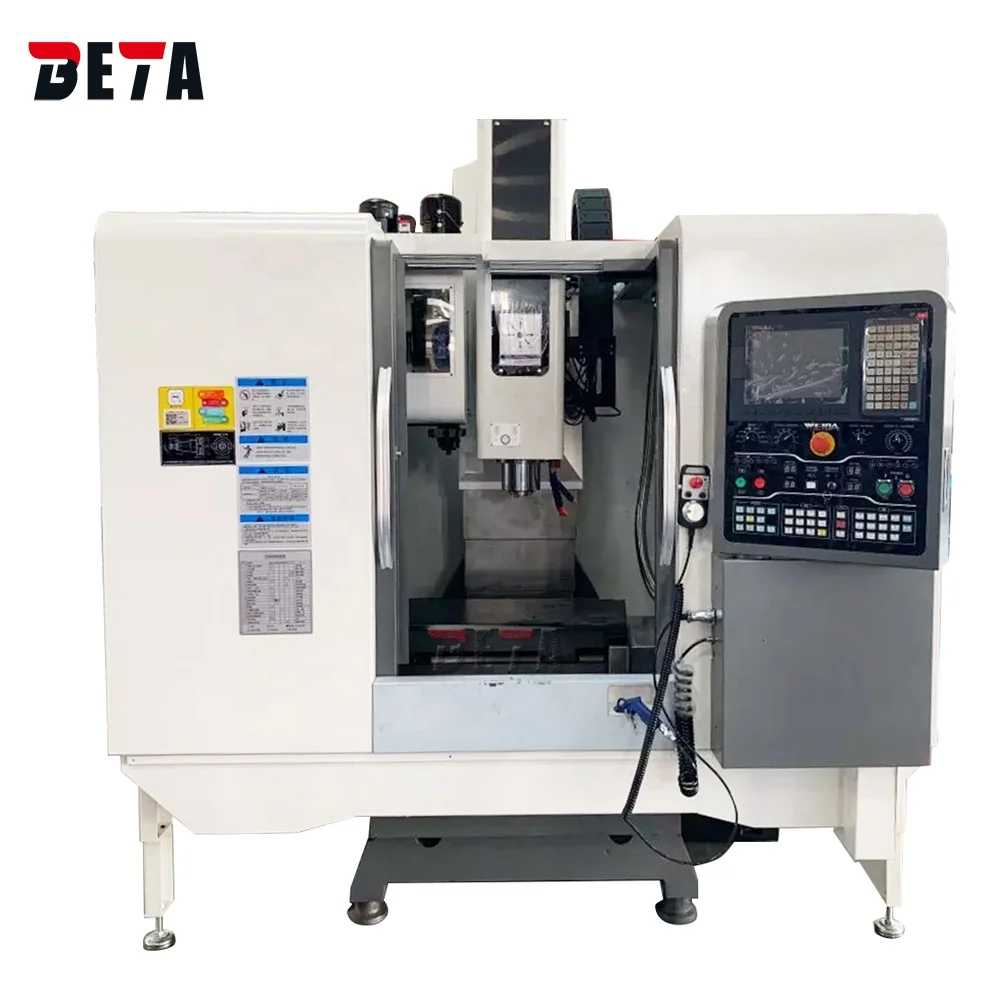

VMC740 GSK Siemens FANUC Vertical CNC Milling Machine 3 Axis CNC Machining Center
Features:
1. 3-axis CNC vertical milling machining center.
2. X/Y/Z-axis Taiwan or Germany linear guideways and ball screws.
3. BT40 spindle taper with maximum 8000rpm spindle speed.
4. 4-axis and 5-axis CNC rotary table is optional.
5. GSK/Siemens/FANUC CNC controller for your choice.
Product Parameters
Item | Unit | VMC740 |
Table size | mm | 920x400 |
T slot | No | 3 |
Centre distance | mm | 120 |
T-Width | mm | 14 |
Max. load of worktable | kg | 300 |
Longitudinal travel | mm | 700 |
Cross travel | mm | 400 |
Vertical travel | mm | 500 |
spindle nose to table surface | mm | 120-620 |
Spindle taper | BT40 | |
Speed Range | rpm | 40-8000 |
Spindle output torque (Max.) | N.M | 26.3/48 |
spindle motor power | kw | 5.5 |
cutting feed X/Y/Z | mm / min | 1-10000 |
rapid feed X/Y/Z | m / min | 30/30/24 |
Feeding motor X/Y/Z | kw | 1.2/1.2/1.4 |
tool magazine capacity | piece | 16 |
tool magazine type | Taiwan arm type tool magazinee | |
Max. tool weight | kg | 8 |
Max. Tool dia. (full/empty) | 85/150 | |
Max. Tool length | mm | 300 |
Tool changing time (tool to tool/cut to cut) | s | 1.75 |
Working accuracy | ||
positioning accuracy | mm | ±0.005/300 JIS |
repeat positioning accuracy | mm | ±0.003 JIS |
overall dimensions(LxWxH) | mm | 2180*2052*2600 |
Machine weight | kg | 3200 |
Standard accessories:
Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm),
Taiwan or Germany linear guide ways and ball screws,
Taiwan arm type tool magazine with 16pcs,
spindle blowing chip removal system,
spindle air curtain protection
Japan Nachi or Germany FAG bearings,
auto centralized lubrication system, rigid tapping, two water cooling, one air cooling
electrical hand wheel, working lamp, RS232 interface, alarm light,
DNC online processing, CE Electrical
Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm),
Taiwan or Germany linear guide ways and ball screws,
Taiwan arm type tool magazine with 16pcs,
spindle blowing chip removal system,
spindle air curtain protection
Japan Nachi or Germany FAG bearings,
auto centralized lubrication system, rigid tapping, two water cooling, one air cooling
electrical hand wheel, working lamp, RS232 interface, alarm light,
DNC online processing, CE Electrical
Details Images
X/Y/Z-axis Taiwan or Germany linear guideways and ball screws.
GSK/Siemens/FANUC CNC controller for your choice.
