Vacuum evaporator

Product Overview

Description

Vacuum evaporator



Applicable

The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. It's mainly for get high concentration  medium, such as extract, fruit jam, and so on.



Component

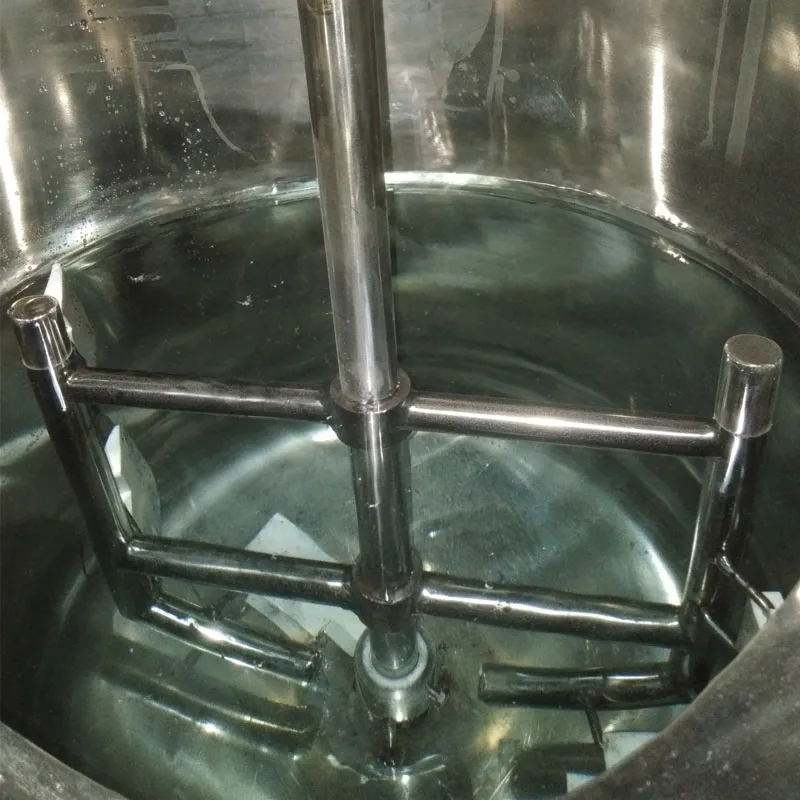

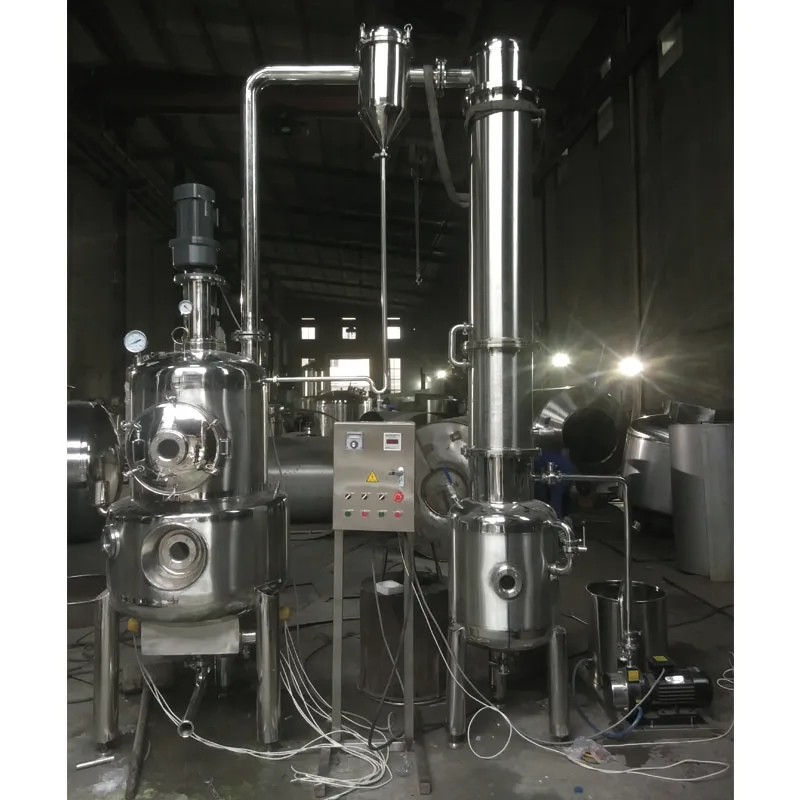

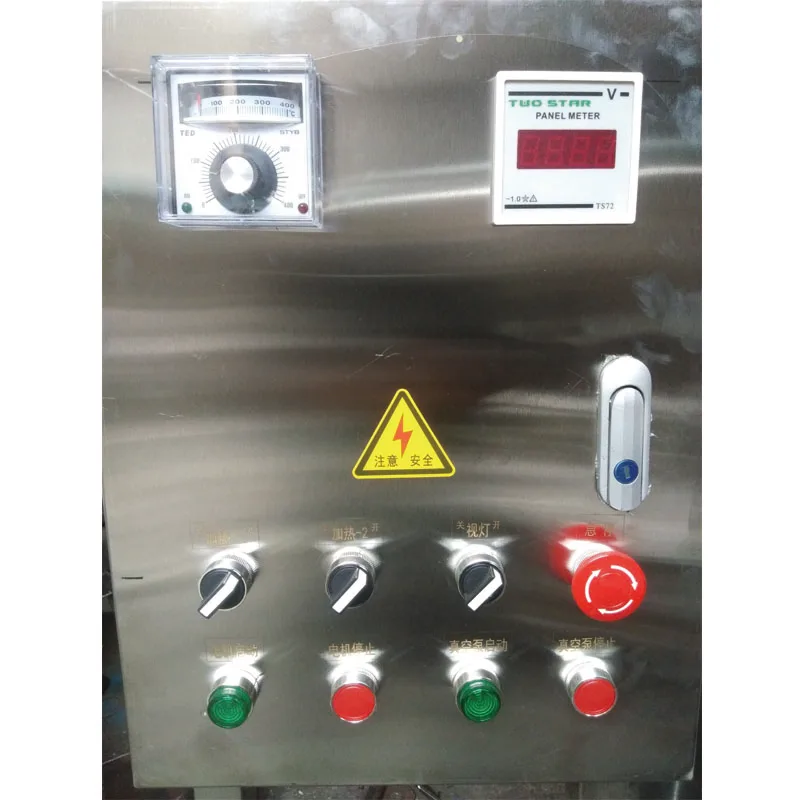

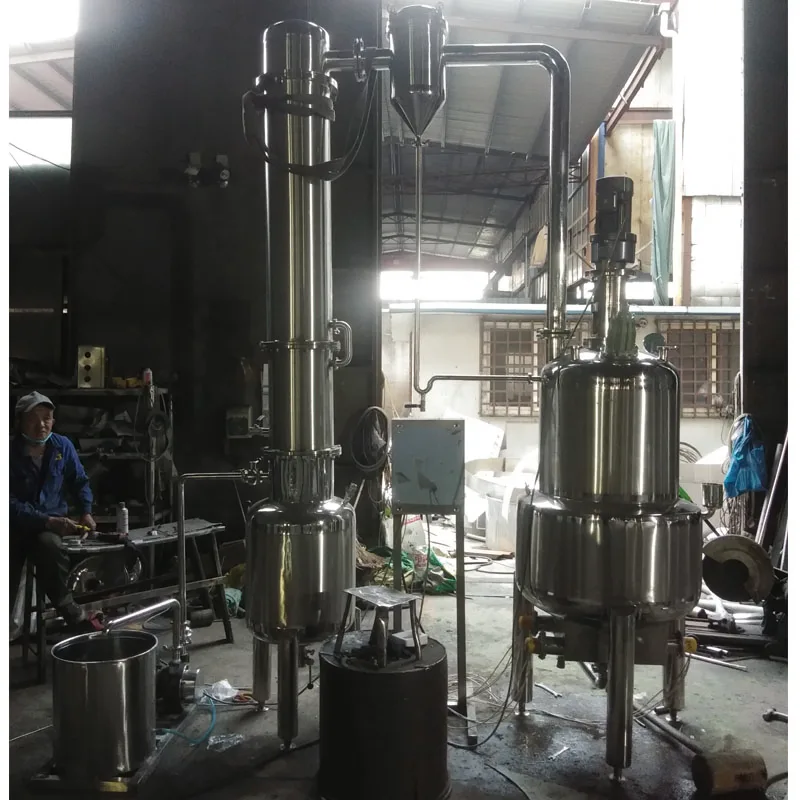

1) The device mainly includes concentration tank, condenser, vapor-liquid separator, cooler and liquid receiving barrel.

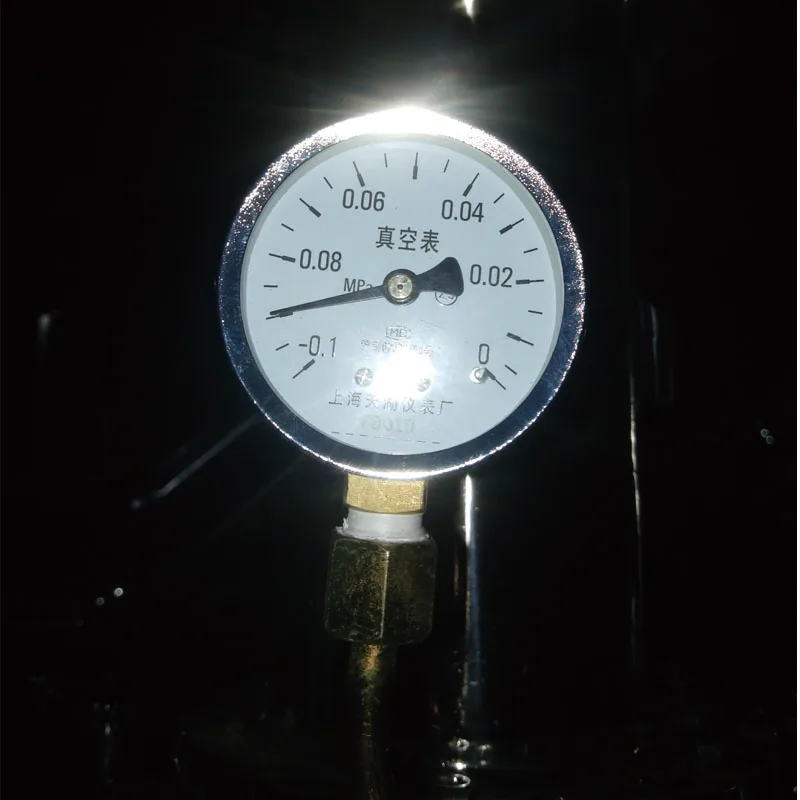

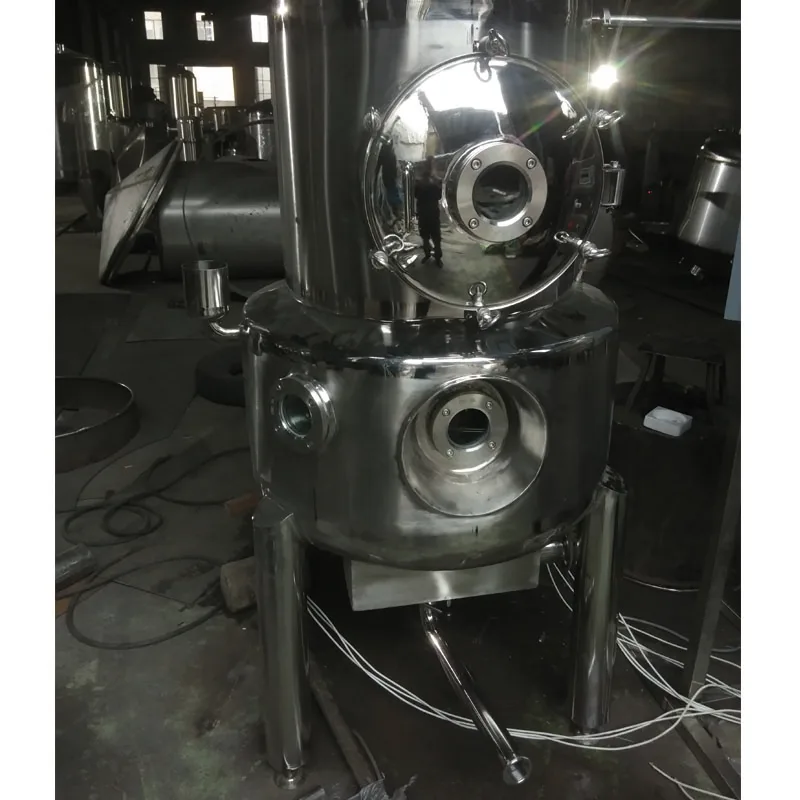

2) The concentration can is of clip sleeve structure; the condenser is of row-pipe type; the cooler is of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. and as well serves for the recycle of alcohol and simple reflux extraction purposes.



3) The contact part of the equipment and materials are made with stainless steel, resistant to corrosion and in accordance with the GMP standard.



Technology parameter



Model and  Specification		SJVC-50	SJVC-100	SJVC-200	SJVC-300	SJVC-500	SJVC-700	SJVC-1000
Volume     (L)		50	100	200	300	500	700	1000
Storage capacity   (L)		35	45	60	76	100	125	165
Pressure inside jacket (Mpa)		0.09
Vacuum degree (mmHg)		600~700
Heating area (m2)		0.25	0.59	0.8	1.1	1.45	1.8	2.2
Condensing area  (m2)		1.2	1.7	2.4	3.0	3.3	3.6	4.1
Cooling area  (m2)		0.29	0.35	0.45	0.6	0.7	0.85	1.05
Overall size (mm)	Length	1200	1350	1700	1700	2100	2400	2390
	Width	600	750	800	1000	1200	1300	1300
	Height	2200	2200	2700	3400	3400	3400	3720
