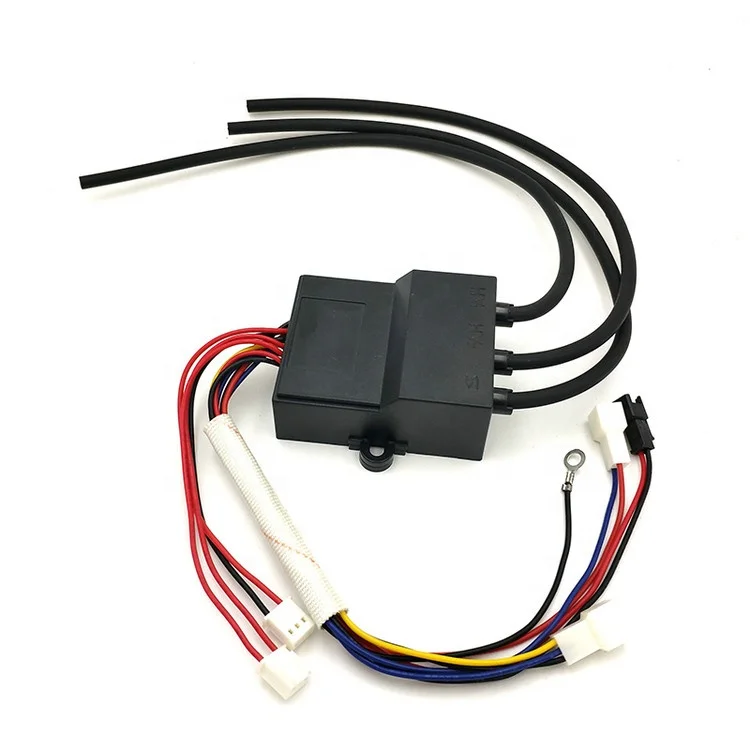

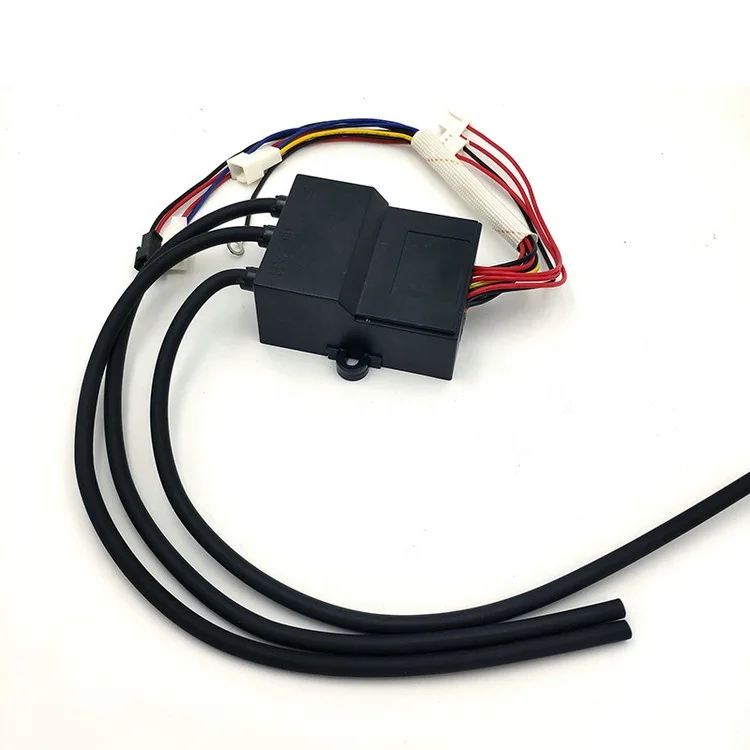

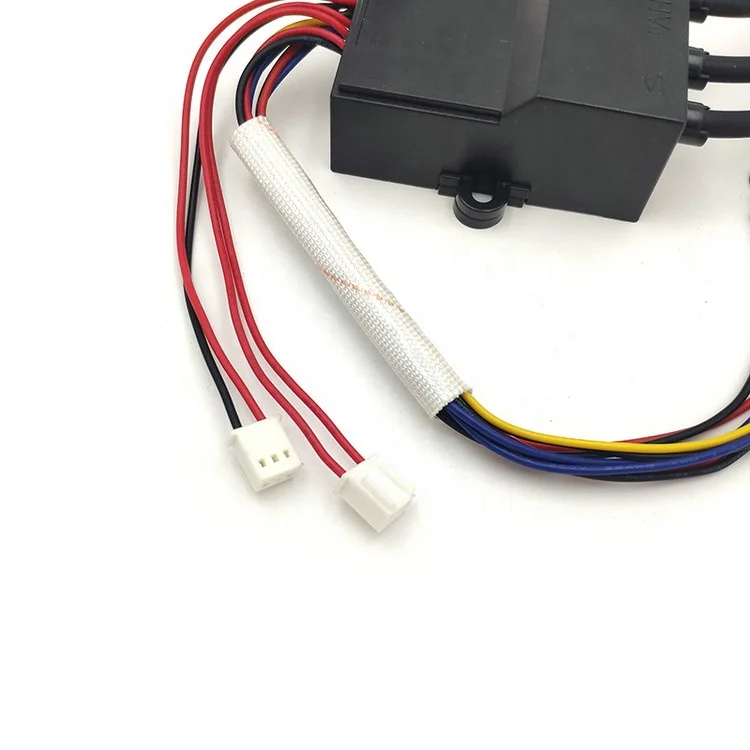

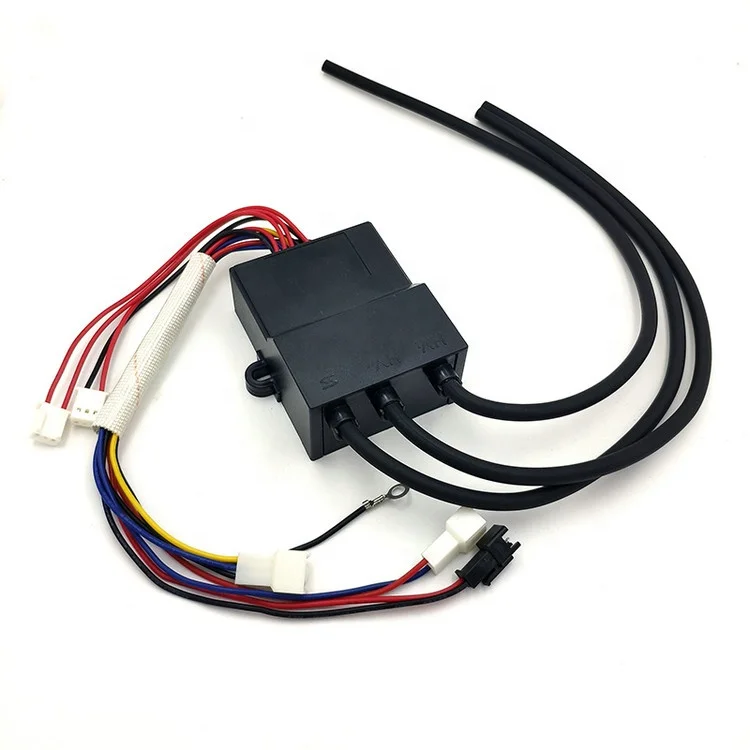

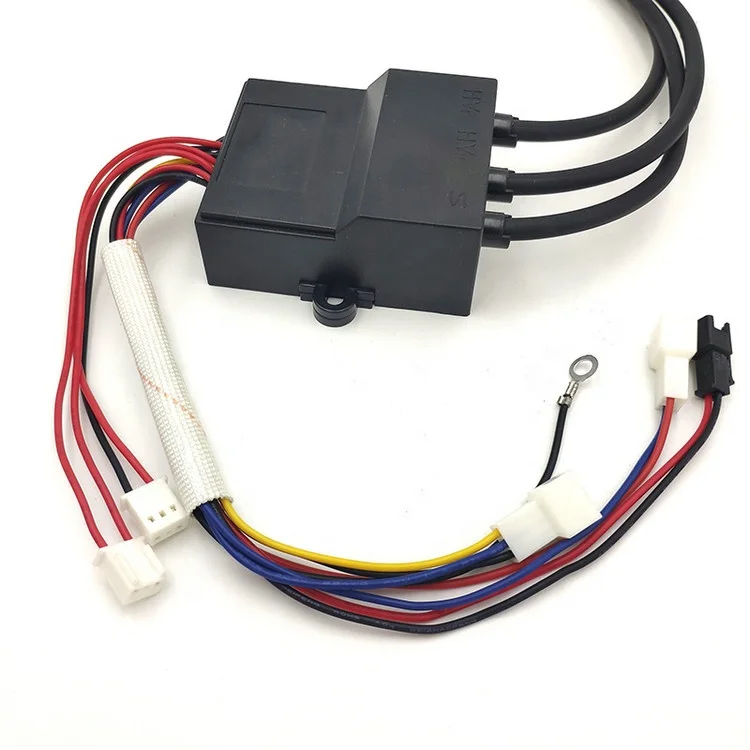

House Wall Geyser Spare Ignition Manufacturer Instant Gas Water Heater Parts
- Category: >>>
- Supplier: Zhongshan Vangood Appliances Mfg Co. Ltd.Zhongshan Ltd.
Share on (1600499267667):
Product Overview
Description
Products Description
Rated Operational Voltage | AC220V-50Hz |
Blower Working Voltage | AC220V |
Normal Rated Power | ≤20W |
Pulse Ignition Distance | ≥6.5mm(Installation distance should 5±0.5mm) |
Pulse Discharge Frequency | ≥8Hz |
Output high Voltage pulsed | ≥12KV |
Delay Time | 9S±1 |
Simulated flame sensitivity | ≥10MΩ(Connect one diode IN4007) |
Size | 113.3*87*51mm |
The gas water heater pulse refers to the phenomenon that the gas water heater detects and controls the combustion process by generating pulse signals during the working process.
The role of gas water heater pulse ignition:
1. Detect the combustion state of the gas water heater: the pulse signal can be used to detect the combustion state of the gas water heater, including ignition, combustion, stop and other states.
2. Control the combustion process of the gas water heater: The microprocessor can control the combustion process of the gas water heater according to the pulse signal, including adjusting the gas flow, controlling the size of the flame, etc.
3. Improve combustion efficiency: By accurately controlling the gas flow and flame size, the combustion efficiency of gas water heaters can be effectively improved, thereby reducing energy consumption and environmental pollution.
details:
1) Thermostat wire: 55cm.
2) Double pulse ignition guaranteed.
3) Electronic control board with silicone wire.
4) Passed long life test not less than 100,000 times.
5) Pulse ignitor is powered by double 1.5V batteries.
6) Igniting wires: 18.5cm and 30cm; induction needle wire: 30cm.
7) Functions: cold-hot water switching button and temperature display.
8) Safety devices: 20 minutes timer, dry-heating protection, thermostat, flame out and over water pressure protection.
1) Thermostat wire: 55cm.
2) Double pulse ignition guaranteed.
3) Electronic control board with silicone wire.
4) Passed long life test not less than 100,000 times.
5) Pulse ignitor is powered by double 1.5V batteries.
6) Igniting wires: 18.5cm and 30cm; induction needle wire: 30cm.
7) Functions: cold-hot water switching button and temperature display.
8) Safety devices: 20 minutes timer, dry-heating protection, thermostat, flame out and over water pressure protection.
What can Vangood provide for gas water heater?
Vangood is a professional manufacture of gas water heaters and parts. All the parts are tested and proved to be stable on the Vangood and OEM brands of gas water heaters.
Vangood can provide all kind of parts to build a gas water heating system.
How is the product quality, and what warranty can be provided?
How is the product quality, and what warranty can be provided?
1. Production based on the standard of ISO9001 & ISO14001;
2. Provide 1% quantity easy broken spare parts and 1 year warranty;
3. If defect of device is caused by our quality, we can replace
it; 4. 10 years manufacture & export experience that we know what you want.
it; 4. 10 years manufacture & export experience that we know what you want.
