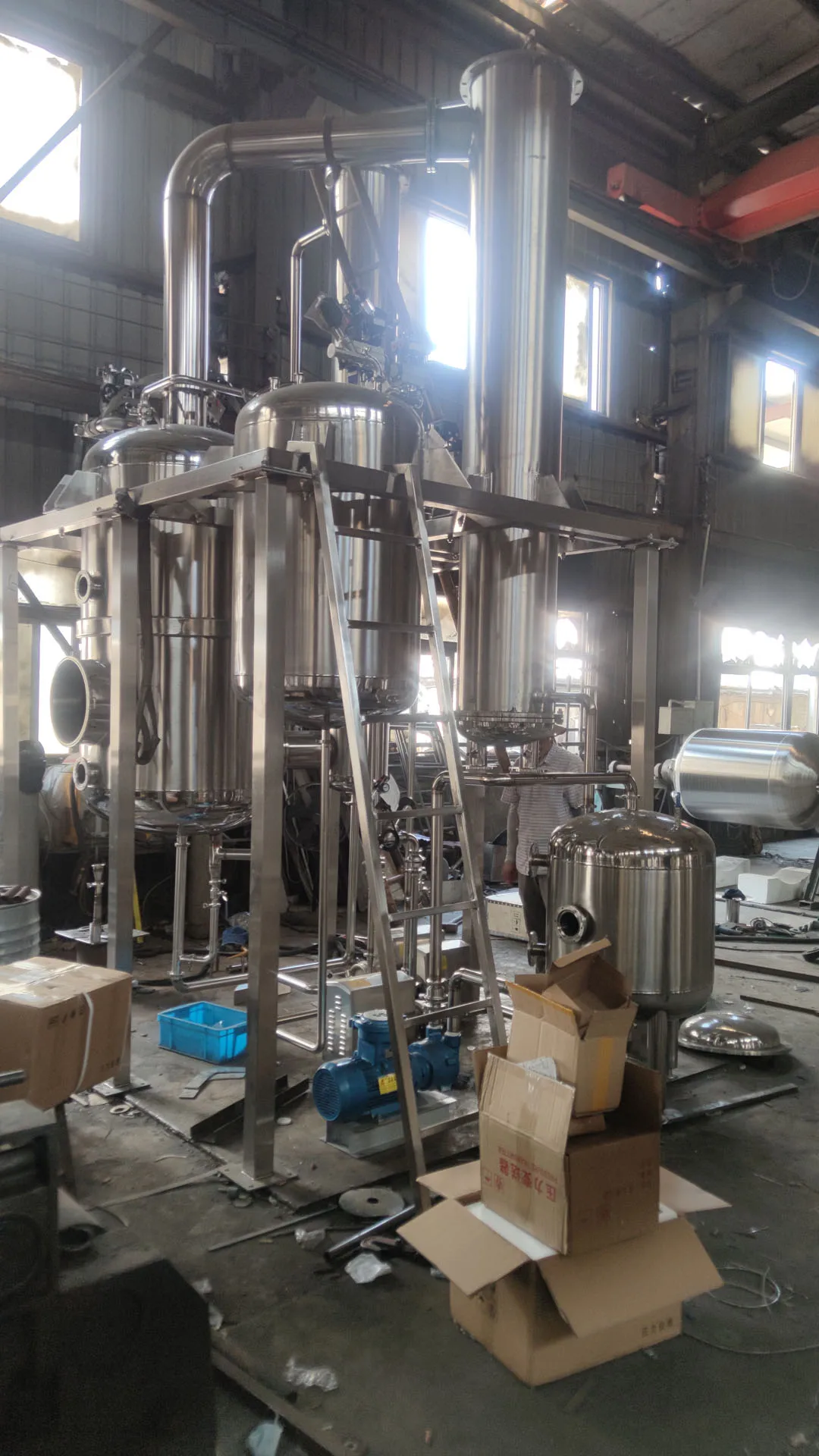

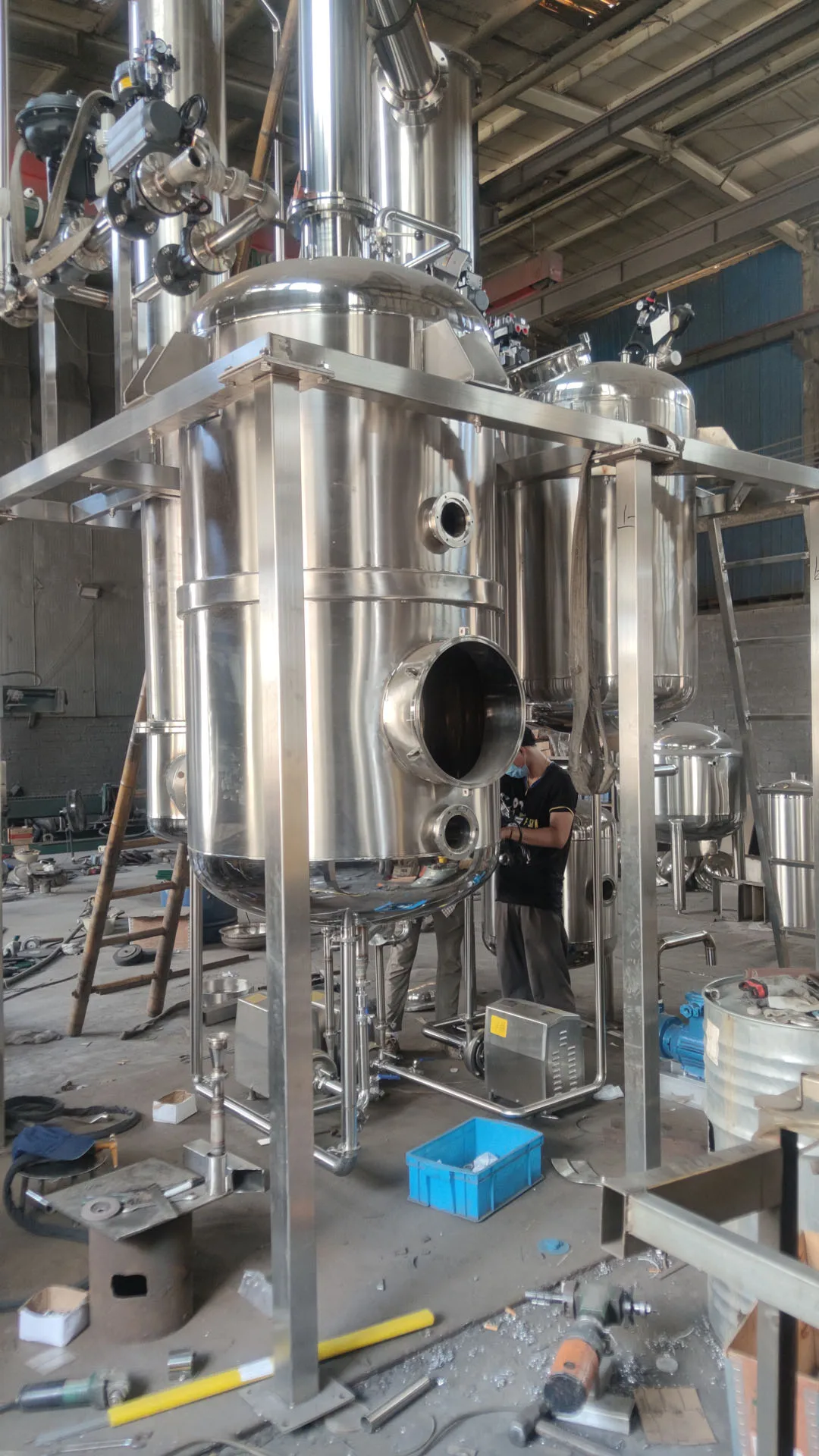

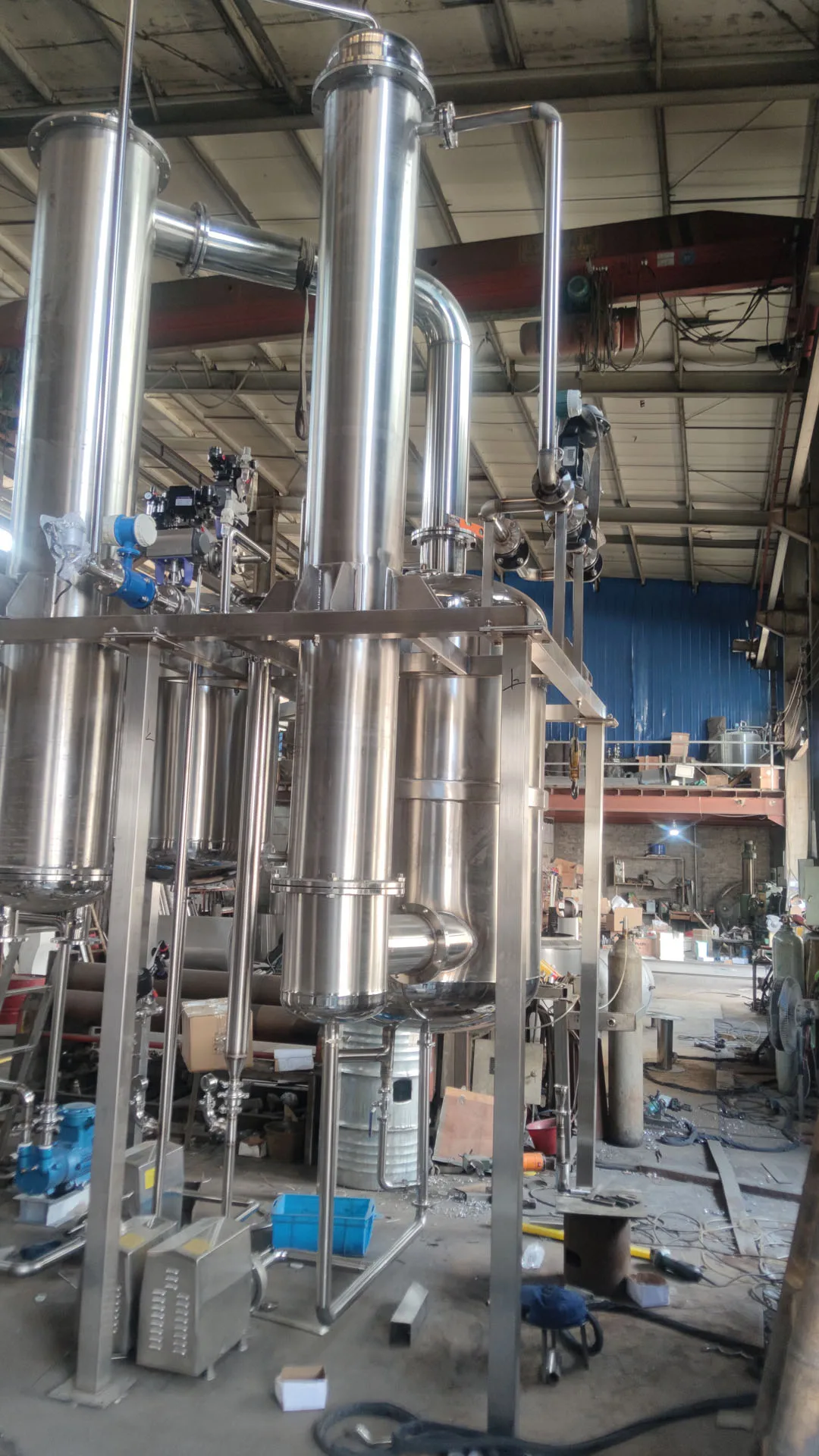

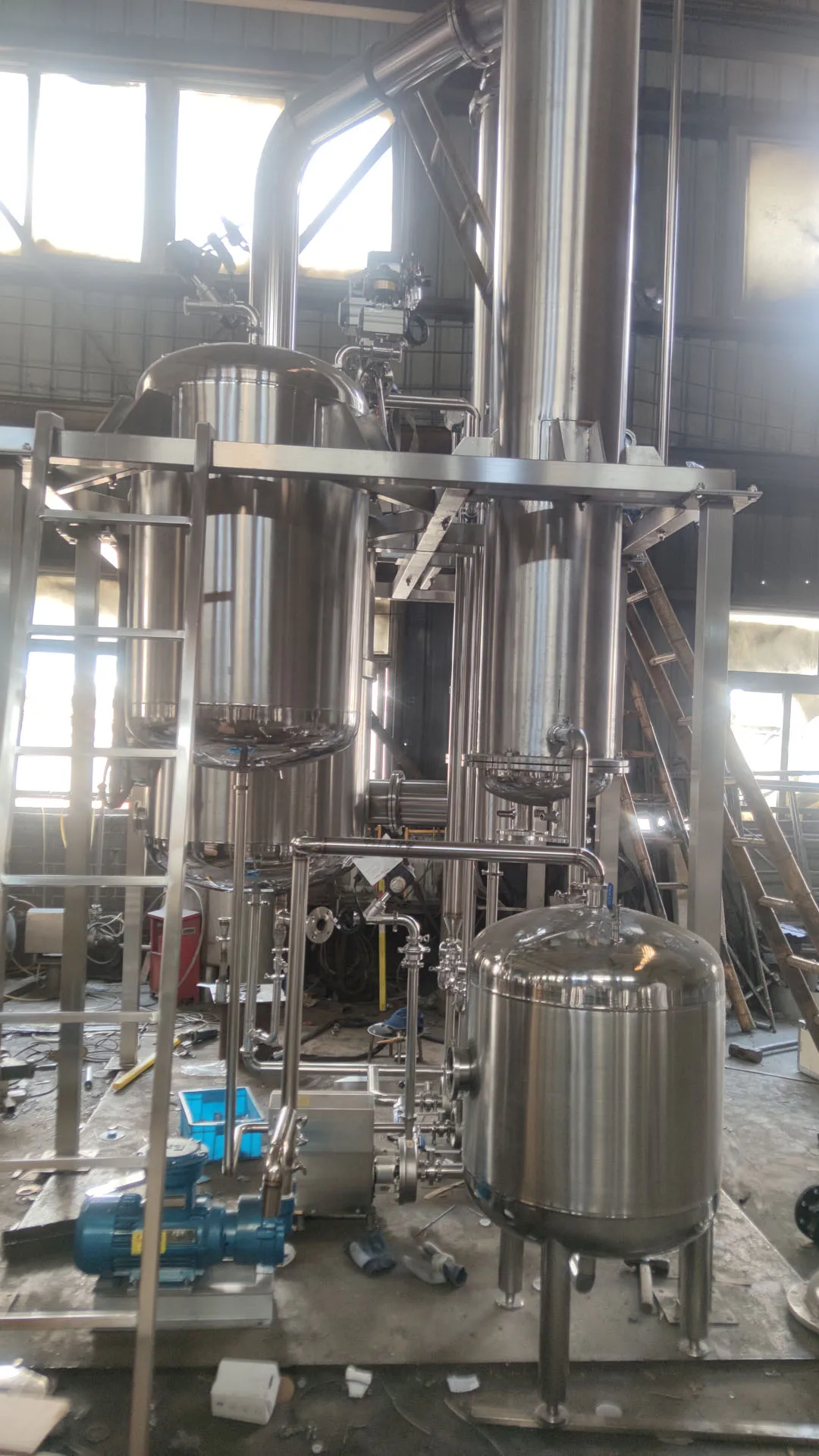

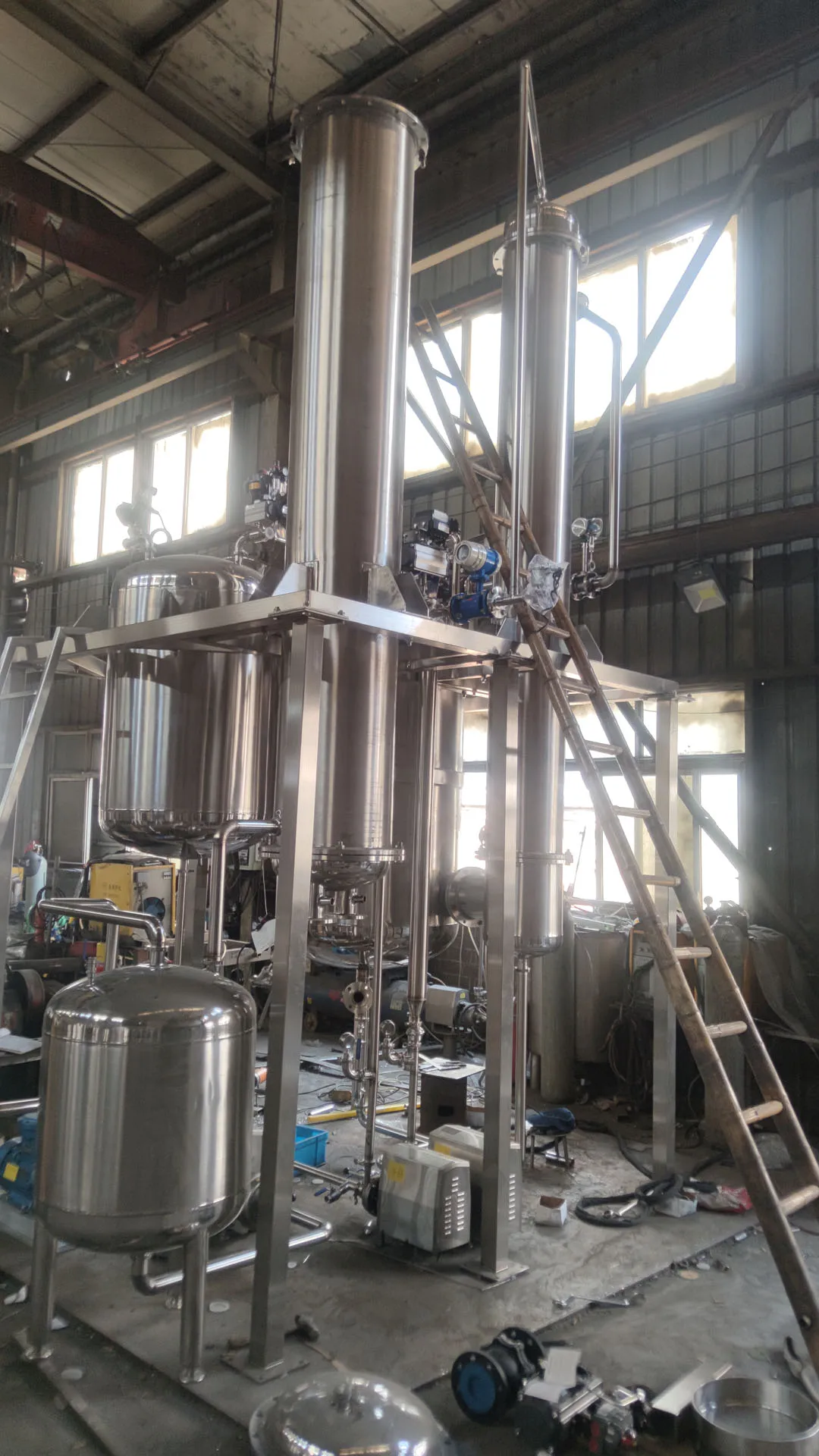

Single Effect Falling Film Evaporator For Ethanol Recovery Used For Herb Extraction
- Category: >>>
- Supplier: Wuxi Nanwei Machinery Technology Co. Ltd.
Share on (1600499267845):
Product Overview
Description
Specification
Application
It is applicable for herb ethanol recovery, malt extract, dairy products, pharmacy, fruit juice, glucose, starch, chemical industry, xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatment etc.
Product name | Single Effect Falling Film Evaporator For Ethanol Recovery Used For Herb Extraction |
Usage | Herb liquid. |
Capacity | 50L-2000L |
Evaporation temperature | 40℃~70℃. |
Steam pressure | 0~0.3Mpa. |
Cooling water circulation temperature | In 20℃/Out 25℃. |
Processing ability | Can remove 80-95% alcohol from liquid. |
Machine material | 304/316L Stainless Steel. |
Machine voltage | 220v/380v/415v,or as customer required. |
Operator required | 1 person. |
Heating method | Steam heating(Recommend). |
Evaporation type | Liquid be film to increase the evaporation area by falling drop. |
Products Description
Main features
The equipment system operates under negative pressure, with continuous feeding and discharging, heating and evaporation time is short, and it is suitable for evaporation and concentration of heat sensitive materials.
The material is evaporated under vacuum in a fully sealed system, and the concentrated liquid is pollution-free.
The top cover of the heater is equipped with quick-opening device for easy cleaning.
The equipment has compact structure, small floor area and simple operation.
The material is evaporated under vacuum in a fully sealed system, and the concentrated liquid is pollution-free.
The top cover of the heater is equipped with quick-opening device for easy cleaning.
The equipment has compact structure, small floor area and simple operation.
Model | FFE-100L | FFE-300L | FFE-500L | ||
Evaporation Rate | 100L/hr | 300L/hr | 500L/hr | ||
Feeding Pump | Flow:1m3/h, | Flow:1m3/h, | Flow:2m3/h, | ||
Lift:14m, | Lift:18m, | Lift:24m, | |||
Power:0.55kw,explosion-proof | Power:0.75kw,explosion-proof | Power:1.5kw,explosion-proof | |||
Circulating Pump | Flow:1m3/h, | Flow:1m3/h, | Flow:3m3/h, | ||
Lift:16m, | Lift:18m, | Lift:24m, | |||
Power:0.75kw,explosion-proof | Power:1kw,explosion-proof | Power:1.5kw,explosion-proof | |||
Condensate pump | Flow:1m3/h, | Flow:1m3/h, | Flow:2m3/h, | ||
Lift:16m, | Lift:18m, | Lift:24m, | |||
Power:0.75kw,explosion-proof | Power:1kw,explosion-proof | Power:1.5kw,explosion-proof | |||
Vacuum pump | Model:2BV-2060 | Model:2BV-2071 | Model:2BV-5110 | ||
Max pumping speed:0.45 m2/min, | Max pumping speed:1.83 m2/min, | Max pumping speed:2.75 m2/min, | |||
Ultimate vacuum:-0.097MPa, | Ultimate vacuum:-0.097MPa, | Ultimate vacuum:-0.097MPa, | |||
Motor power:0.81kw, explosion-proof | Motor power:3.85kw, explosion-proof | Motor power:4kw, explosion-proof | |||
Speed:2880r.min, | Speed:2860r.min, | Speed:1450r.min, | |||
Working fluid flow:2L/min, | Working fluid flow:4.2L/min, | Working fluid flow:6.7L/min, | |||
Noise:62dB(A) | Noise:72dB(A) | Noise:63dB(A) | |||
Panel | <50kw | <50kw | <50kw | ||
Height | Around 2.53m | Around 4.3m | Around 4.6m | ||
Electricity | 380V, 3 Phase, 50Hz or Customizable | ||||
Turnkey Solution
We also provide the match equipment, such as water chiller, industrial steam generator and air compressor. 100% turnkey solution.
Steam generator
Water chiller
Air compressor
Recommend Products
Company Profile
Wuxi Nanwei Machinery Technology Co., LTD is a professional manufacturer with 12 years of manufacturing experience in evaporation equipment, pharmaceutical equipment, dairy equipment, juice and beverage equipment in China. Our factory covers an area of 4200 square meters and has 47 skilled workers. So far, we have produced and installed more than 140 projects at home and abroad. Such as Southeast Asia, India, Africa, Britain, Canada, Turkey, Germany, Honduras, Peru, Argentina, etc.
Our products are widely used in the pharmaceutical, dairy, beverage, juice, food and chemical industries. Nanwei company is responsible for the design, production, installation, commissioning, training, and thoughtful after-sales service.
Our products are widely used in the pharmaceutical, dairy, beverage, juice, food and chemical industries. Nanwei company is responsible for the design, production, installation, commissioning, training, and thoughtful after-sales service.
Our mission is to offer high quality machines with satisfactory prices. Welcome to visit our factory. We are happy to show you our machines and projects. We look forward to establishing business relationships with you and growing together.
1.Lathe
2.Plate rolling
3.Weld
4.Polishing 1
5.Polishing 2
6.Assembly
Packaging & Shipping
Contact Us
TEL
+8613967857801
Email
nanweijx@126.com
FAQ
1. Who are we?
We are based in Wuxi, Jiangsu, China, start from 2008,sell to Domestic Market(40.00%),Southeast Asia(15.00%),Africa(10.00%),North America(10.00%),Eastern Europe(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%). There are total about 30-40 people in our factory.
We are based in Wuxi, Jiangsu, China, start from 2008,sell to Domestic Market(40.00%),Southeast Asia(15.00%),Africa(10.00%),North America(10.00%),Eastern Europe(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%). There are total about 30-40 people in our factory.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3. What can you buy from us?
Herb extraction and concentration unit,vacuum concentrator,falling film evaporator,evaporation equipment,sterilization
machine,stainless steel tank,pharmaceutical equipment,dairy and juice equipment,etc.
4. Why should you buy from us not from other suppliers?
Wuxi Nanwei Machinery Technology Co., LTD is a professional manufacturer with 15 years' making and installing experience of extraction and concentration unit,vacuum concentrator,falling film evaporator,dairy and juice equipment,etc.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery.
Accepted Payment Currency:USD,EUR.
Accepted Payment Type: T/T,L/C,Cash.
Language Spoken:English,Chinese.
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3. What can you buy from us?
Herb extraction and concentration unit,vacuum concentrator,falling film evaporator,evaporation equipment,sterilization
machine,stainless steel tank,pharmaceutical equipment,dairy and juice equipment,etc.
4. Why should you buy from us not from other suppliers?
Wuxi Nanwei Machinery Technology Co., LTD is a professional manufacturer with 15 years' making and installing experience of extraction and concentration unit,vacuum concentrator,falling film evaporator,dairy and juice equipment,etc.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery.
Accepted Payment Currency:USD,EUR.
Accepted Payment Type: T/T,L/C,Cash.
Language Spoken:English,Chinese.
