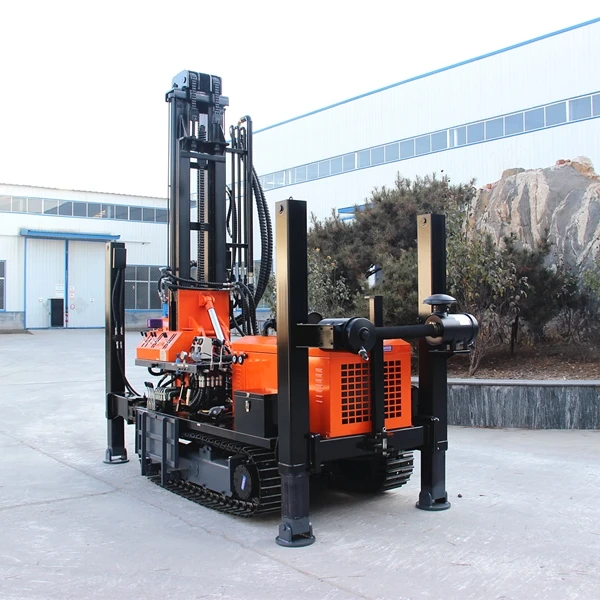

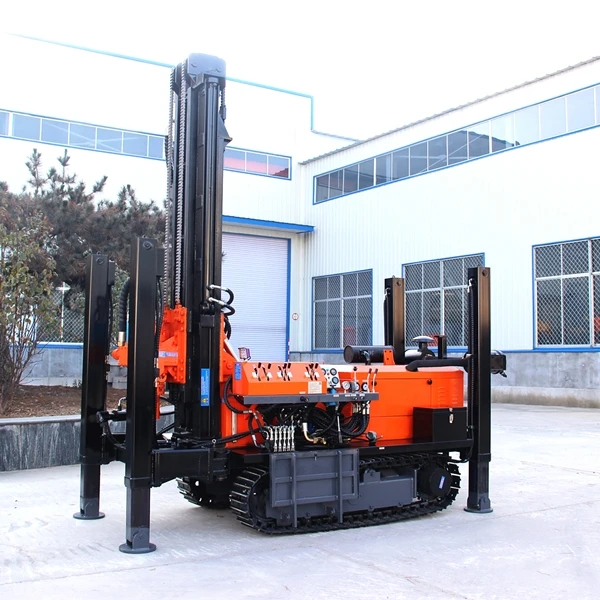

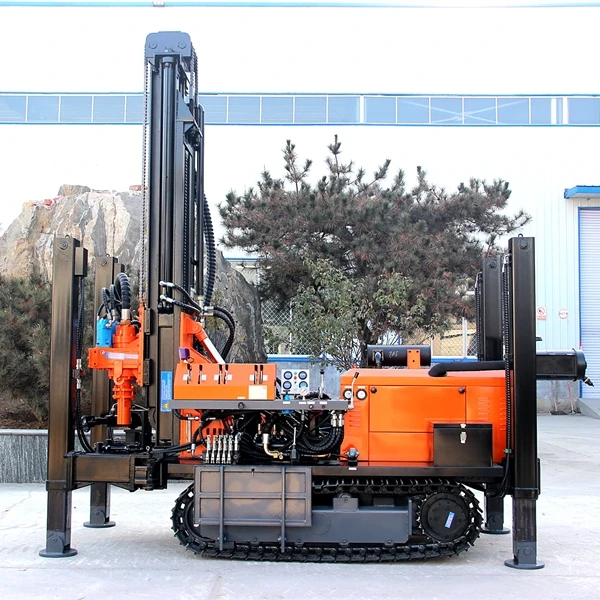

platform portable drilling machine for water well rigs
- Category: >>>
- Supplier: Chengdu Shidashi Mechanical Equipment Co. Ltd.
Share on (1600499280595):
Product Overview
Description
Product Categories
180m depth diesel engine pneumatic rigs track-type crawler type water well drilling rig machine
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountainareas.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountainareas.
Product Paramenters
Model | KS - 180 |
Drilling depth(m) | 200 |
The hole dia.(mm) | 140-254 |
One-time advance length (m) | 6.6 |
Walking speed (Km/h) | 2.5 |
Climbing angle(Max) | 30 |
Equipped capacitor (KW) | 70 |
Using air pressure (MPA ) | 1.7-3.0 |
Air consumption （m3 / min ) | 17-30 |
Drill pipe diameter (mm) | Φ76 / Φ89 |
Drill pipe length (m) | 1.5m 2.0m 3.0m |
Rig lifting force | 17 |
Swing speed (rpm) | 45-70 |
Swing torque (N.m) | 4300-5500 |
Dimension（mm） | 5900*1800*2450 |
It has the advantages of large drilling, deep drilling, fast footage, flexible and efficient.
Details Images

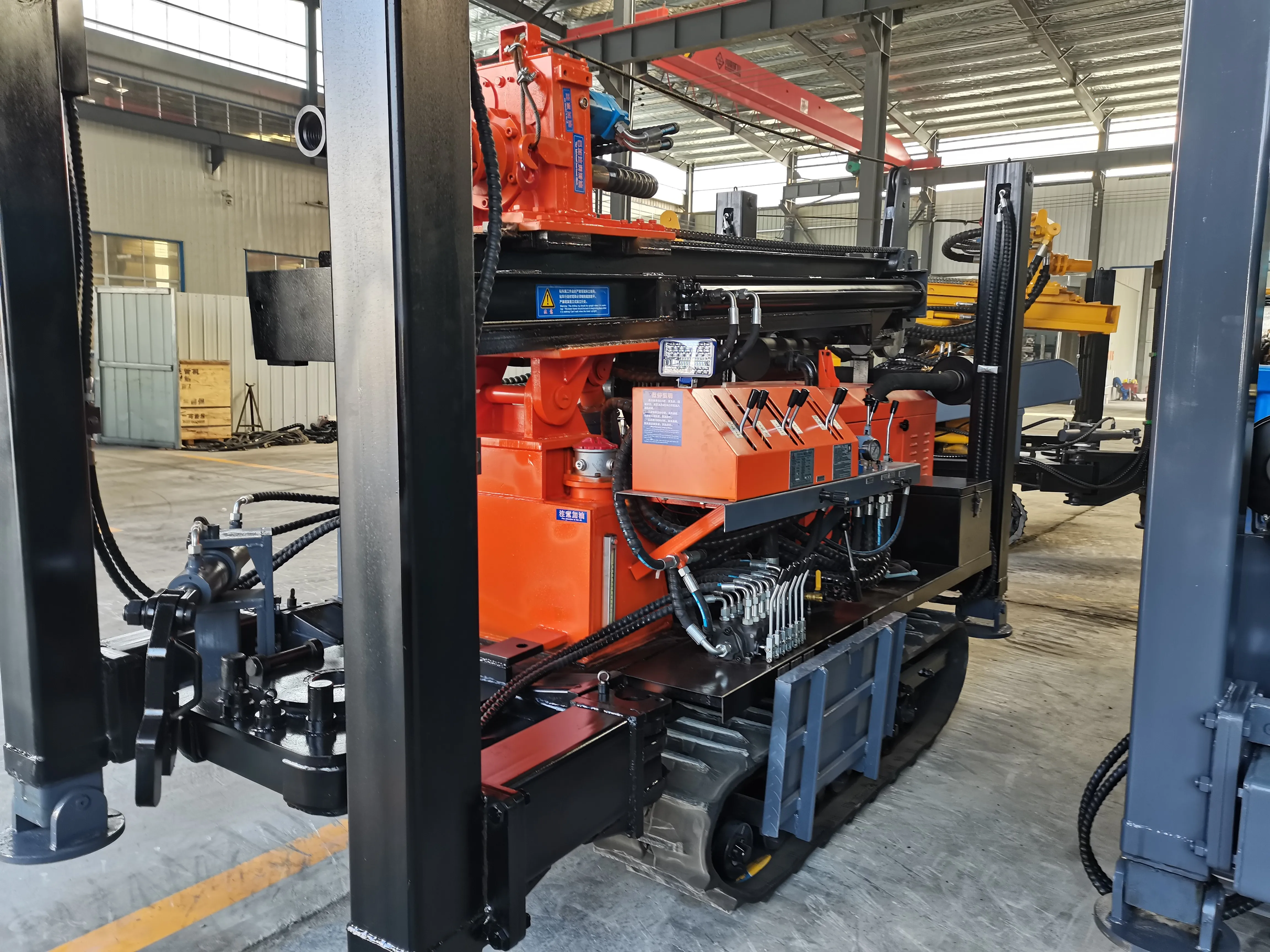

Console
The console is composed of a console frame, manual reversing valve, pressure reducing valve, speed regulating valve, oil pressure
gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are
concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with
sufficient area to operate.
gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are
concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with
sufficient area to operate.
Promotion part
The propulsion part is composed of propulsion cylinder, chain, slide plate and so on. When the piston rod of the propulsion
cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the
chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial
pressure can be adjusted during deep hole drilling.
cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the
chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial
pressure can be adjusted during deep hole drilling.
Power system
It is composed of engine, coupling, oil pump connecting plate, and air filter. The air filter is composed of three-stage air
pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
Application
Our Company

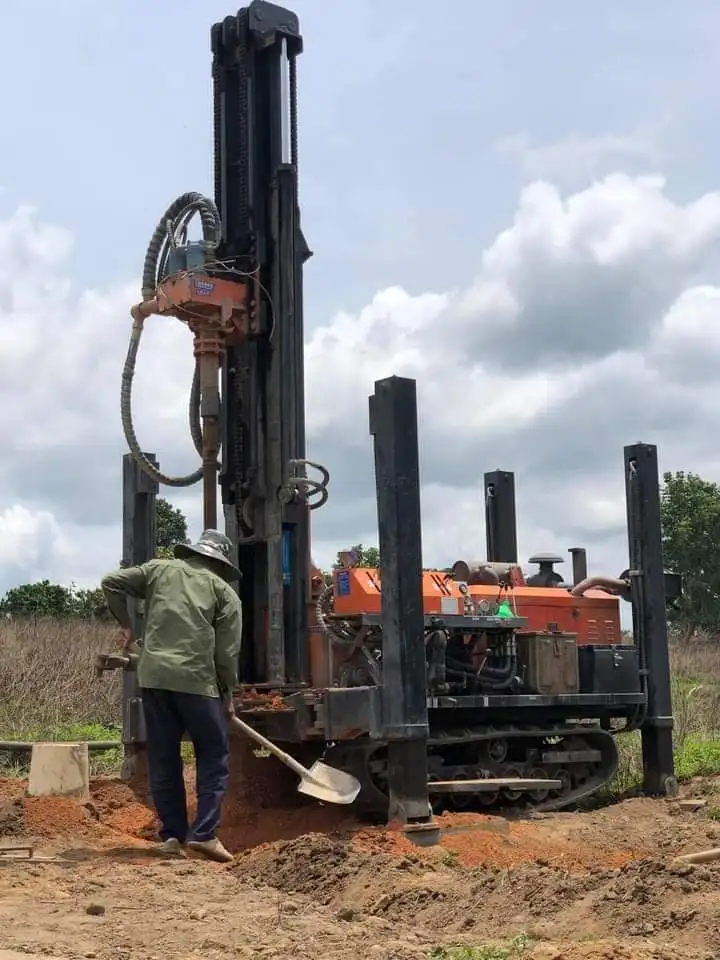

Customer Photos
Packaging & Shipping
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
