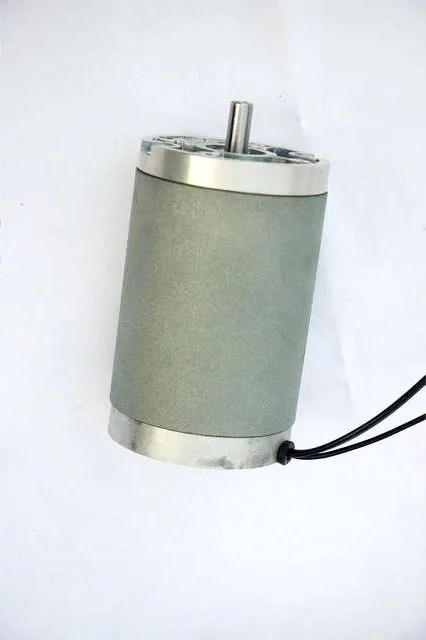

home appliance massage dental chair hospital medical care bed permanent motor dc brush fan motor 12v 24v electric linear actuato
- Category: >>>
- Supplier: Huizhou H-Antech Motion System Co. Ltd.
Share on (1600499288091):
Product Overview
Description
Technical Specification
Specification | ||||||||
Model | HM2 | |||||||
Rated Voltage | 24V DC | |||||||
Current withou load | 0.5 A | |||||||
Rated Current | 3.0A | |||||||
Maximum torque | 5.5 kgf.cm ( 3A ) | |||||||
Motor Speed | 1100 RPM | |||||||
Installation Size | 80.6 mm | |||||||
Installation Diameter | M8 | |||||||
Duty Cycle | 10%, 2 minutes longest continuous operation | |||||||
Output Signal | Photoelectric Switch | |||||||
Color | Silver | |||||||
Working Temperature | --5℃---45℃ | |||||||
Shape of the output shaft | D shape | |||||||
More details Click here send us enquiry
Main Products
Details Images
More details Click here send us enquiry

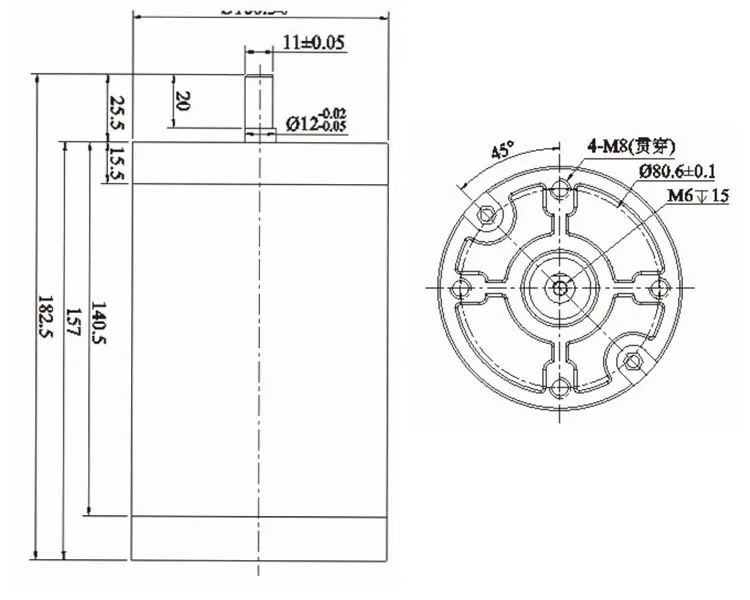

Installation Instructions
Application Field
More details Click here send us enquiry
Test Instrument
Certifications
Company Profile
Our Advantageous
1. Huizhou H-Antech Motion System Co., Ltd. 1.Huizhou H-antech Motion Systems Co., Ltd. is a high-tech enterprise integrating design, manufacturing, marketing of
electric mechanical devices more than 29+years .
electric mechanical devices more than 29+years .
2.We specialize in manufacturing linear actuators, lifting motors and their control boxes.
3.The products of our own brand Onepower/H-antech are mainly used in farm ventilation system, fitness equipment, smart home,
furniture and other fields.
4. Most of our prodcuts have obtained the international certifications such as CE, UL, CUL, RoHS, EMC, IEC60601-1,IEC60601-1-2 and
ISO9001 etc.
furniture and other fields.
4. Most of our prodcuts have obtained the international certifications such as CE, UL, CUL, RoHS, EMC, IEC60601-1,IEC60601-1-2 and
ISO9001 etc.
