 2022 New stencil printer Auto Solder Paste Printer ASM printer DEK TQ

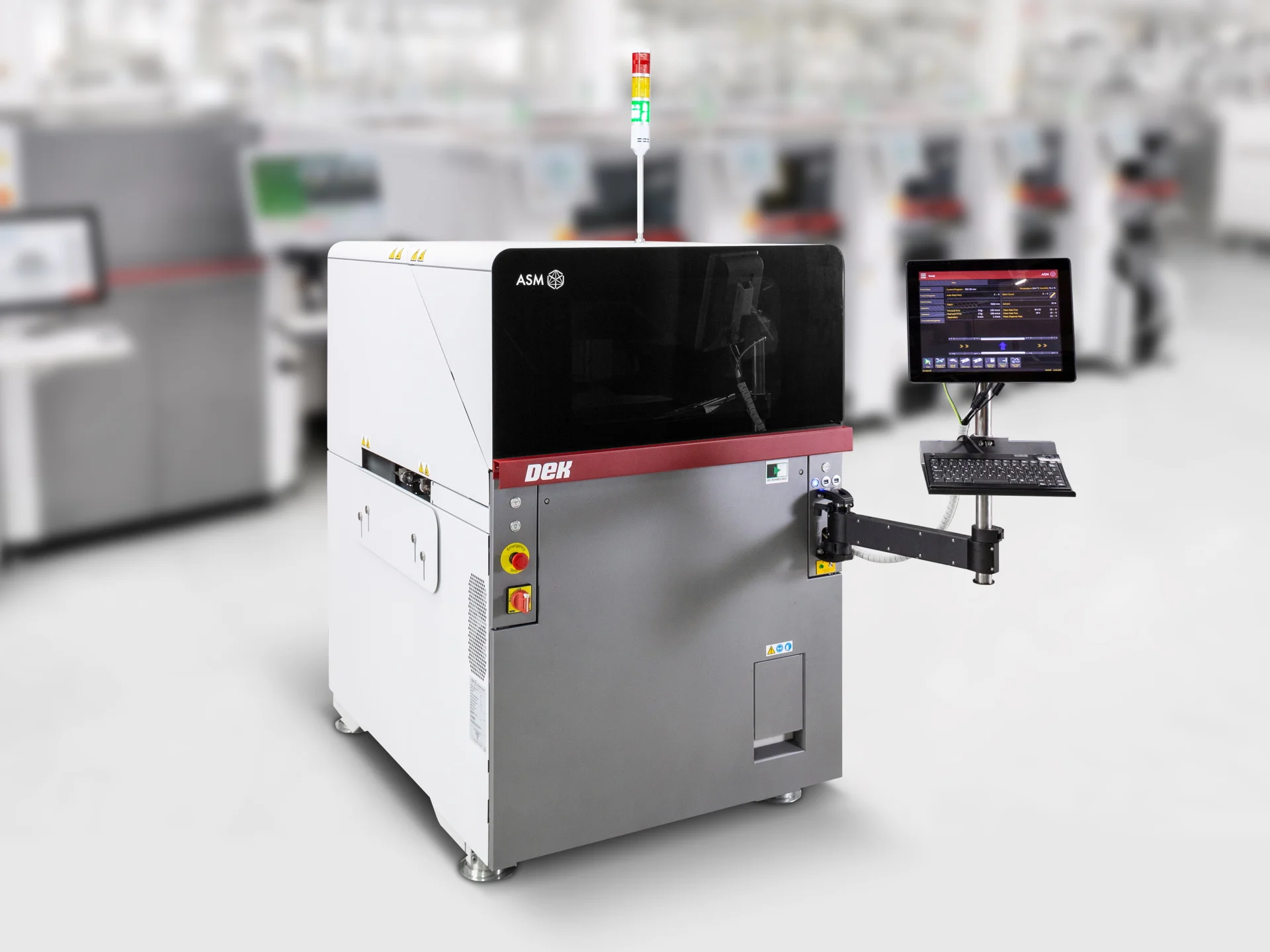

DEK TQ

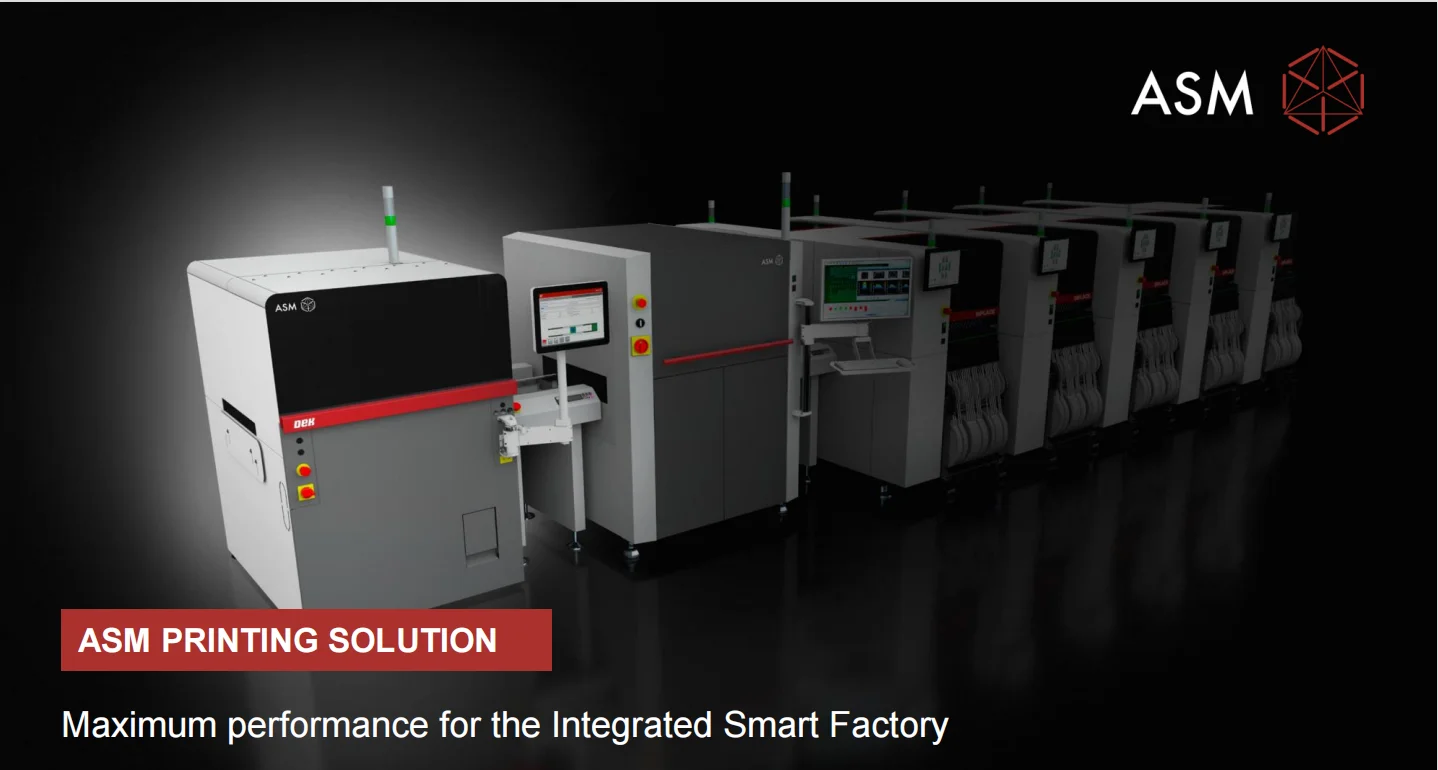

Maximum performance for the integrated smart factory





The DEK TQ represents a quantum leap forward. With its completely new design, the new DEK generation is faster, more accurate, more powerful, easier to maintain, and easier to integrate. New drives, off-belt printing and innovative clamping systems ensure unprecedented accuracy and deliver a stable printing process – even for the latest 0201 metric components.

Maximum productivity in a minimum footprint: New three-stage conveyors and unique ASM NuMotion controllers with fiber-optic cabling reduce the core cycle time (CCT) to 5 seconds.

With flexible automation functions and options, such as a high-capacity cleaning fluid tank, automatic paste management and smart pin placement as well as open interfaces, the DEK TQ fits seamlessly into ASMPT’s integrated Open Automation concept and delivers more than 8 hours of continuous operation with no operator assists.



DEK TQ Innovations

• Newly developed Under Stencil Cleaner
  Extra-large fabric roll, easily replaceable cleaning body, new dispenser system for the cleaning media, independent linear driven axis and non-stop cleaning fluids supply

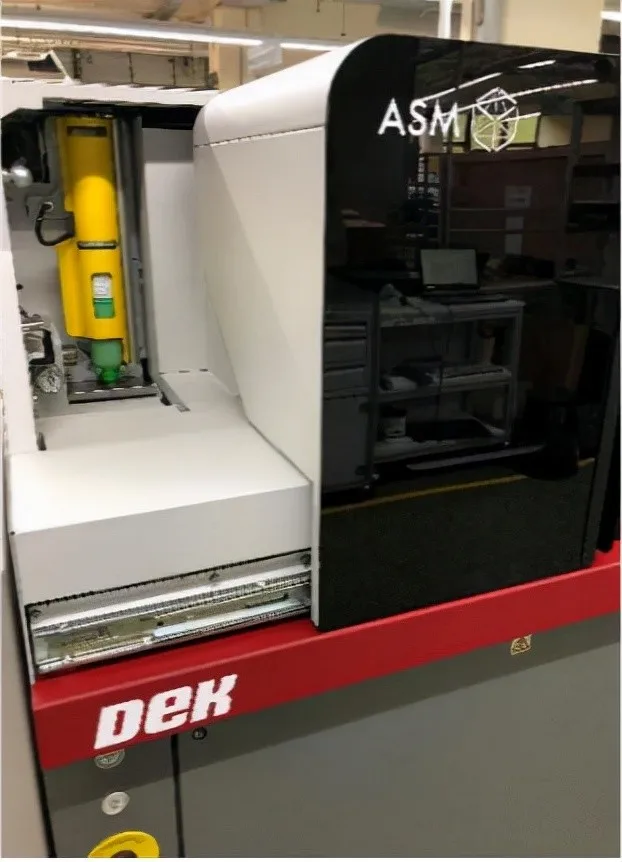

• Innovative printhead
  Integrated paste height controller, fully automated paste dispenser and new improved squeegee pressure controller

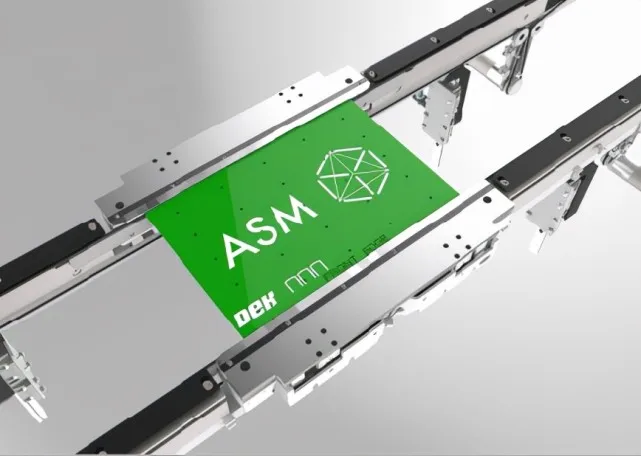

• New 3-stage transport system
  Flexible 3-stage board conveyor system with linear drives, ASM NuMotion controller, new clamping system and off-belt printing

These innovations give you competitive advantages:

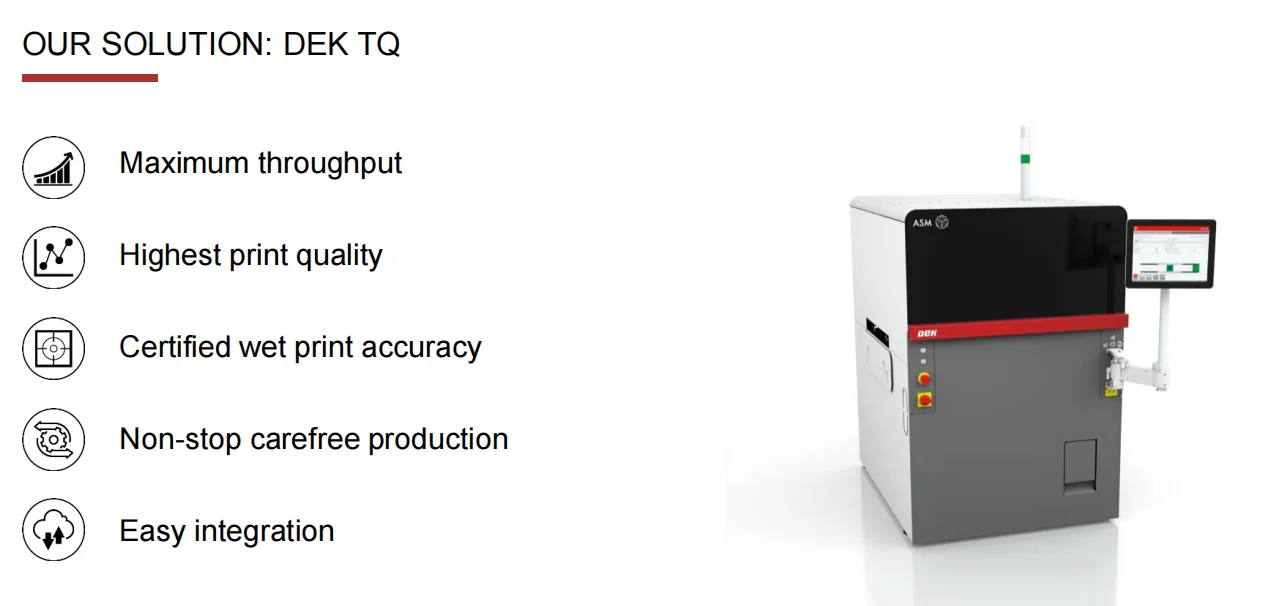

• Maximum throughput
  Core cycle time: 5 seconds


• Maximum precision and printing quality
  Best solder paste printing for the latest generation of extra-small components like 0201 metric
  System alignment capability up to ± 12.5 µm @ 2 Cmk
  Wet print accuracy up to ±17.5 µm @ 2 Cpk (measured and certified by the external AVS system before delivery of each DEK TQ)


• Fast and flexible 3-stage transport
  Fully flexible 3-stage transport system with innovative clamping and off-belt printing for fast, precise and stable print process


• Up to 8 hours without assist
  New USC with extra-large fabric roll and cleaning fluid supply, new printhead with new paste management system


• Open, easy to integrate
  IPC-Hermes-9852, closed-loop to SPI, ASM OIB, IPC CFX


• Efficient programming
  Fully new intuitive software and offline ASM Printer Programming


• Best floorspace performance
  Only 1.3 square meter footprint

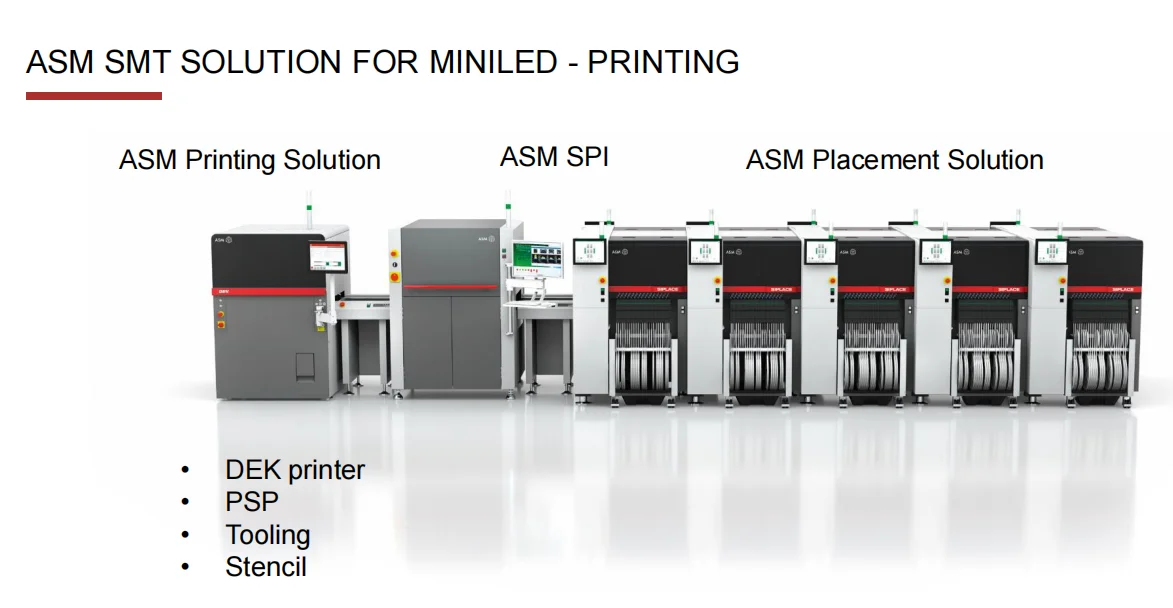

• Back-to-back setup
  The perfect solution for dual-lane lines
