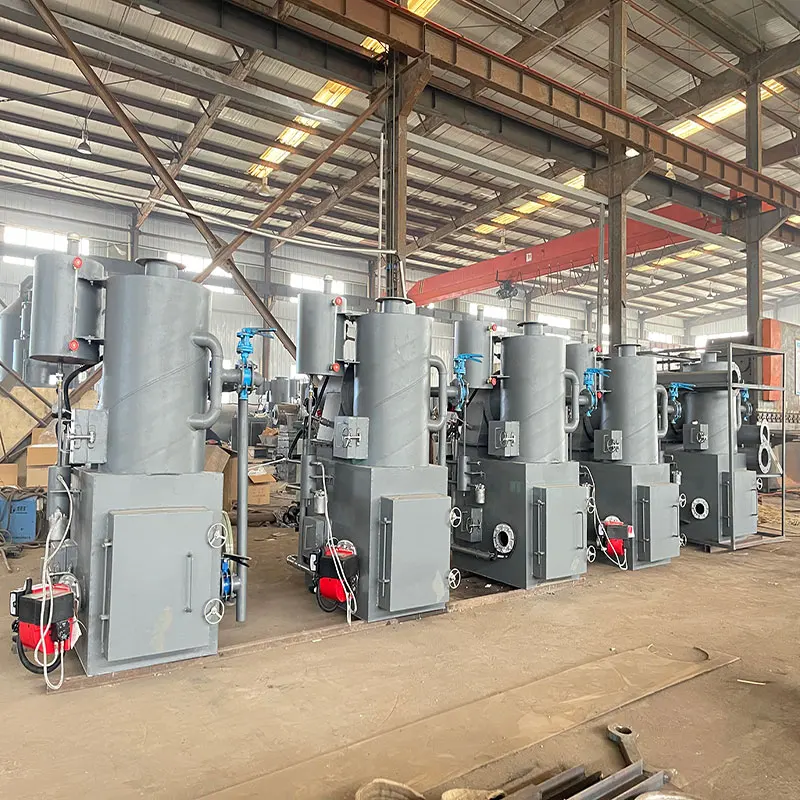

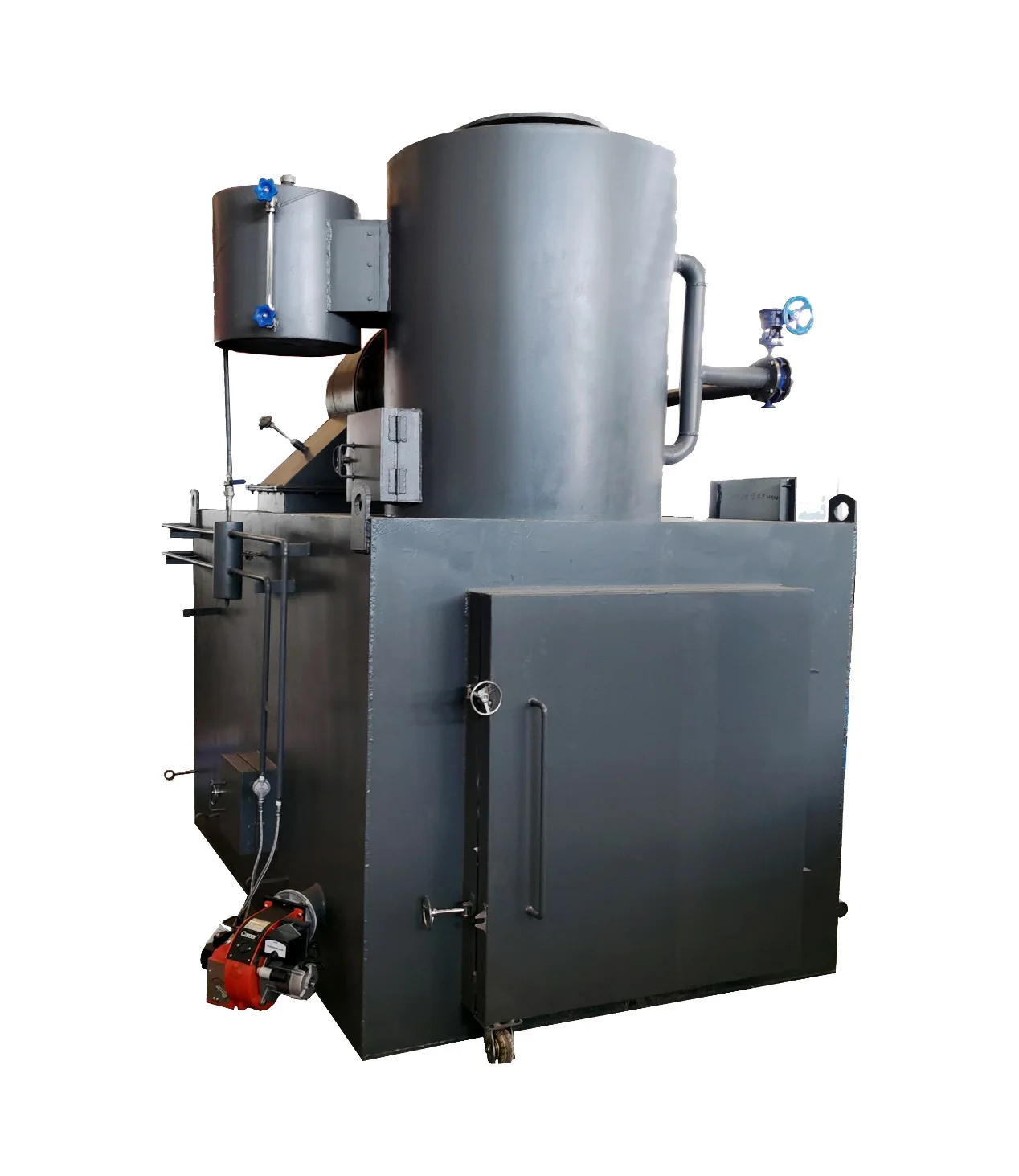

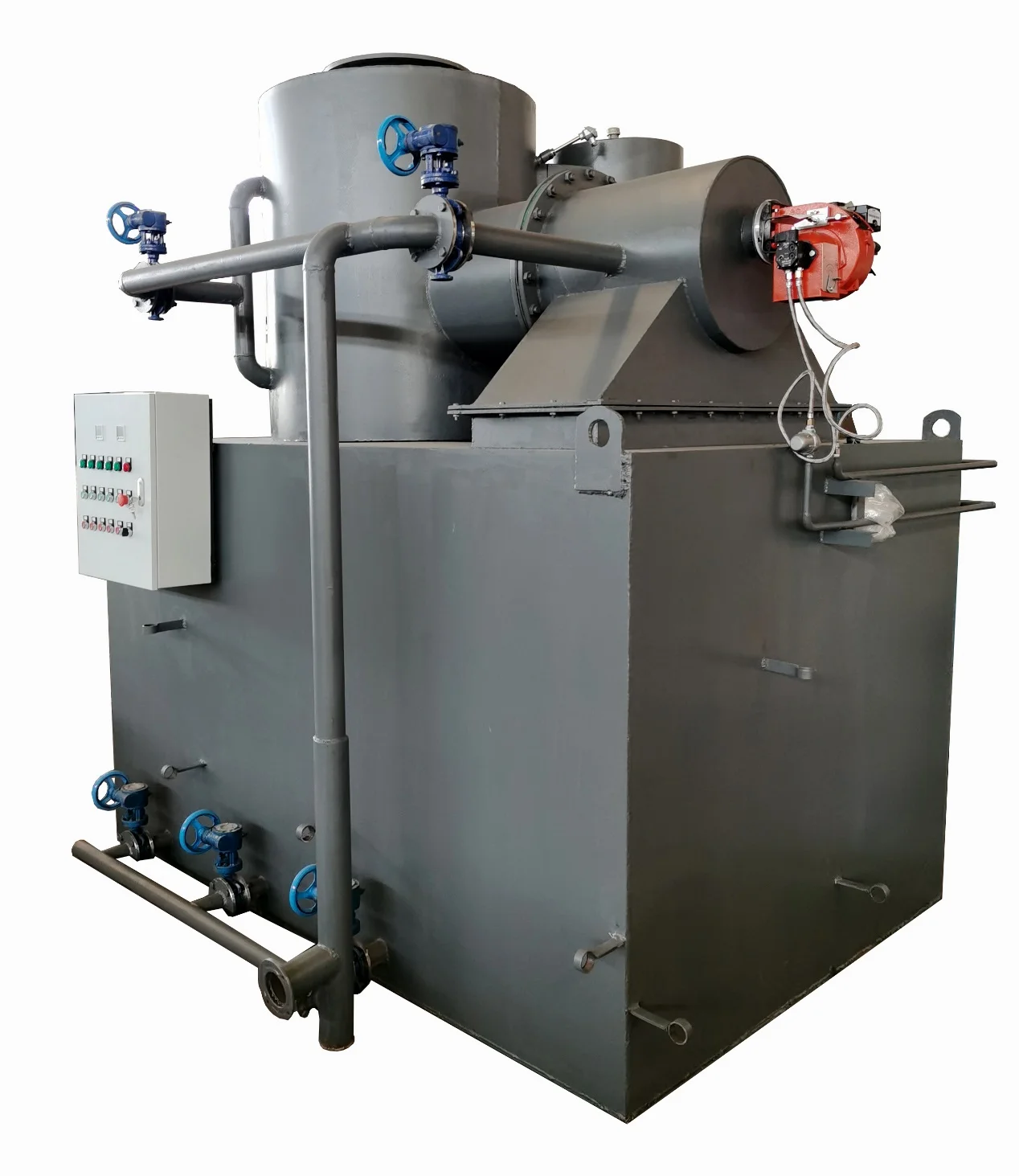

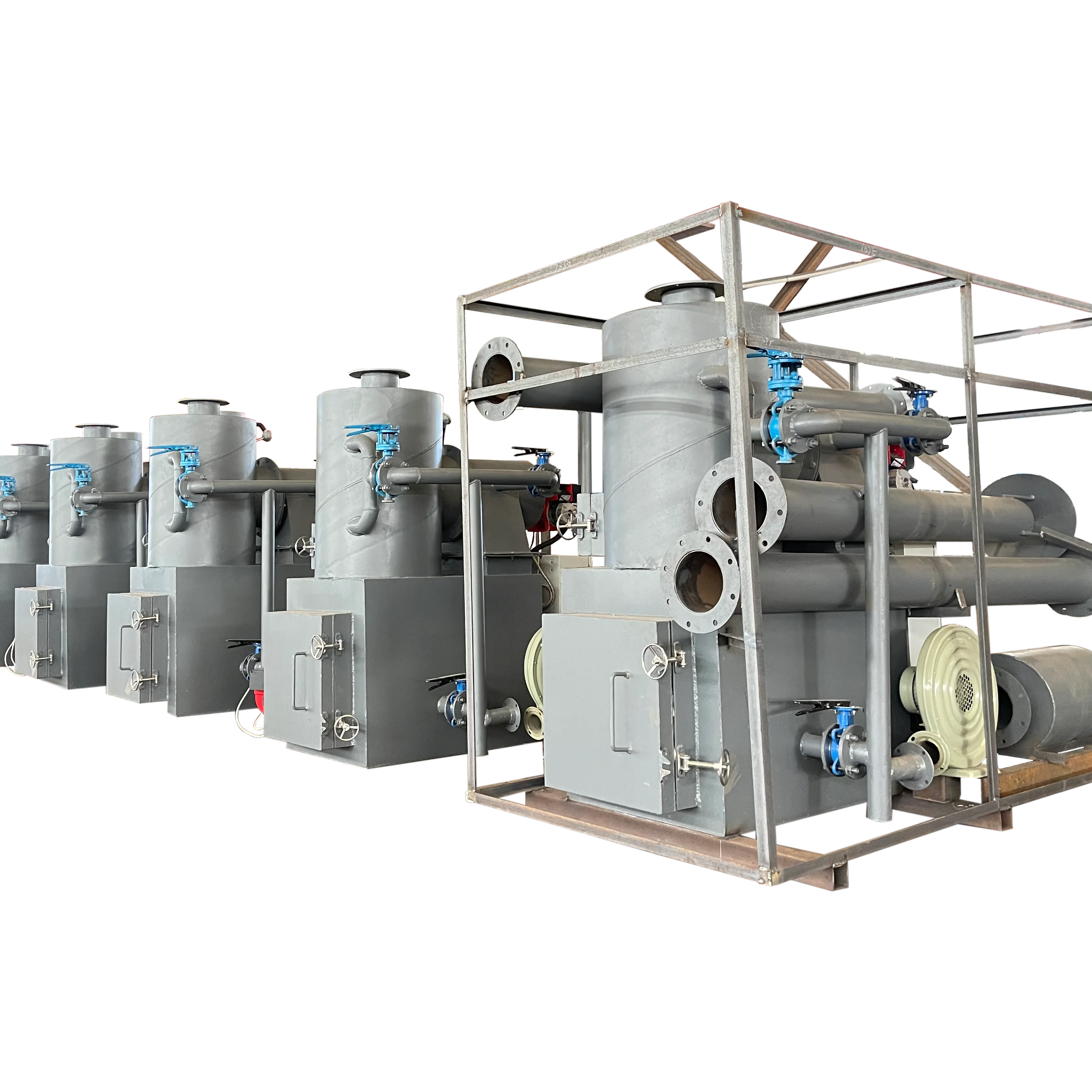

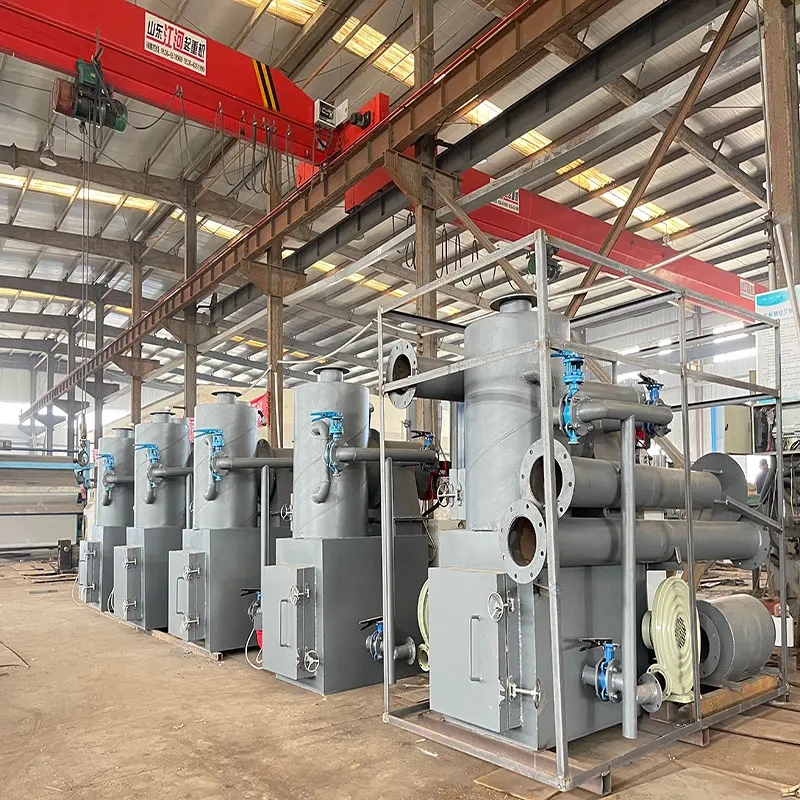

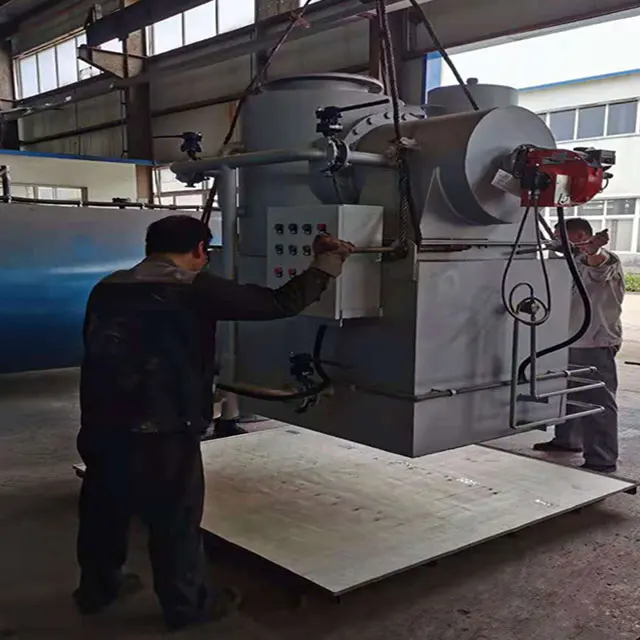

2022 Smokeless and odorless medical waste cremation incinerator for sale
- Category: Waste Treatment Machinery >>>
- Supplier: Henan Zeheng Environmental Protection Technology Co. Ltd.
Share on (1600499302905):
Product Overview
Description
Product Description
Technical characteristics of incinerators KTL series of refuse incinerators adopt the most advanced incineration mode of primary pyrolysis gasification + ambient air mixed combustion + secondary incineration + burnout treatment.
The design of the primary combustion chamber of the incinerator adopts the gasification incineration technology to make the temperature in the incinerator move from 200℃ to 400℃, so that the waste will not produce frit, slag block, sintering and other problems in the incineration process, and the dust production is very small.
Structure Diagram：

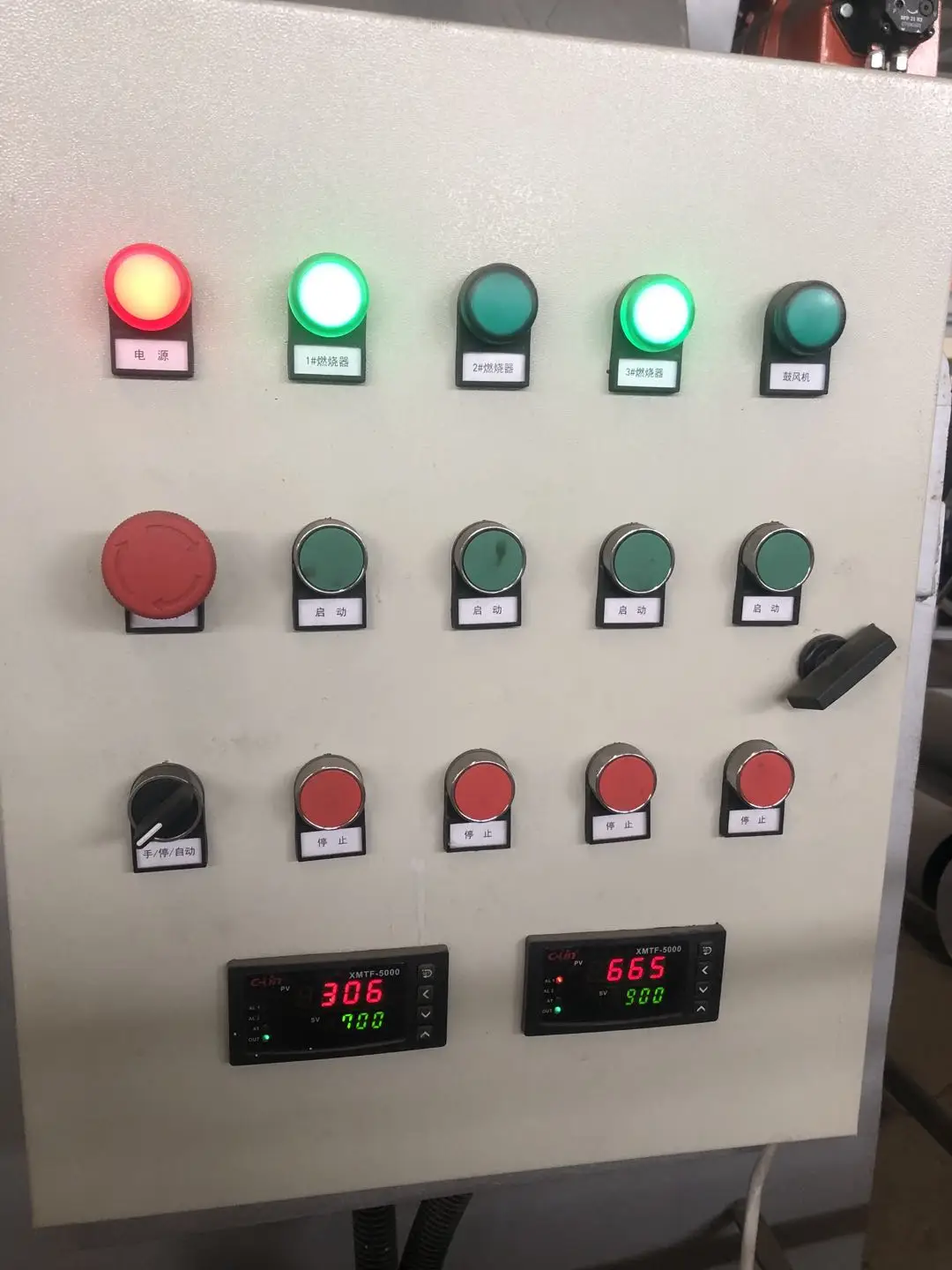

The whole treatment system content: combustion-supporting system, burn system, dust collector system, electrical system.
Furnace body type | Vertical closed furnace combustion chamber |
Ignition manner | Automatic |
Fuel type | 0# or-10# diesel or natural gas |
Feeding mode | Solid waste manual feeding |
Take ash manner | Manual |
Furnace inner pressure | Adopt negative pressure design, no back-fire,—3~—10mmH2O |
Design heat value | Waste mix 1500kcal/kg ~2500kcal/kg,0# diesel 10000kcal/kg |
Flue gas treatment manner | Gasification combustion chamber (first combustion chamber) + blower + mixed combustion chamber+ high temperature secondary combustion chamber + flue gas purification room (calcium hydroxide filter brick) +exhaust fan + independent chimney. |
Burning temperature | First combustion chamber: 600-900℃; Secondary combustions chamber:1300℃ Flue gas residence time≥2s |
Combustion efficiency | ≥99.99% |

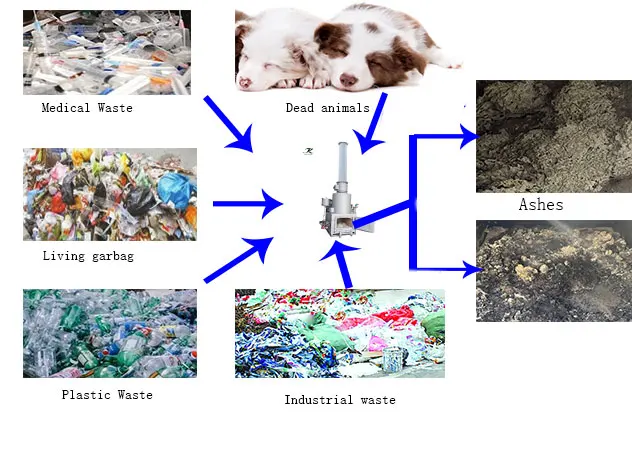

Application
Animal Waste cremation：
dead animal body and pets carcass,
Eg.dog,cat,chicken,duck,fish,birds,
cattle,etc.
Medical wastes treatment：
hospital wastes as bandage,swaps,needles,gauze,blood vessels,injection syringe,drop bottle, lab waste,expired drugs,infectious internal organ,napkin,diaper,mask,gloves,pharmaceutical waste,hazardous wastes, Laboratories wastes,healthcare waste.
Farm incinerators：
such as cattle farms,pig farms,sheep farms,stables,kennels,abattoirs,testing laboratories,catteries,pet
crematoriums and poultry farms ABP rendering plants&other waste disposals. Thus we manufacturer animal incinerator for animal
carcass incinerator ,sheep farms incinerator,cattle farms incinerator, cattle farms incinerator,poultry farms incinerator,pig
farms incinerator,stables incinerator,abattoirs incinerator, animal cremation incinerators.
crematoriums and poultry farms ABP rendering plants&other waste disposals. Thus we manufacturer animal incinerator for animal
carcass incinerator ,sheep farms incinerator,cattle farms incinerator, cattle farms incinerator,poultry farms incinerator,pig
farms incinerator,stables incinerator,abattoirs incinerator, animal cremation incinerators.
Household Wastes disposal：
rubbish,bottles,plastics,fruit peel ,kitchen, garbage, papers, trash, rags, leftovers, trees,leaves,lowers,roots,etc.
Industrial Waste burning treatment：
the general waste or solid waste produced in industrial area and factories and construction sites,environmental or recycling
facilities,landfills,manufacturing,mining,agricultural eg. rubber, plastic, fiber,
paper,leathers,wood,glass,electrical waste,general&material,domestic wastes or from industrial activities,solid incinerator for
solid waste in factories&construction sites.
facilities,landfills,manufacturing,mining,agricultural eg. rubber, plastic, fiber,
paper,leathers,wood,glass,electrical waste,general&material,domestic wastes or from industrial activities,solid incinerator for
solid waste in factories&construction sites.
Special Waste treatment：
waste oil,waste solvents,oil sludge,ash dust,iron paint,mold filter residue and so on.
Advantage:
1. It's easier to operate than other manufactures' incinerators. There is an automatic air blower inside of burner.It's for
protection burner, no need to operate it.When you close the burner,the air blower will be stop automatically at a certain time.
2. Low running&maintenance cost.The first burner of first consumption more longer than general burner,it's specially made of save fuel.
3. Environment friendly,Duel chamber design,there is no smoke,no smell,no pollution after waste burning.
4. The highest temperature can reach 1100-1300 degrees Celsius,which can achieve the effect of sterilization and disinfection.
5. Long service time.Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6. Be portable and cover a small area.
protection burner, no need to operate it.When you close the burner,the air blower will be stop automatically at a certain time.
2. Low running&maintenance cost.The first burner of first consumption more longer than general burner,it's specially made of save fuel.
3. Environment friendly,Duel chamber design,there is no smoke,no smell,no pollution after waste burning.
4. The highest temperature can reach 1100-1300 degrees Celsius,which can achieve the effect of sterilization and disinfection.
5. Long service time.Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6. Be portable and cover a small area.

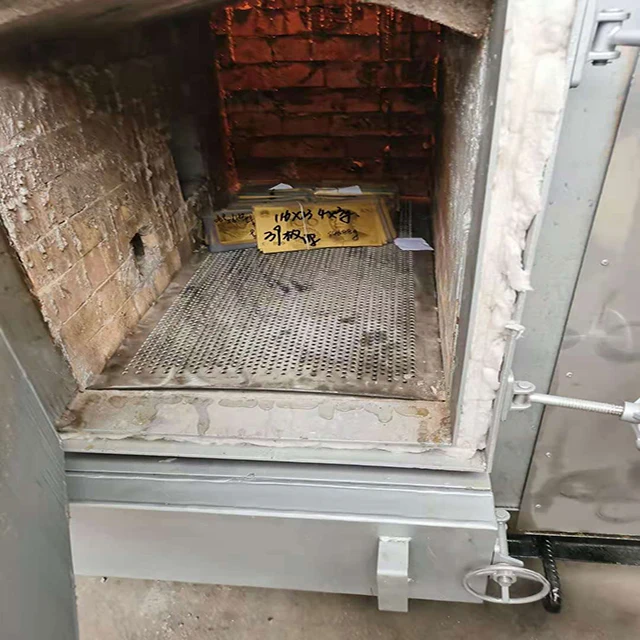

A combustion chamber inside the furnace chamber :
Make sure the furnace body is not hot when burning, and the surrounding workers will not feel very hot.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification
Type | Burning ability （Kg/Batch） | Size L*W*H( m) | Chimney diameter(mm) | Total power(KW) | voltage(V) | Weight(Kg) |
ZH-30 | 20-30 | 1.30*0.80*2.30 | 219 | 0.55 | 220 | 2000 |
ZH-50 | 30-50 | 1.46*1.00*2.59 | 280 | 0.55 | 220 | 2300 |
ZH-100 | 50-100 | 1.70*1.15*3.00 | 280 | 0.55 | 220 | 4000 |
ZH-150 | 100-150 | 1.80*1.30*3.20 | 280 | 0.55 | 220 | 5500 |
ZH-200 | 150-200 | 1.90*1.40*3.50 | 300 | 0.80 | 220 | 7000 |
ZH-300 | 200-300 | 2.10*1.55*3.80 | 400 | 0.98 | 220 | 8000 |
ZH-400 | 300-400 | 2.60*1.75*4.20 | 400 | 1.05 | 220 | 11000 |
ZH-500 | 400-500 | 3.00*2.00*4.80 | 500 | 1.05 | 220 | 13000 |

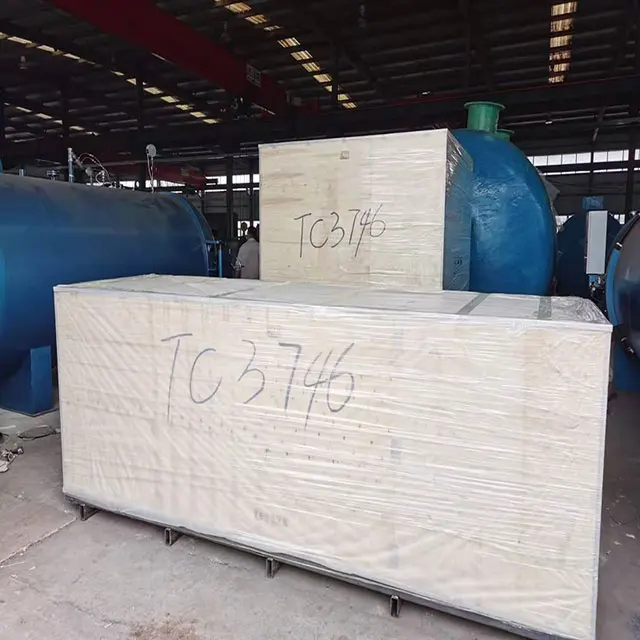

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Henan Zeheng Environmental Protection Technology Co., Ltd. founded in 2009, was successfully listed on the New Third Board in March 2016 (stock code: 8 3 5 9 9 3). With more than 86 employees, it is a professional environmental management service provider integrating environmental protection investment, sewage treatment operation, equipment manufacturing, sales and technology research and development. The company has industry-university-research cooperation with Zhengzhou University, and has a high-quality technical team composed of industry experts, professors, doctors and engineers. We are the first batch of national high-tech industry of environmental protection in Henan Province, and have obtained the certification of environment, quality and health management system. Our main products include M B R, M B B R intelligent integrated sewage treatment equipment, which has long service life, low operating cost, small footprint and easy operation. we have the core technology of the complete independent intellectual property rights of this series of products, and master 6 invention patents, 79 utility model patents. Our company has a workshop of 19,000 square meters, the first phase of the workshop has invested 300 million yuan, the annual output value of 300 million yuan. We adhere to the principle of mutual benefit and enjoy a good reputation among our customers because we provide professional service, high quality products as well as competitive prices. We warmly welcome customers at home and abroad to cooperate with us to achieve common success.

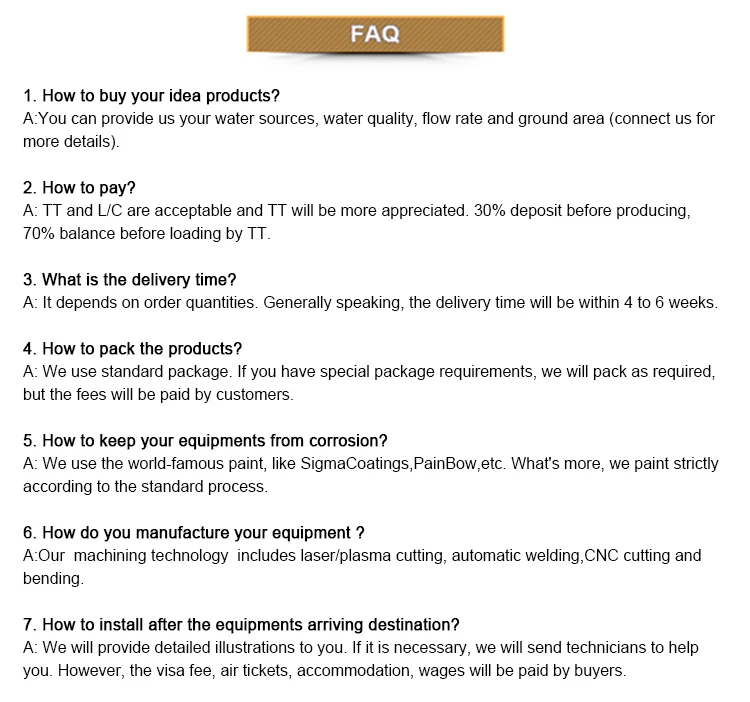

FAQ
