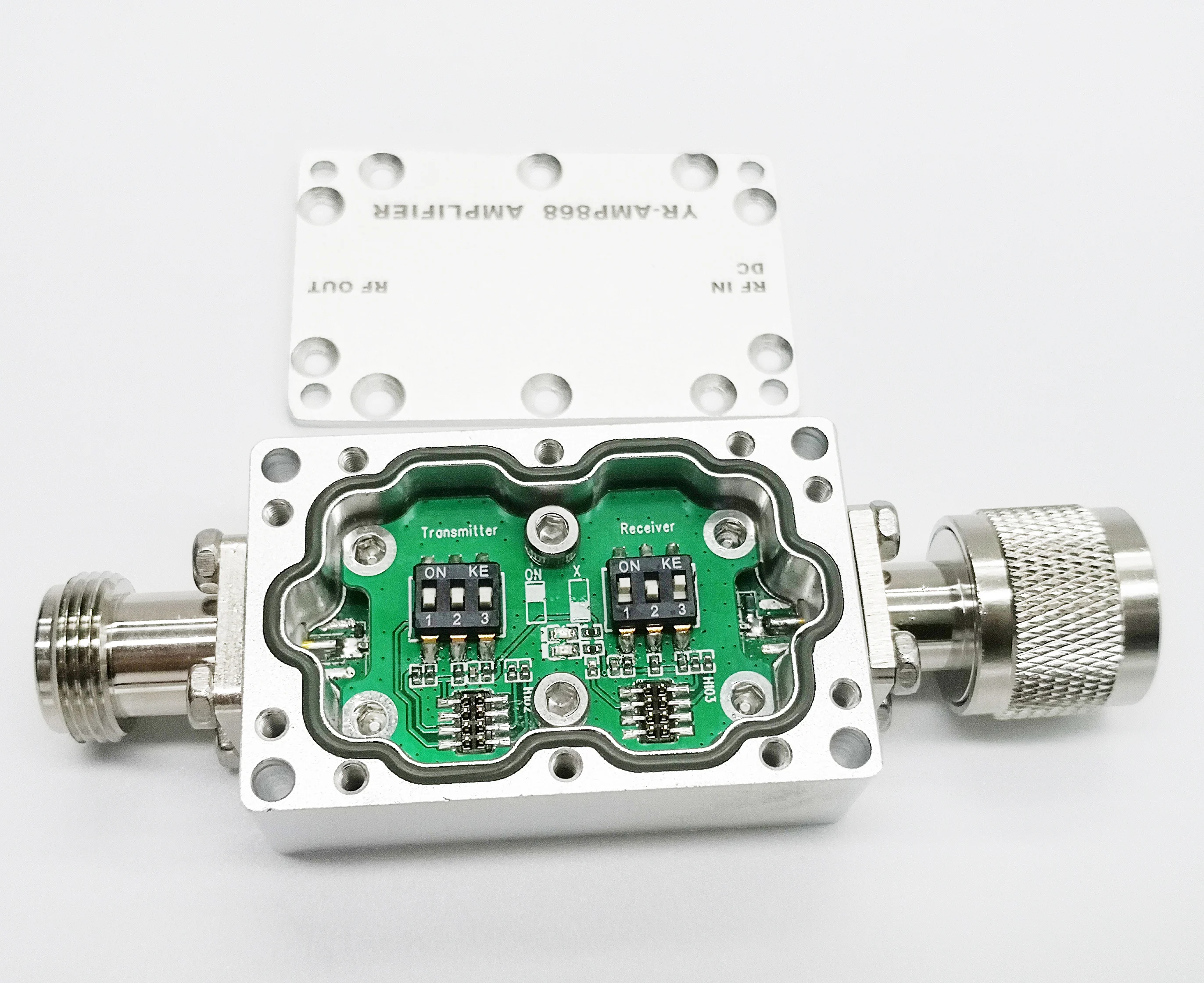

Best Verified Waterproof High Rejection Low Noise Figure Gain Adjustable 915Mhz RF Amplifier For Helium Hotspot Signal Booster
- Category: >>>
- Supplier: Shenzhen New Shining Technology Co. Ltd.
Share on (1600499311052):
Product Overview
Description
Product Description
Specification
Model Number | YR-AMP915 |
Working frequency | 902-928MHz |
Transmit Gain | 0-7dB Adjustable |
Receive Gain | 9-16dB Adjustable |
Noise Figure | ≤1.5dB |
Power Consumtion | RX ≤50mA, TX ≤500mA @12V DC |
Operating Temp | -40℃ to 85℃ |
Connectors | N male for antenna port, N female for radio port, or as per requirement |
Dimensions | 101*35*19.5(L*W*H, mm) |

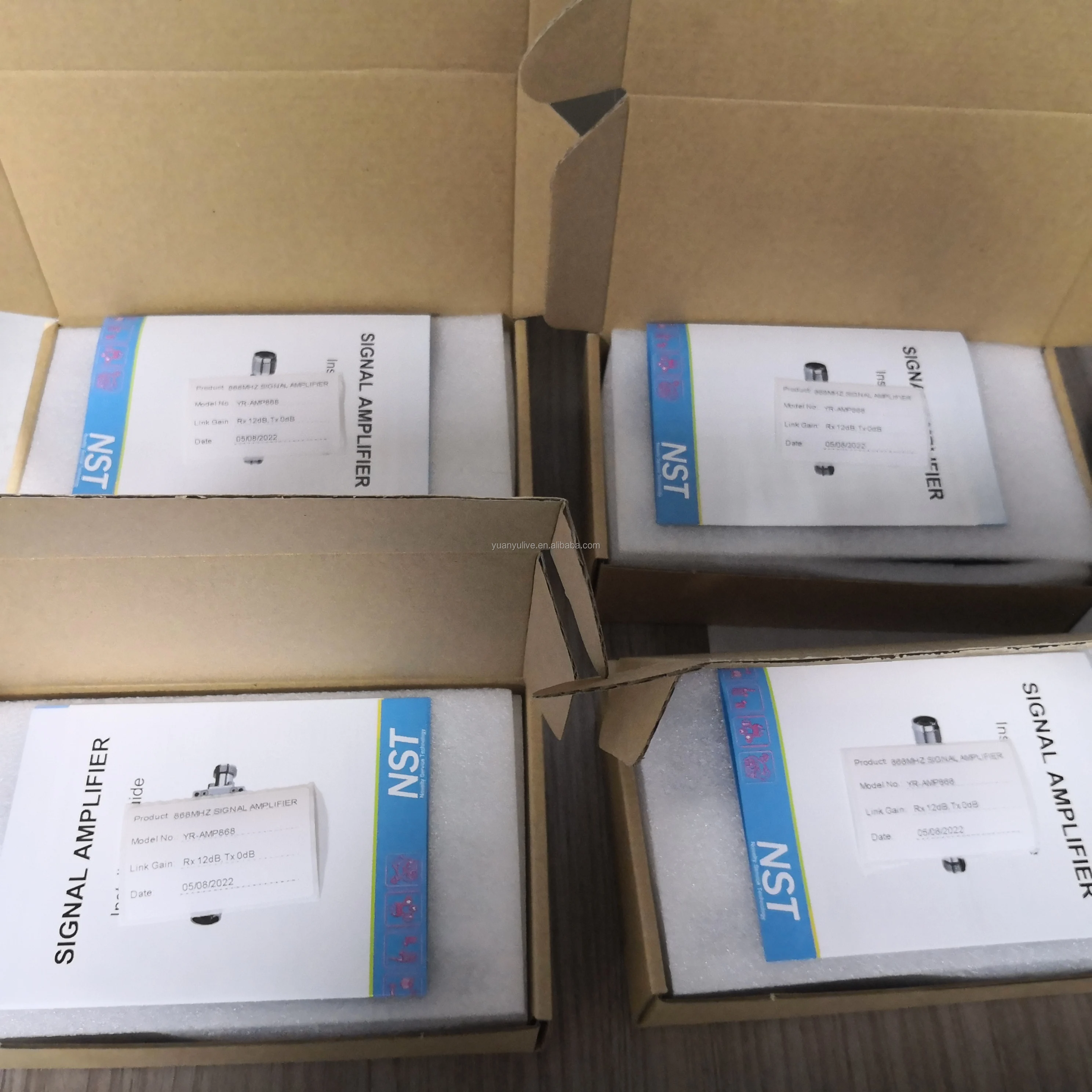

Packing & Delivery

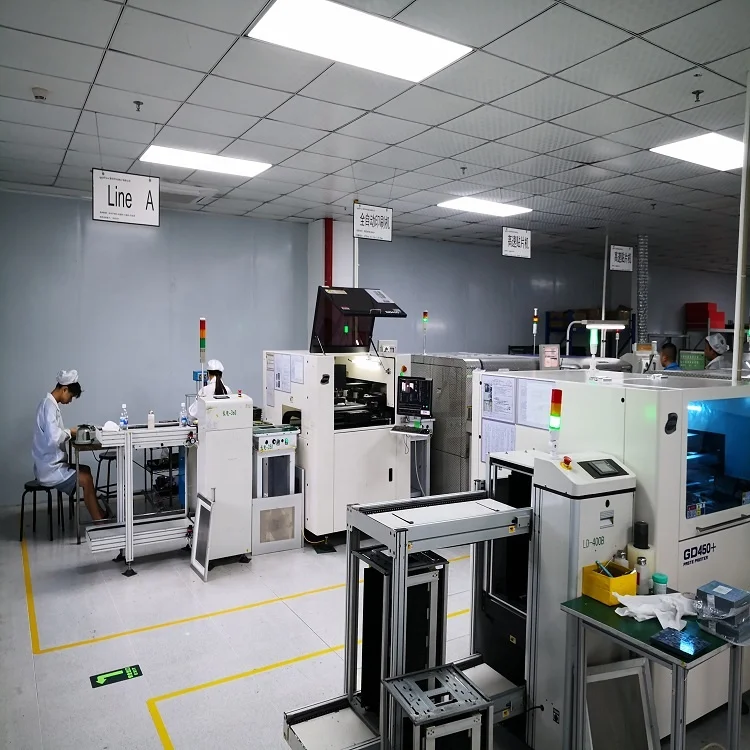

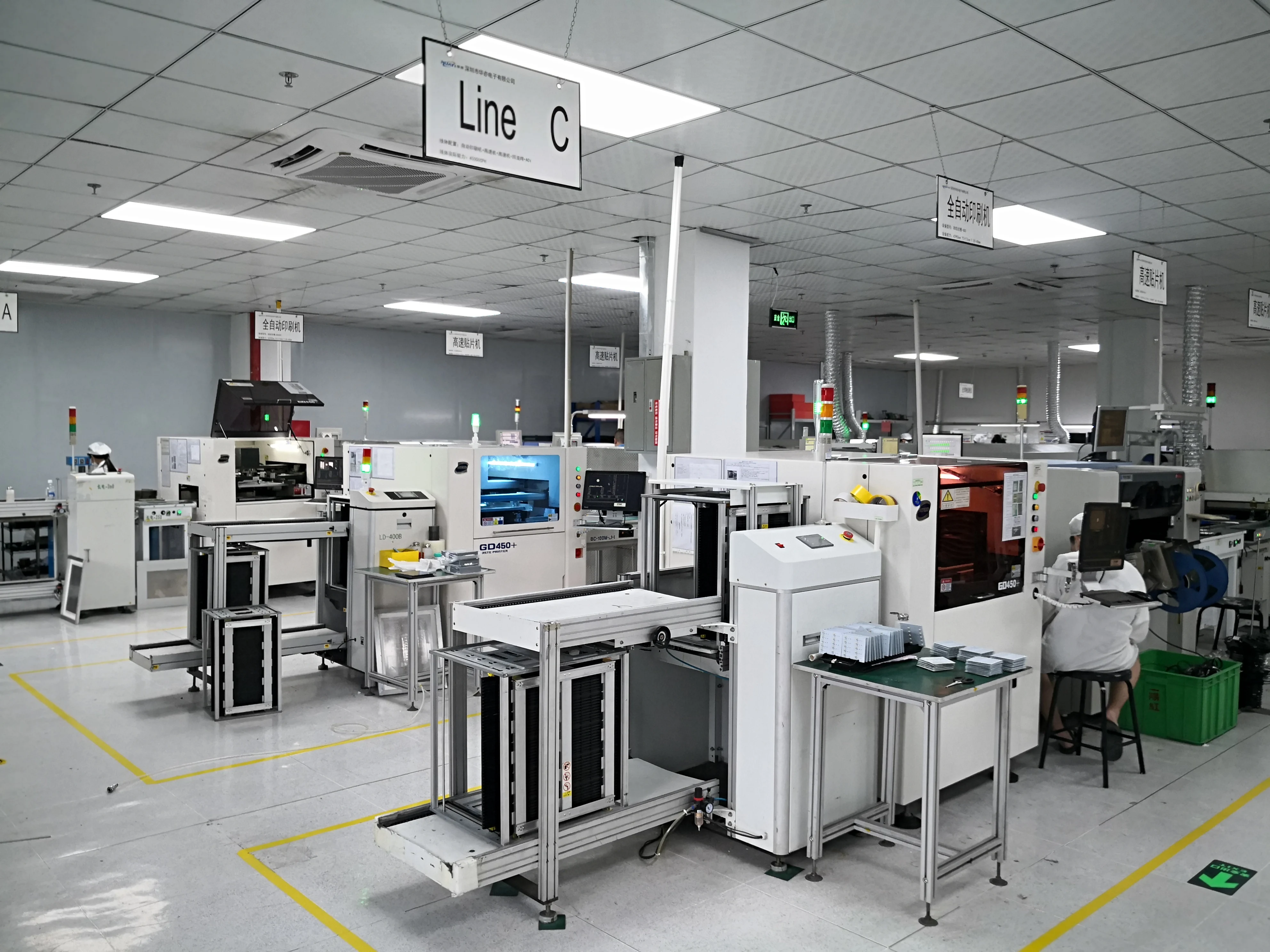

Company Profile
Shenzhen New Shining Technology Co, Ltd.(NST) is a professional RF products manufacturer and solution provider in Shenzhen, which is called the Silicon Valley of China. Our main products includes LoRa gateway and sensors, RF amplifier, bias tee, SAW filter, and high gain antenna, IOT wireless modules,etc. The core hardware and software team members come from famous RF products manufactuers like Hytera, ZTE, etc. with over 10 years RF R&D and manufacturing capability. NST constantly insists on the principle of "Novelty, Service, Technology", creates sustainable value for our customers all over the world.
FAQ
1. Why should I use the NST YR-AMP Amplifier?
- To significantly increase your witnessing area (Proof of Coverage)
- To enhance anti-interference of link
- To filter out of band noise, such as GSM 850 900Mhz Band
2. How our amplifier to make you earn more?
- LNA boosts up to 3x your area coverage
- Max.16dB gain and noise figure <1.5 overcompensates for cables loss
- Saw filters fitted remove out band noise
3. How to install and use?
- To significantly increase your witnessing area (Proof of Coverage)
- To enhance anti-interference of link
- To filter out of band noise, such as GSM 850 900Mhz Band
2. How our amplifier to make you earn more?
- LNA boosts up to 3x your area coverage
- Max.16dB gain and noise figure <1.5 overcompensates for cables loss
- Saw filters fitted remove out band noise
3. How to install and use?
Connect the amplifier the closest to the antenna the better, then connect your cables to bias tee and Helium hotspot.
Antenna>Lightning Arrestor(if added)>Amplifier>Bias Tee>Hotspot
Antenna>Lightning Arrestor(if added)>Amplifier>Bias Tee>Hotspot
{ Outdoors }

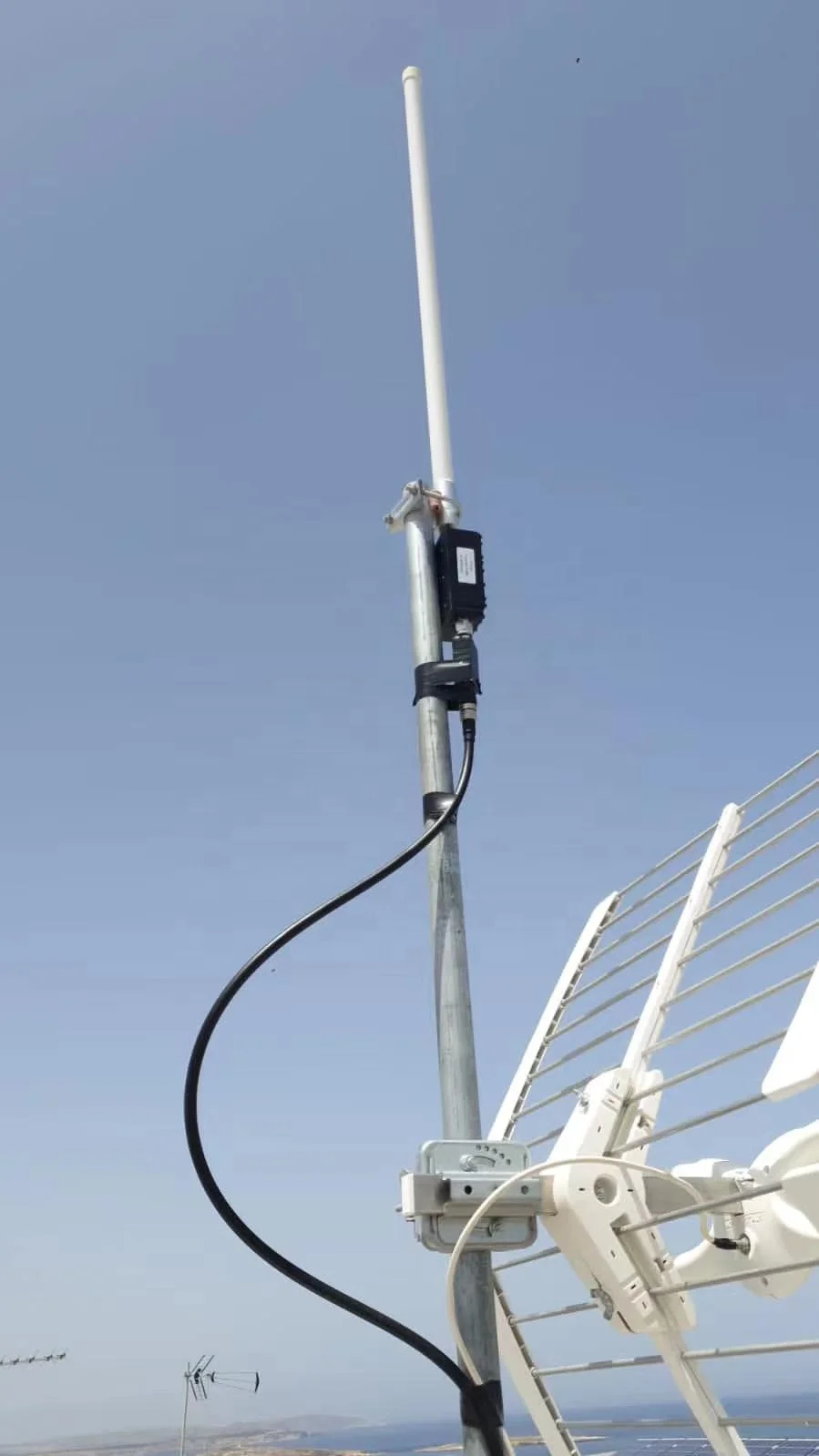

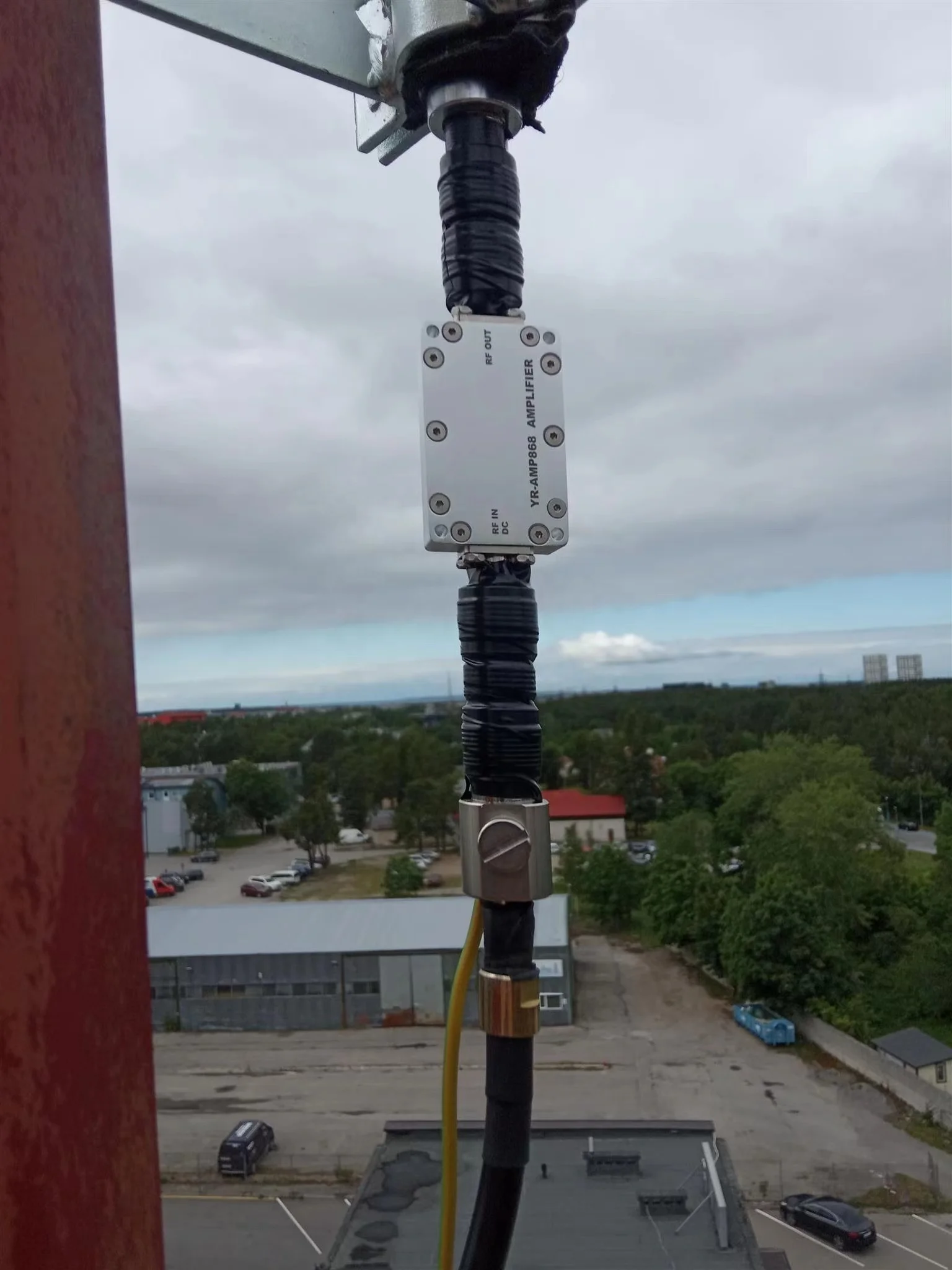

4. Can I use it outdoors?
Of course.Our amplifier is IP67 waterproof, and can be installed right beneath antenna to reach optimal insertion loss performance. All you need to care about is to well seal the connectors of both ends with waterproof electrical tape.
5. Are a Bias Tee and AC/DC adapter required?

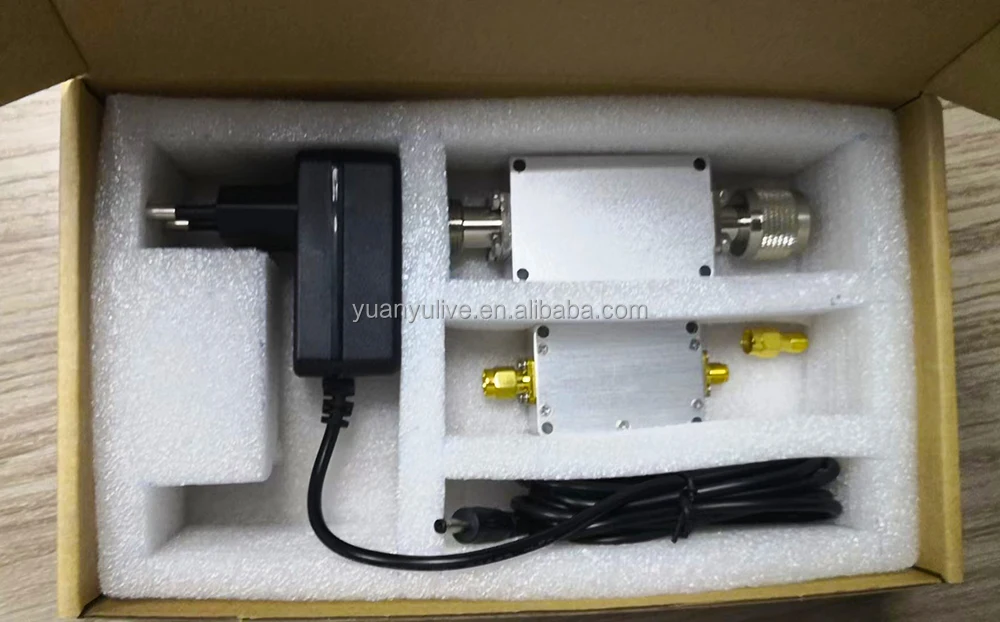

Yes, it is required to use an AC/DC adapter and a Bias Tee to inject 12V 0.5A DC power supply to amplifier. If you do not have them yourself, choose our amplifier kit option(includes amplifier x1, bias tee x1, and 6V/12V AC/DC adapter x1 ).
Note: Bias Tee is is a passive coaxial component, which is mainly used in applications where DC current or voltage needs to be injected into the RF circuit without affecting the RF signal passing through the main transmission path.
4. Can I use it outdoors?
Of course.Our amplifier is IP67 waterproof, and can be installed right beneath antenna to reach optimal insertion loss performance. All you need to care about is to well seal the connectors of both ends with waterproof electrical tape.
5. Are a Bias Tee and AC/DC adapter required?
Yes, it is required to use an AC/DC adapter and a Bias Tee to inject 12V 0.5A DC power supply to amplifier. If you do not have them yourself, choose our amplifier kit option(includes amplifier x1, bias tee x1, and 6V/12V AC/DC adapter x1 ).
Note: Bias Tee is is a passive coaxial component, which is mainly used in applications where DC current or voltage needs to be injected into the RF circuit without affecting the RF signal passing through the main transmission path.
