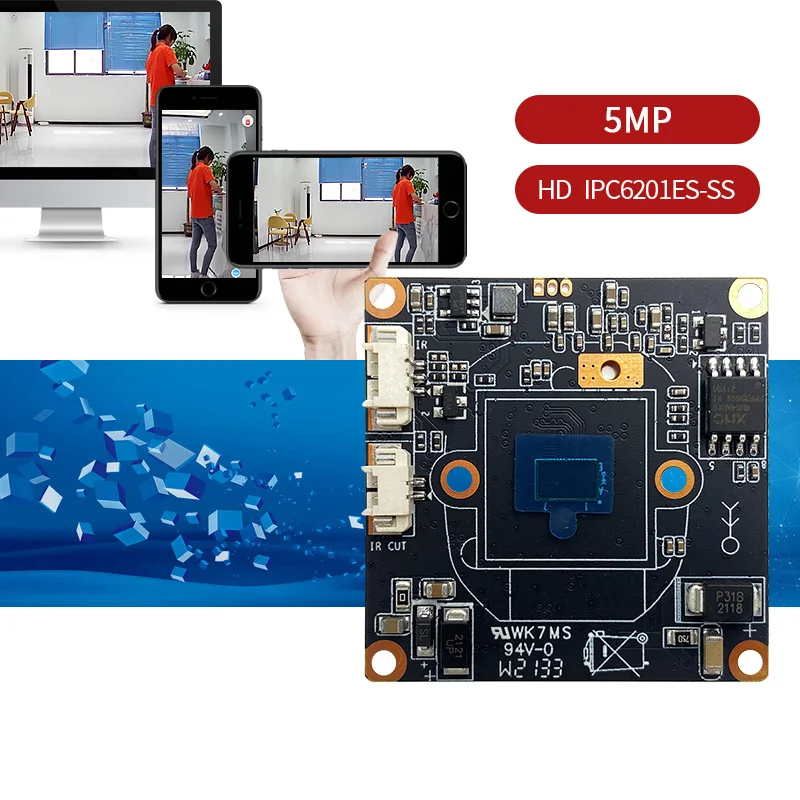

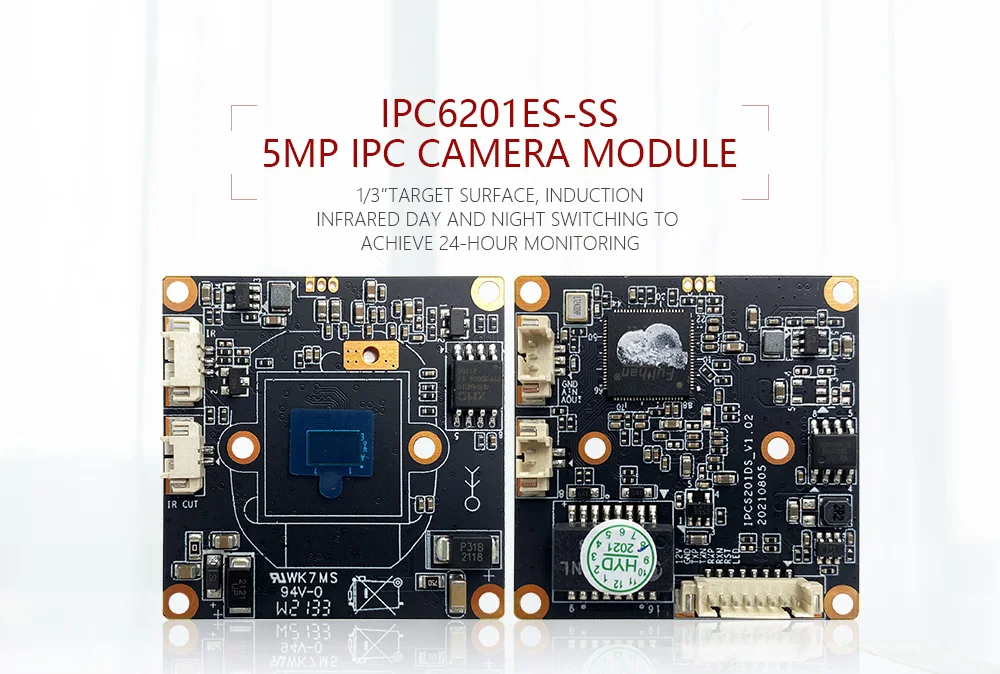

New item 5MP IPC6201ES SS CMOS Sensor IPC board camera module Dual light source Support smart and multi browser
- Category: >>>
- Supplier: Hangzhou Topsvision Technology Co. Ltd.
Share on (1600499318786):
Product Overview
Description
We have our own factory and professional R&D team, worry-free after-sales.
Welcome to visit the factory! Looking forward to working with you！
333
Product Description
Features
* Fullhan FH8852V200 chip;
* 5MP pixels, 1/3" target surface, standard,38mm*38mm board;
* Support H.264/H.265, dual stream (main stream and auxiliary stream) output;
* Support IE, Edge,Chrome,Safari browser browsing;
* Support audio input and output, realize video monitoring;
* Support inductive infrared day and night switching to achieve 24-hour monitoring;
* Support human form detection;
* Support many protocols such as onvif protocol and Haikang private protocol, and can access many large-scale platform management systems at home and abroad;
* Support mobile phone monitoring (iOS, Android), Web terminal, VMS monitoring;
* Support PoE power supply (optional);
* 5MP pixels, 1/3" target surface, standard,38mm*38mm board;
* Support H.264/H.265, dual stream (main stream and auxiliary stream) output;
* Support IE, Edge,Chrome,Safari browser browsing;
* Support audio input and output, realize video monitoring;
* Support inductive infrared day and night switching to achieve 24-hour monitoring;
* Support human form detection;
* Support many protocols such as onvif protocol and Haikang private protocol, and can access many large-scale platform management systems at home and abroad;
* Support mobile phone monitoring (iOS, Android), Web terminal, VMS monitoring;
* Support PoE power supply (optional);

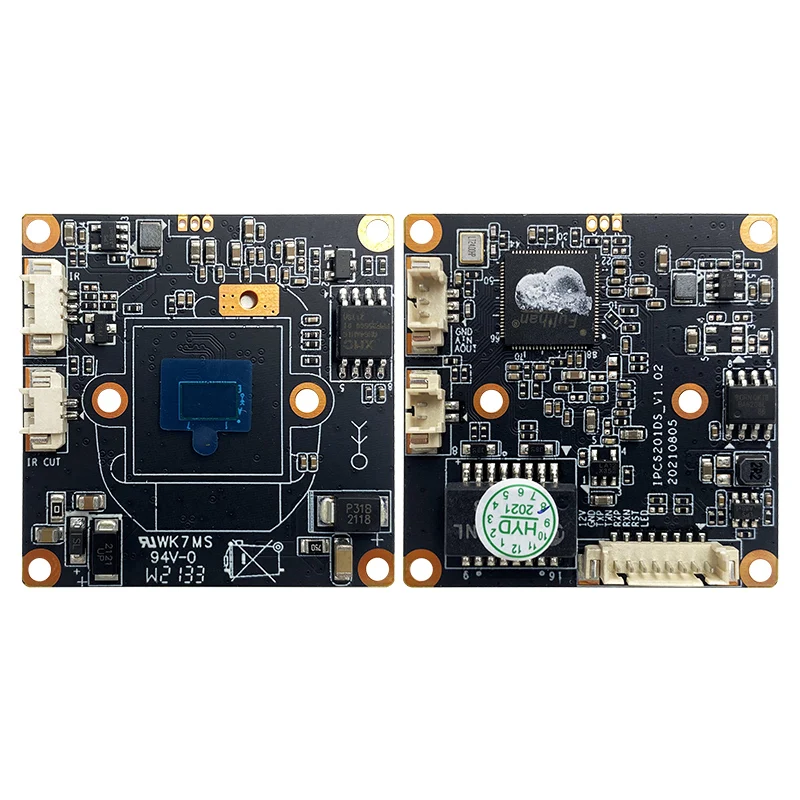

INTERFACE DESCRIPTION
Front |
J1 (3PIN 1.25mm pitch socket, infrared control interface) | ||
1 | IRC (Infrared control signal output) | |
2 | CDS (Ordinary infrared light board interface) | |
3 | PWM (Warm light control signal) | |
J2 (2PIN 1.25mm pitch socket, IR_CUT interface) | ||
1 | IR-CUT-A (red line) | |
2 | IR-CUT-B (black line) | |
Reverse |
J3 (3PIN 1.25mm pitch socket, audio interface) | ||
1 | AUDIO_OUT | |
2 | AUDIO_IN | |
3 | GND | |
J4 (8PIN 1.25mm pitch socket, power input and network interface) | ||
1 | DC 12V | |
2 | GND | |
3 | RJ1 (Tx+ Tranceive Data+) | |
4 | RJ2 (Tx- Tranceive Data-) | |
5 | RJ3 (Rx+ Receive Data+) | |
6 | RJ6 (Rx- Receive Data-) | |
7 | Empty | |
8 | LED1 (Tail line ACT light) | |
PRODUCT PARAMETER | ||
Module | IPC6201ES-SS | |
Main chip | FH8852V200 | |
Sensor | 5MP pixel , 1/3″ CMOS sensor | |
Encoding format | H.264, H.265 encoding, support dual stream | |
Maximum frame rate | PAL:5M:20fps/s; 4M:25fps/s; 2M:25fps/s; NTSC:5M:20fps/s;4M:25fps/s; 2M:30fps/s | |
Image Resolution | Main stream: 2880*1620,2560*1440,1920*1080； Auxiliary stream: 704*576,640*480,352*288 Snap stream: 704*576,640*480,352*288 | |
Subtitle overlay | Support channel name, date and time overlay, overlay position is adjustable | |
Alarm data transmission | FTP, E-mail, browser, management software | |
Protocol support | TCP/IP,RTSP,RTP,HTTP,DNS,DDNS,DHCP,FTP,NTP,UPNP | |
ONVIF protocol | Standard ONVIF protocol | |
Client browsing | Client browsing supports IE8.0 and above (device embedded Web Server), Edge,Chrome,Safari browser browsing | |
Mobile client | Support iOS, Android platforms | |
Audio format | G.711A | |
Audio input | 1 audio input | |
Audio output | 1 audio output | |
Powered by | DC12V | |
Equipment power | Bare board 1.2W (MAX) | |
Dimension | 38(L) * 38(W) | |
IR-CUT hole distance | 20mm | |
Equipment weight | 0.1 kg | |
Used in many occasions
