UV CTP plate factory CTCP price PS thermal ps offset plates negative photopolymer violet plates for news
- Category: Printing Plates >>>
- Supplier: Henan,Huida,Print-All,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
HUIDA Offset Positive CTCP Plate is specifically designed for the commercial printing and newspaper printing, excellent dot reappearance, clear stratified structure, ink-water balance,long run-length and wide adaptability.
Product Type | Positive CTCP Plate（ UV-CTP） |

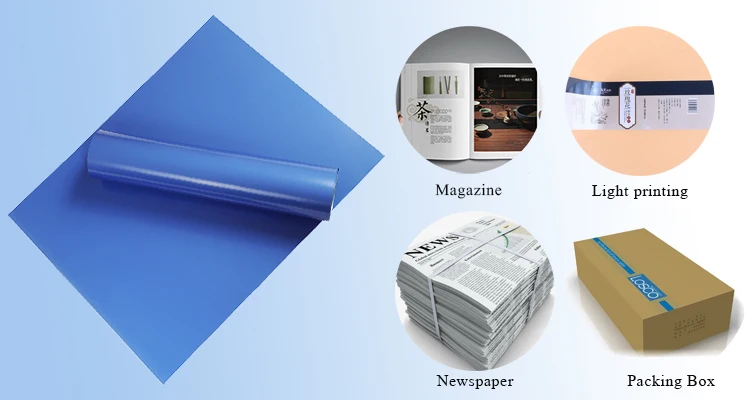

Application Type | Commercial Printing,Newspaper Printing and Light Printing |
Plate Features | 1.First-class Aluminum Substrate, 99% 1060 H18 CTP Aluminum Alloy 2. Close-grained Oxidation Layer –Outstanding dot reproduction and high pressrun 3.Perfect Hydrophilic Layer-Substainable Ink-water Balance 4.Unique Photosensitive Coating-High and fast Sensitivity 5. Large exposure and developing latitude, fit for any printing conditions |
Compatible Plate setter | Basysprint, Luscher, Cron, Amsky,etc. |
Aluminium Coil width | Aluminium Group Alloy 1050/1060 CTP aluminium coil |
Plate Thickness | 0.15mm ,0.2mm,0.25mm,0.30mm,0.40mm |
Maximum Coil Width | 1350mm |
Spectral Sensitivity | 405-410nm UV laser |
Exposure Energy | 50-60mj/c㎡ |
Developing Temperature | 20±5℃ |
Developing Time | 25±5 sec |
Safe-light | Under yellow light |
Resolution | 1-99% at 200lpi |
Run Length | 100,000 copies unbaked,200,000 copies after baking (Actual run length may vary according machine,ink,paper conditions) |
Shelf Life | 18 months under the recommended storage conditions |
Storage Conditions | 10-25℃,with 40%--60% humidity, stock height less than 1.5m. Away from sunlight radiation &direct sunlight, Anti-humidity, Anti-acid &alkali |
1.First-class Aluminum Substrate, 99% 1060 H18 CTP Aluminum Alloy
2. Close-grained Oxidation Layer –Outstanding dot reproduction and high pressrun
3.Perfect Hydrophilic Layer-Substainable Ink-water Balance
4.Unique Photosensitive Coating-High and fast Sensitivity
5.Large exposure and developing latitude, fit for any printing conditions
Exposing | ||
Plate setters | Luscher ,Basysprint,Cron, Amsky,etc.. | |
Exposure energy | 50-60mJ/cm | |
Spectral Sensitivity | 405-410nm uv laser | |
Resolution | 1-99% at 200 LPI | |
Image color | blue | |
Company advantage
Henan Huida Print-all Digital Material Technology Co., Ltd., established in 2003, covers an area of 103 acres, an investment scale of 170 million CNY, 210 production staff, 21 senior technical researchers, 35 patent certifications, our products are all In line with international standards, exported to Eastern Europe, ASEAN, the Middle East, South America, Africa and so on more than 10 countries. With 3,000 tons of raw materials reserves, 2 million square meters of finished products storage, 30 million square meters of annual production, to ensure timely supply of products. 13 years experience in CTP / CTCP / PS plates production, introduction of the United States Kodak thermal plate making machine, Japanese Screen thermal plate making machine, Corn CTCP plate making machine, Taiwan Grafmac developing machine, Denmark Glunz& Jensen developing machine and so on full set of plate making, developing, testing equipments, triple testing, man-machine combination, to ensure that each piece of plate’s quality. Our one-to-one customer service system, to provide you with one-stop service.

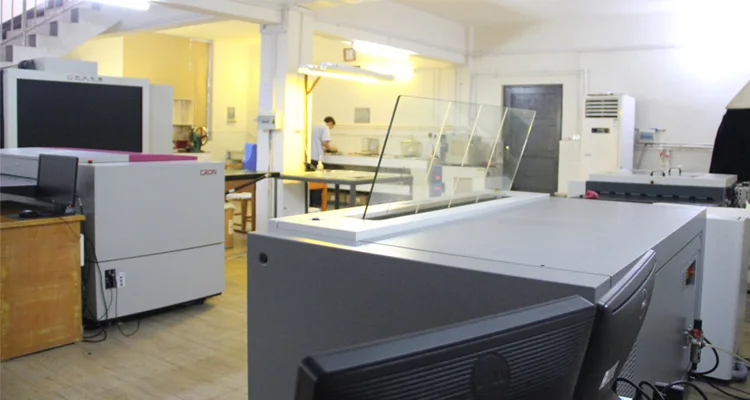

More than 3 million CNY of scientific research quality testing input: the United States Kodak thermal plate making machine, Japanese Screen thermal plate making machine, Corn CTCP plate making machine, Taiwan Grafmac developing machine, Denmark Glunz& Jensen developing machine and so on full set of plate making, developing, testing equipments. 21 high-tech research and development quality testing personnel, to ensure that our product quality fullproof, to ensure our products continue to innovate!
222
After strict quality testing of products, then use impervious waterproof kraft paper packaging, with wode reinforcement into the carton, stick well lable, according to the requirements of height stacking, outer packing a layer of waterproof moisture-proof plastic wrap and reinforcement package, shipped away.
FAQ
Q:When can I get the price?
A:We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are
very urgent.
Q.Can we get samples for testing?
A: We can provide you with free samples, you only need to bear the freight. If your first purchase quantity meets our requirements, we can apply for you more favorable price.
Q.How long is the production time of the goods?
A: Our warehouse has sufficient regular sizes stocking, ready to delivery. And we have a lot of raw materials storage, customer specifications can be arranged in a timely manner production, delivery can be made within 7-10 days.
Q.How to do the problems of product in the printing process?
A: We have a professional technical team, will be online to solve the use of the process encountered various problems. If can not be resolved online, technical staff will arrange timely home visits.
