8 Pin Mini Usb Connector electric conector for high quality
- Category: >>>
- Supplier: Zhejiang Kuaili Electronic Co. Ltd.
Share on (1600499334771):
Product Overview
Description
| Rated current | Content |
| Series | 3.96 Series Pressure welding Bar Connector(3.96mm) |
| PLACE OF ORIGIN | ZHEJIANG,CHINA(MAINLAND) |
| PRODUCT NAME | 3.96 model 3.96mm 7 pin housing terminal Connector |
| ROW | Single row |
| POLES | 2-15P |
| PITCH | 3.96mm |
| MATERIAL | PA66 & Brass Tin |
| COLOR | White |
| FEATURES | Fire-proof, Flame retardancy |
| RATED VOLTAGE | 250V AC,DC |
| RATED CURRENT | 5A |
| CONTACT RESISTANCE | 20mΩ MAX |
| INSULATION RESISTANCE | 1000MΩ MIN |
| WITHSTAND VOLTAGE | 1000V AC/min |
| WORKING TEMPERATURE | -25℃~85℃ |
| APPLICABLE WIRES | AWG#22~#18 |

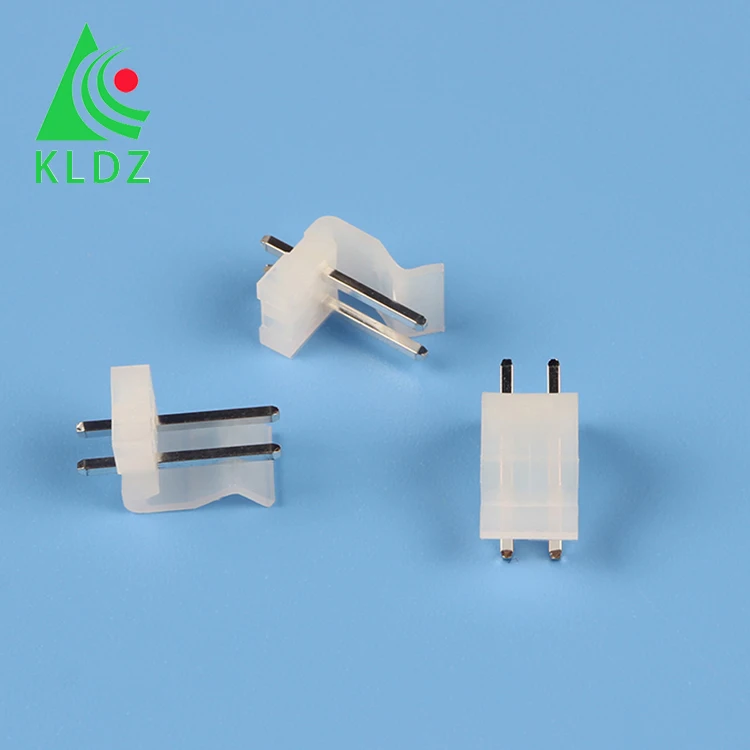

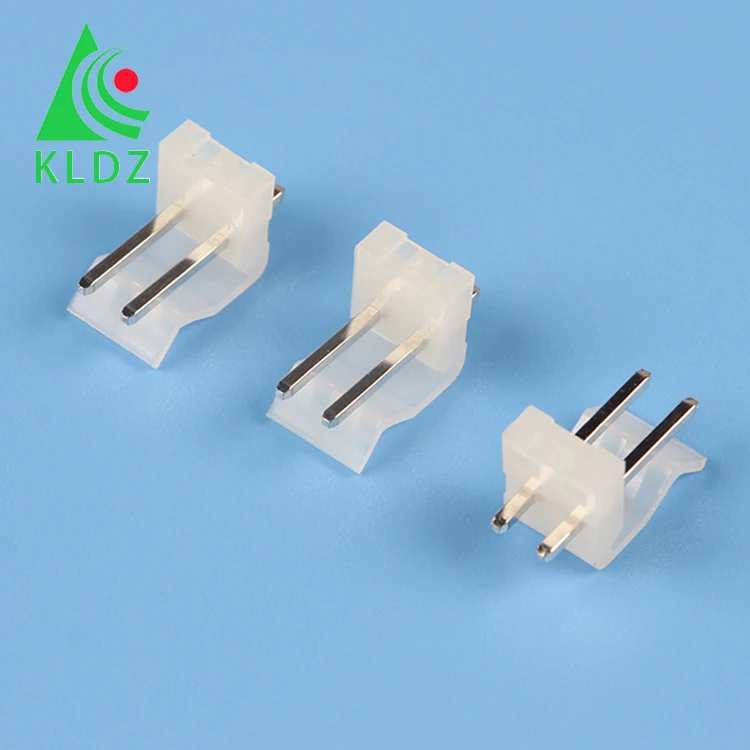

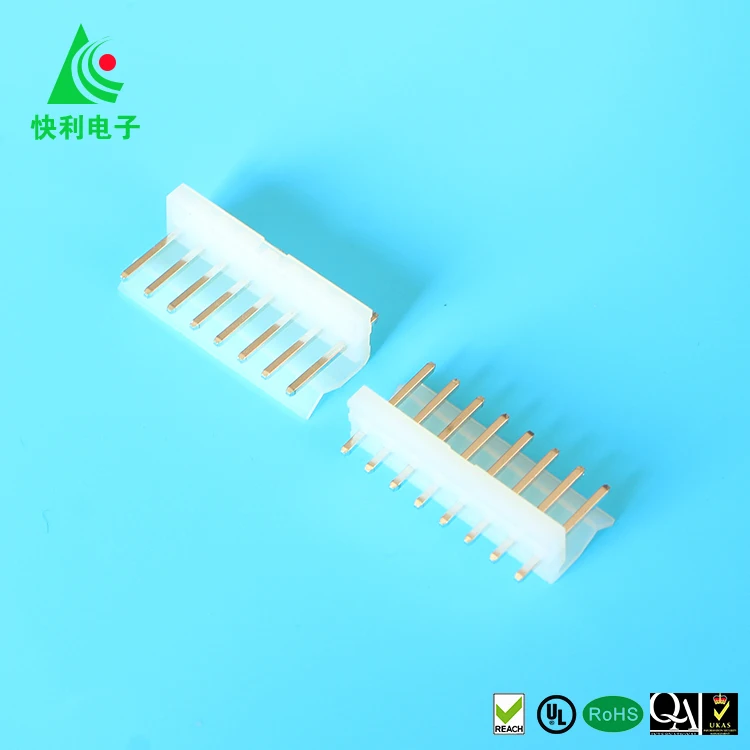

WAFER
Part No.:3.96-NA, 3.96-NAW, 3.96-NAWG
Housing: PA66 UL94V-0(2)
Contact: Brass,Tin plated
Solder lug: Phos. Bronze, Tin plated.

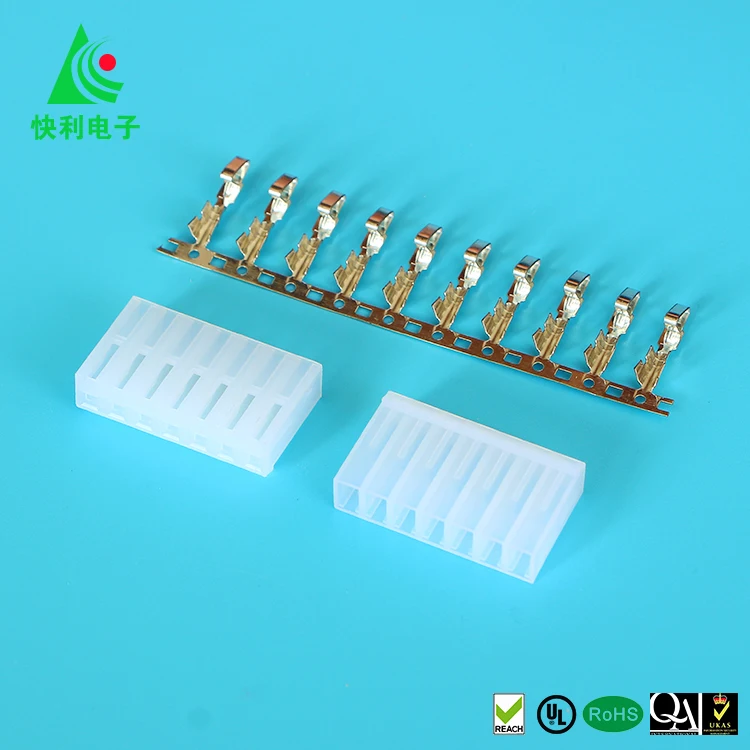

HOUSING
Part No.:3.96-NY
Material: PA66 UL94V-0(2)
TERMINAL
Part No.: 3.96-TE
Material: Phos. Bronze,Tin Plated
Company Profile
Certifications
Our Services
Packing & Delivery

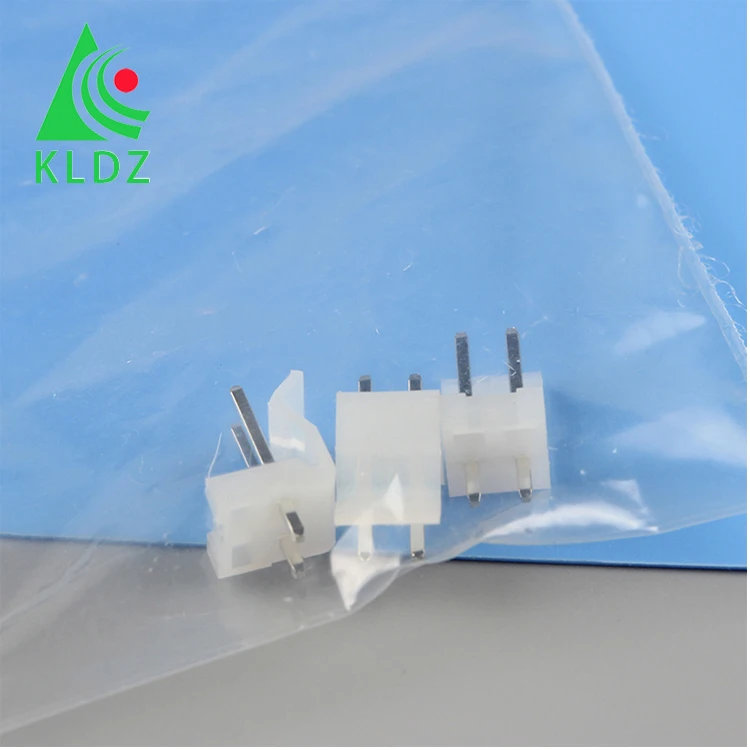

Packing
We made a lot of customized products for our customer before . And we made many moulds for our customers already . About customized packing,we can put your Logo or other info on the packing.It is no problem . Just have to point out before quotation , it will cause some additional cost,thank you for your understanding.
Delivery
We have a lot of products in stock.We can send the stock products in 1 work days .If without stock,or stock is not enough, we will check the delivery time with you .
