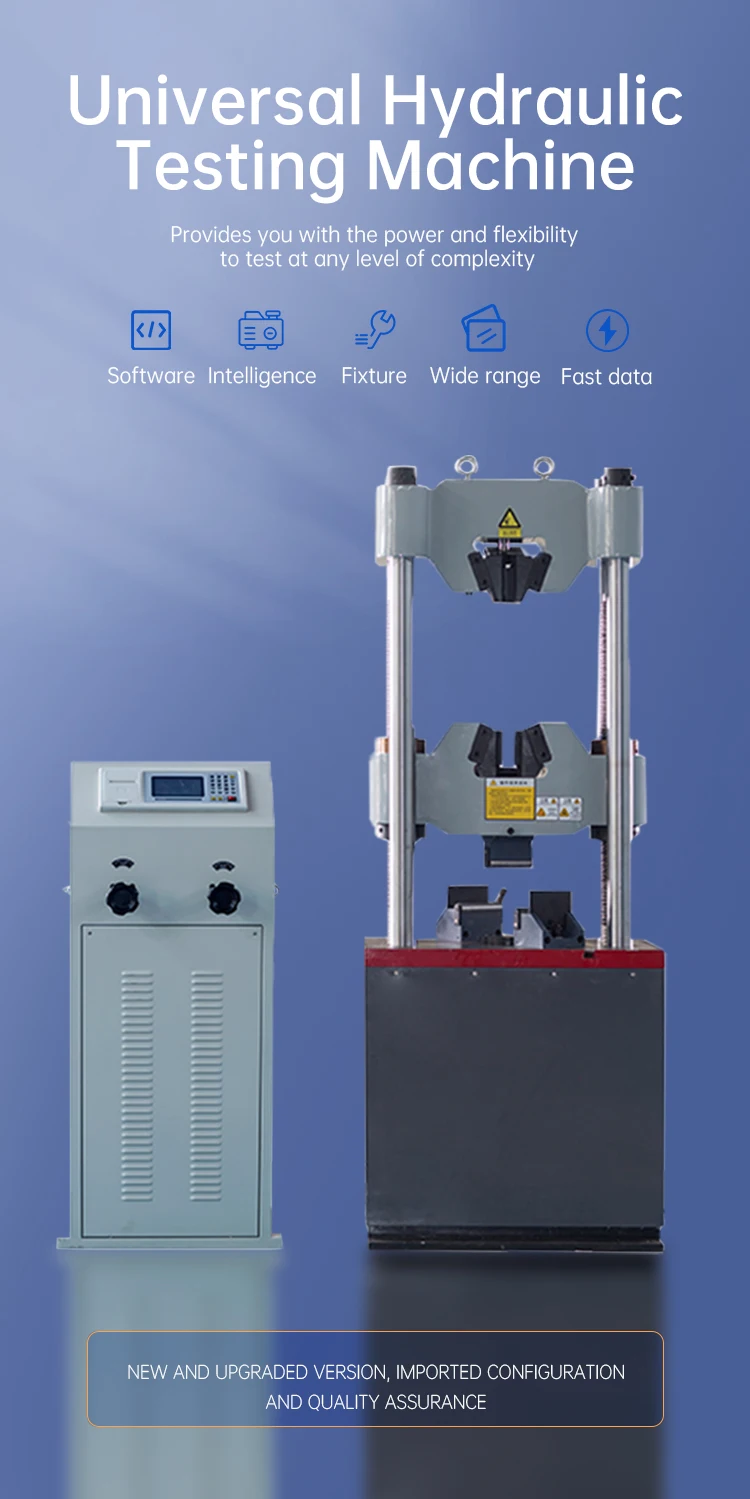

Hydraulic Metal Steel Industry Testing Equipment
- Category: >>>
- Supplier: Xiamen East Instrument Co. Ltd.
Share on (1600499351356):
Product Overview
Description
Online Customization
This series of testing machine can be used for material stretching, compression and bending tests in this environment if the environmental device is added. For example: high temperature stretching, low temperature stretching, compression and other tests.
It is applicable to iron and steel, metallurgy , building materials, quality inspection centers, water conservancy and hydropower, highway bridges, research institutes, colleges and universities mechanics and other factories and mines and testing and research institutions.
| Model | STD-106W | STD-306W | STD-606W | STD-1006W | STD-2006W | ||||||
| Structure | 6 column | ||||||||||

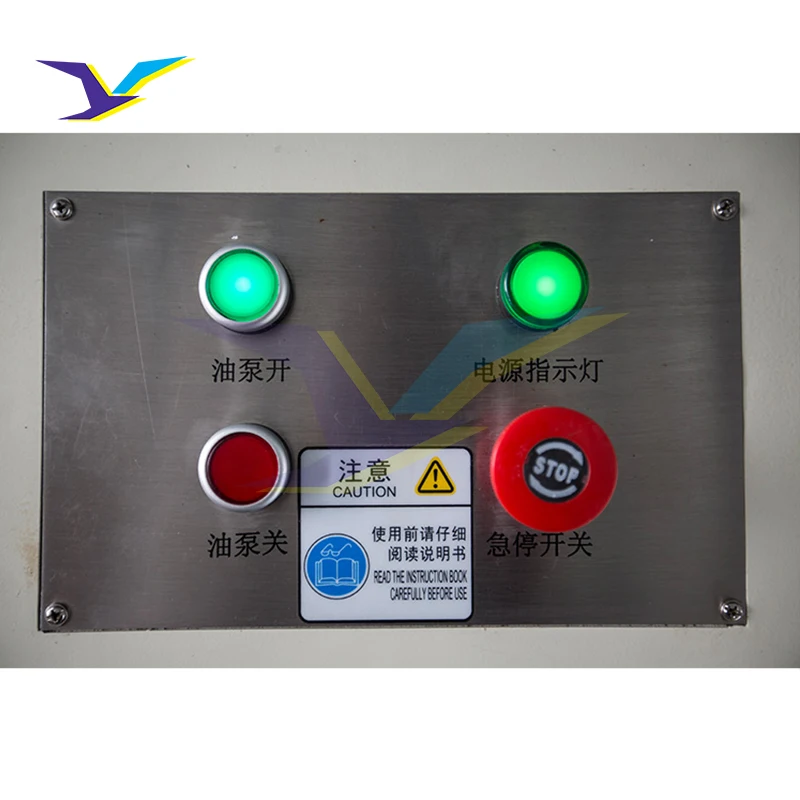

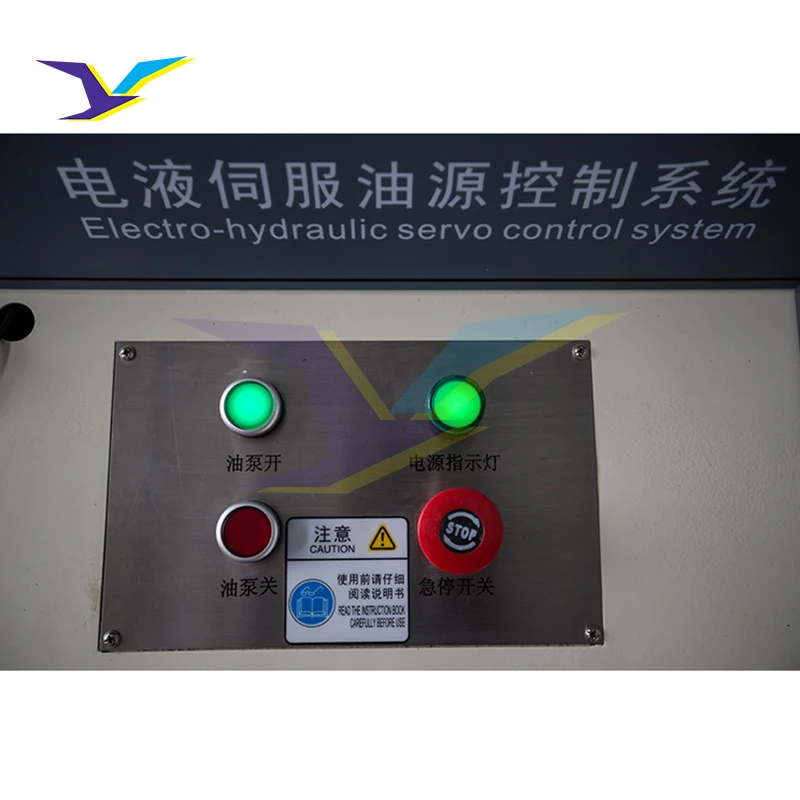

| Control mode | loading process manual control,computer automatic data dealing | ||||||||||
| Max. Load | 100KN | 300KN | 600KN | 1000KN | 2000KN | ||||||
| Tension test space | 650mm | 750mm | |||||||||
| Compression Test Space | 500mm | 600mm | |||||||||
| Round specimen clamping diameter (mm) | Φ4-Φ21 | Φ10-Φ32 | Φ13-Φ40 | Φ13-Φ50 | Φ15-Φ70 | ||||||
| Flat specimen clamping thickness (mm) | 0-15mm | 0-30mm | 0-60mm | ||||||||
| Flat specimen clamping width | 70mm | 75mm | 85mm | ||||||||
| Compression plate size | φ160mm/φ240mm | Φ240mm | |||||||||

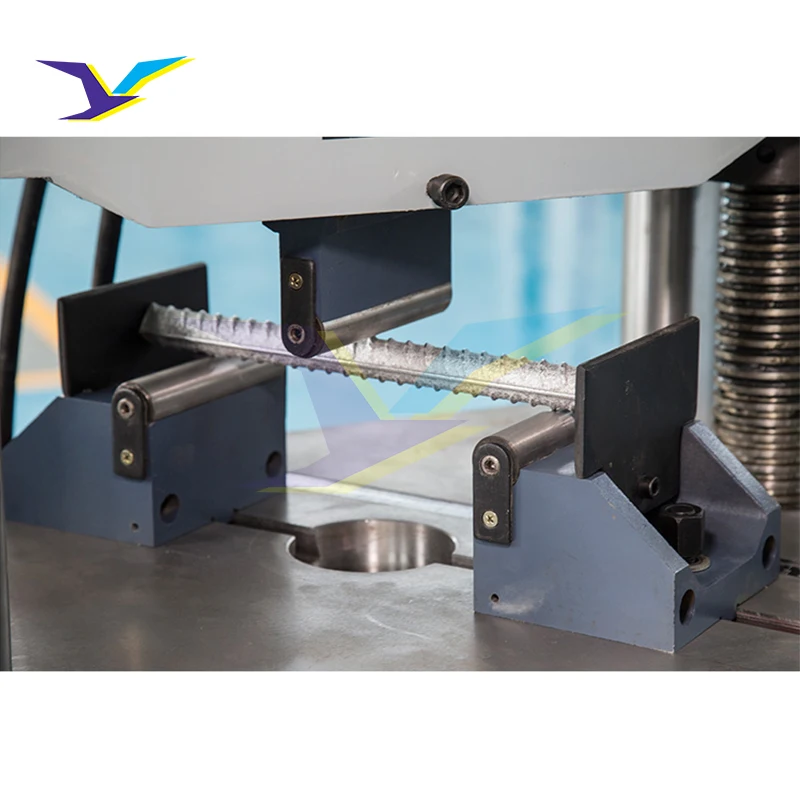

| Bending roller distance | 450mm | ||||||||||
| Width of bending rollers | 120mm | 160mm | |||||||||
| Load accuracy | ≤±1% or ≤± 0.5% | ||||||||||
| Load range | 2%-100%of Full Scale or 0.4%-100% of Full Scale | ||||||||||
| Load resolution | 1/300000 of Full Scale | ||||||||||
| Deformation Measurement Range | 2%~100% of Full Scale | ||||||||||
| Deformation accuracy | ≤±1% or ± 0.5% | ||||||||||
| Displacement resolution | 0.01mm | ||||||||||
| Displacement accuracy | ≤±0.5% | ||||||||||
| Piston stroke | 250mm | ||||||||||
| Lifting speed of mobile beams | 150mm/min | ||||||||||

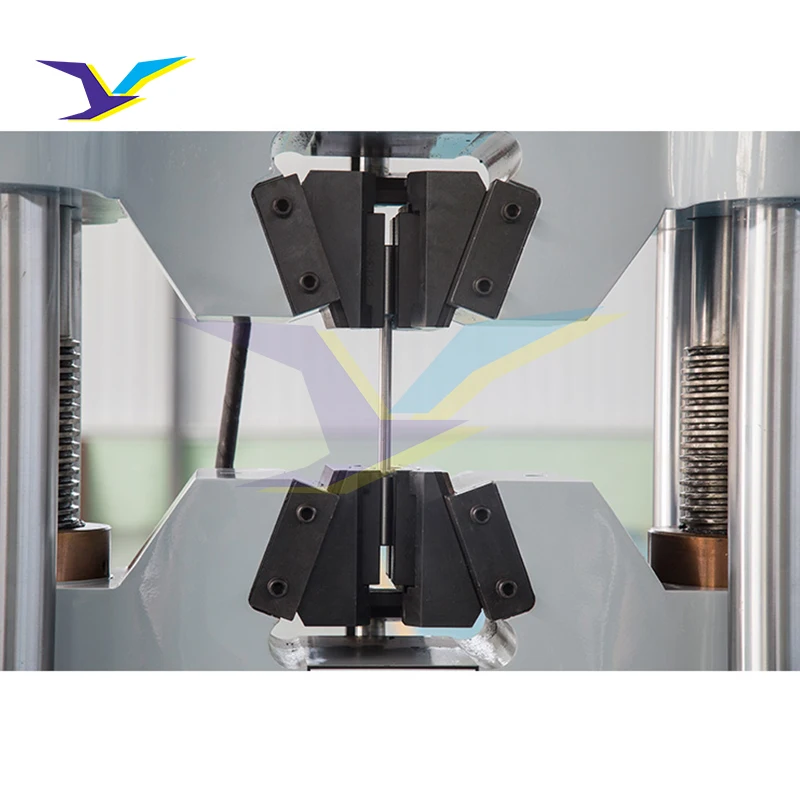

| Clamping method | Hydraulic clamp | ||||||||||
| Power supply | 3-phase,AC380V, 50Hz(can be customized) | ||||||||||
