Kpower DP0025 Plastic Gear 2.5g Coreless Digital Mini Servo Motor For RC Small 3D F3P Indoor Airplane
- Category: >>>
- Supplier: Dongguan K-Power Technology Co. Ltd.
Share on (1600499359264):
Product Overview
Description
Product Description

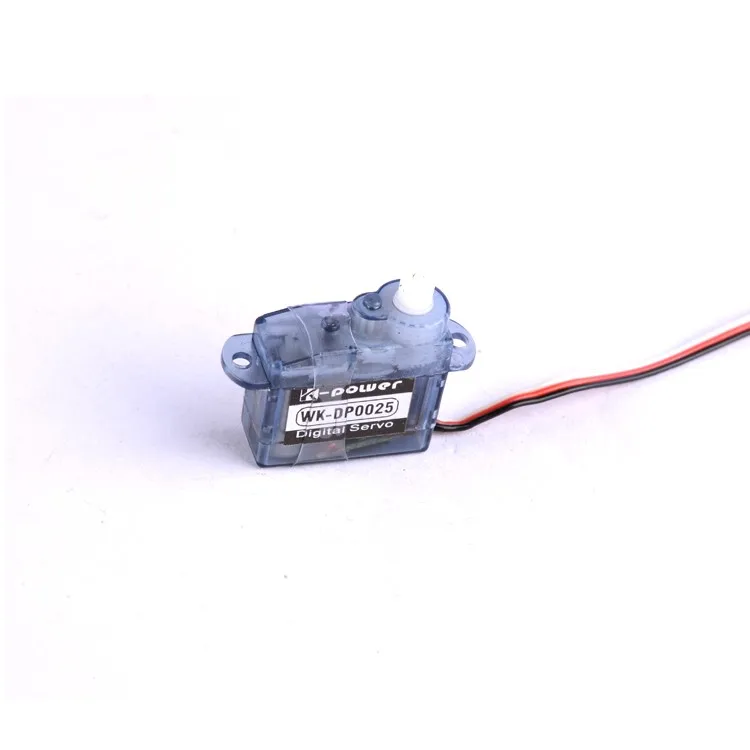

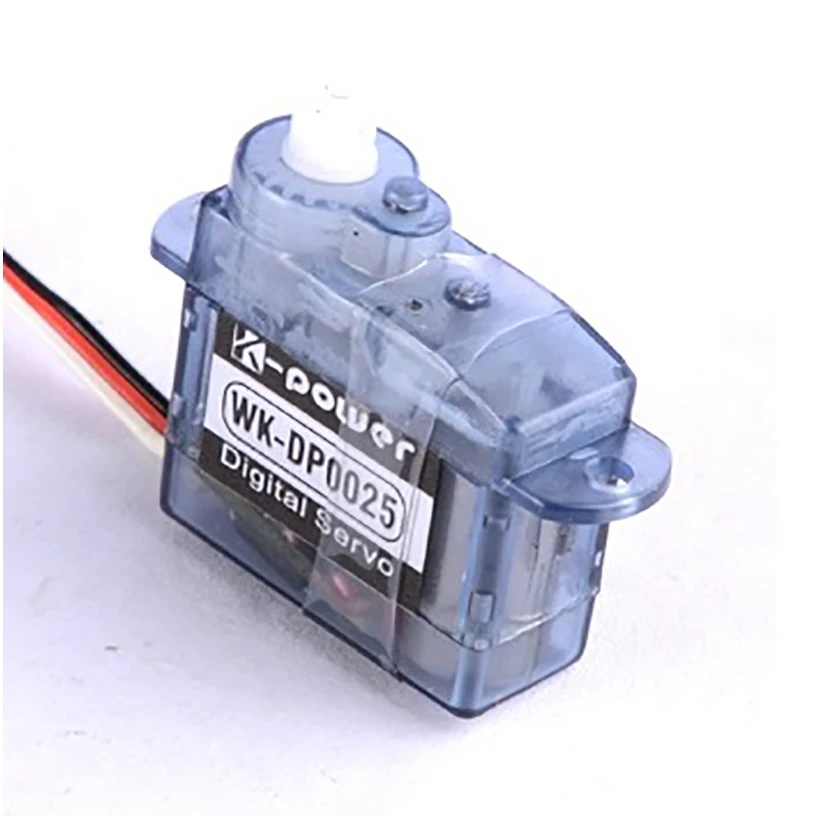

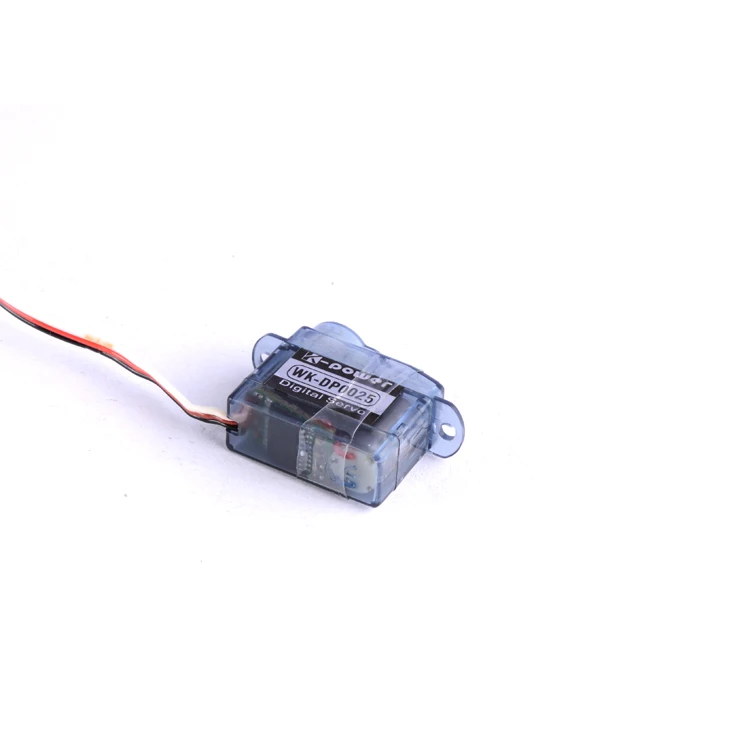

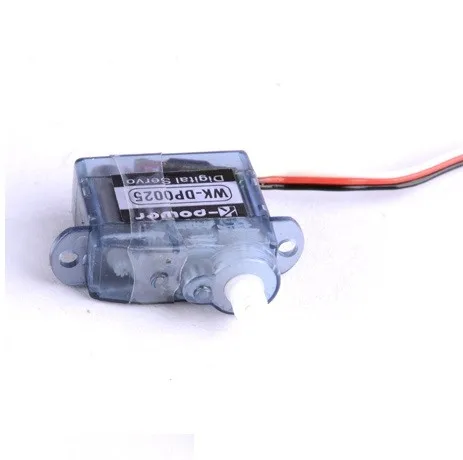

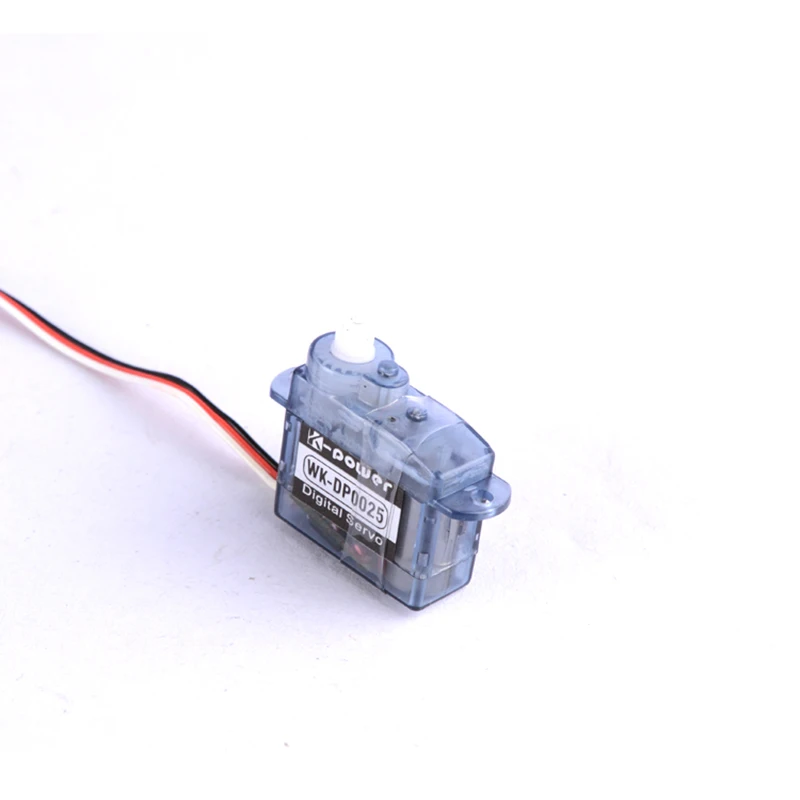

Kpower DP0025 Plastic Gear 2.5g Coreless Digital Mini Servo Motor For RC Small 3D F3P Indoor Airplane
Digital Plastic Gear Servo Feature:
1) Standard digital servo with Plastic gear and plastic case.
2) PE Plastic case can have a good noise reduction effect.
3) Coreless motor has a small inertia and flexible rotation.
4) Ideal choice for remote control toy, RC palne, Rc car, Rc boat , digital lock, smart home, IOT

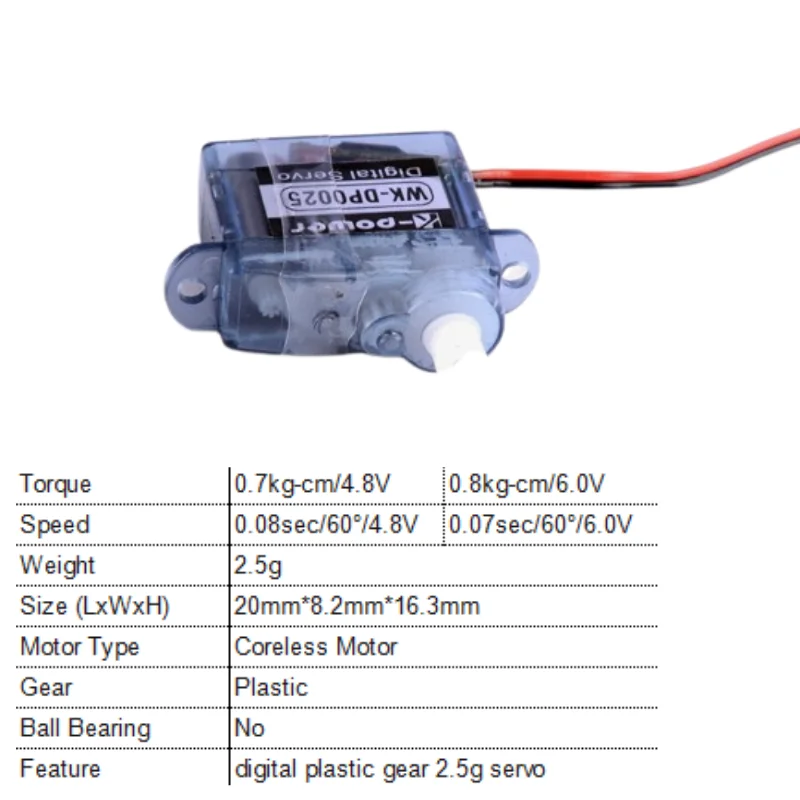

Model Type: | Digital plastic gear servo DP0025 | ||||||
Gear material: | Plastic | ||||||
Case material: | Plastic | ||||||

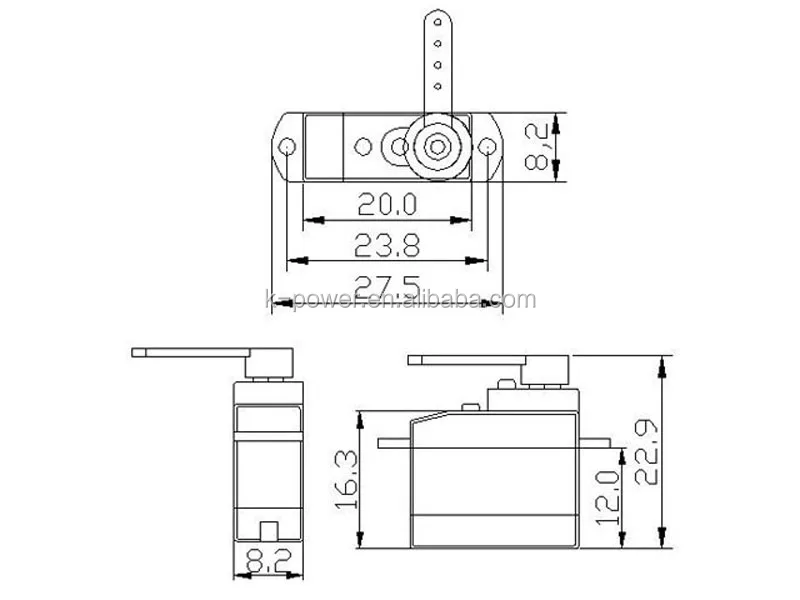

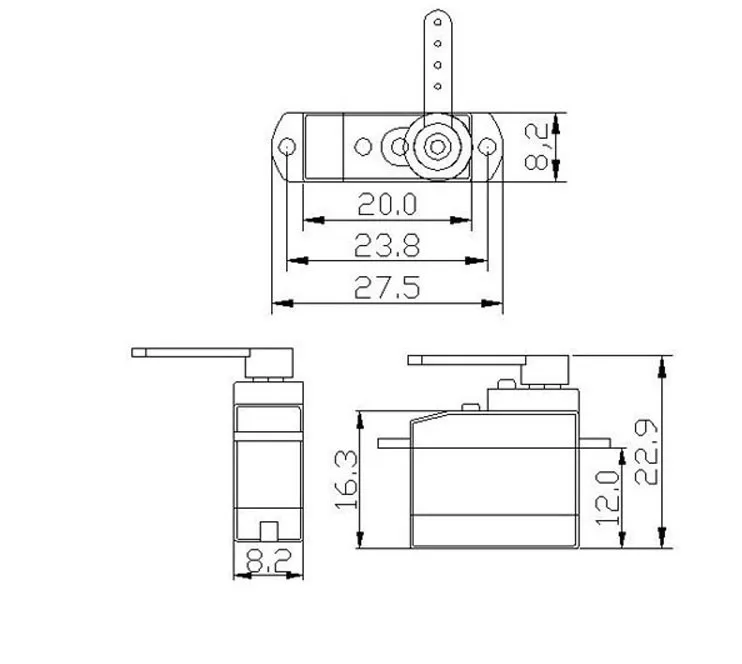

Dimension: | 20*8.2*16.3mm | ||||||
Weight: | 2.5g | ||||||
Motor type: | Coreless | ||||||
Running degree: | 120 default (debuggable) | ||||||
Speed: | 0.08s(4.8v)/0.07s(6.0v) | ||||||
Torque: | 0.7kg(4.8v)/0.8kg(6.0v) | ||||||
Power supply: | 4.8-6.0v | ||||||
Dead band width: | 2μs | ||||||
Connector: | JR(default) | ||||||
Operating Temperature (℃): | -10—60 | ||||||
Splining: | 20T | ||||||
Waterproof: | No | ||||||
If this servo does not match your demands, please kindly contact with us, we have hundreds of different types servos for optional, and we are professional Rc servo manufacturer since 2005. Customizing servo according to client's demands is our advantage.
Quality Control
Mechanical test quality control
Servo torque test quality control
Incoming materials quality control
Finished servo quality control

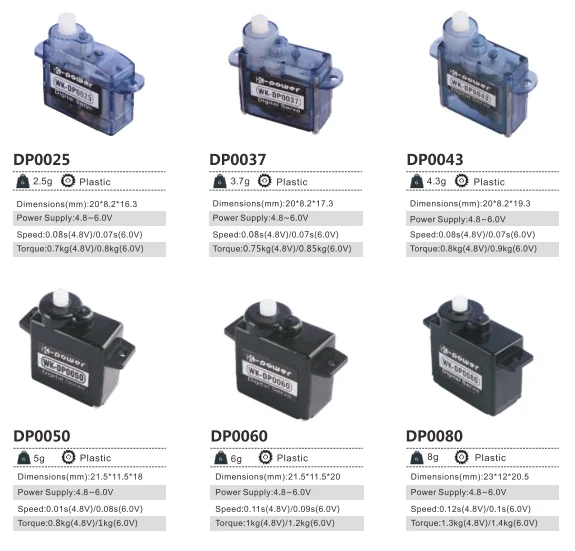

Similar Products
Our Company
K-power is a professional servo manufacturer, which established in 2005, and passed ISO9001 in 2015. We are concentrating on servos for RC robot, smart home, RC model, RC car, industrial equipment and agricultural machinery. Our servo has CE, FCC, ROHS certifications. We are keeping R&D various types of servos, such as Digital and Analog, High voltage, Robot Servos with brushless, coreless and brushed motors. Warmly welcome to contact us if you need servo, no matter standard servo or customized servo.
Factory department
Assembly line
Business Exhibition
Certificate:
FAQ
Q:Are you a trading company or manufacturer?
A:We are a manufacturer in China.
Q:Can I OEM and print my own logo on the products?
A:Yes, you can. Just provide us your design files, we will do all the rest for you.
Q:How do I know if your products are of good quality?
A:Sample order is acceptable for testing your market and checking our quality. And we have strict quality control systems from raw material incoming till finished product delivery out.
Q: what is your mass production lead time?
A:Our production lead time is only around 7-15 days (according to the order QTY) .
Q:Can I get a free sample?
A:Some servos support free sample. Please contact us for more detailed information.
