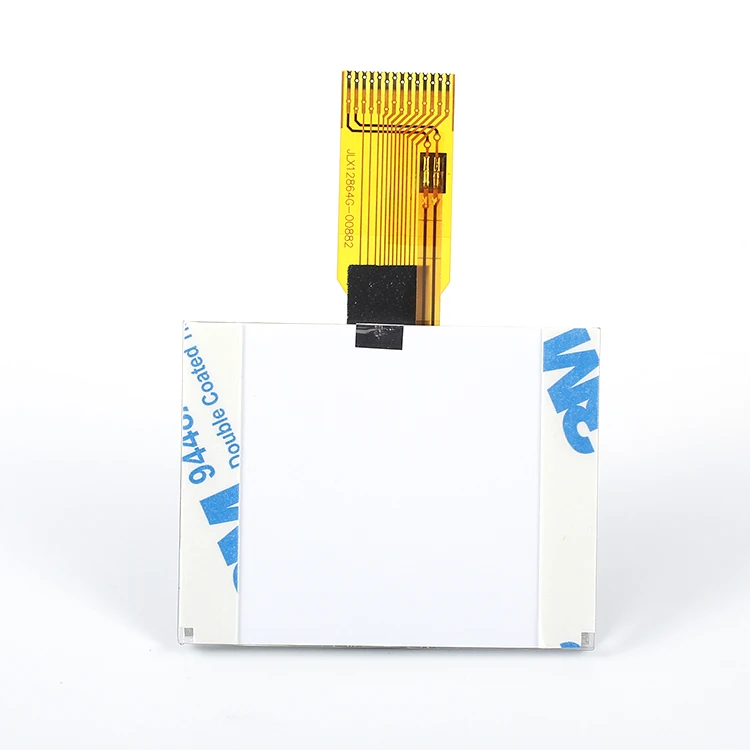

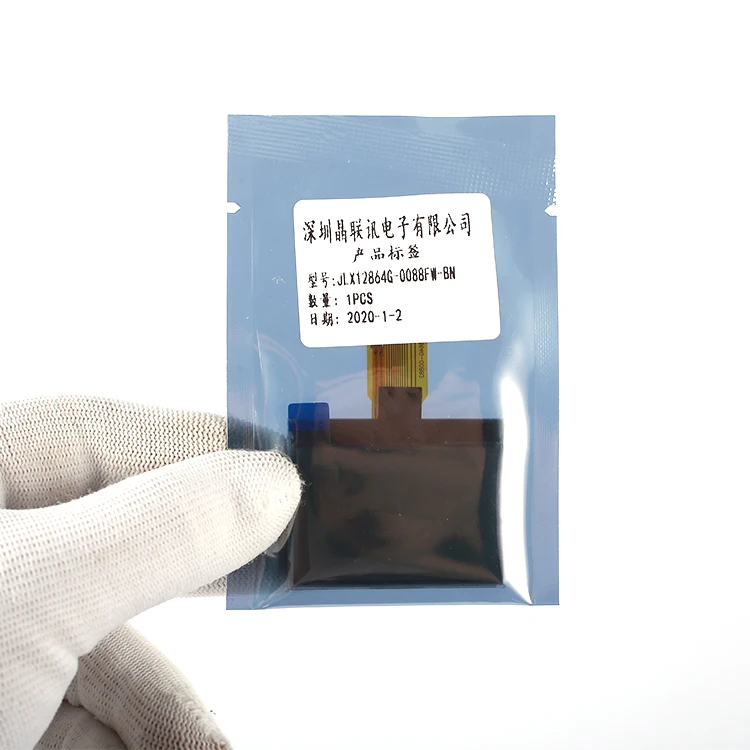

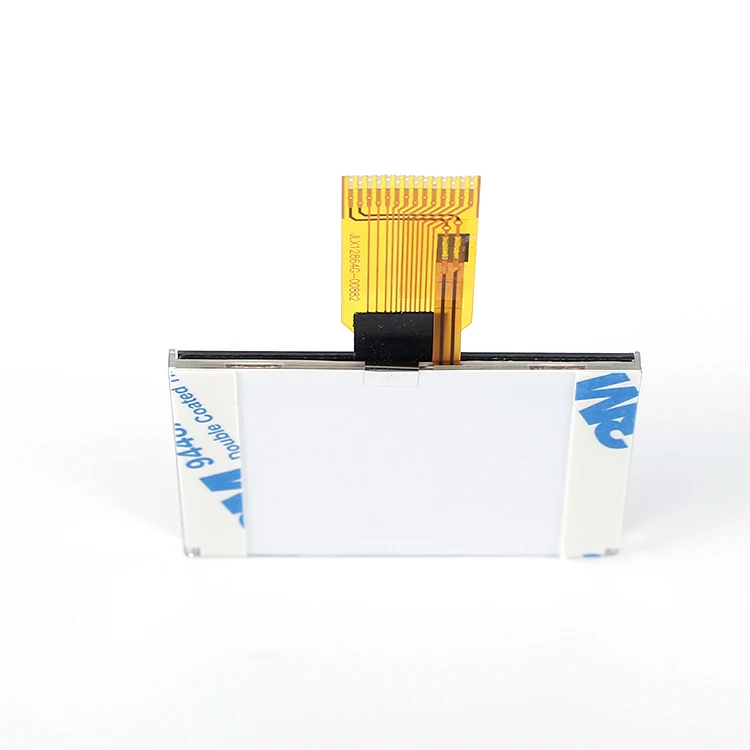

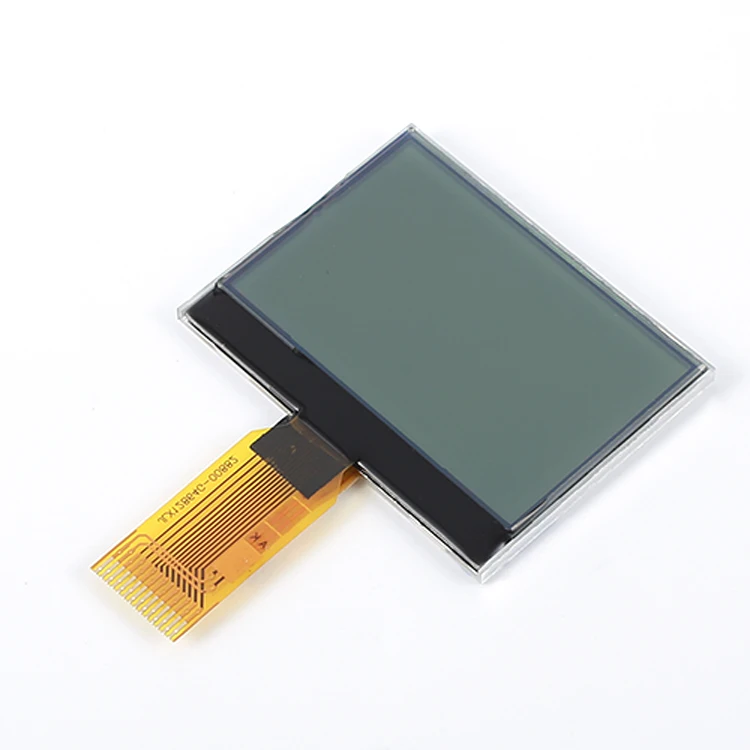

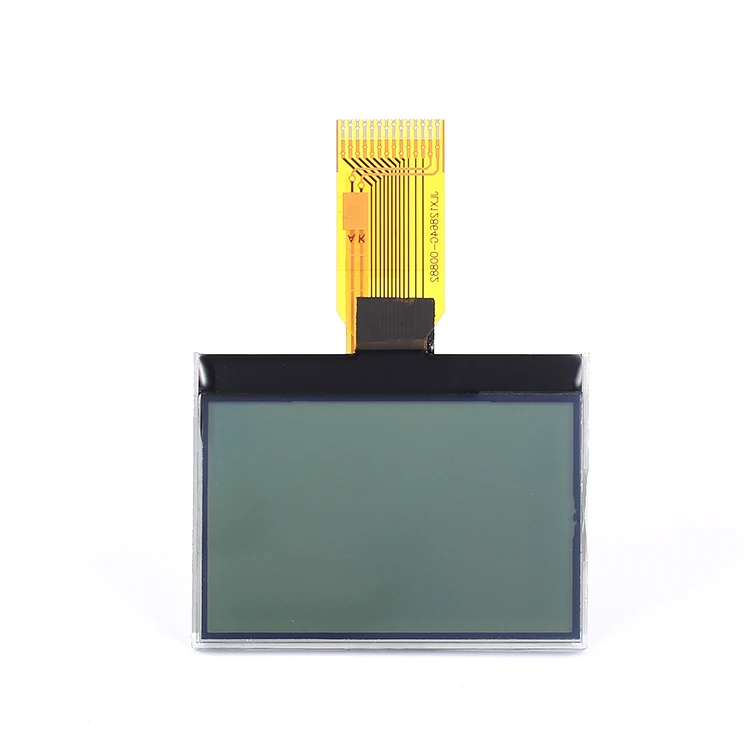

Welded Fpc Connection Uc1701 128x64dots 12864 Cog Flexible Graphic Lcd Display
- Category: >>>
- Supplier: Shenzhen Wisdon Intelligent Tech Co. Limited
Share on (1600499359710):
Product Overview
Description
Products Description
Name: | Lcd display |
Accept customized: | Yes |
LCM Size: | 43.5(L)*33.8(W)*4.2(H)mm |
LCD Size: | 42.3*33.0mm |
V.A Size: | 39.8*25.5mm |
A.A Size: | 37.09*23.01mm |
Resolution: | 128*64Dots |
Dot Size: | 0.33*0.26mm |
Dot Gap: | 0.03mm |
Driver IC: | UC1701X |
Temp: | Operating temp.-20~70 and Storage temp.-30~80℃ |
LCM operating voltage: | VDD=3.0V |
FSTN COG Type: | 1/64duty,1/9bias,Vop=8.7V, 6 O'clock |
Other: | White LED Backlight,3.0V |
FPC connection |
