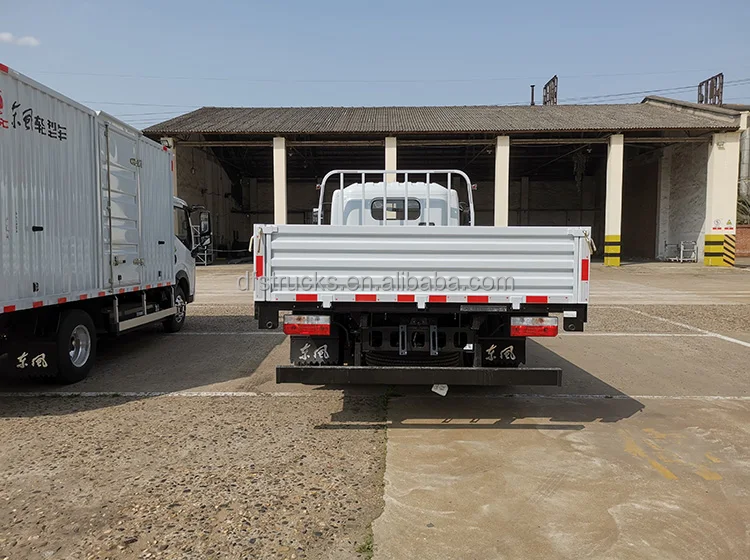

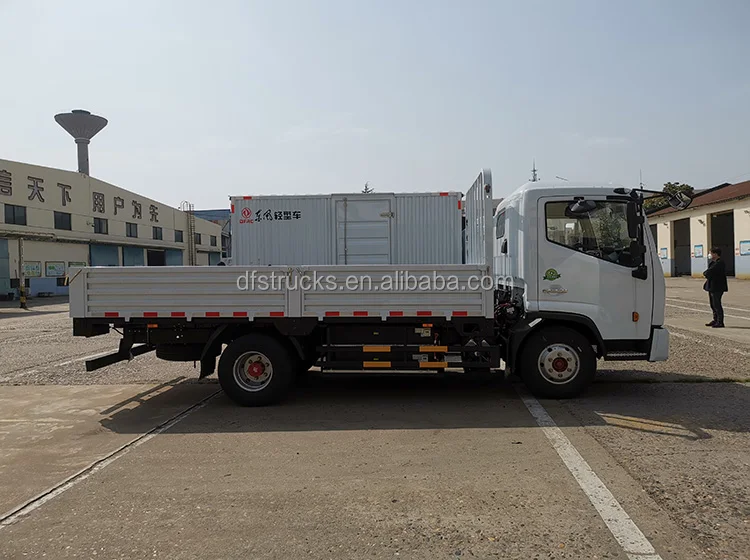

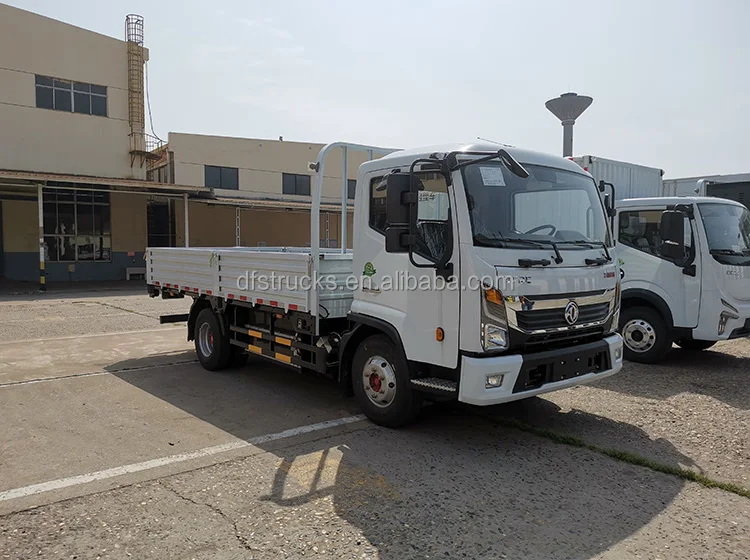

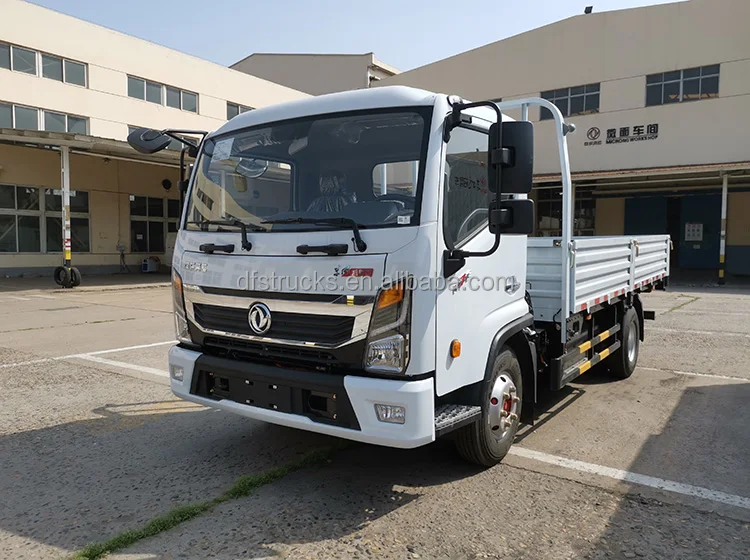

DONG FENG single row cab 4x2 6 wheeler 106.95kwh long range electrical electric light work truck
- Category: >>>
- Supplier: Shiyan Xiangtian Import And Export Trade Co. Ltd.
Share on (1600499362133):
Product Overview
Description
8.5Ton GVW dongfeng 3858mm wheelbase single cabin small electric light duty truck
PRODUCT OVERVIEW
PRODUCT SPECIFICATIONS
GVW（t） | 8.5 | ||||
Chassis curb weight (kg) | 3130 | ||||
Curb weight of complete vehicle (kg) | - | ||||
Maximum total mass of the whole vehicle / axle core (announcement) (kg) | 8495/2750/5745 | ||||
Overall dimension of chassis (length) × wide × Height (mm) | six thousand two hundred and twenty-eight × two thousand one hundred and forty × two thousand four hundred and forty | ||||
Number of axes | 2 | ||||
Wheelbase (mm) | 3308 | ||||
Track width (front / rear) (mm) | 1740/1586 | ||||
Chassis front suspension / rear suspension (mm) | 1120/1800 | ||||
Maximum climbing gradient (%) | 20 | ||||
Maximum speed of 1km (km / h) | 90 | ||||

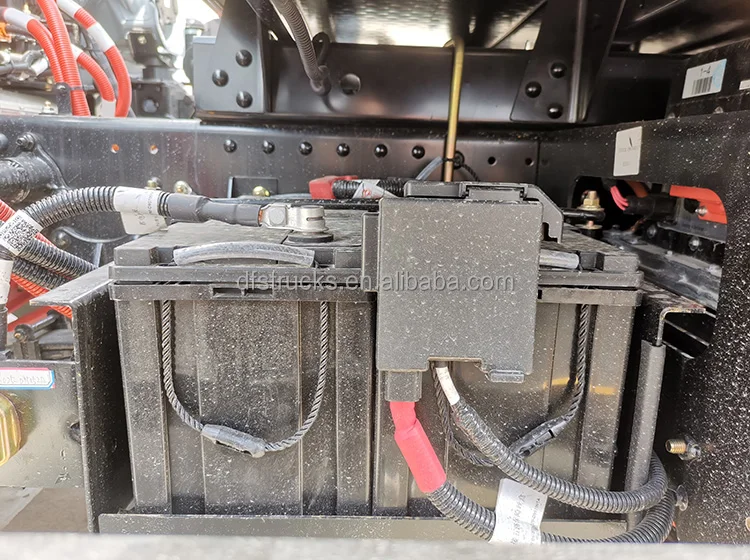

Battery voltage (V) / capacity (ah) | 12/100 | ||||
Cab model | Caput b072030 / single row | ||||
Drive motor | Supplier / model | Fast tz262xssfx02 | |||
type | Permanent magnet synchronous | ||||
technology roadmap | Motor + four speed gearbox | ||||
Deceleration / transmission ratio | 4.01/2.33/1.51/1 | ||||
Rated / peak torque (N.m) | 180/360 | ||||
Rated power (kW / peak) | 60/120 | ||||
Rated / maximum speed (R / min) | 3180/4500 | ||||

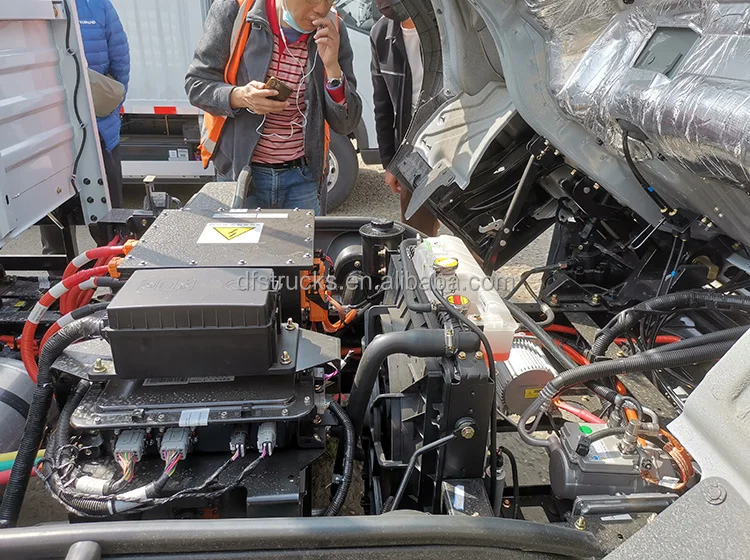

Power controller / multi in one | Supplier and model | Huichuan ktz54x32s048 | |||
technology roadmap | Five in one MCU + DCDC + DCAC + DCAC + PDU | ||||
Rated working voltage (V) | 618 | ||||
DCDC rated power (kw) | 3 | ||||
Rated / maximum capacity (kVA) | 100/200 | ||||

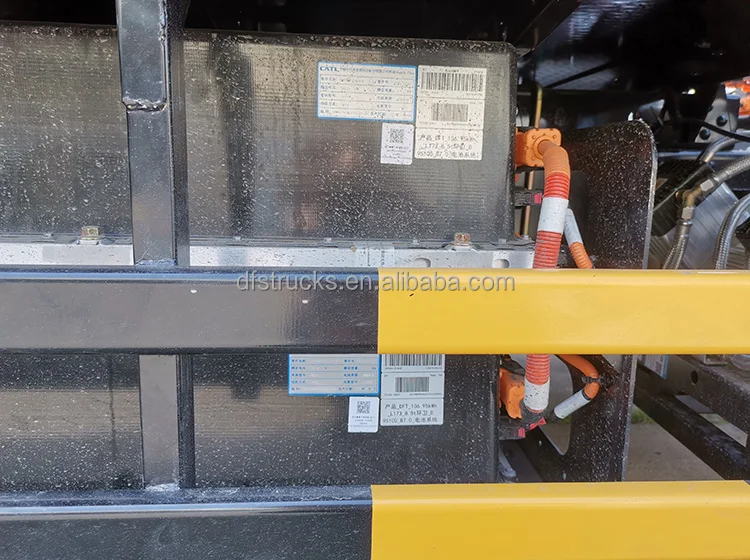

Power battery | Assembly supplier | Ningde Era | |||
Cell manufacturer / type | Ningde times / lithium iron phosphate | ||||
Layout form | Tile on both sides | ||||
Energy density (WH / kg) | 154.84 | ||||
Rated power (KWH) | 106.95 | ||||
Rated voltage (V) | 618.24 | ||||
PRODUCT DETAILS
SIMILAR PRODUCTS
PRODUCTS CONFIGURATION
COMPANY PROFILE
FAQ
Q1. How to purchase the bus from our company?
A:You can choose the model from our website. Also, you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After you confirm the model and price, we can sign the contract.
Q2. How to ensure product quality?
A:Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.
Q3. Can you offer customized service?
A:Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
Q4.What is the warranty term?
A:We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
Q5. How to visit our factory?
A:After you arrive in China, you can fly to Shiyan Wudangshan Airport located in Shiyan City, Hubei Province. Our driver will meet you at the airport and take you to our city by car.
Q2. How to ensure product quality?
A:Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.
Q3. Can you offer customized service?
A:Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
Q4.What is the warranty term?
A:We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
Q5. How to visit our factory?
A:After you arrive in China, you can fly to Shiyan Wudangshan Airport located in Shiyan City, Hubei Province. Our driver will meet you at the airport and take you to our city by car.
