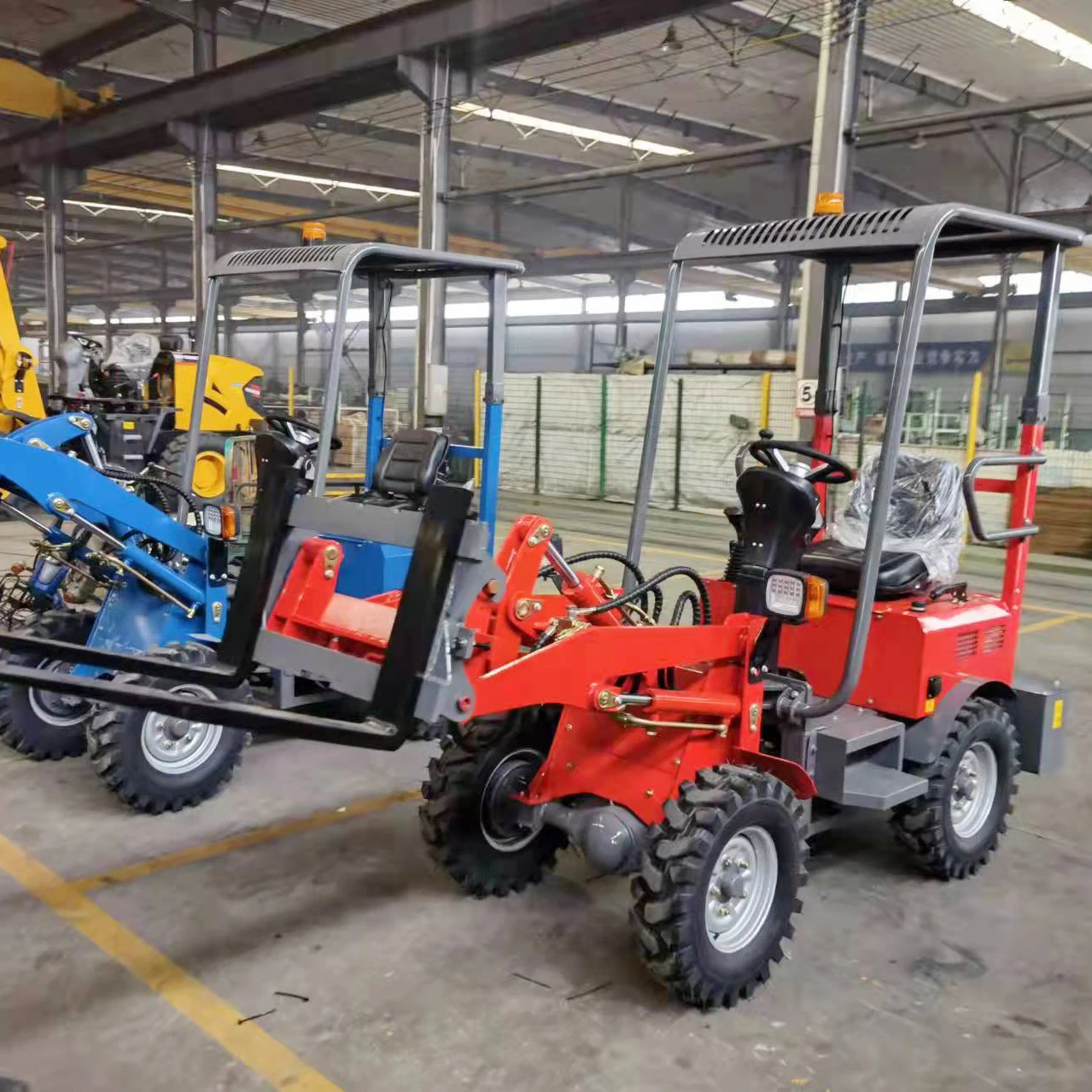

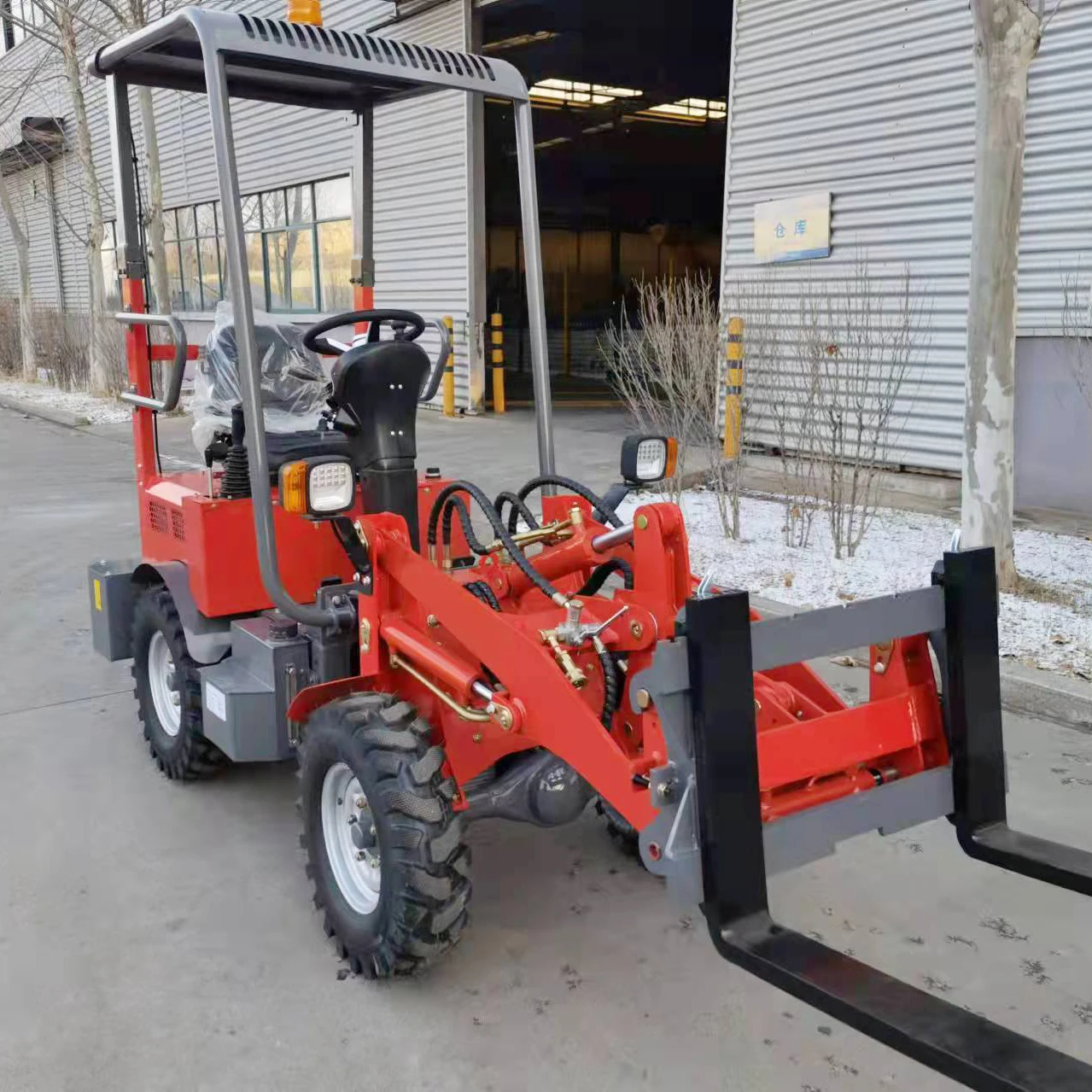

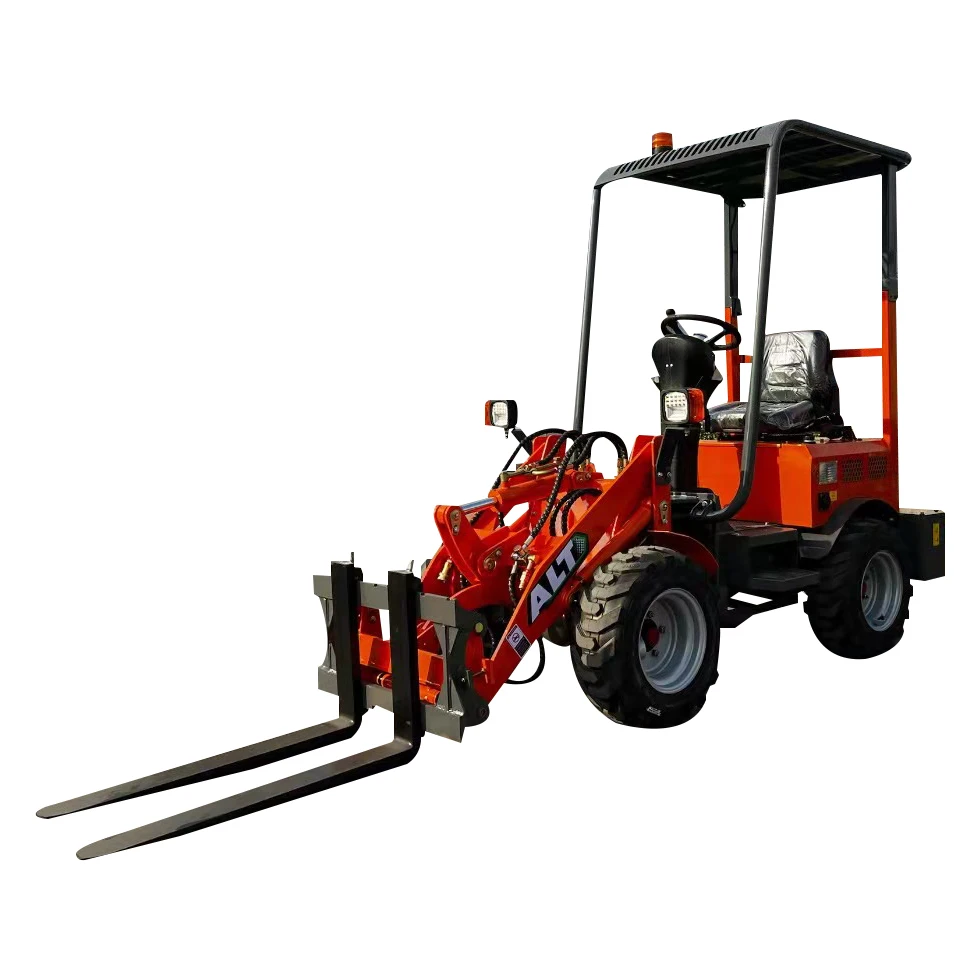

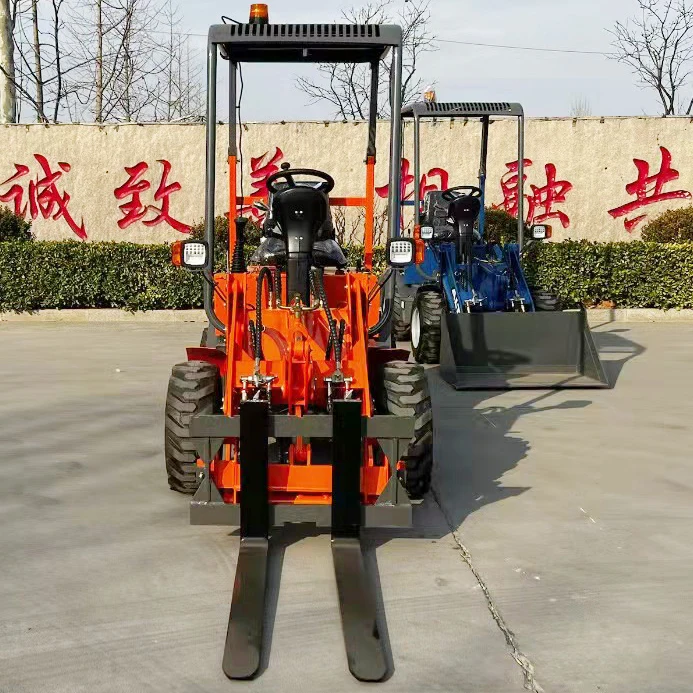

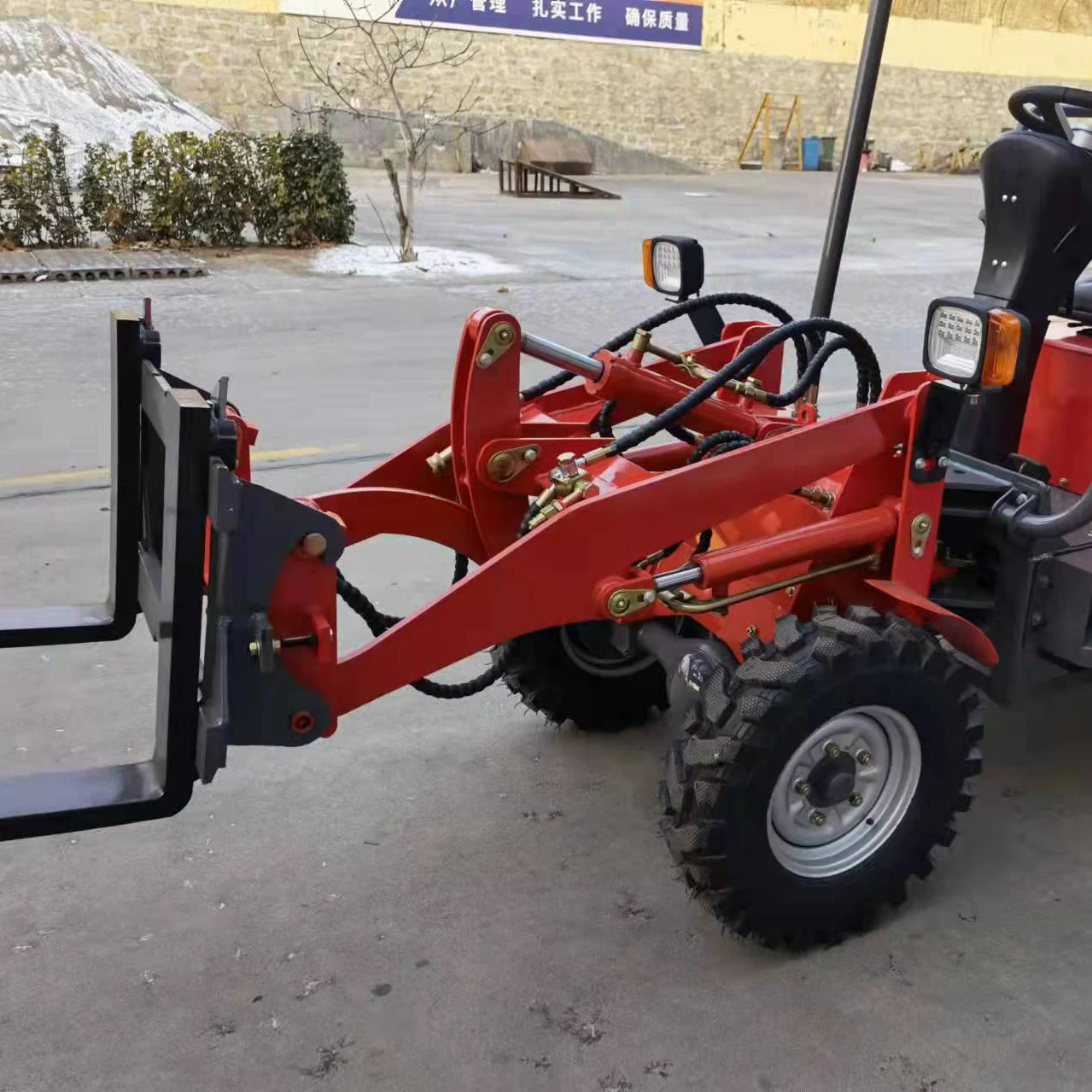

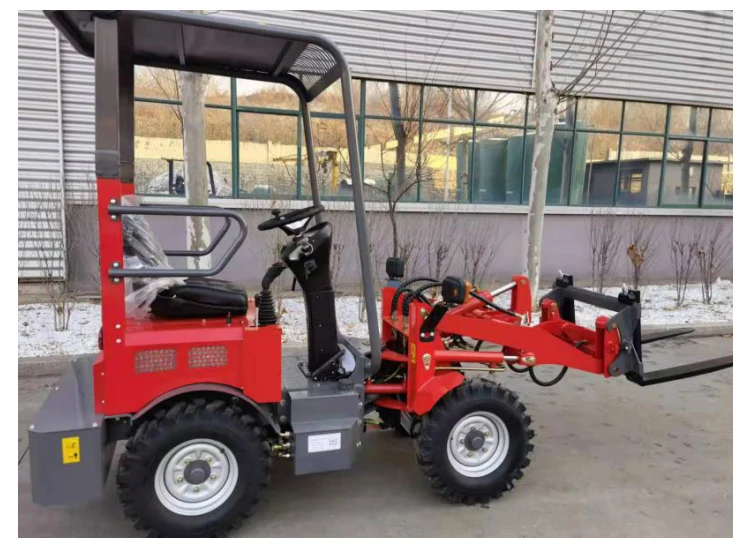

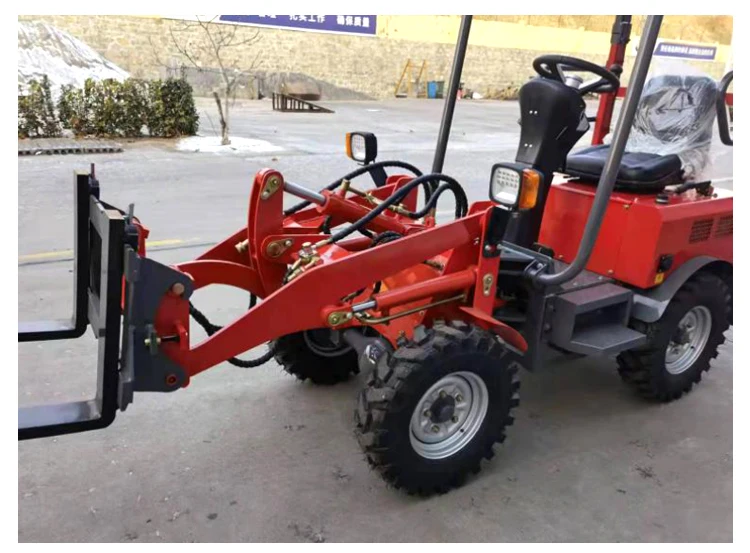

CHL120E Electric Green Environmental Protection 1.2 Ton Small Loader
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600499368610):
Product Overview
Description
Product information
CHL120E is suitable for handling bulk materials and hard materials. It features moderatewheelbase, high breakout force, small turning radius, combination of heavy load and flexibility,wide range of operations,strong applicability, and is widely used in sand yards, ports, construction sites, mines and other occasions.
Kinds of Optional equipments
4 in 1 bucket, snow blade, pallet fork, snow bucket, oil drum kits, Hydraulic forklift, Screening bucket, sweeper, side dumpingbucket, snow shovel, wood grapple, grass grapple, trencher, digger, auger, backhoe loader, quick hitch, etc.
Kinds of Optional equipments
4 in 1 bucket, snow blade, pallet fork, snow bucket, oil drum kits, Hydraulic forklift, Screening bucket, sweeper, side dumpingbucket, snow shovel, wood grapple, grass grapple, trencher, digger, auger, backhoe loader, quick hitch, etc.
Standard wheel loader hydraulic oil distribution system to make sure a better loading performance and lifetime.
Front part is equipped with protector according to standard wheel loader standard.
Front part is equipped with protector according to standard wheel loader standard.
All connection PIN is equipped with copper bushing inside and butter injection point. Besides all PIN is with 2 connection bolts to make sure a longer lifetime and stronger arm.
Multifunctional joystick operation bar which could control scoop and forward/backword. This assures that the drive could efficiently operate with 2 hands to save operatoin time.
Multifunctional joystick operation bar which could control scoop and forward/backword. This assures that the drive could efficiently operate with 2 hands to save operatoin time.
ALL connection articulation are full disigned with narrow space to make sure the loader arm will not shake and break easily.
Lighting LED and signal light are en whole one design.
Mining type tire or solid tire wil make sure the service time longer.
Lighting LED and signal light are en whole one design.
Mining type tire or solid tire wil make sure the service time longer.
Product parameters
CHL120E electric mini wheel loader | ||||||
IDENTIFICATION | BRAND | STANDAR EDITION | ||||
MODEL | CHL120E | |||||
TOTAL WEIGHT | KG | 1120 | ||||
RATED LOAD | KG | 400 | ||||
BUCKET CAPACITY | m³ | 0.2 | ||||
FUEL TYPE | BATTERY | |||||
MAX SPEED ON LOW STATION | Km/h | 10 | ||||
MAX SPEED ON HIGH STATION | Km/h | 18 | ||||
WHEEL QUANTITY | F/R | 2/2 | ||||
BATTERY | BATTERY MODEL | 6-EVF-150A | ||||
BATTERY TYPE | MAINTENANCE- FREE LEAD-ACID BATTERY | |||||
BATTERY QUANTITY | 5 | |||||
BATTERY CAPACITY | KW | 9 | ||||
RAETD VOLTAGE | V | 60 | ||||
WORKING TIME | 6h | |||||
CHARGE TIME | 8h | |||||
ELECTRICAL SYSTEM VOLTAGE | V | 12 | ||||
Power | W | 3000 | ||||
DISPLACEMENT | ml/r | 16 | ||||
ROTATING SPEED | Low 800 r/min High2000 r/min | |||||
PRESSURE | mpa | 16 | ||||
PRESSURE | mpa | 16 | ||||
STEERING SYSTEM | STEERING SYSTEM | HYDRAULIC | ||||
PRESSURE | mpa | 14 | ||||
WALKING SYSTEM | POWER FORM | ALTERNATING CURRENT | ||||
VOLTAGE | V | 60 | ||||
MOTOR QUANTITY | 2 | |||||
POWER | W | 1800*2 | ||||
TYRE | 6.00-12 MOUNTAIN TIRE | |||||
OPTIONAL TYRE | 23X8.5-12 | |||||
BRAKE SYSTEM | WORKING BRAKE | DRUM OIL BRAKE | ||||
PARKING BRAKE | DRUM HANDBRAKE | |||||
Packing & Delivery
About us
FAQ
How long will your price be valid?
we are an honest and friendly supplier, providing value to our customers is our working philosophy. We are not greedy businessmen. Normally, our offer is valid for 6 months. We will only consider changing the price if the RMB appreciates substantially and the factory notifies us of the price increase of raw materials.
Which payment terms can you accept?
Normally we can work on T/T payment.
30% down payment is required in advance, and a 70% balance shall be paid before shipment.
What logistics ways you can work for shipment?
We can ship construction machinery with various transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East, Oceania, Southeast Asia, etc., either by container or RoRo/Bulk shipment.
(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send them by international courier services, such as DHL, TNT, USP, or FedEx.
we are an honest and friendly supplier, providing value to our customers is our working philosophy. We are not greedy businessmen. Normally, our offer is valid for 6 months. We will only consider changing the price if the RMB appreciates substantially and the factory notifies us of the price increase of raw materials.
Which payment terms can you accept?
Normally we can work on T/T payment.
30% down payment is required in advance, and a 70% balance shall be paid before shipment.
What logistics ways you can work for shipment?
We can ship construction machinery with various transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East, Oceania, Southeast Asia, etc., either by container or RoRo/Bulk shipment.
(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send them by international courier services, such as DHL, TNT, USP, or FedEx.
