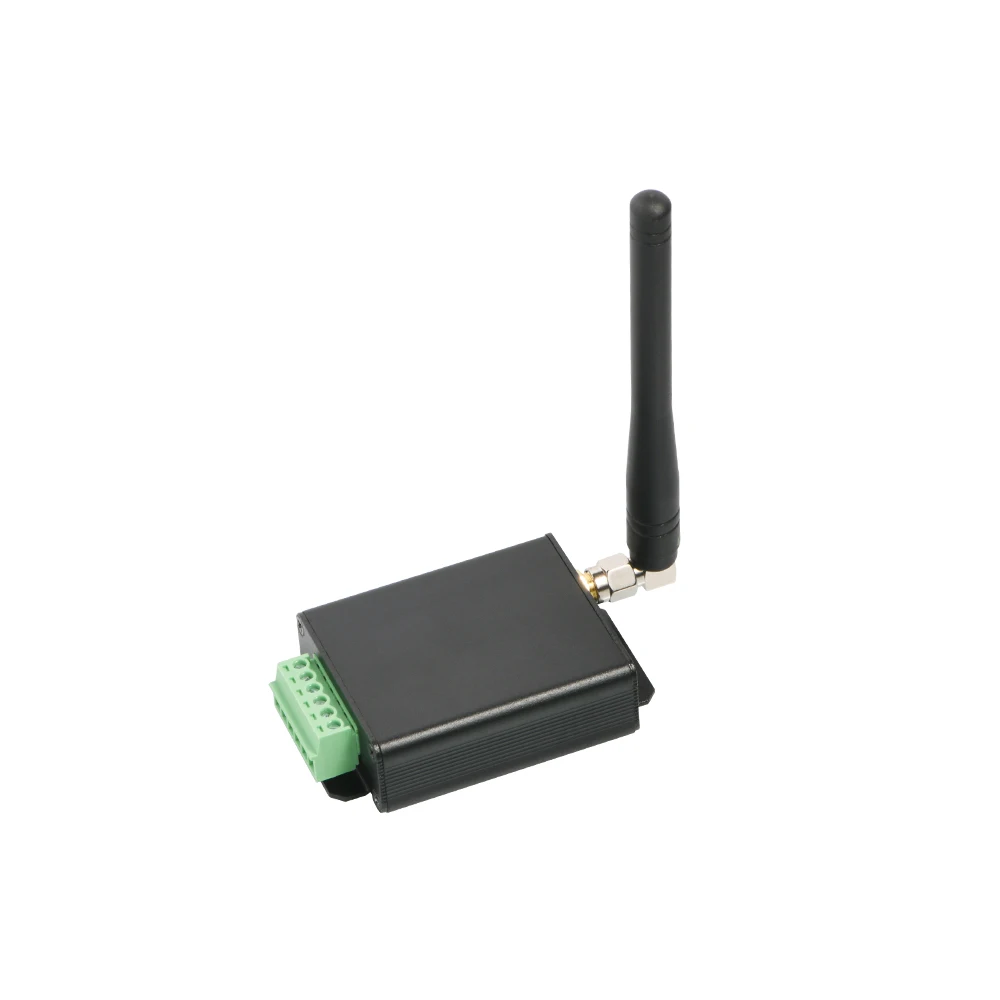

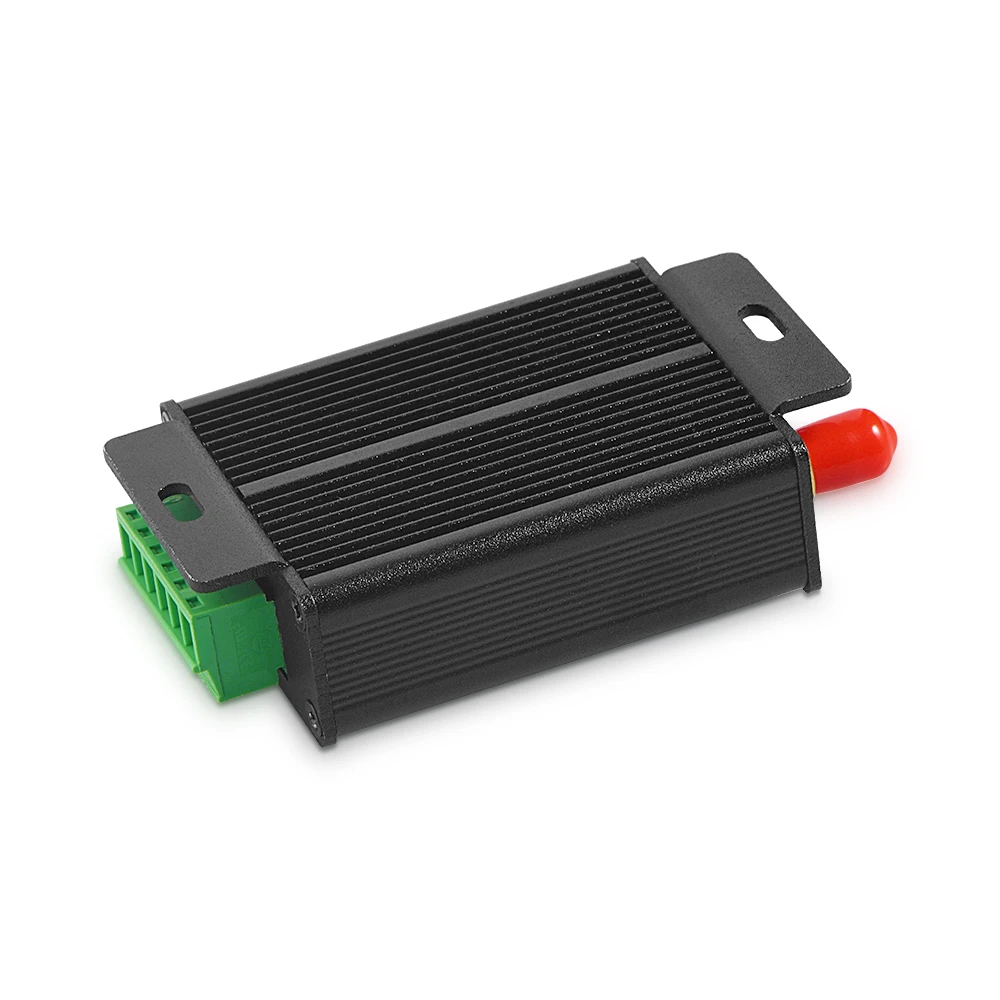

Lora6100DZ 8Km long range 1W sx127x chip AES 128 MESH network TTL / RS232 / RS485 port LoRa Transceiver Module
- Category: >>>
- Supplier: NiceRF Wireless Technology Co. Limited
Share on (1600499376996):
Product Overview
Description
Lora6100DZ - 8Km long range 100mW sx127x chip AES 128 encrypted MESH network TTL / RS232 / RS485 port LoRa Transceiver Module
Package content of each module:
1pcs RF module LoRa6100DZ
1pcs right angle Antenna

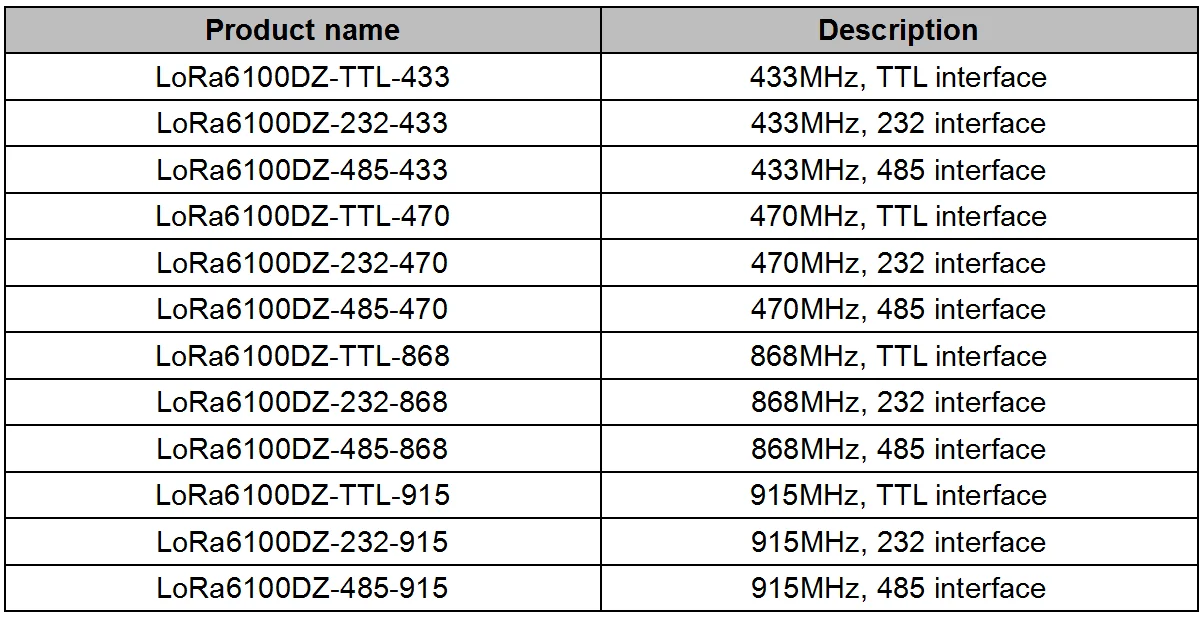

Note: Please choose the frequency band(433/470/868/915MHz for option) and interface(TTL / RS232 / RS485 for option) when you placing the order.
The LoRa DZ module is a new series of upgraded networking wireless communication modules from Wireless. It is based on Semtech's SX127X chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity. The penetrating power and communication distance are far superior to the current FSK and GFSK products, and have stronger anti-interference. In order to meet the application needs of different customers, we design the module software of this series as an all-in-one way. Users can switch between different working modes through the PC software configuration
module. In MESH mode, the routing module has automatic routing. Function, the user can form a network transmission without blind zone without distance limitation by means of multi-module combination. At the same time, users can also encrypt AES128 wireless data through PC software or serial port instructions, making data transmission more secure. The LoRa6100DZ module is designed for 1w output power and is available in TTL/RS232/RS485 levels. It is widely used in wireless remote transmission control. LoRa6100DZ strictly uses lead-free process for production and testing, and meets RoHS and Reach
standards.
Note: The LoRa Pro series can be configured to be compatible with our previous LoRa data transmission modules.
Feature
- Transmission distance in open area up to 10,000 meters @ 91bps
- 433/470/868/915 MHz(Customizable)
- AES128 Data encryption
- MESH & Node working mode
- 40 channels
- LoRa modulation
- Interface: TTL/RS232/RS485
- Sensitivity: -139 dBm
- Max output power: 1W(+30dBm)
- Working voltage: 3.3 ~ 6.5 V
- Working temperature: -40 ~ +85 °C
Application
- Remote control
- Remote meter reading
- Security system
- Industrial data acquisition
- Home automation telemetry
- Wireless data communication
- Access control system
- Robot control

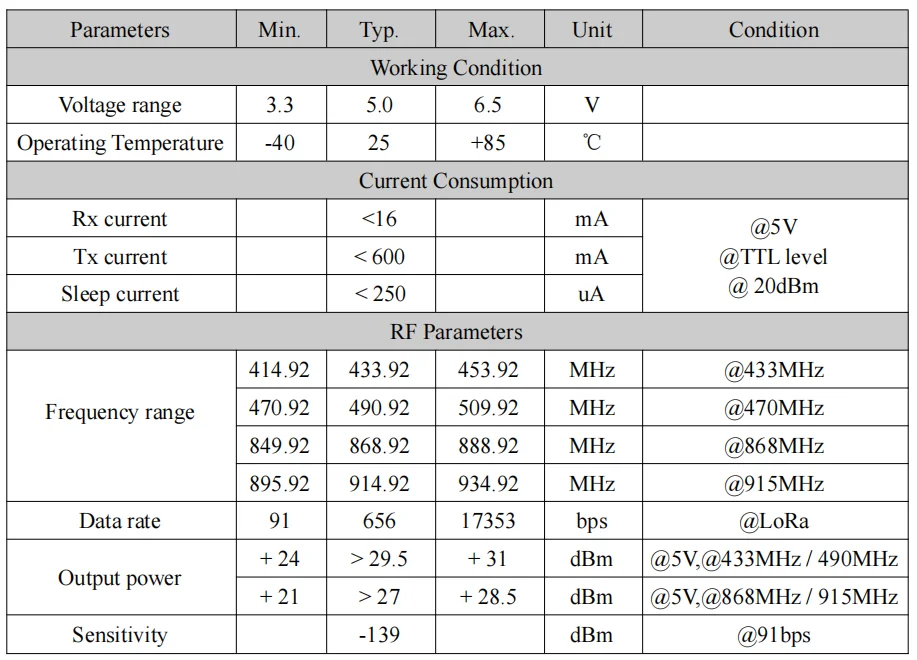

Electrical Specification:

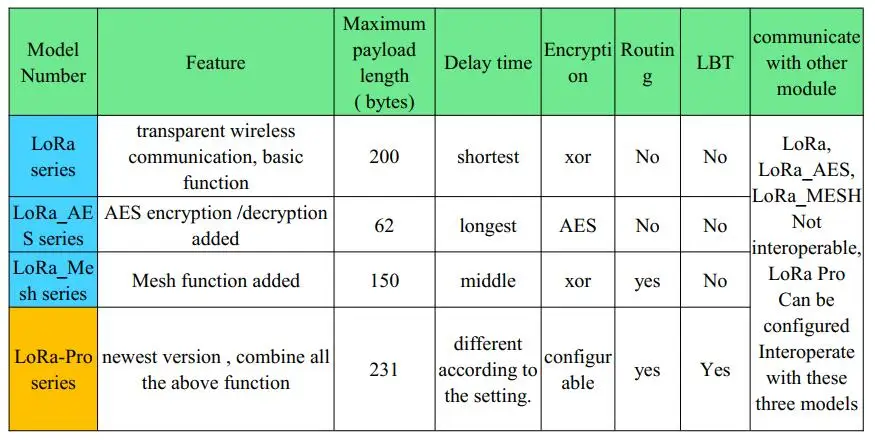

Differences among LoRa series:

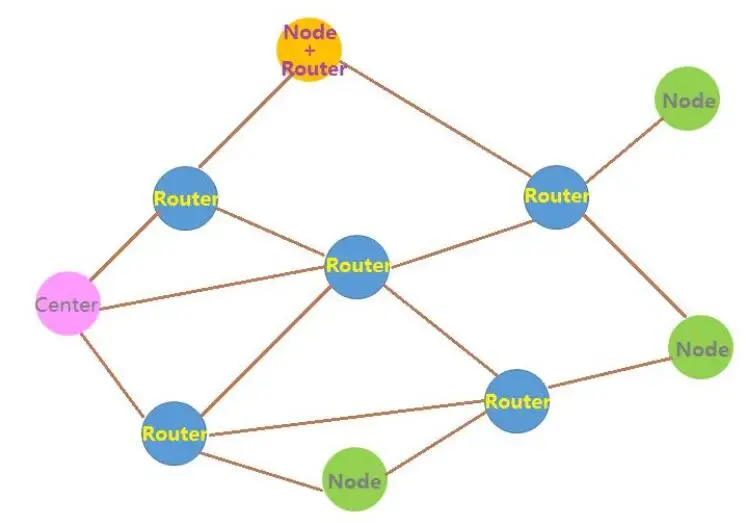

MESH network transmission mode:
Parameter configuration in MESH networking working mode:Working Mode=MESH
Mode = “Node” or “Router” or“Node & Router”
In MESH mode, the module can be configured into nodes and routes through different modules, and form a MESH network as a whole to realize point-to-point and point-to-multipoint transmission.
The node segment module configured as Node mode is similar to the standard communication terminal module.
The router-based routing module forwards data in the same network to solve the problem that a single point-to-point transmission distance is insufficient in many practical applications,
and there is no limit to the number of routes in the entire network.

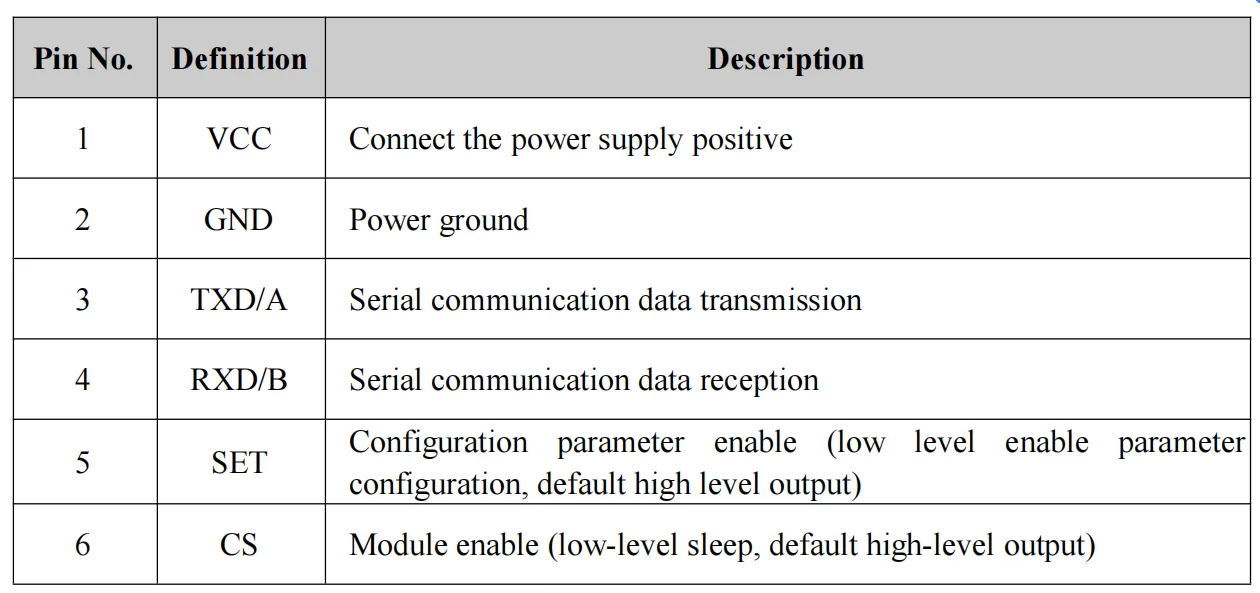

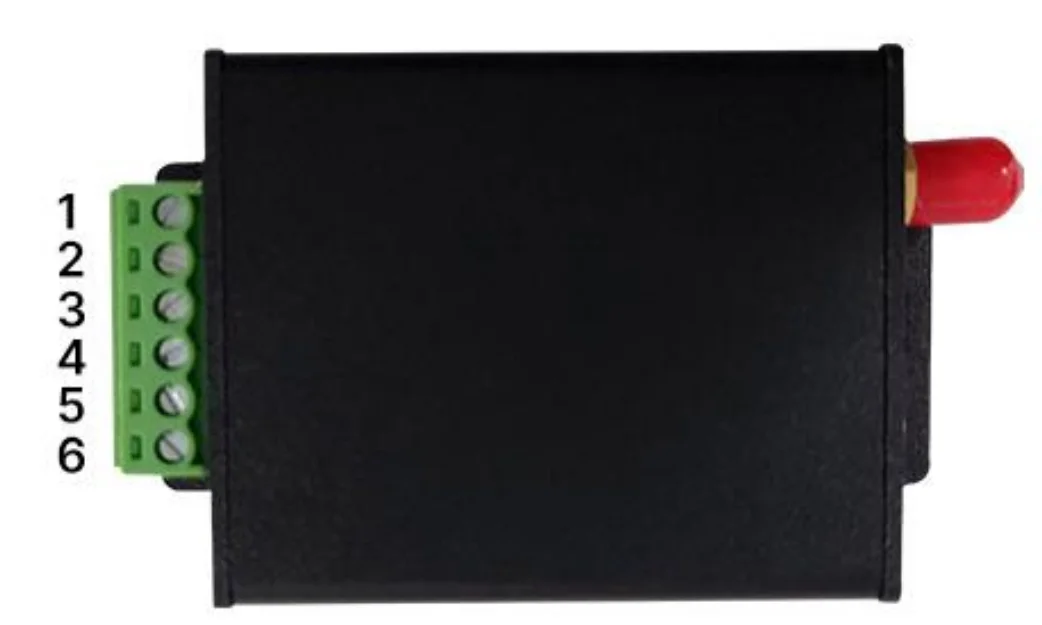

Pin Definition:

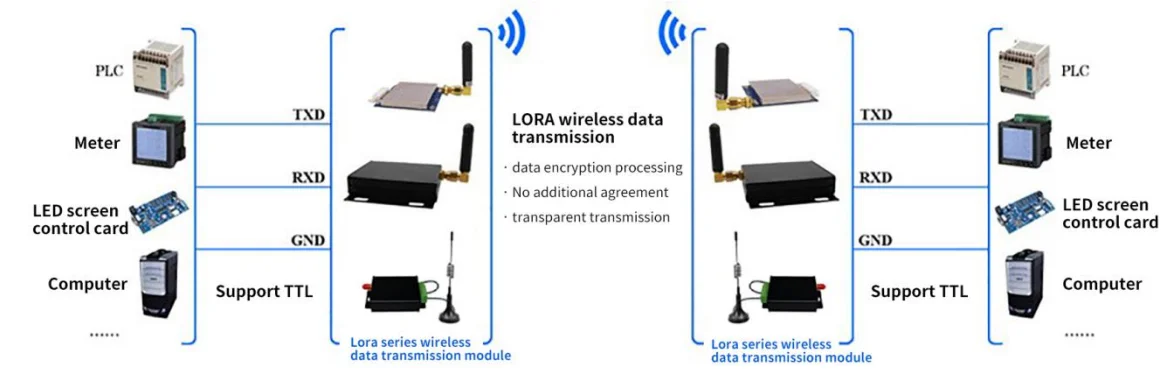

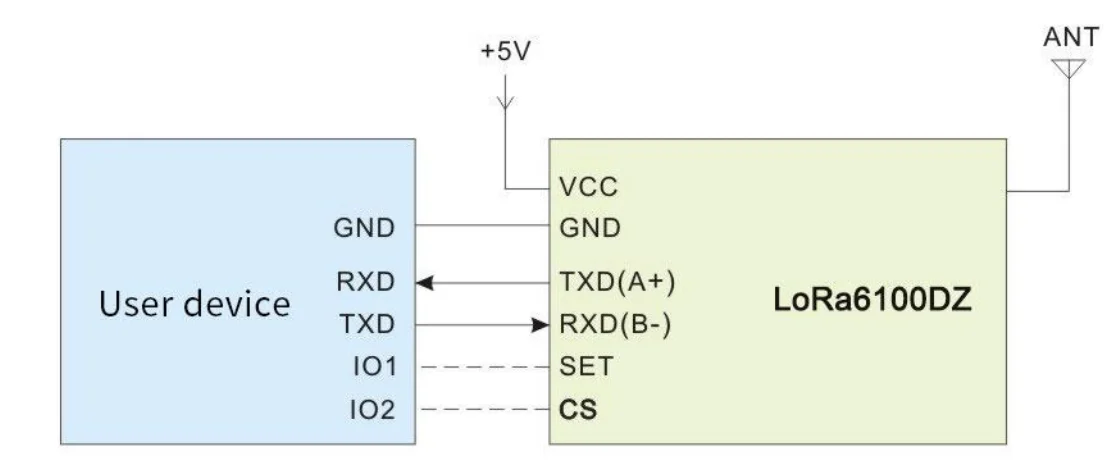

Typical Application circuit:

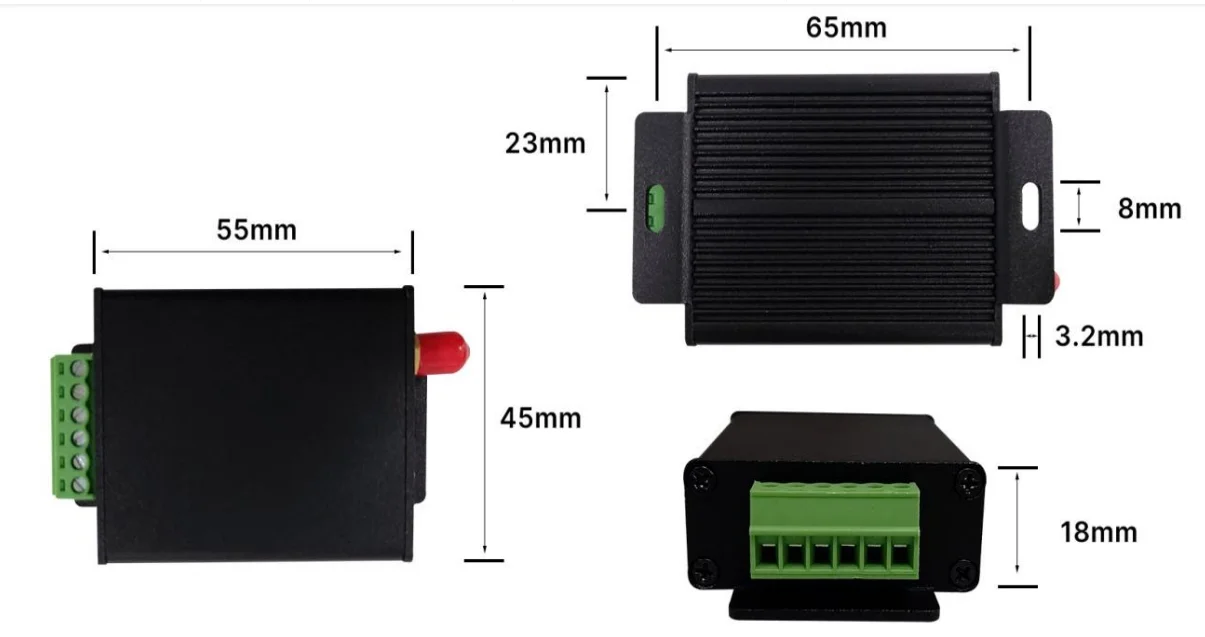

Mechanical dimension(Unit: mm) :
