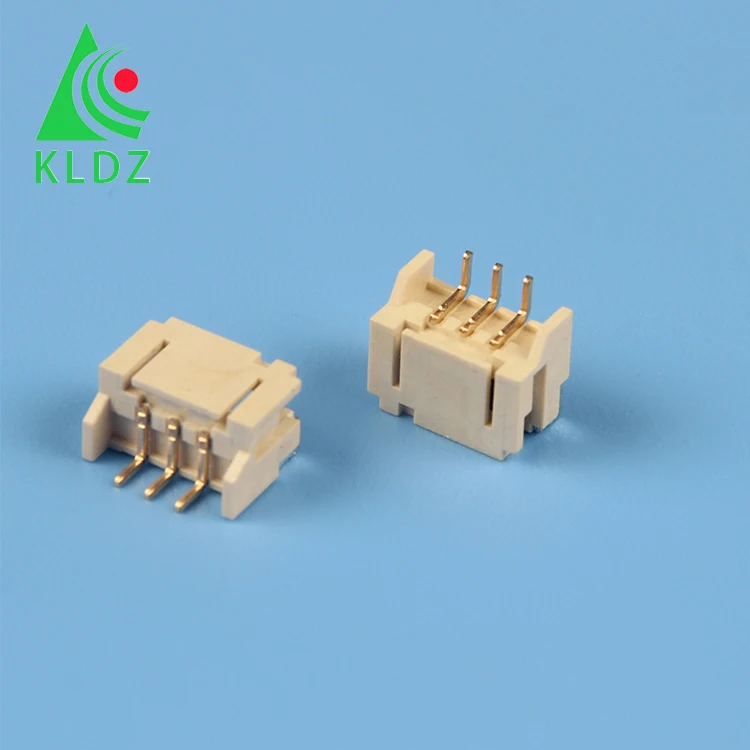

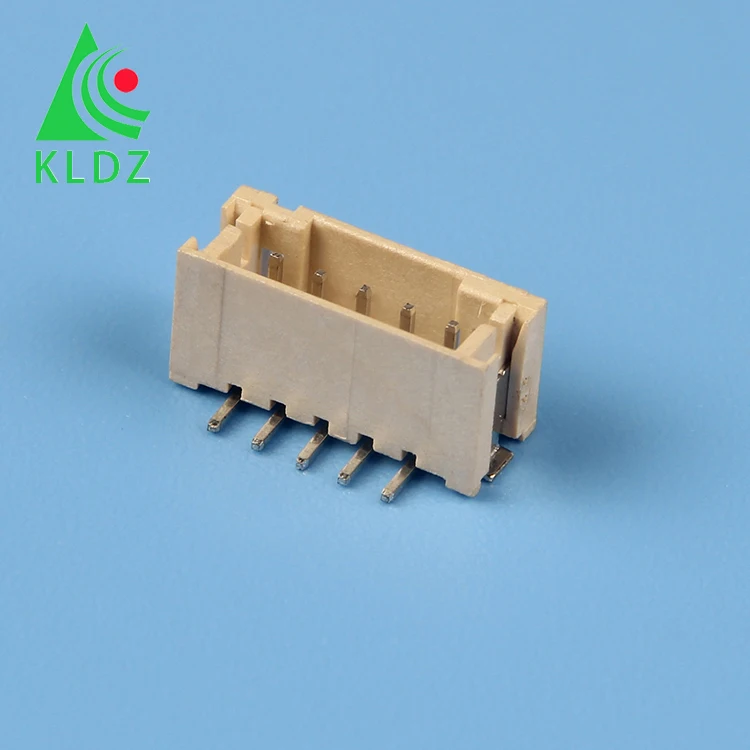

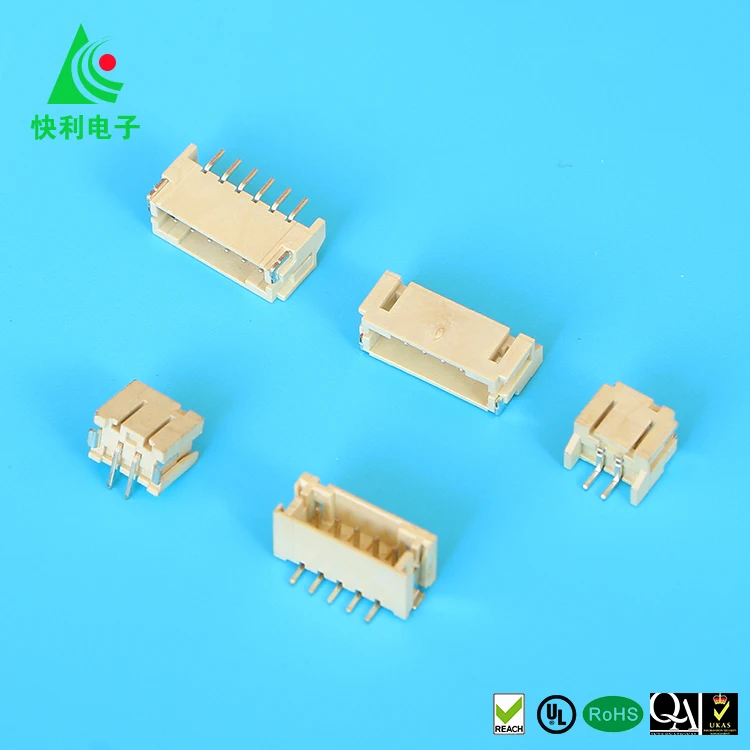

PH Connector 2.0mm waterproof quick molex connector with Good price

Product Overview

Description

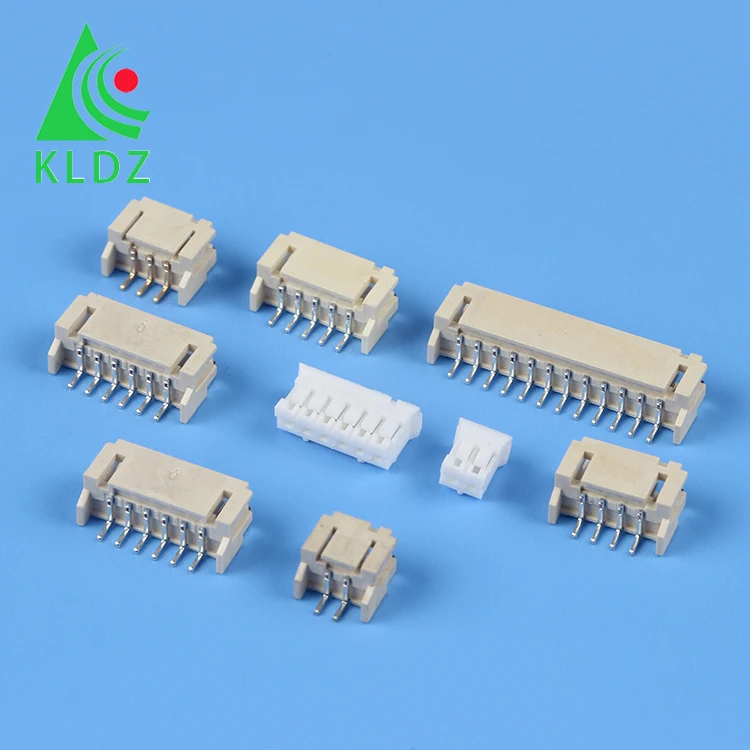

Ph 2.0mm waterproof quick molex jack connector

Rated current	Content
Series	PH2.0  waterproof power plastic cable connector
PLACE OF ORIGIN	ZHEJIANG,CHINA(MAINLAND)
PRODUCT NAME	Ph 2.0mm waterproof quick molex jack connector
ROW	Single row
POLES	2-15P
PITCH	2.0mm
MATERIAL	PA66 & Brass Tin
COLOR	White
FEATURES	Fire-proof, Flame retardancy
RATED VOLTAGE	250V AC,DC
RATED CURRENT	2A
CONTACT RESISTANCE	20mΩ MAX
INSULATION RESISTANCE	1000MΩ MIN
WITHSTAND VOLTAGE	800V AC/min
WORKING TEMPERATURE	-25℃~85℃
APPLICABLE WIRES	AWG#30~#24

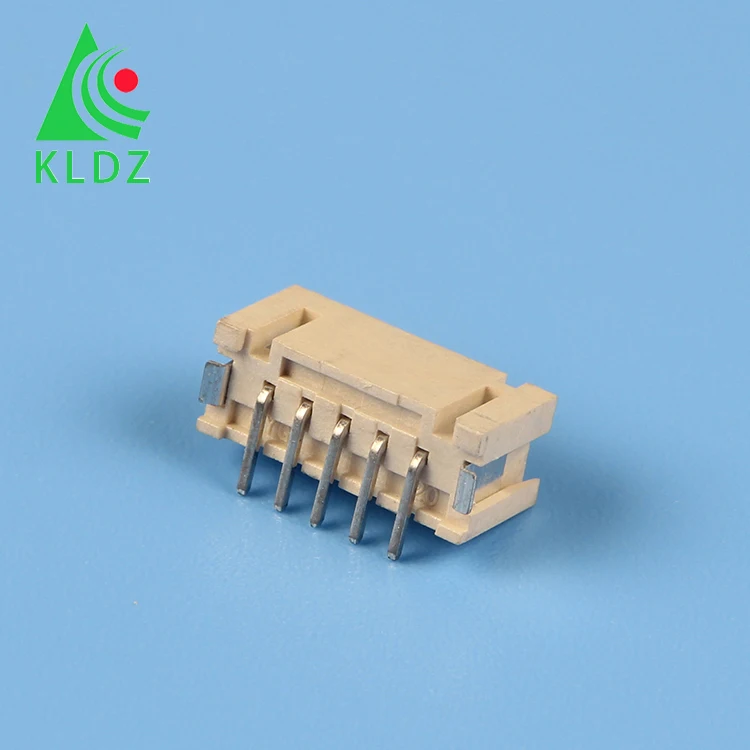

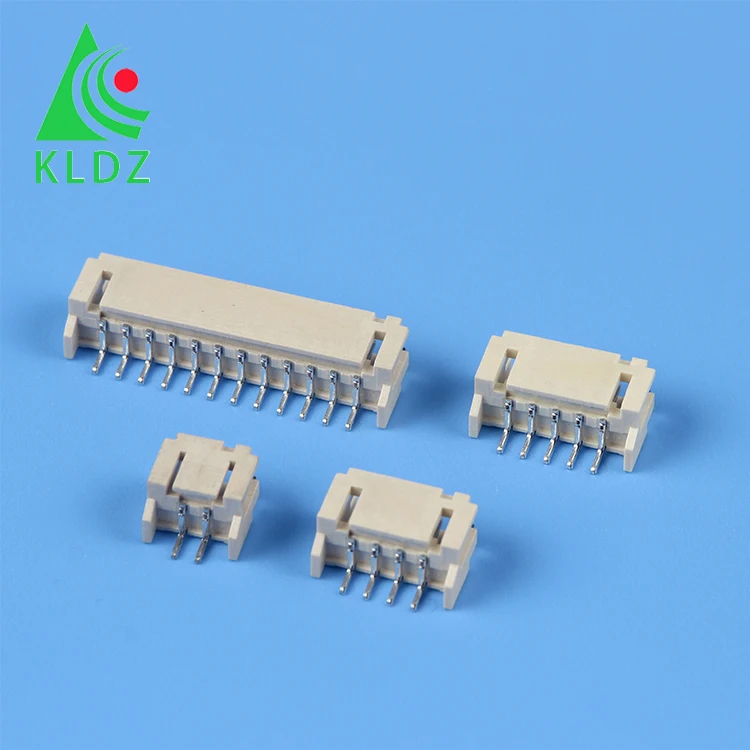

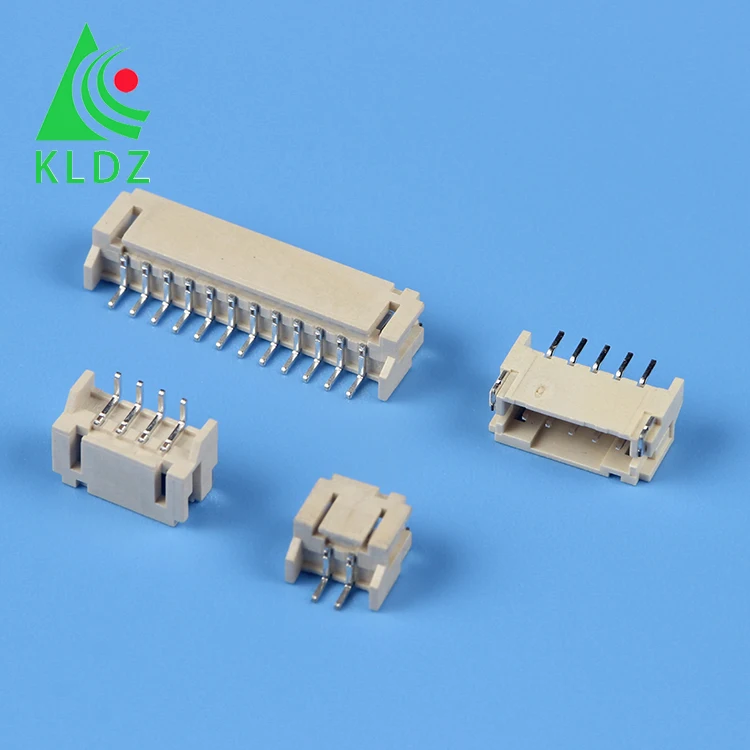

WAFER

Part No.:PH-NA, PH-NAW, PH-NAWD, PH-NAT, PH-NAWT

Housing: PA66 UL94V-0(2)

Contact: Brass,Tin plated

Solder lug: Phos. Bronze, Tin plated.



HOUSING

Part No.:PH-NY

Material: PA66 UL94V-0(2)







TERMINAL

Part No.: PH-TE

Material: Phos. Bronze,Tin Plated
