20lbs ABC dry powder fire extinguisher ,America ,Mexico

Product Overview

Description

1 Product Name:

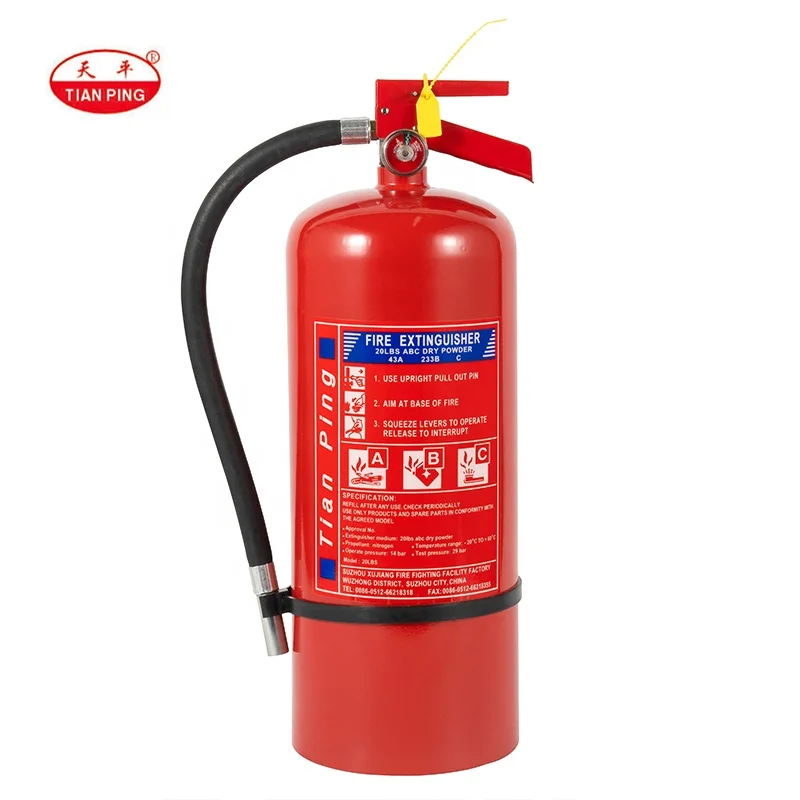

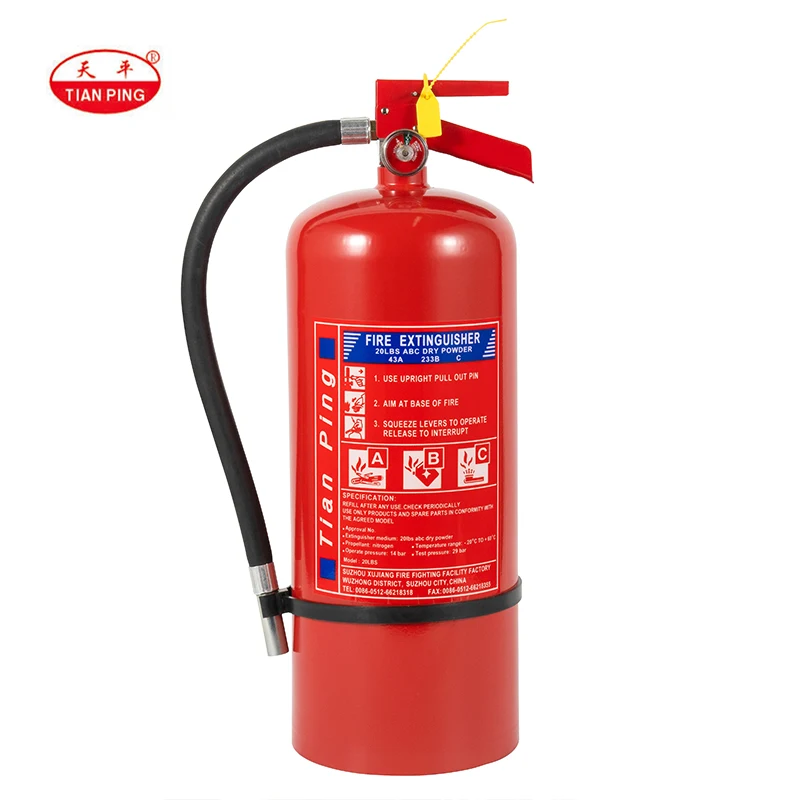

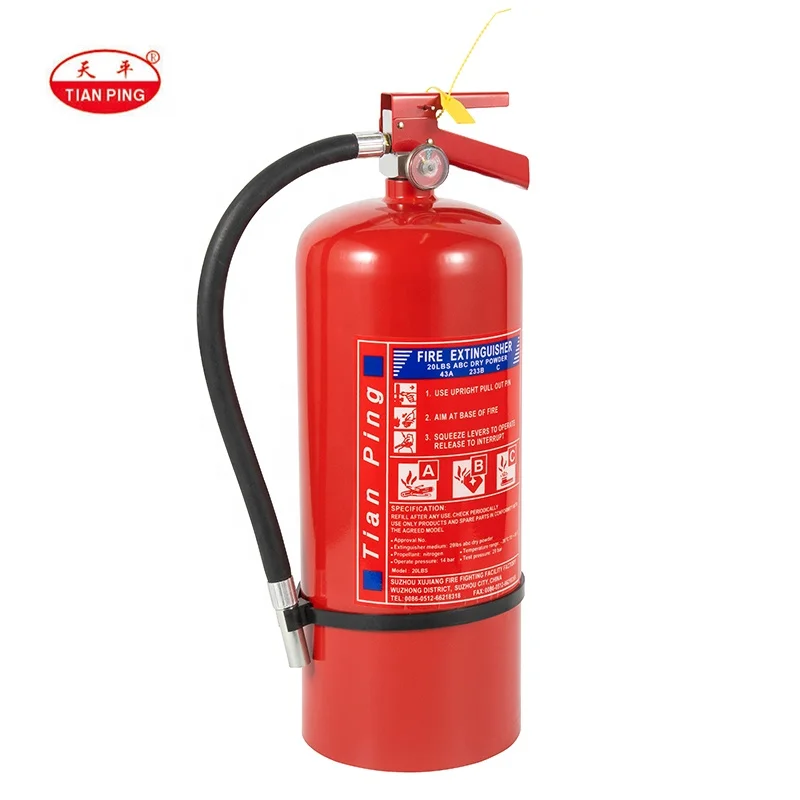

 20lbs Embedded fire extinguisher

2 Description :

 This type of fire extinguisher is designed and manufactuer according to America Market like Mexico , Chile etc. All the fire extinguisher are produced understand ISO quality system controled

High effective ABC dry powder filled in which is suitable for ABC fire .

3Type :

 2lbs, 5lbs, 10lbs , 15lbs and 20lbs

Model  No	XJ07-01	XJ07-02	XJ07-03	XJ07-04
Capicity	2LB	5LB	10LB	20LB
Out-Diameter(mm)	88	110	145	185
Cylinder Height(mm)	287	324	400	490
Volume(L)	1.4	2.65	5.65	11.3
Gross Weight(kg)	2	4.1	7.3	13.4
Cylinder Material	SPCC
Max Working pressure(bar)	18	18	18	18
Test pressure(bar)	29	29	29	29
Temperature Range(℃)	-20℃~+60℃
Fire Rate	5A21BC	8A34BC	21A113BC	34A183BC
Packing Size(mm)	29*19.5*39.5/6pcs	25*25*42.5/4	16*15.5*48.5	20*19.5*58
