Nomico Elektrisk Rullstol Rehabilitation Electric Wheelchair Prices Electrically Power Wheelchairs
- Category: >>>
- Supplier: Suzhou Ideal Medical Co. Ltd.
Share on (1600499393580):
Product Overview
Description
Certifications
Products Description

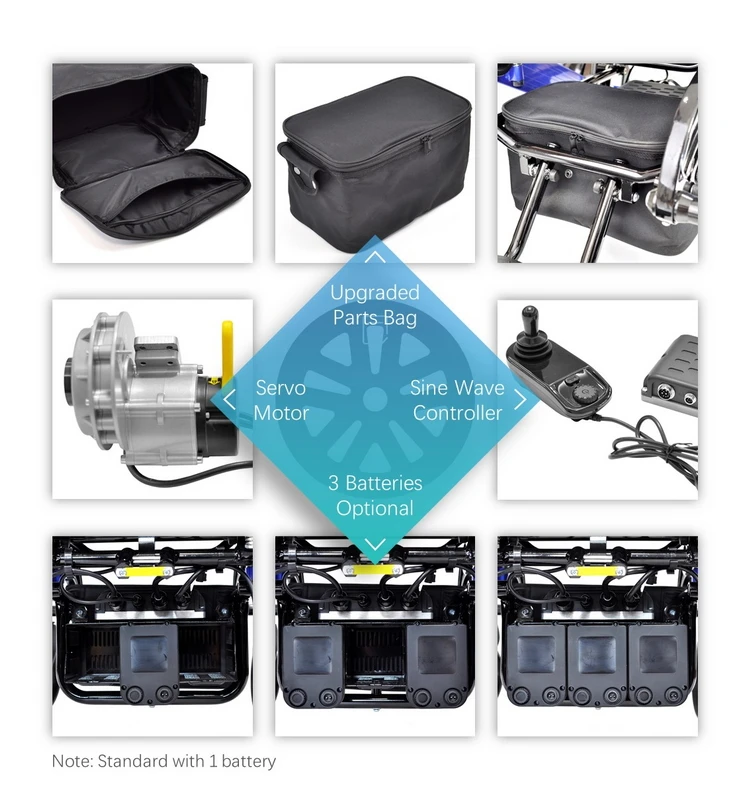

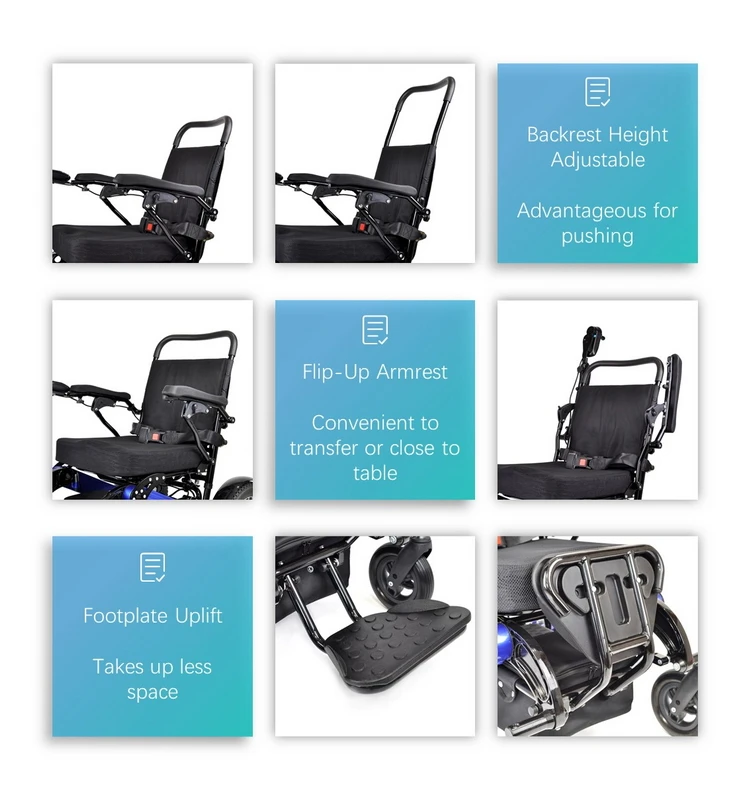

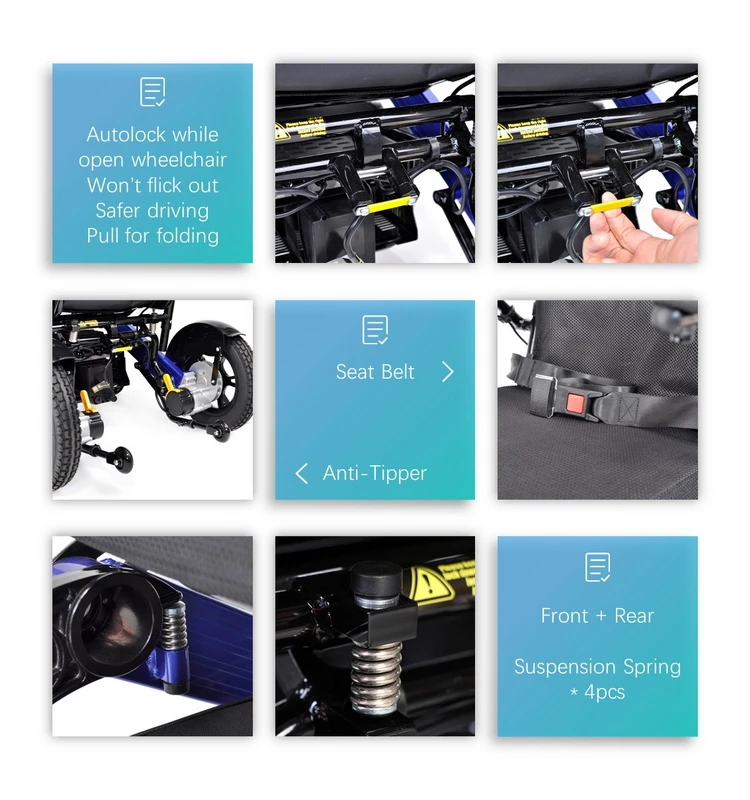

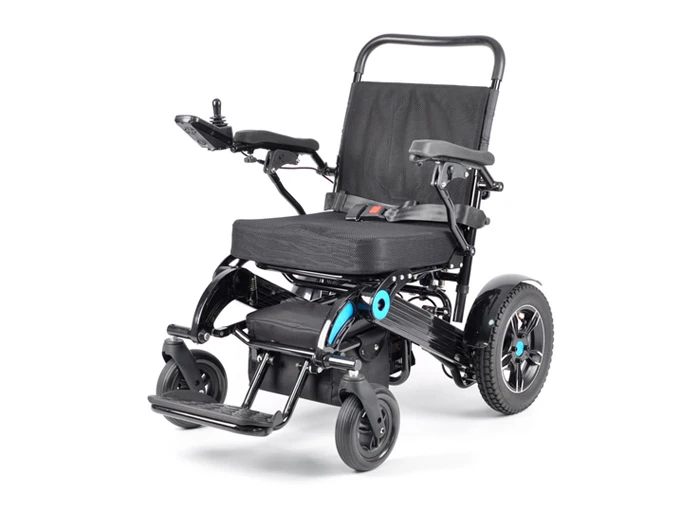

Details Images
Product Parameters
Parameter Name | Tiny 6 | Tiny 6L |

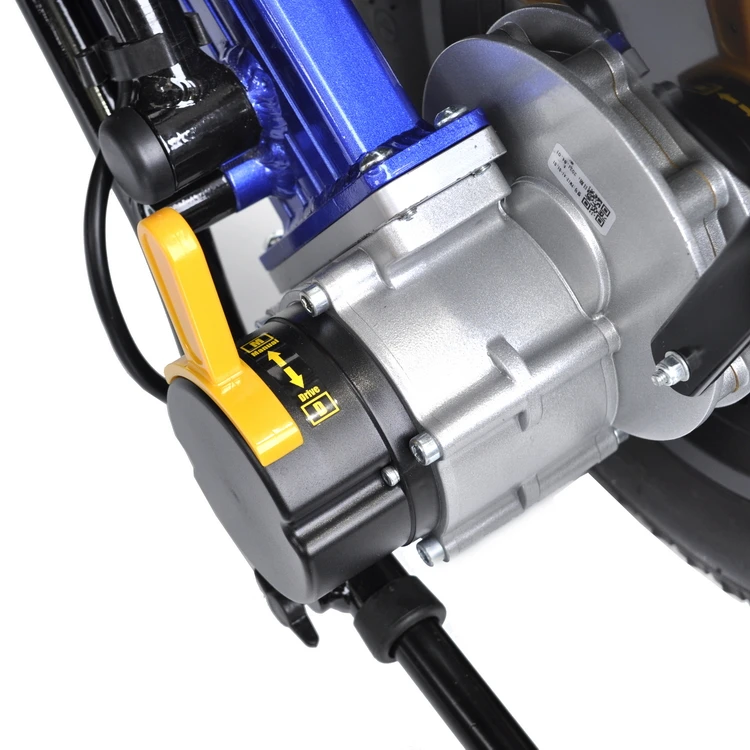

Brushless motor: | 220W*2, DC24V | 220W*2, DC24V |
Max. speed: | 8.0 km/h | 8.5 km/h |
Braking distance: | ≤ 1.0 m | ≤ 1.0 m |
Max. grade ability: | 12° | 15° |
Turning radius: | 80 cm | 85 cm |
Rear wheel: | 10 inch (Non-Pneumatic tire) | 12 inch (Pneumatic tire) (Tire pressure max. 2.5 Bar) |
Front wheel: | 8 inch | 8 inch |
N.W. (without battery): | 24.6 kg | 24.6 kg |
Max. safe weight capacity: | 120 kg | 120 kg |
Lithium battery: | 24V10Ah | 24V10Ah |
N.W. of battery: | 1.7 kg/pc | 1.7 kg/pc |
Max. driving distance: | 20 km/1 battery 40 km/2 batteries 60 km/3 batteries | 20 km/1 battery 40 km/2 batteries 60 km/3 batteries |
Charger DC output: | 24V2A | 24V2A |
Charger AC input: | 100 – 240V, 50/60Hz | 100 – 240V, 50/60Hz |
Measurements | Tiny 6 | Tiny 6L |
Seat width: | 450 mm | 450 mm |
Seat depth: | 440 mm | 440 mm |
Seat to floor: | 480 mm | 500 mm |
Backrest width: | 440 mm | 440 mm |
Width between armrest: | 470 mm | 470 mm |
Armrest to seat: | 210 mm | 210 mm |
Ground clearance: | 60 mm | 65 mm |
Wheelbase: | 550 mm | 600 mm |
Total length: | 920 mm | 1040 mm |
Total width: | 600 mm | 640 mm |
Total height: | 890 – 1040 mm (Height adjustable) | 910 – 1060 mm (Height adjustable) |
Folding size: | 600 x 340 x 670 mm (L*W*H=0.14 m3) | 640 x 340 x 740 mm (L*W*H=0.16 m3) |
Carton size: | 720 x 400 x 770 mm (L*W*H=0.22 m3) | 730 x 420 x 840 mm (L*W*H=0.26 m3) |
