Cheap Earth moving Machinery SL30WN 3ton 92 Kw 1.7cmb Wheel Loaders Front Bucket Loaders
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600499396056):
Product Overview
Description
Product information
Product parameters
SHANTUI SL30WN Technical specifications | ||||||||||
Operating weight | 10500 kg | |||||||||
Related loading | 3000 kg | |||||||||
Bucket capacity | 1.7 m3 | |||||||||
Maximum lifting force | 96 kN | |||||||||
Static tipping load (full turn) | 6000 kg | |||||||||
Dumping height (Extended/Long) | 2875（3057/3200） mm | |||||||||
Dumping reach (Extended/Long) | 955（906/886） mm | |||||||||
Engine model | Xichai CA6DF1D-12GAG2/Weichai WP6G125E22/Cummins 6BT5.9-C130 | |||||||||
Type | In-line, water-cooled, 4-cylinder, direct injection, turbocharged | |||||||||
Rated power | 92/92/97 kW | |||||||||
Rated speed | 2200 rpm | |||||||||
Displacement | 6.557/6.75/5.9 L | |||||||||
Maximum torque | 520/500/560 N·m | |||||||||
Minimum fuel consumption | 220/215/- g/kW·h | |||||||||
Gear | 1st | 2nd | 3rd | 4th | ||||||
Forward | 0~5.8 km/h | 0~10.8 km/h | 0~18.4 km/h | 0~35.0 km/h | ||||||
Reverse | 0~7.8 km/h | 0~27.0 km/h | - | - | ||||||
Drive system | Four-wheel drive | |||||||||
Gradeability | Reverse | |||||||||
Maximum traction | 95 kN | |||||||||
Brake system | Air over oil four-wheel dual-loop disc brake system Automatically air-cut brake, disc brake | Air over oil four-wheel dual-loop disc brake system Automatically air-cut brake, disc brake | ||||||||
Type | Articulated type, full-hydraulic power steering | |||||||||
Steering | Maximum steering angle | 36° each direction | ||||||||
System | The center of outside tire | 5300 mm | ||||||||
The center of outside bucket | 6004 mm | |||||||||
Type | 17.5-25 PR | |||||||||
Wheel base | 2700 mm | |||||||||
Tires | Pattern level Center distance of tires | L3 1856 mm | ||||||||
Wheel base | 2700 mm | |||||||||
Hydraulic cycle time (rated load in bucket) | Lifting time/ Lifting, dumping and lowering | 5.5/9.7 s | ||||||||

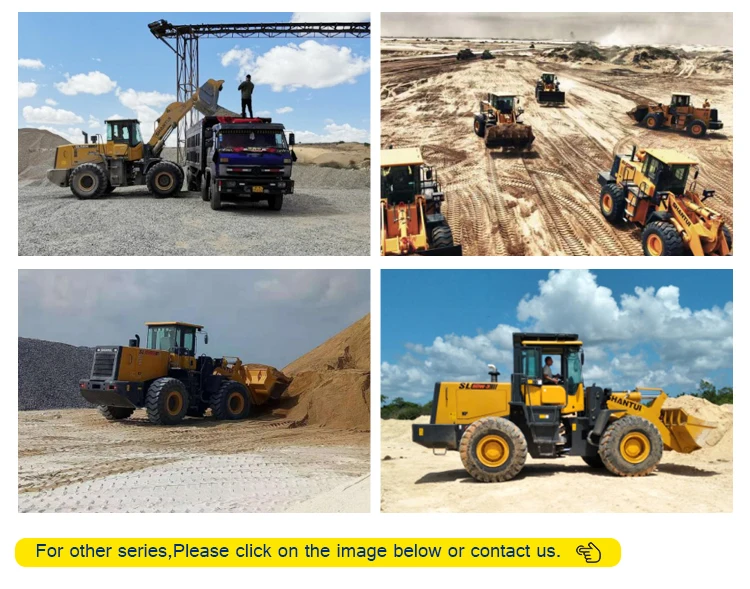

Successful construction cases
SHANTUI company have been manufactured in china for nearyly 30 years.We offer compact ,small and midsize loaders to meet the needs of every application.
SHANTUI Mode:SL30W is 3 tons ;SL50 is 5 tons ;SL60W is 6 tons.
SL30WN loader is a medium and low power fixed shaft loader product developed with the application of latest technologies and modern design methods and adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, light and flexible operations, and reliable quality. The speed choice of four forward gears and two reverse gears and the high dumping height make the machine especially suitable for shoveling, loading, and handling.
SHANTUI Mode:SL30W is 3 tons ;SL50 is 5 tons ;SL60W is 6 tons.
SL30WN loader is a medium and low power fixed shaft loader product developed with the application of latest technologies and modern design methods and adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, light and flexible operations, and reliable quality. The speed choice of four forward gears and two reverse gears and the high dumping height make the machine especially suitable for shoveling, loading, and handling.

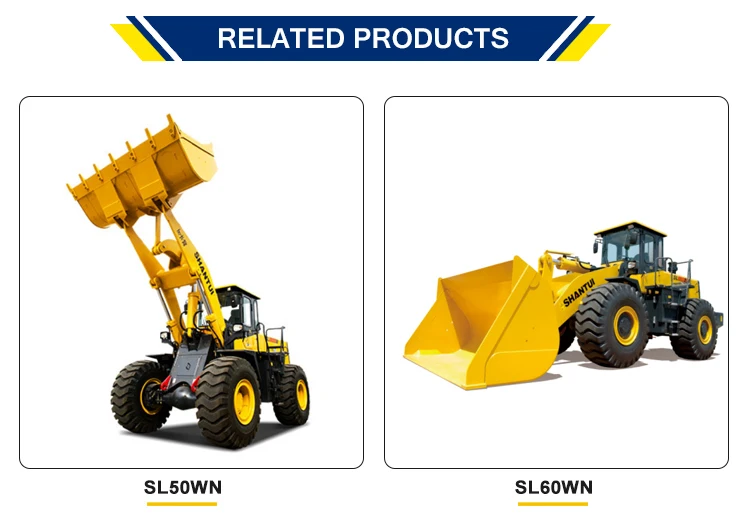

Related products

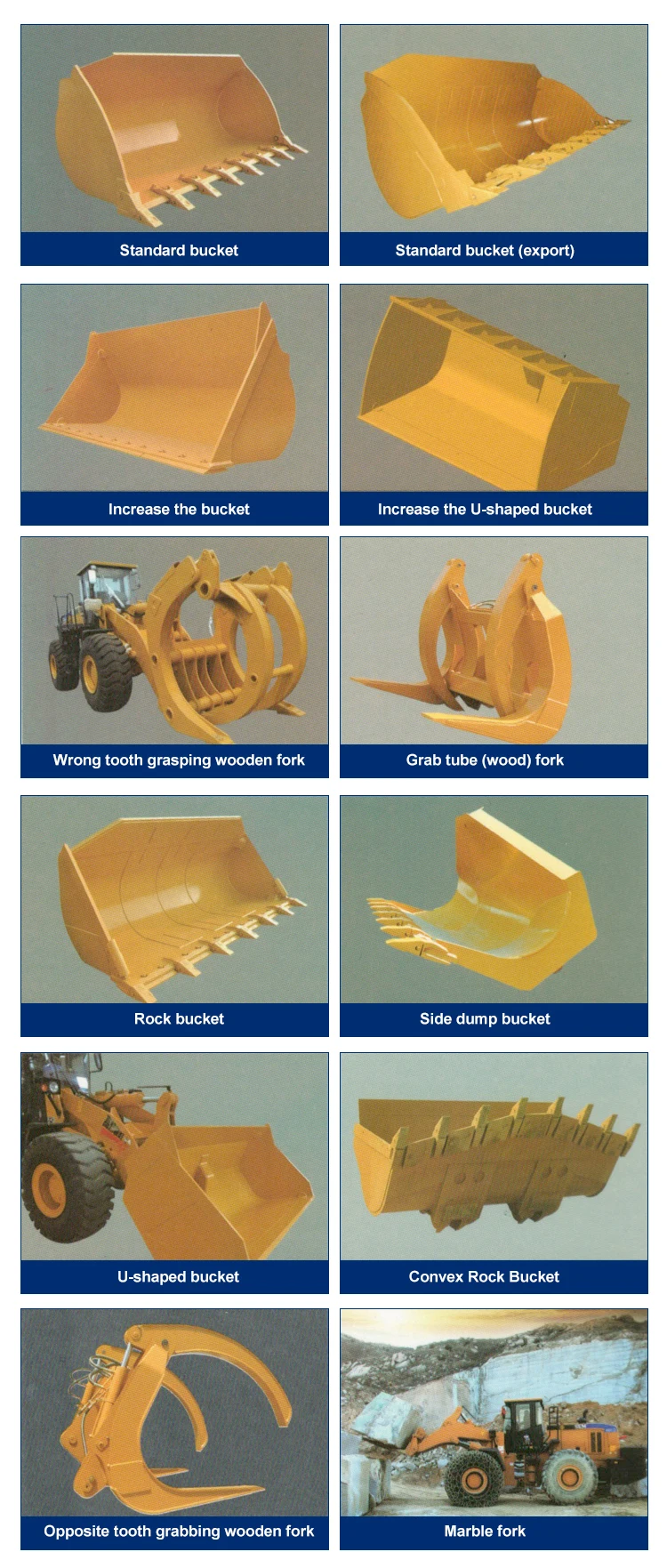

We can accept customize the attachments according to customer requirements.Now we have more than 60 kinds of attachments which can match whith the loaders.According to the different working environment and construction demands ,different kinds of attachments can be selecte to made your job much simpler and easier.

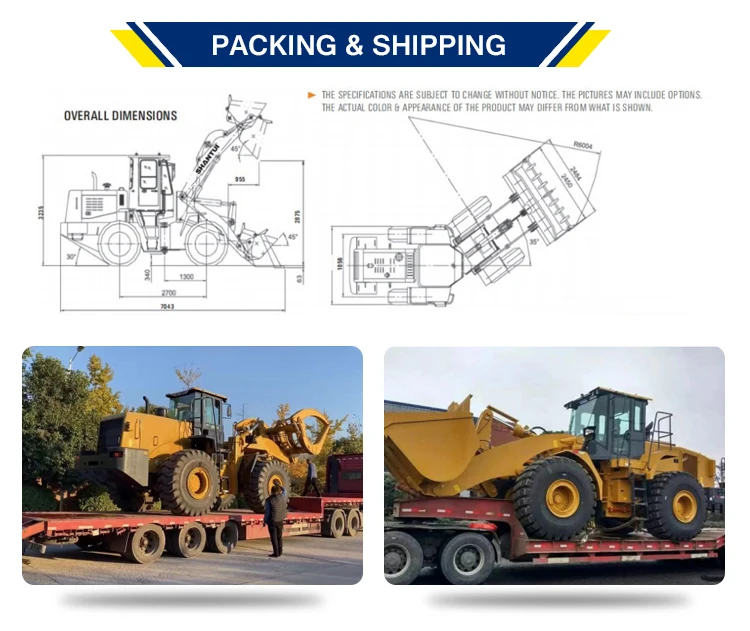

Packing & Delivery
About us
FAQ
Please feel free to contact us in the following contacts or just send your inquiry On line.Don't mind calling me if you like.
It would be great if you could provide us the following information before you send inquiry:
1:Which model we feel interesting?
2:Which rated product we want?
3:About price,FOB Or CIF ?
It would be great if you could provide us the following information before you send inquiry:
1:Which model we feel interesting?
2:Which rated product we want?
3:About price,FOB Or CIF ?
